Description
Brushed ESC Speed Controller 5A Dual Way 2-3S w/ BEC Mixed Control Bidirectional RC Cars Boats Tanks Vehicles Models Spare Parts
The Brushed ESC Speed Controller offers precise control for your RC vehicles, including cars, boats, and tanks. Constructed from high-quality electronic parts, this ESC features a compact design with dimensions of 45mm x 21mm and wire lengths of 134mm and 104mm. It supports a peak current of 7A and operates on a voltage range of 6V-14V. The built-in BEC provides a 5V 1.5A output. The controller includes two operational modes: Mixing mode for synchronized motor control and Dual independent mode for separate motor management. Safety features include runaway, power failure, overcurrent, and overheat protections, ensuring reliable performance.
Description:
Item Name:ESC speeed controller
Materail:Electronic parts
Color:As shown

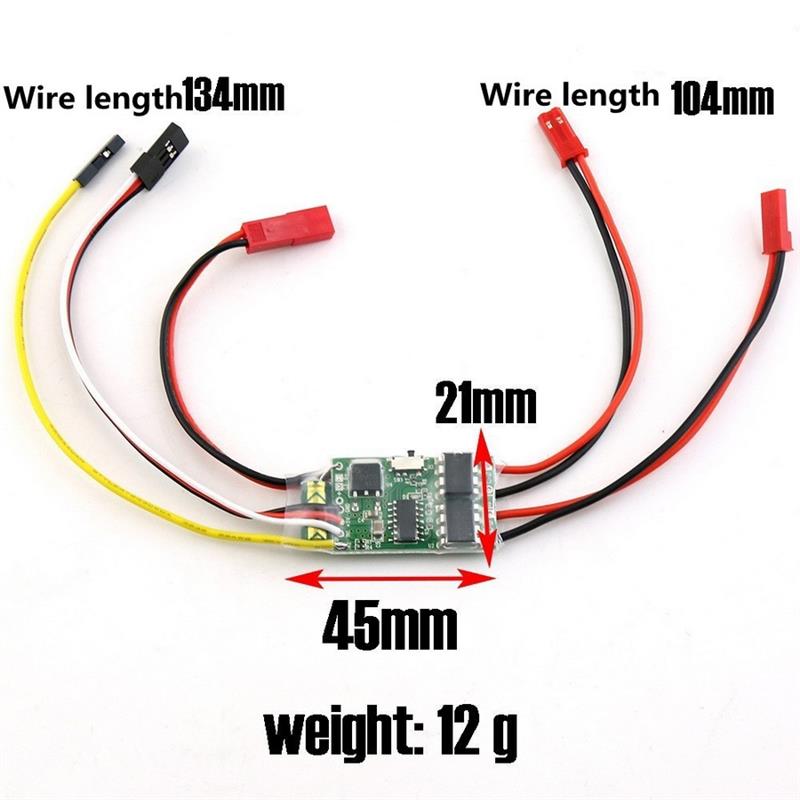

Product Size:Length is 45mm,width is 21mm,wire length is 134mm and 104mm
Product Weight:About 12g
Compatible Models:RC Cars vehicles boats tanks,tracks or DIY models
Specification:
Peak Current:7A
Support Voltage/Current:6V-14V,5A one-way,2-3s Lipo
BEC Output:5V 1.5A

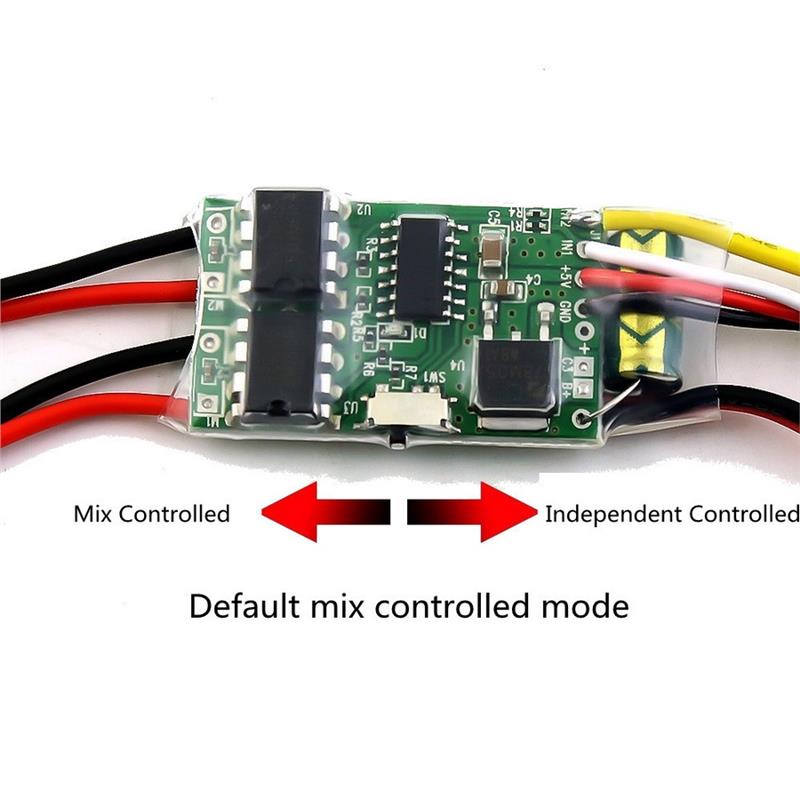

About Two Modes:
Mixing mode (default) (throttle/steering mode): 2 or 3 channels (2 channels are recommended, because 2 channels automatically return to the center) to control the throttle, 1 channel (or 4 channels) to control the speed difference steering, the throttle ratio is 100%, and the steering Scale 100%, steering priority. Suitable for: Tanks (in this mode, gun control can play tanks), 4-wheel drive cars
Dual independent: it is equivalent to two independent ESCs
Two-way synchronization: In the mixing mode, if the single yellow wire is not connected, or the single yellow wire is connected to the receiver ‘-‘, the two motors will be controlled by the accelerator synchronously
Three Protections:
With runaway protection (loss of signal (in an accident, the signal line is broken), for safety, motor protection, the accelerator needs to be returned to the center and unlocked again.
Power failure protection: The power supply voltage is lower than 4V, the ESC restart protection (for example: high current discharge, the voltage drop of the battery with poor performance is too large, the ESC protection, the motor stops after the protection, and after the motor stops, the battery voltage recovers, Back to the neutral point, you hear the motor unlock again)
There is overcurrent protection (but repeated overcurrent in use may also burn.)
With overheat protection (130 degrees)
Each group of motor wires is directly connected to the motor, do not mix it up, otherwise it will damage the ESC
Connecting Scheme Please Click Here
Package Included:
1 x Brushed ESC 5A
