Description

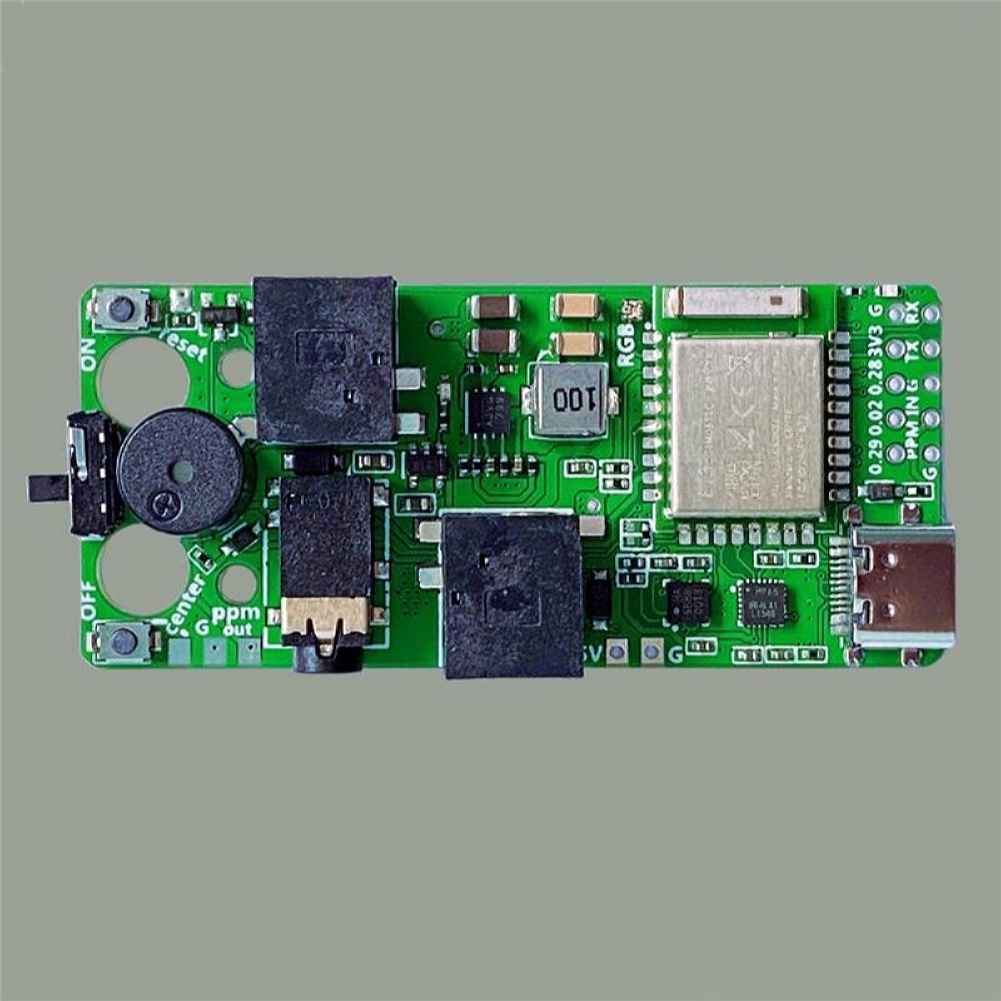

DTQSYS Head Tracker Supports 2S-6S Input For RC Drone FPV Goggles
The DTQSYS Head Tracker is designed for RC drone enthusiasts, offering seamless integration with FPV goggles. It supports a 2S-6S battery input and features a 5V 2A BEC, RGB lighting, power switch, buzzer, and PPM IN/OUT TV protection circuit. The 3-axis tracking device can be utilized for FPV head tracking, joystick control, and general angle management. It operates in both wired and wireless modes, ensuring smooth and responsive head movement. The simple setup involves treating the head tracker as a student emitter, assigning translation and tilt channels. Ensure compatibility with your FPV goggles’ voltage requirements to avoid damage.
Overview:

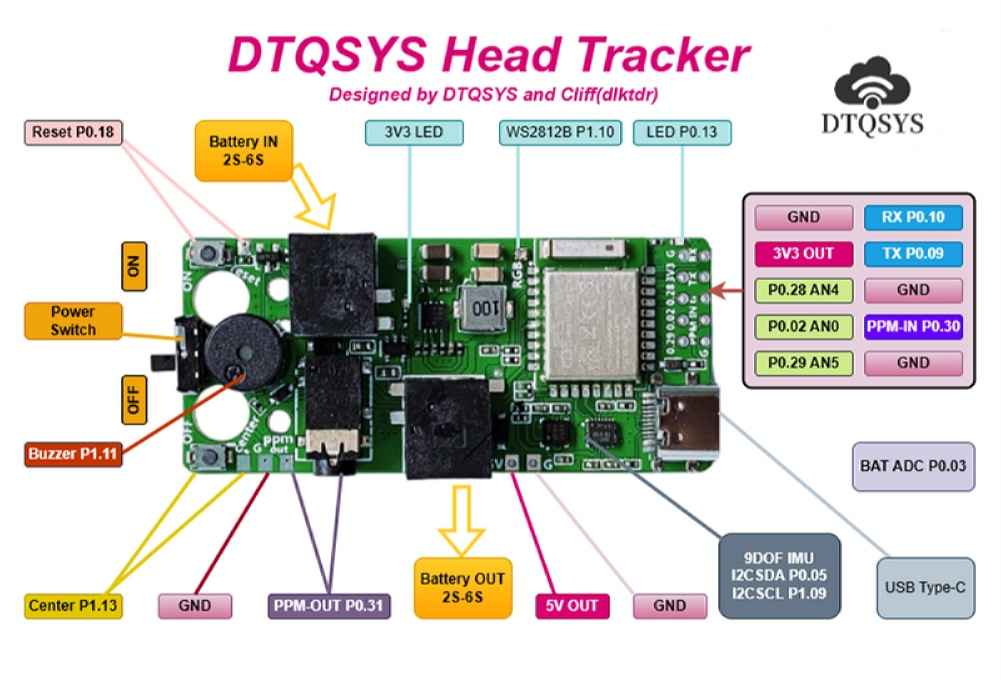

DTQSYS head tracker integrates 5V 2A BEC (supports 2S-6S battery input), RGB, power switch, buzzer, battery voltage, PPM IN / PPM OUT TV protection circuit, reset button and center button, etc. Detects that the head is recording The device is 3-axis and can be used for a variety of applications, including FPV head tracking, universal connection, joystick, general angle control, etc. DTQSYS head tracker has wired and wireless modes. Use the wired mode for unrivaled smoothness and fast movement. Wireless mode can realize head movement without worrying and hanging the trainer cable – compared with wired mode, when the head movement speed is high, little delay and sawtooth feeling is obvious.

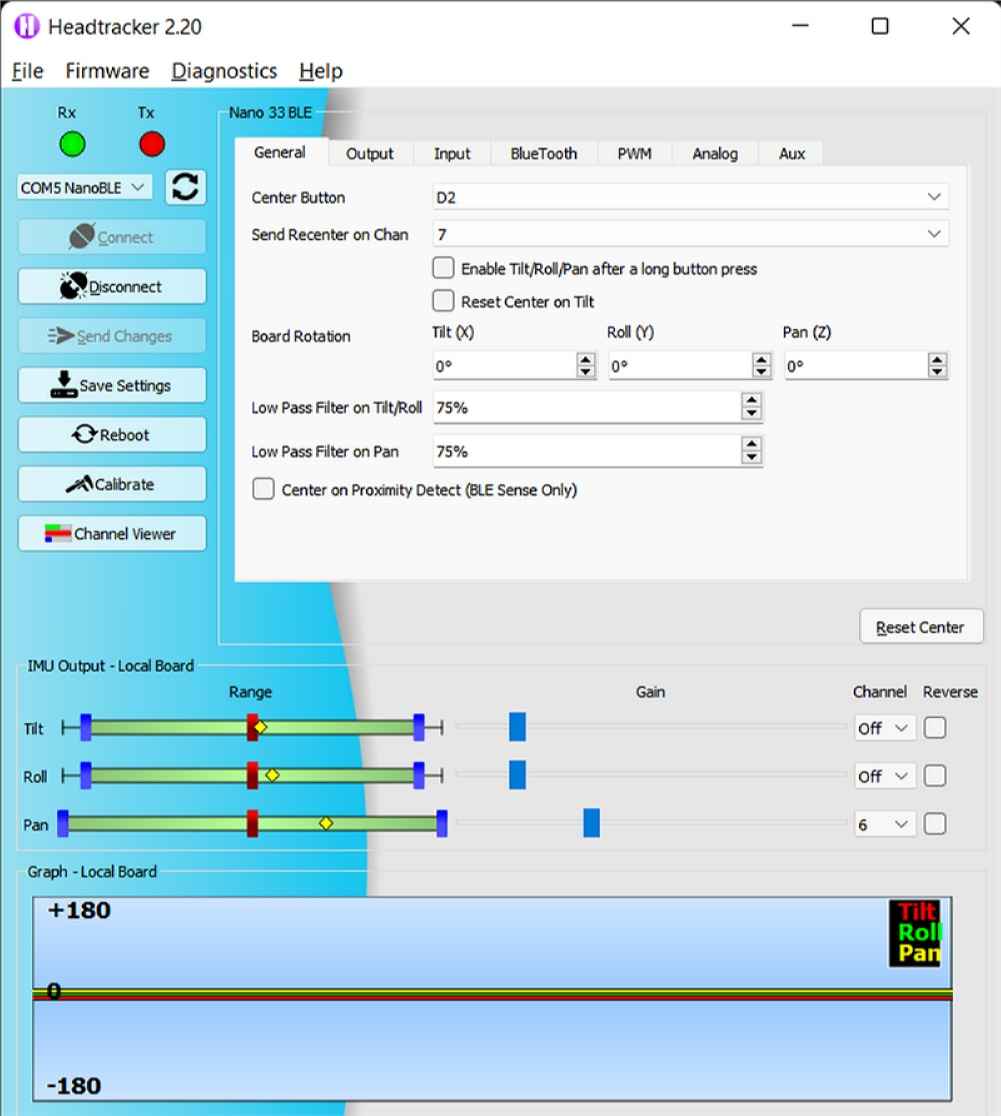

Setting up the tracker is very simple and straight forward. Treat the HT as a student emitter and install the RC emitter as a friend’s boxing (training) master. Do not assign flight control to student transmitters, just assign translation and tilt channels (default chapters 7 and 8) HT!
You can find the software and hardware guide here.
Note: HT module supports 2S-6S battery input. 2S-6S direct supply power to FPV goggles. You need to pay attention to the operating voltage range of the FPV goggles, otherwise the FPV goggles will be damaged.
Package Included:

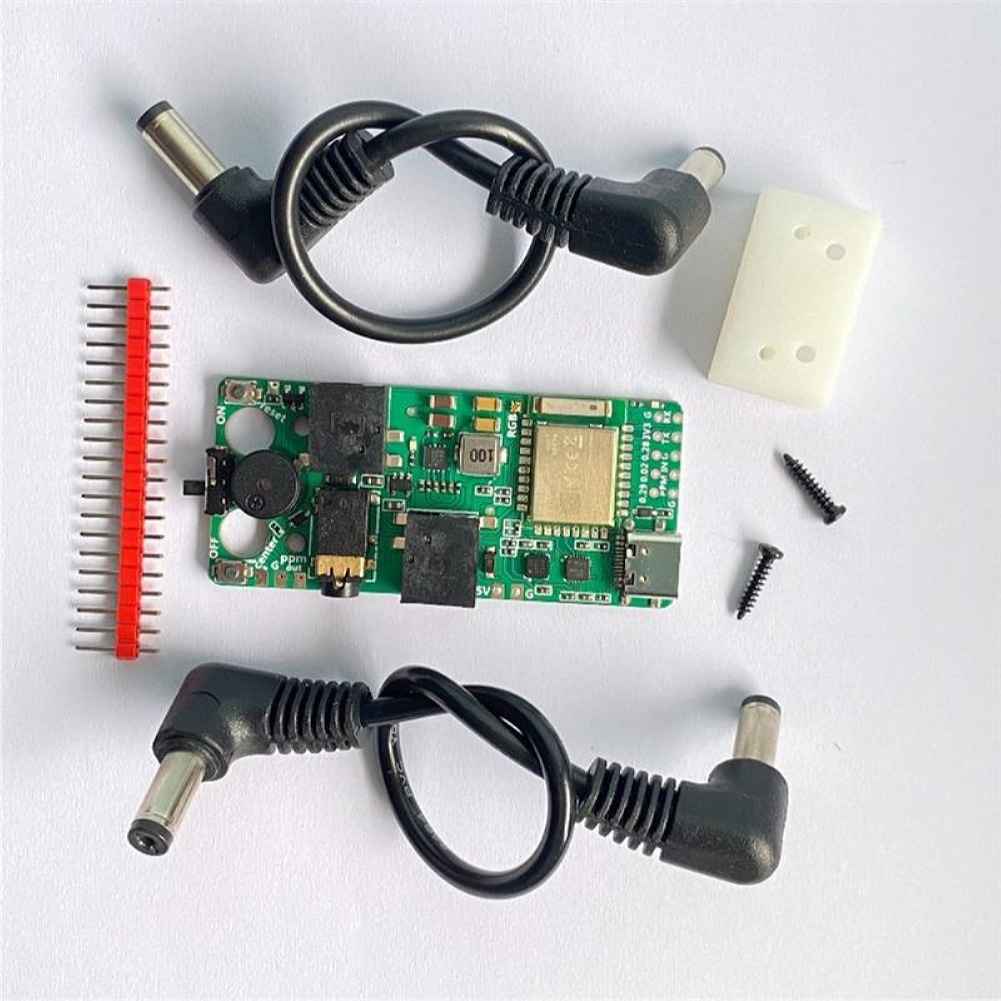

1 x Head Tracker
Toys & Games > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicle Parts > Remote & App Controlled Vehicle Transmitters
