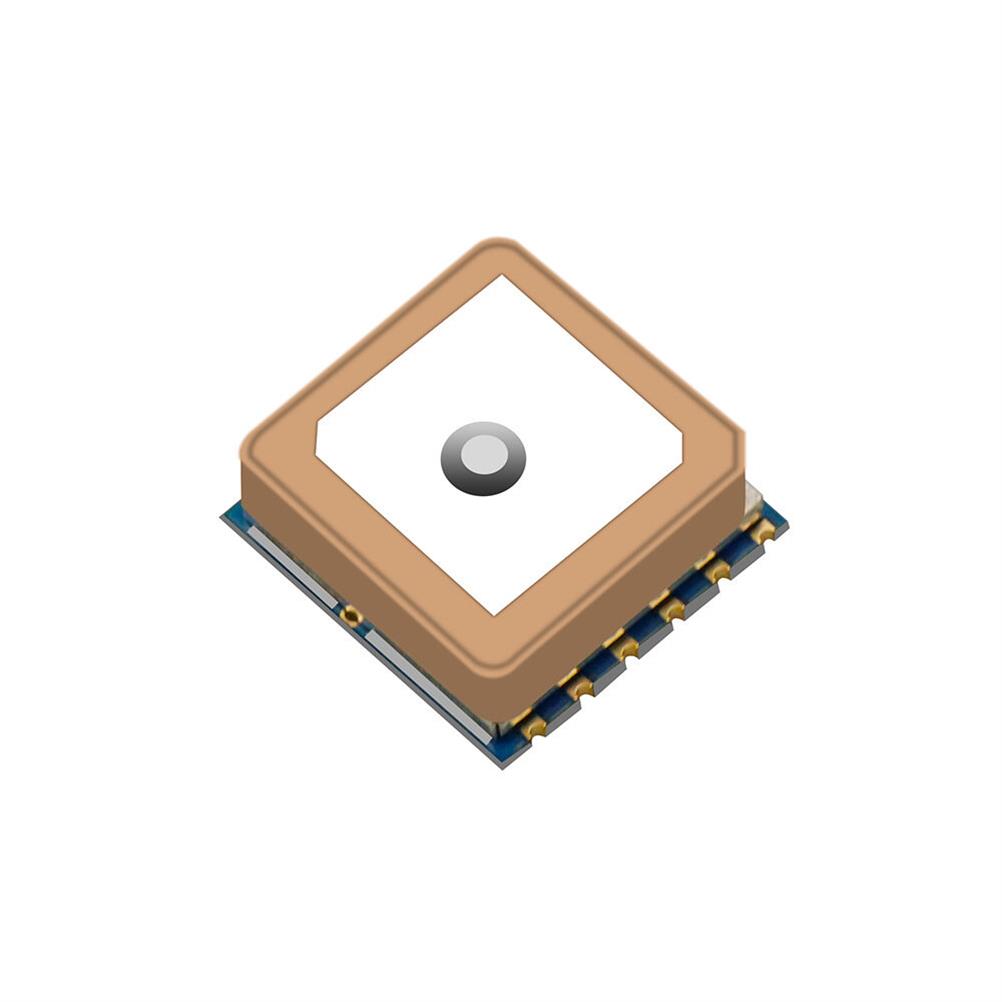

Beitian BE-166 GPS Module With Antenna UBX M10050 GNSS TTL Level for Track Compatible RC Model Airplane FPV Drone DIY Parts
Specifications:
Brand Name: Beitian
Item Name: BE-166
Size: 16.2*16.2*7mm
Weight: 6g
Encapsulation: 12 PIN surface mount package
Chip Characteristics:
Chip: M10050
Frequency: GPS L1 C/A, QZSS L1 C/A/S,BDS B1I/B1C, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Operating Mode: GPS+BDS+GALILEO+SBAS+QZSS
Sensitivity:
Track: -166dBm
Re-arrest: -160dBm
Cold Start: -148dBm
Hot Start: -160dBm
Precision:
Horizontal Accuracy: 1.5m CEP 2D RMS SBAS Auxiliary (for Open Sky)
Speed Accuracy: 0.05m/s
Dynamic Heading Angle Accuracy: 0.3 deg
1PPS Time Accuracy: RMS 30ns, 99% 60ns
Start Time:
Cold Start: 27s
Hot Start: 1s
Assisted Start: 1s
Output Data:
Baud Rate: 4800bps – 921600bps, default 38400bps
Output Level: TTL level
Output Protocol: NMEA,UBX
NMEA Sentences: RMC, VTG, GGA, GSA, GSV, GLL
Update Frequency: 0.25Hz-18Hz, default 1Hz
Second Pulse: Configurable from 0.25 Hz to 10 MHz, the default period is 1s, and the high level lasts for 100ms
Work Restrictions:
High: 80,000m
Speed: <500m/s
Gravitational Acceleration: <4g
Power Consumption:
Voltage: DC 2.7V-3.6V, typical: 3.3V
Current: Normal 23mA/3.3V
Surroundings:
Operating Temperature: -40 ??C ~ +85??C
Storage Temperature: -40??C ~ +105??C
Pin Definition:
| PIN | Name | I/O | Describe | Characteristic |
| 1 | RXD | I | UART communication interface, TTL level | GPS data input pin |
| 2 | TXD | O | UART communication interface, TTL level | GPS data output pin |
| 3 | GND | G | ground | ground |
| 4 | VCC | I | Main Power Supply, DC input | DC 2.7V-3.6V, typical: 3.3V |
| 5 | V_BCKP | I | Backup power | Power Supply |
| 6 | 1PPS | O | 1PPS, low level before positioning, after positioning, there is a second pulse output with a period of 1s and a high level of 100ms | The pulse can be used for synchronization or timing, please leave it dangling if not used |
| 7 | NC | – | dangling | dangling |
| 8 | NC | – | dangling | dangling |
| 9 | NC | – | dangling | dangling |
| 10 | NC | – | dangling | dangling |
| 11 | NC | – | dangling | dangling |
| 12 | GND | G | ground | ground |
Package Included:
1x Beitian BE-166 GPS Module
Additional information
| Weight | 0.007 kg |
|---|
