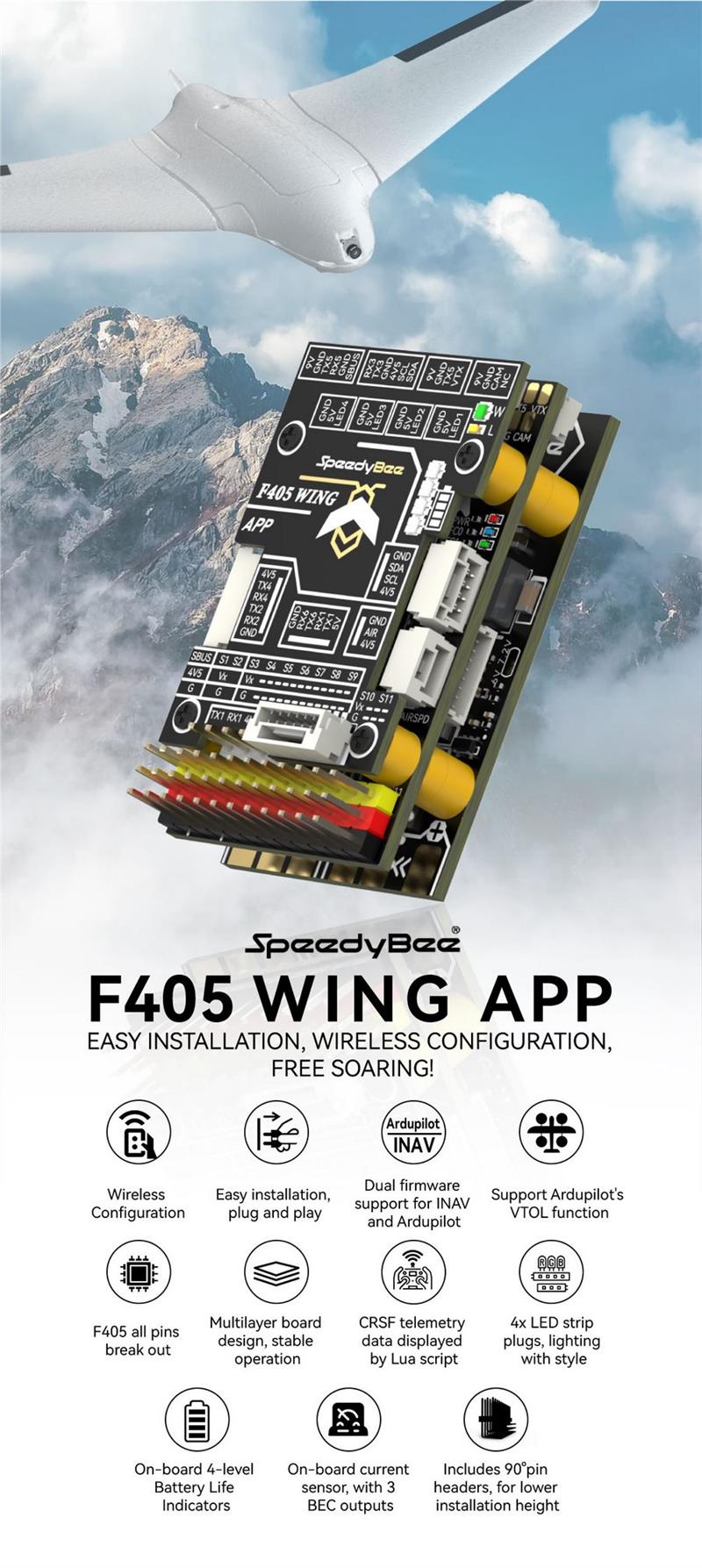

SpeedyBee F405 WING APP Fixed Wing Flight Controller Support Ardupilot VTOL for RC Airplane

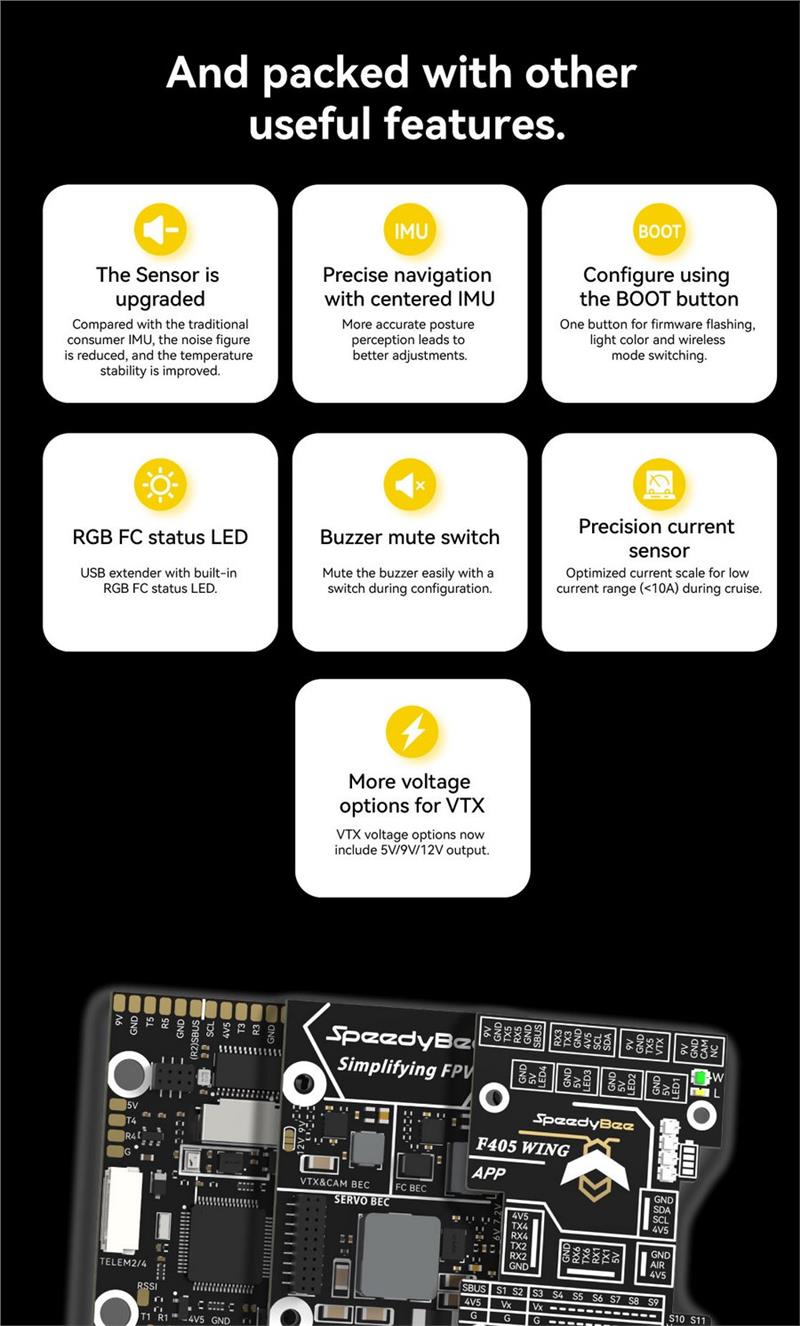

The SpeedyBee F405 WING APP Fixed Wing Flight Controller is designed for RC airplanes, offering robust support for Ardupilot VTOL systems. It features an STM32F405 MCU, ICM-42688-P IMU, and SPL006-001 barometer for precise control. The controller includes six UART ports and 12 PWM outputs, accommodating various peripheral connections. Its built-in OSD chip and MicroSD card slot enhance functionality, while the integrated BEC outputs ensure stable power supply. The wireless board supports BLE, Wi-Fi, and Bluetooth SPP modes for seamless configuration via popular apps. With a weight of just 8.9g, it provides lightweight yet powerful performance for your RC projects.
Specifications:
|
Product Name

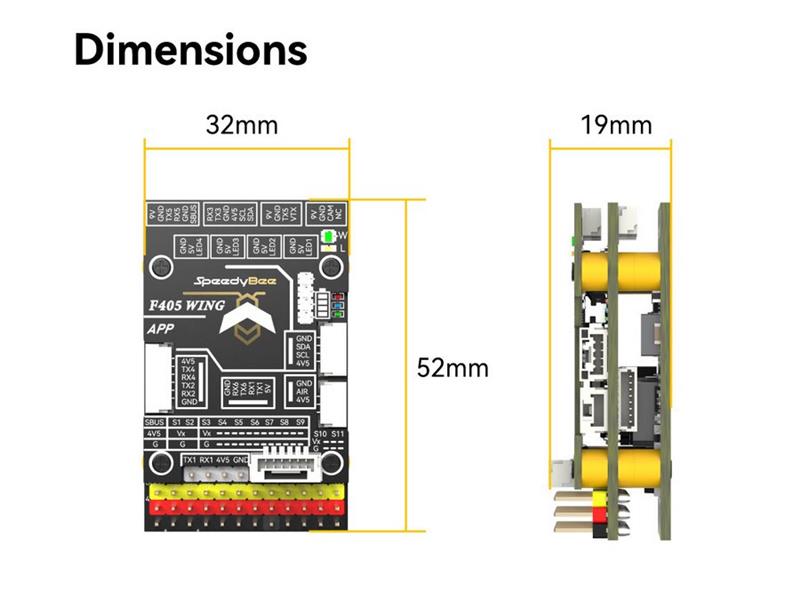

SpeedyBee F405 WING FC board
|
MCU
STM32F405,168MHz,1MB Flash
|
IMU(Gyro&Accelerometer)
ICM-42688-P
|
Barometer
SPL006-001
|
OSD Chip
AT7456E
|
Blackbox
MicroSD Card Slot
|
UART

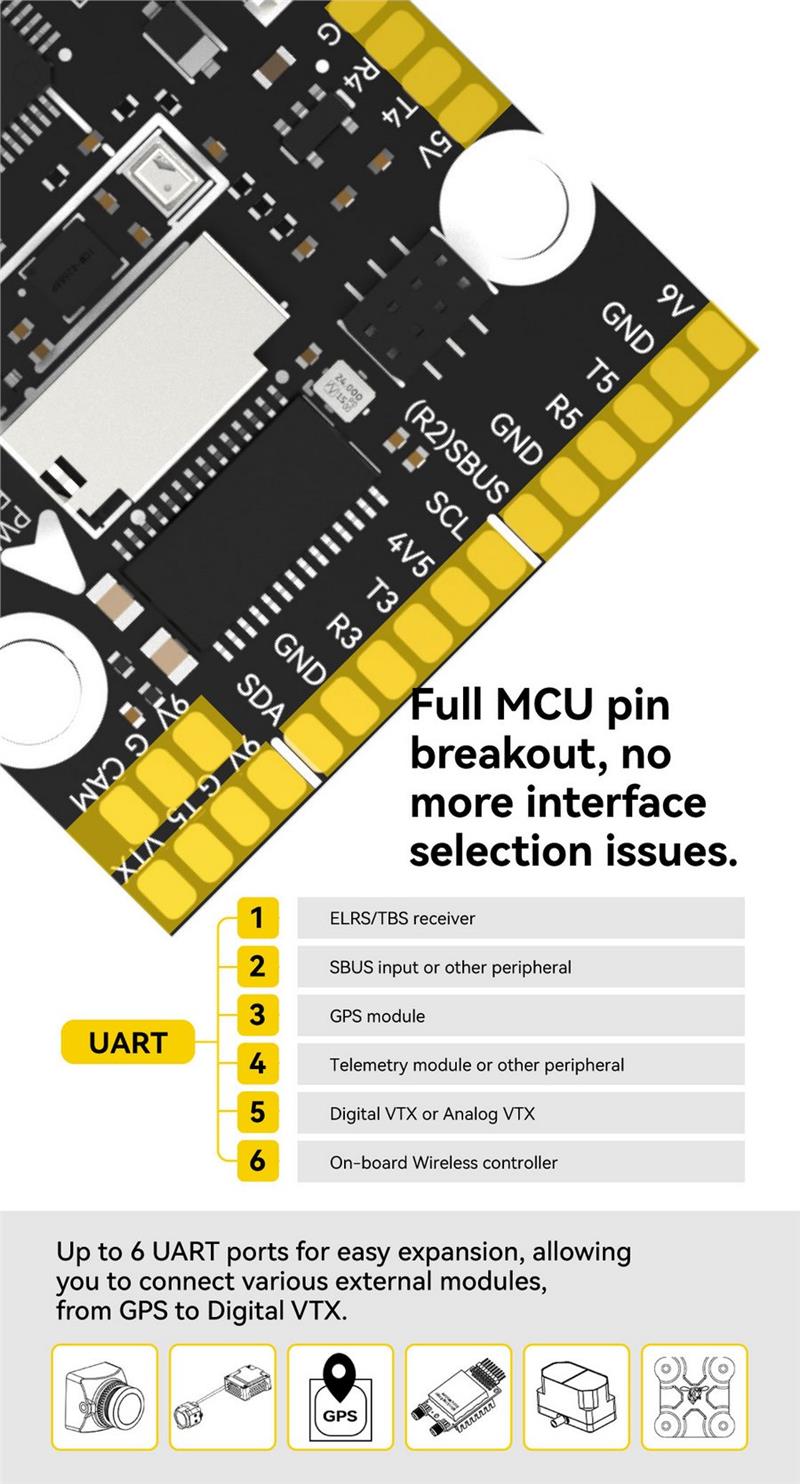

6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))
|
I2C
1x Used for magnetometer, digital airspeed sensor
|
ADC
4x (VBAT, Current, RSSI, Analog AirSpeed)
|
PWM

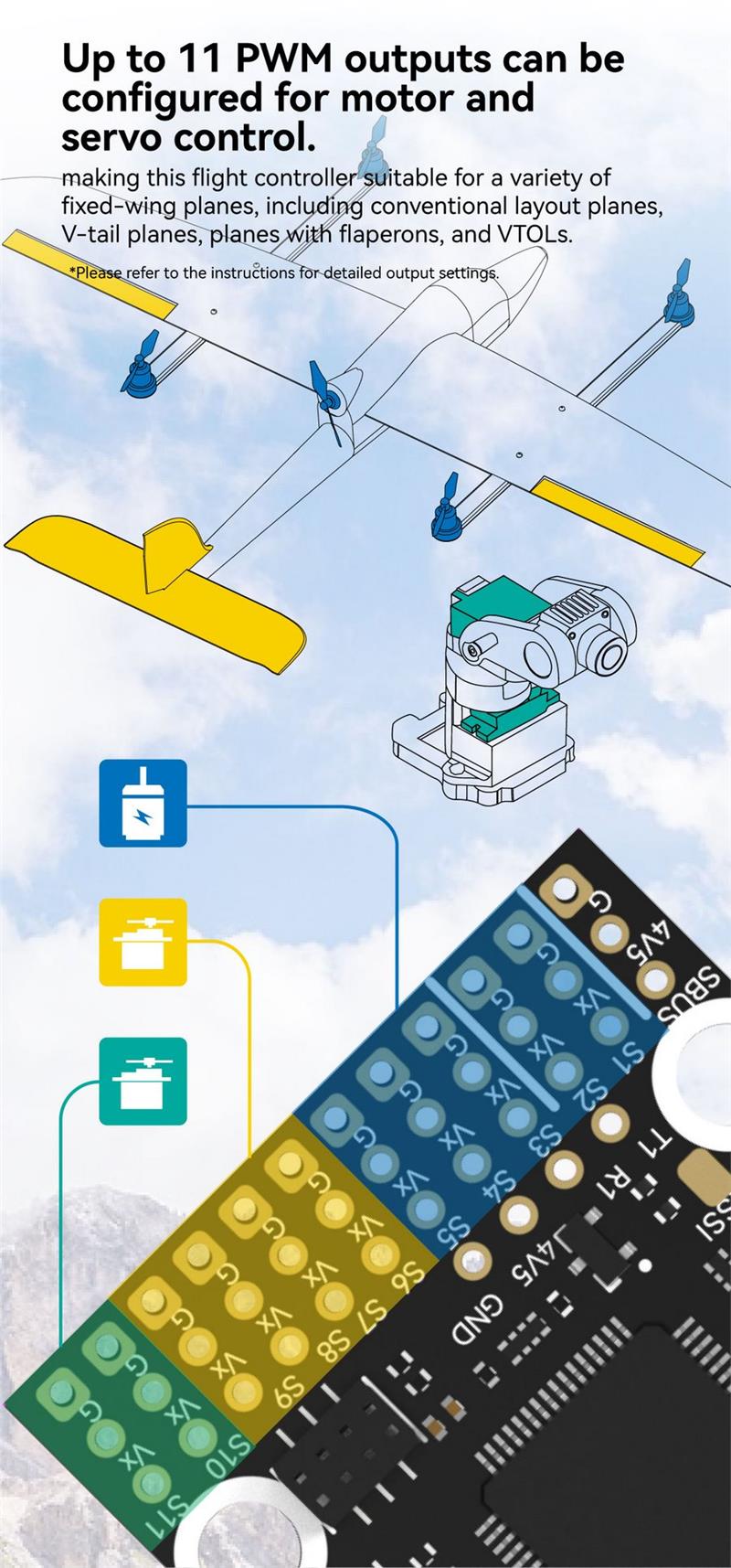

12x (11+ ‘LED’ pad)
|

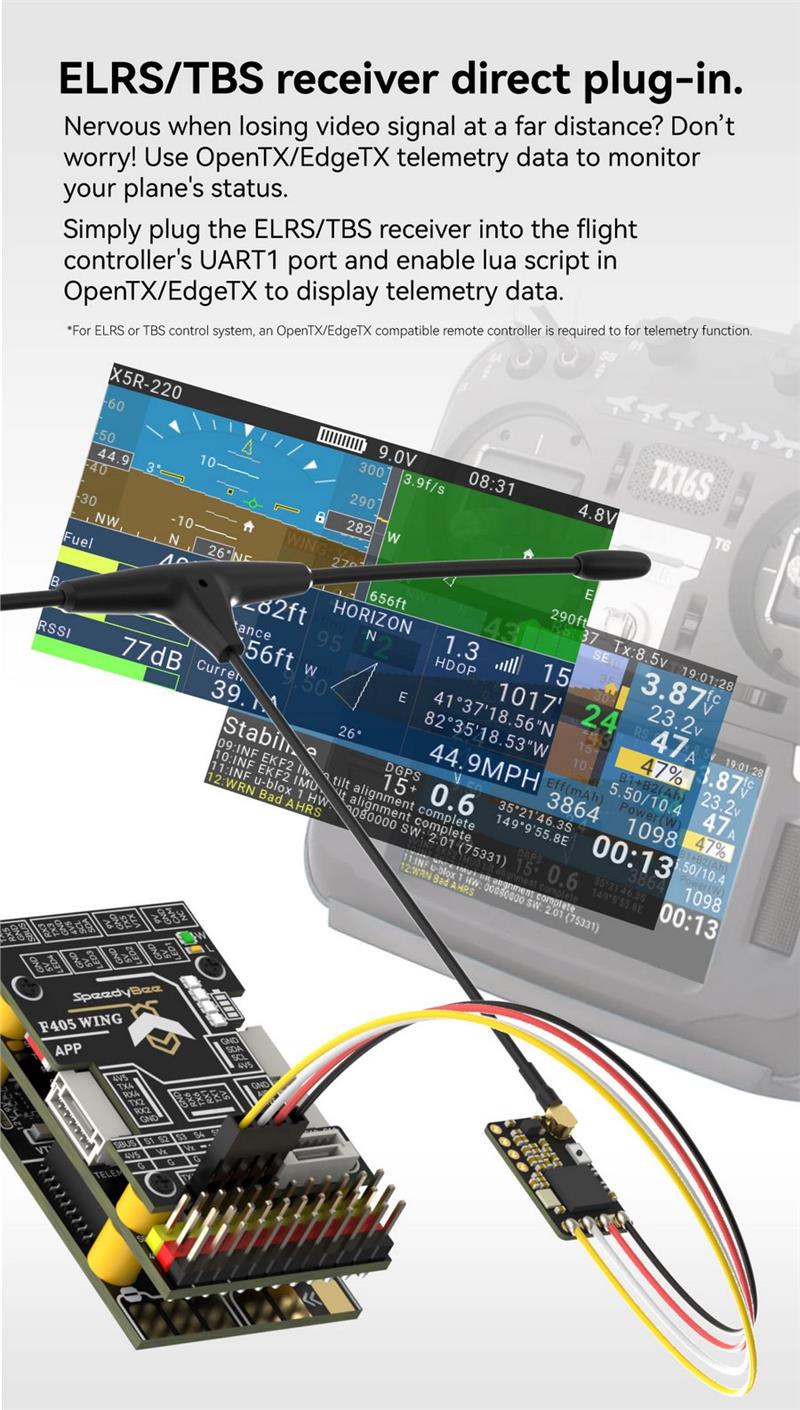

ELRS/CRSF receiver
Supported,connected to UART1
|
SBUS
Built in inverter for SBUS input (UART2-RX)
|
LED
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
|
RSSI
Supported,Named as RS .
|
Supported FC Firmware

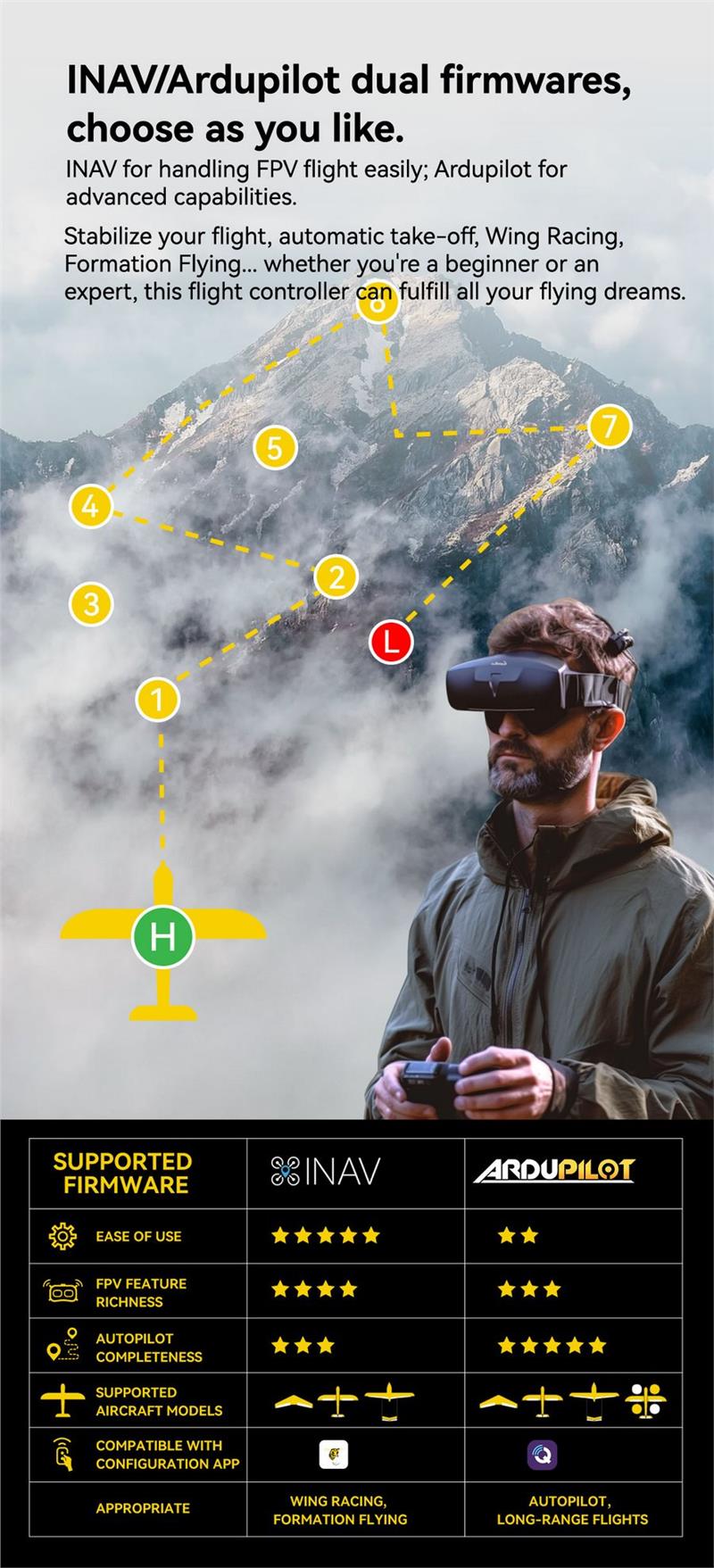

INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING
|
Weight
8.9g
|
Product Name
SpeedyBee F405 WING PDB board
|
Input Voltage Range
7~36V (2~6S LiPo)
|
Battery Voltage Sensor
Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
|
Battery Current Sensor
90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
|
TVS Protective diode
Yes
|

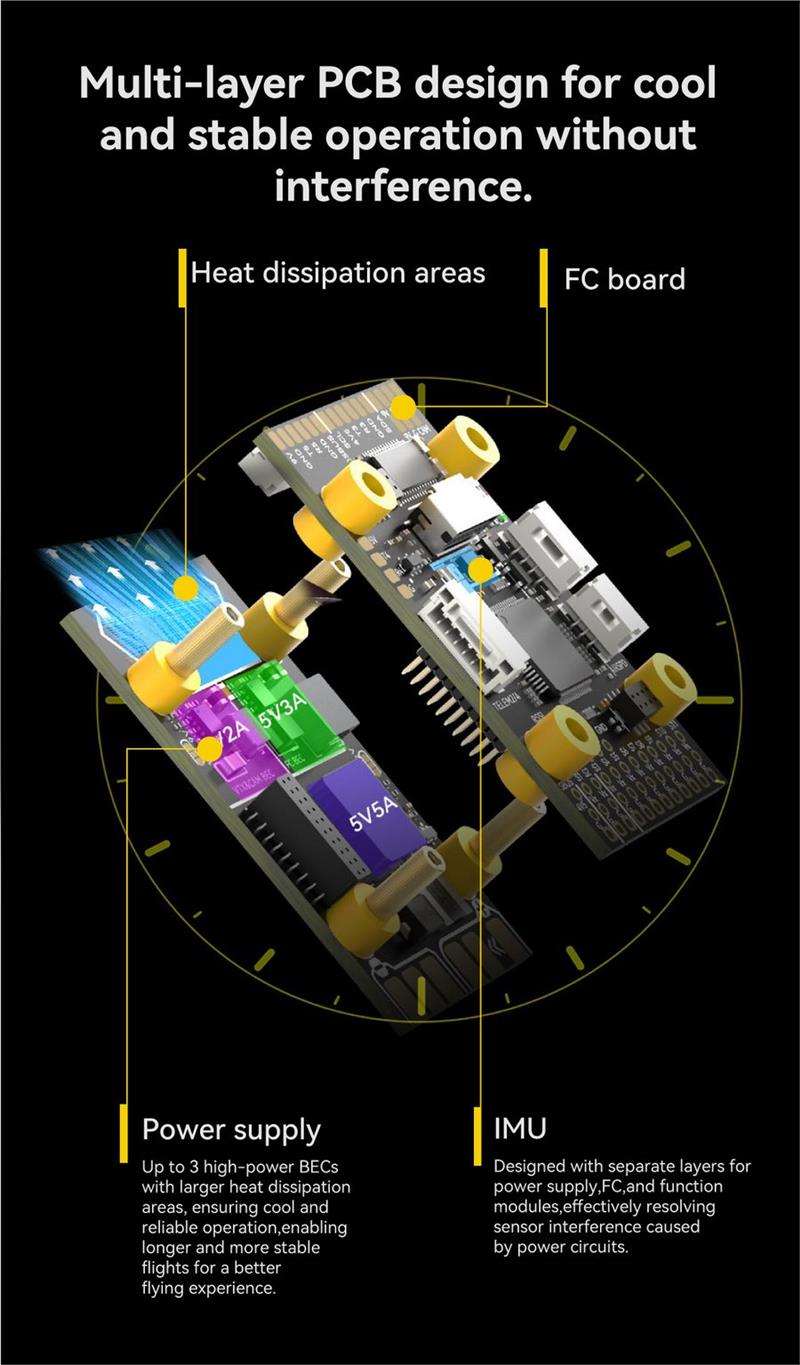

FC BEC output
Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
|
VTX BEC output
Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
|
Servo BEC output
Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.
|
Weight
11.4g
|
Product Name
SpeedyBee F405 WING Wireless board
|

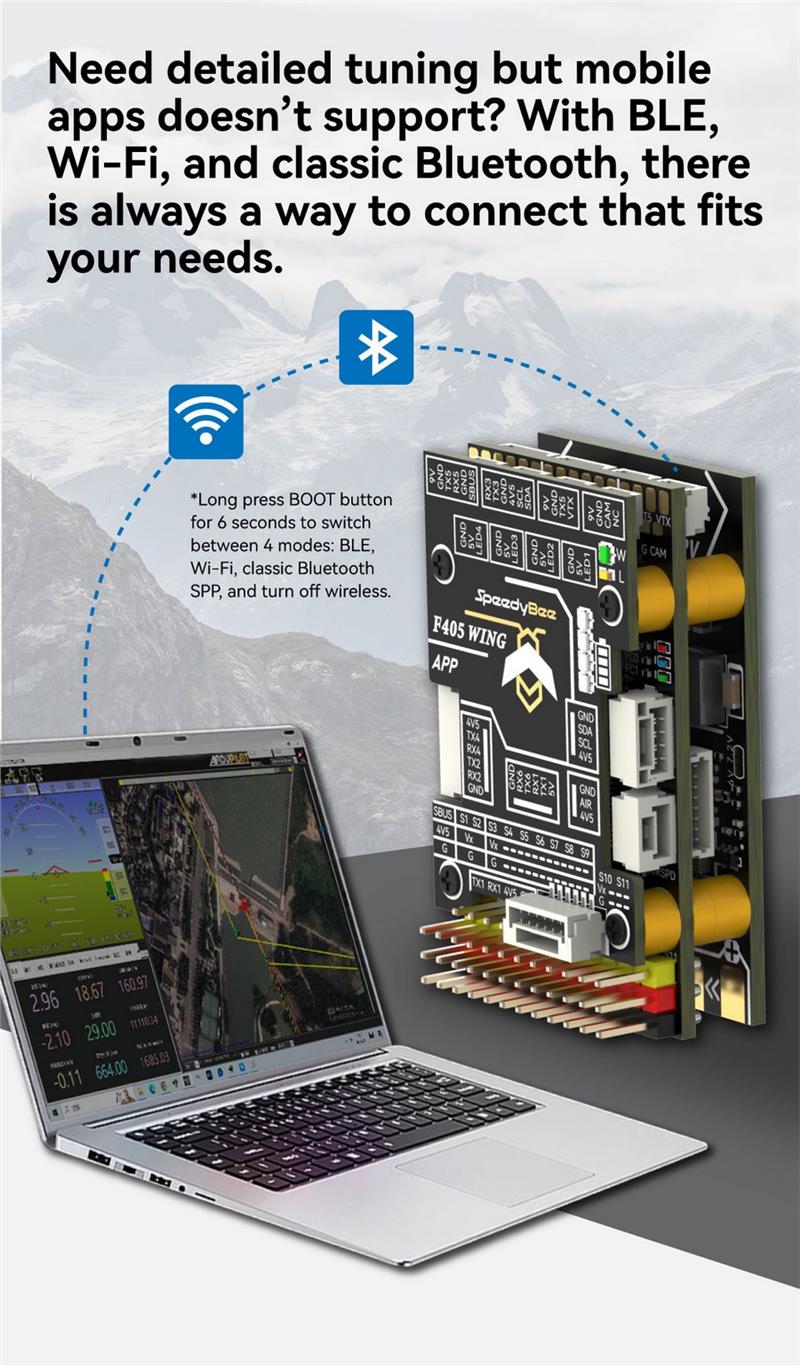

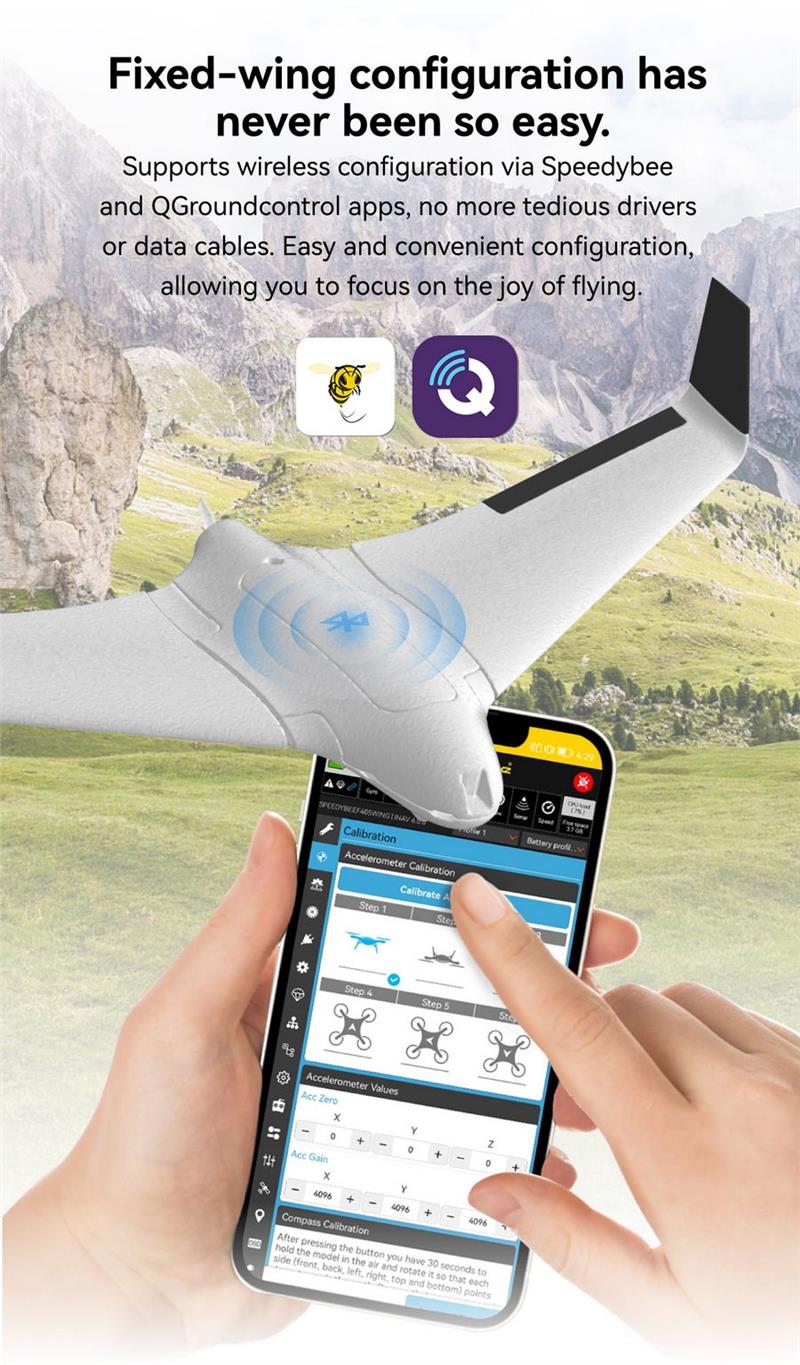

Wireless Configuration (long press BOOT button for 6 seconds to switch modes)
BLE mode, connect to Speedybee APP
|
Wireless Configuration (long press BOOT button for 6 seconds to switch modes)
Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.
|
Wireless Configuration (long press BOOT button for 6 seconds to switch modes)
Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
|

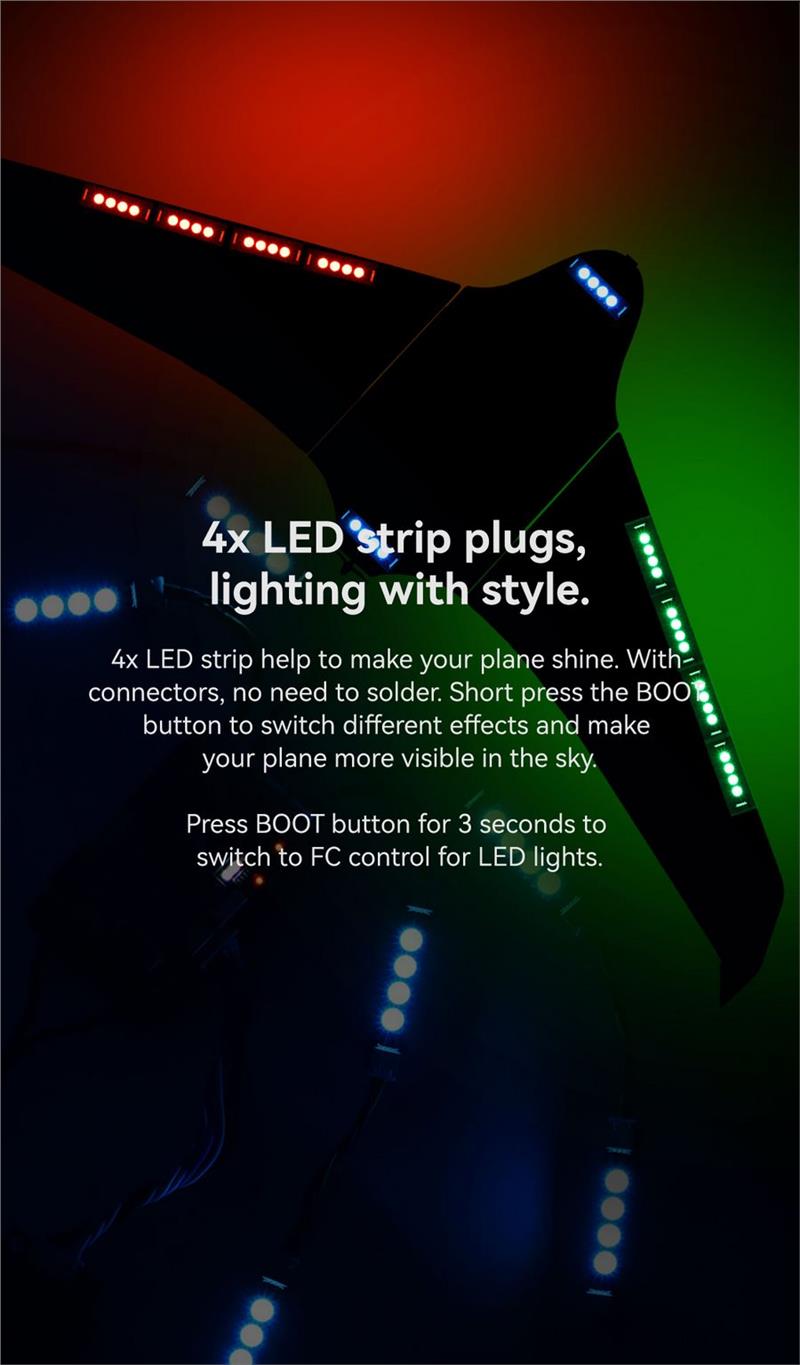

LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes)
4x WS2812 LED strip connectors, adjustable colors and flashing modes
|
LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes)
Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads
|

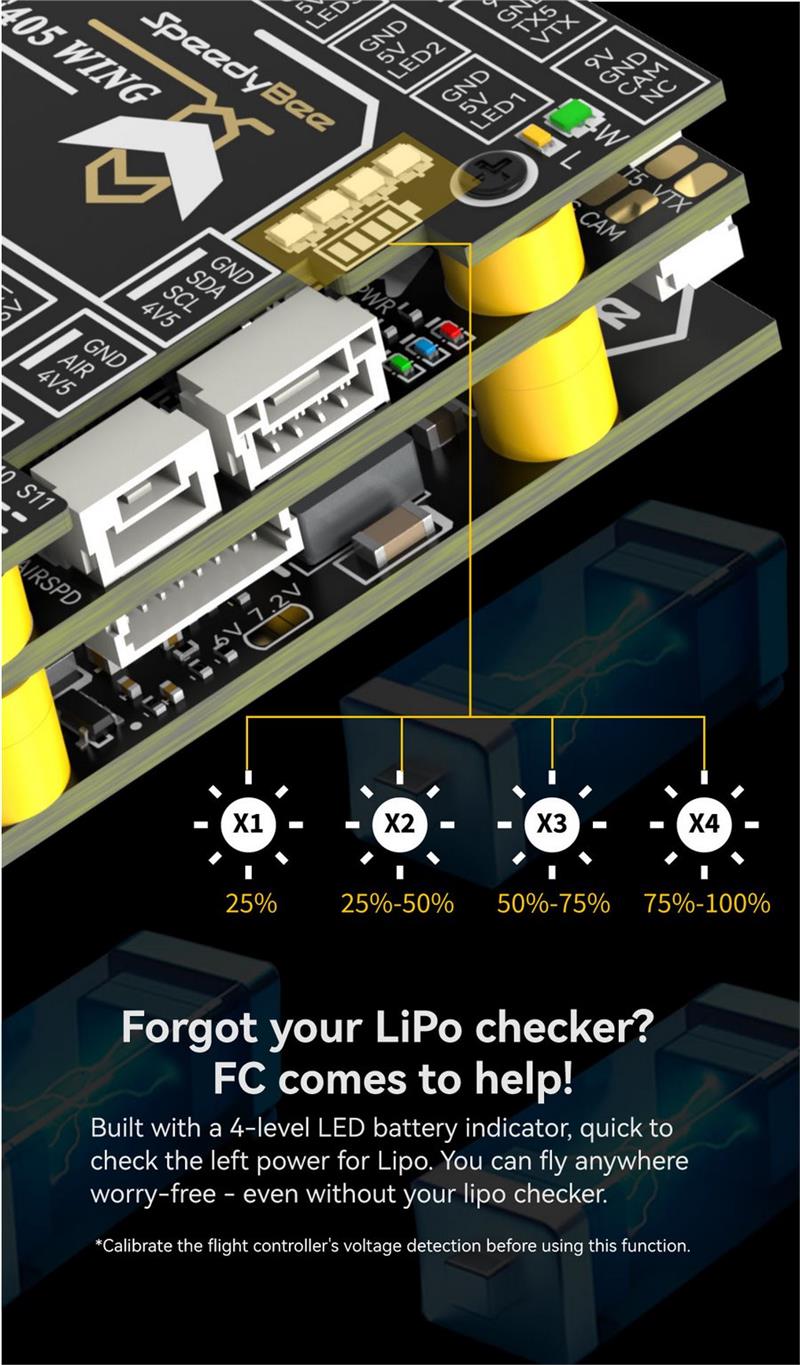

On-board battery level indicator
4x RGB indicator LED for battery level display by number of lights
|
Weight
4.2g
English Manual, Click Here

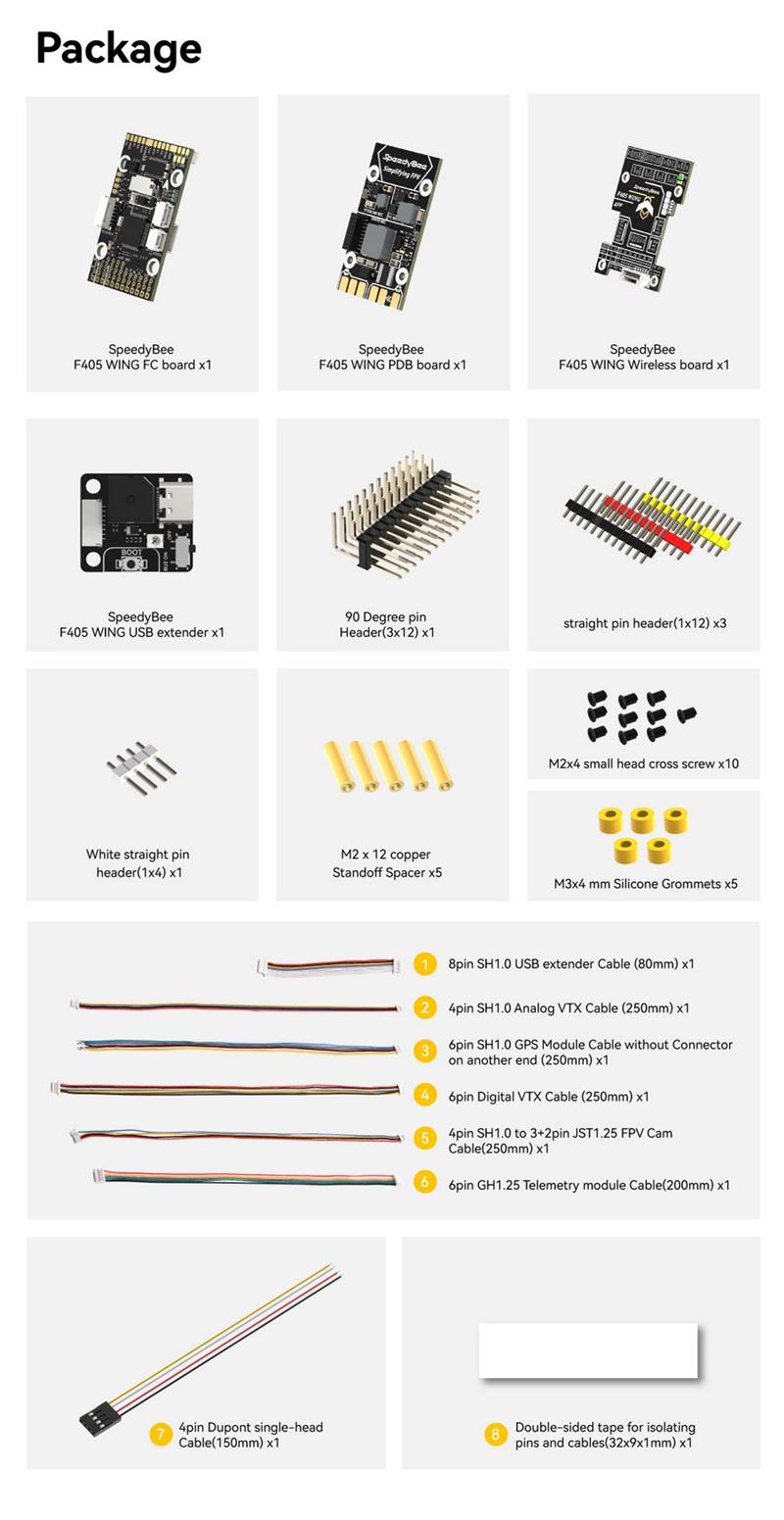

Package Included:
1x SpeedyBee F405 WING FC board
1x SpeedyBee F405 WING PDB board
1x SpeedyBee F405 WING Wireless board
1x SpeedyBee F405 USB extender
1x 90 Degree pin header (3×12)
3x Straight pin header (1×12)
1x White Straight pin header (1×4)
5x M2 x 12 copper Standoff Spacer
10x M2 x 4 small head cross screw
5x M3 x 4mm Silicone Grommets
1x 8pin SH1.0 USB extender cable (80mm)

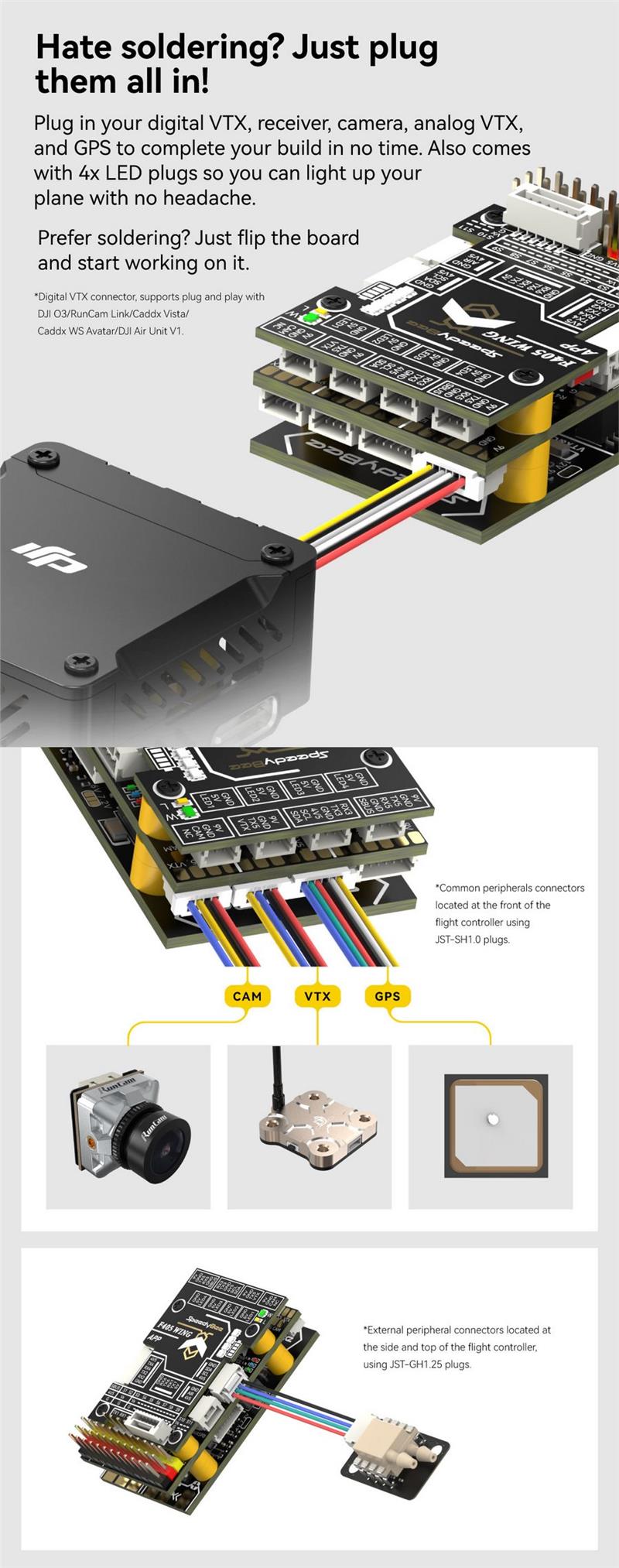

1x 4pin SH1.0 Analog VTX cable (250mm)
1x 6pin SH1.0 GPS Module cable without connector on another end (250mm)
1x 6pin Digital VTX cable (250mm)
1x 4pin SH1.0 to 3+2pin JST1.25FPV Cam cable (250mm)
1x 6pin GH1.25 Telemetry module cable (200mm)
1x 4pin Dupont single-head cable (150mm)
1x Double-sided tape for isolating pins and cables (32x9x1mm)
Recommended Category:
Toys & Games > Hobbies > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicle Parts > Remote & App Controlled Airplane Parts
,
,
,
,
,
,
,
,
,
,
,
,
,
,
