Description

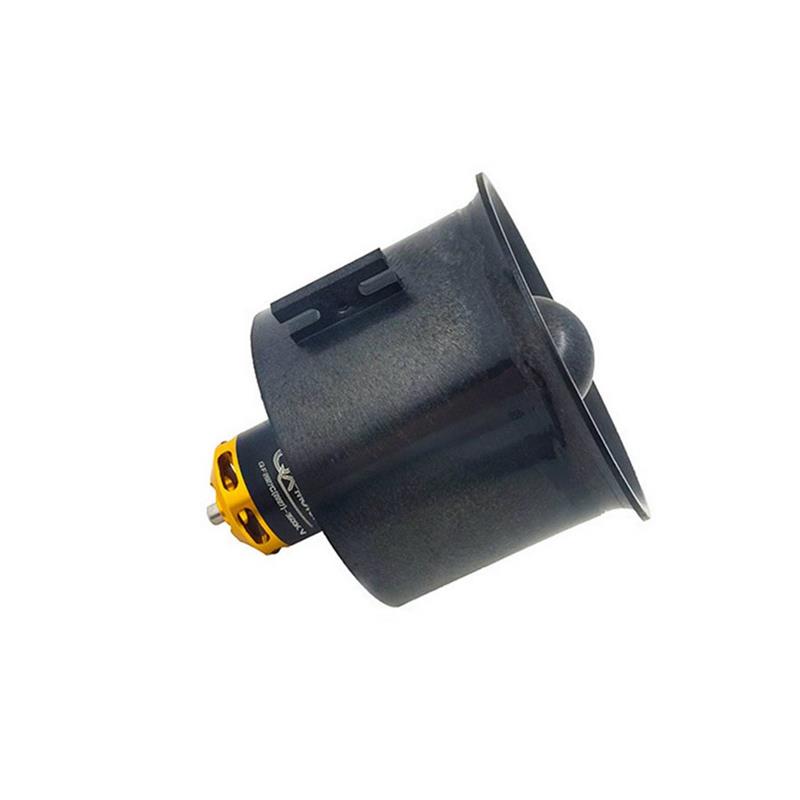

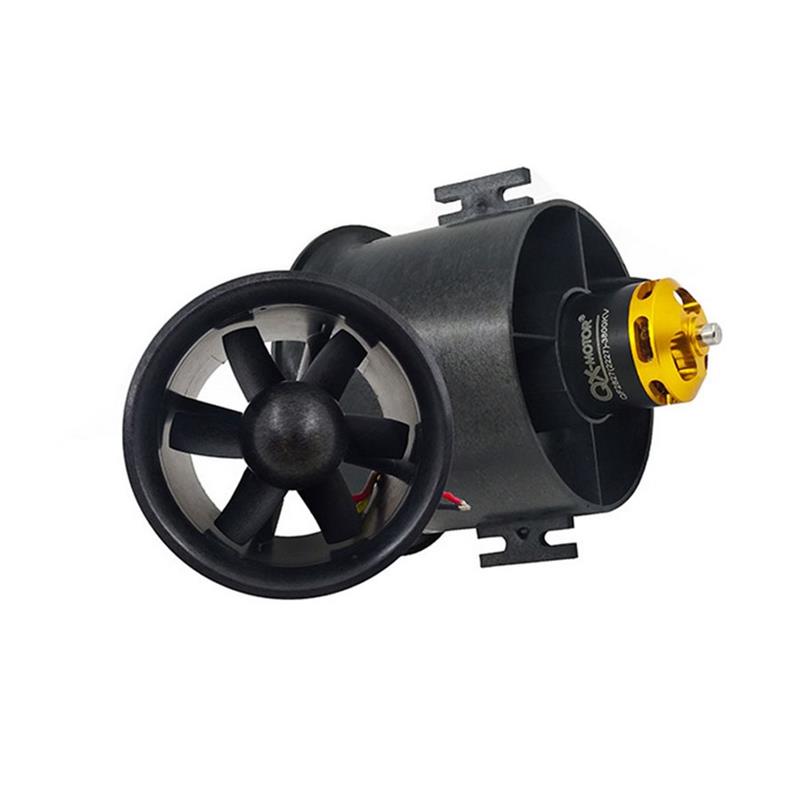

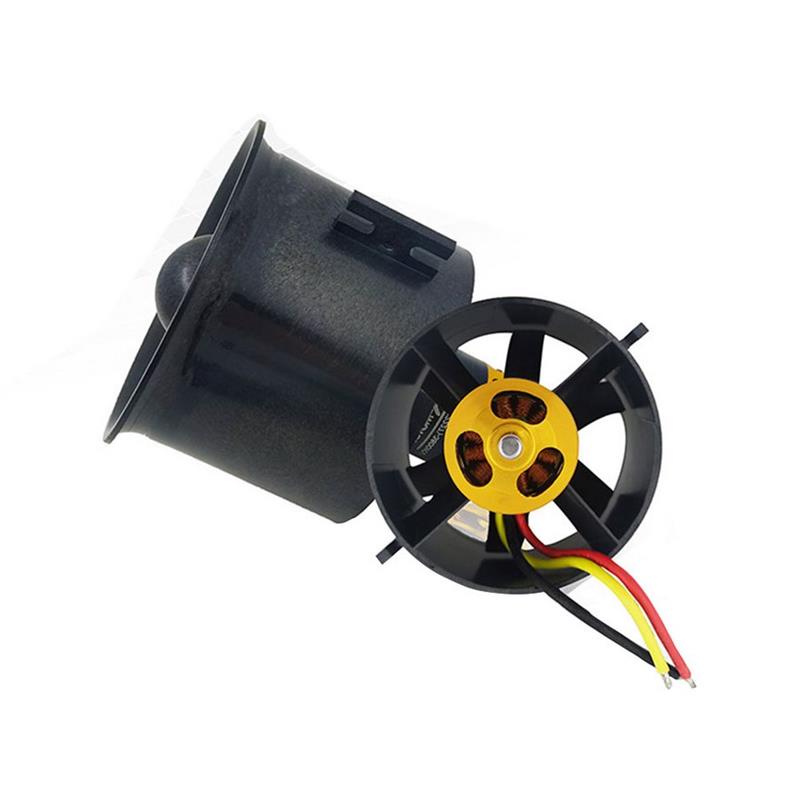

QX-Motor 70mm 6 Blades EDF Unit With QF2827 3500KV Brushless Motor 3-4S for RC Airplane Jet
The QX-Motor 70mm EDF Unit features a 6-blade design and comes equipped with a QF2827 3500KV brushless motor, making it ideal for RC airplane jets. Designed for low vibration and enhanced stability, this motor set ensures efficient performance with reduced noise. It supports 3-4S LiPo batteries, delivering a maximum continuous power of 1000W and a current of 75A. The motor’s dimensions are 28mm in diameter and 48mm in length, with a shaft diameter of 4.0mm. Weighing just 165g, it is perfect for 1500g EDF jets, offering long-lasting bearing life and high efficiency.
Specifications:
Brand Name: QX-MOTOR
Item Name: EDF unit with brushless motor set
EDF Unit: 70mm 6 blades
Brushless Motor: QF2827-3500KV
Color: Black
Configuration: 12N8P
Shaft Diameter: 4.0mm
Motor Diameter: 28mm

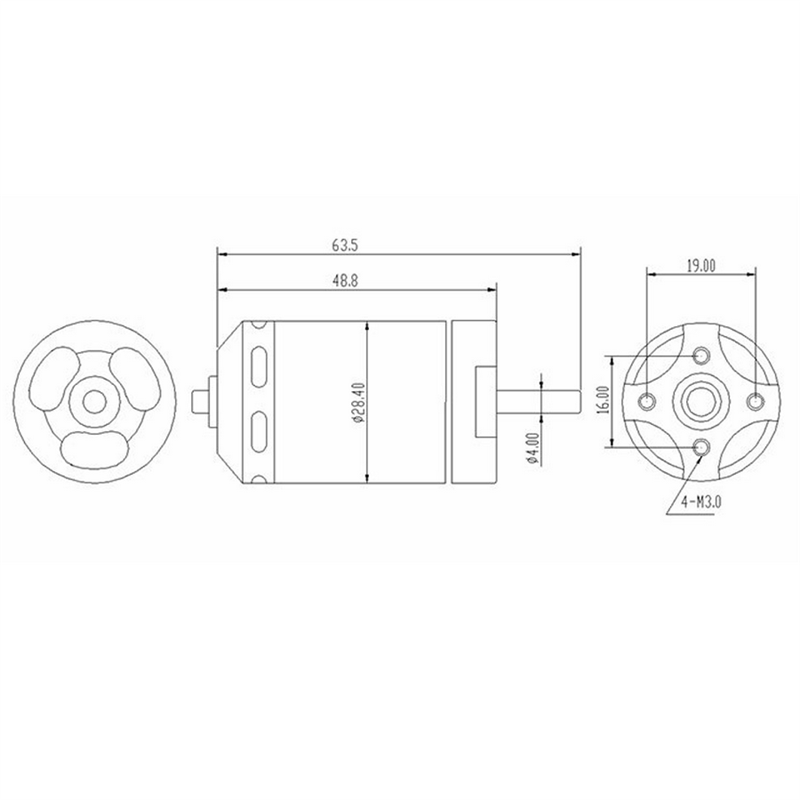

Motor Dimension(Diaxl): 28*48mm
Weight: 165g
Idle Current@10.0V: 2.0A
No.f Cells: 3-4S Lipo
Max. Continuous Power: 1000W
Max. Continuous Current: 75A
Application: Suitable for 1500g EDF Jet.
Test Data:
Features:
– Low vibration motor great for flying
– To make aircraft more stable
– Less operating noise
– More efficient
– Bearings long life
Package Included:
1 x QX-Motor 70mm 6 Blades EDF Unit With QF2827 3500KV Brushless Motor
