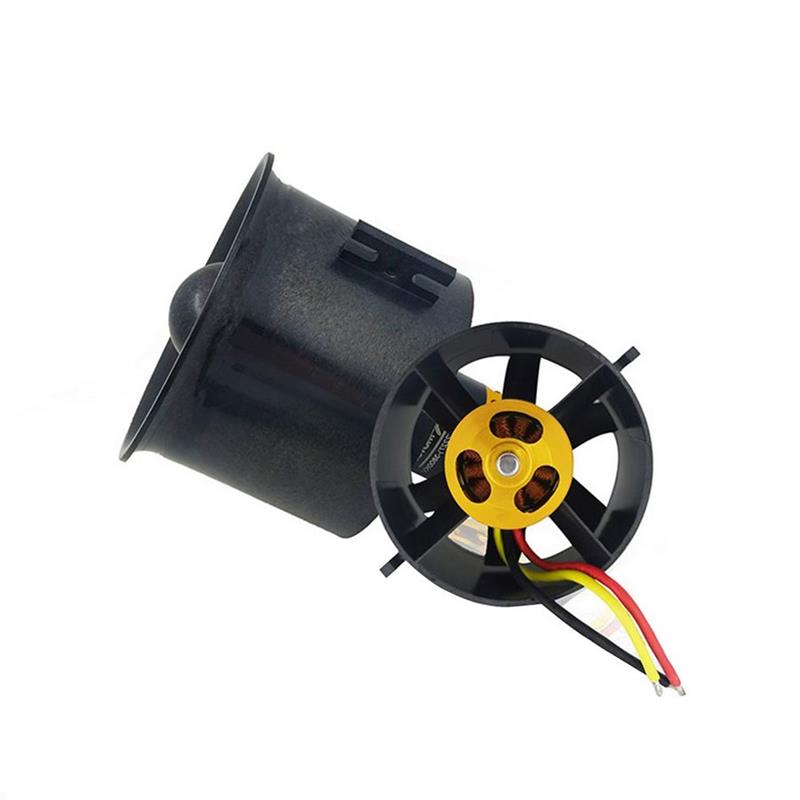

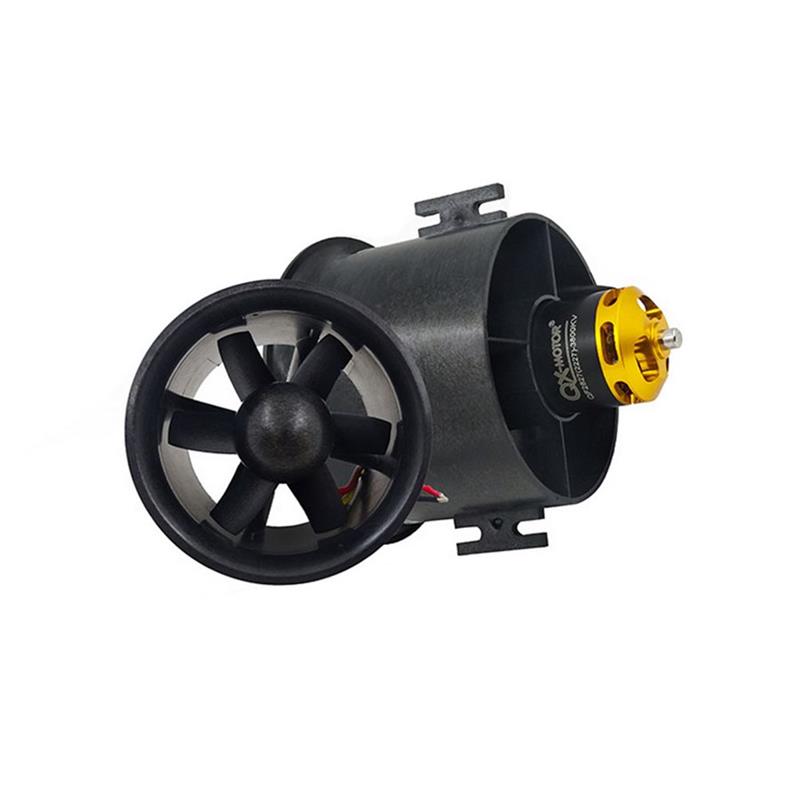

QX-Motor 70mm 6 Blades EDF Unit With QF2827 3800KV Brushless Motor 4S for RC Airplane Jet
Specifications:
Brand Name: QX-MOTOR
Item Name: EDF unit with brushless motor set
EDF Unit: 70mm 6 blades
Brushless Motor: QF2827-3800KV
Color: Black
Configuration: 12N8P
Shaft Diameter: 22mm
Stator Length: 27mm
Motor Dimension(Diaxl): 28*48mm
Weight: 107g
Idle Current@10.0V: 2.0A
No.f cells: 3-4S Lipo
Max. Continuous Power: 1000w
Max. Continuous Current: 75A
Test Data:
| Prop | Volts(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency(g/W) | Efficiency(oz/W) | ESC |
| 70Fan 6 Blade | 14.8 | 74 | 1095.2 | 2050 | 72.31 | 1.87 | 0.07 | 80A |
Features:
– Low vibration motor great for flying
– To make aircraft more stable
– Less operating noise
– More efficient
– Bearings long life
Package Included:
1x QX-Motor 70MM 6 Blades EDF Unit With QF2827 KV3800 Brushless Motor
Additional information
| Weight | 0.203 kg |
|---|
