Description

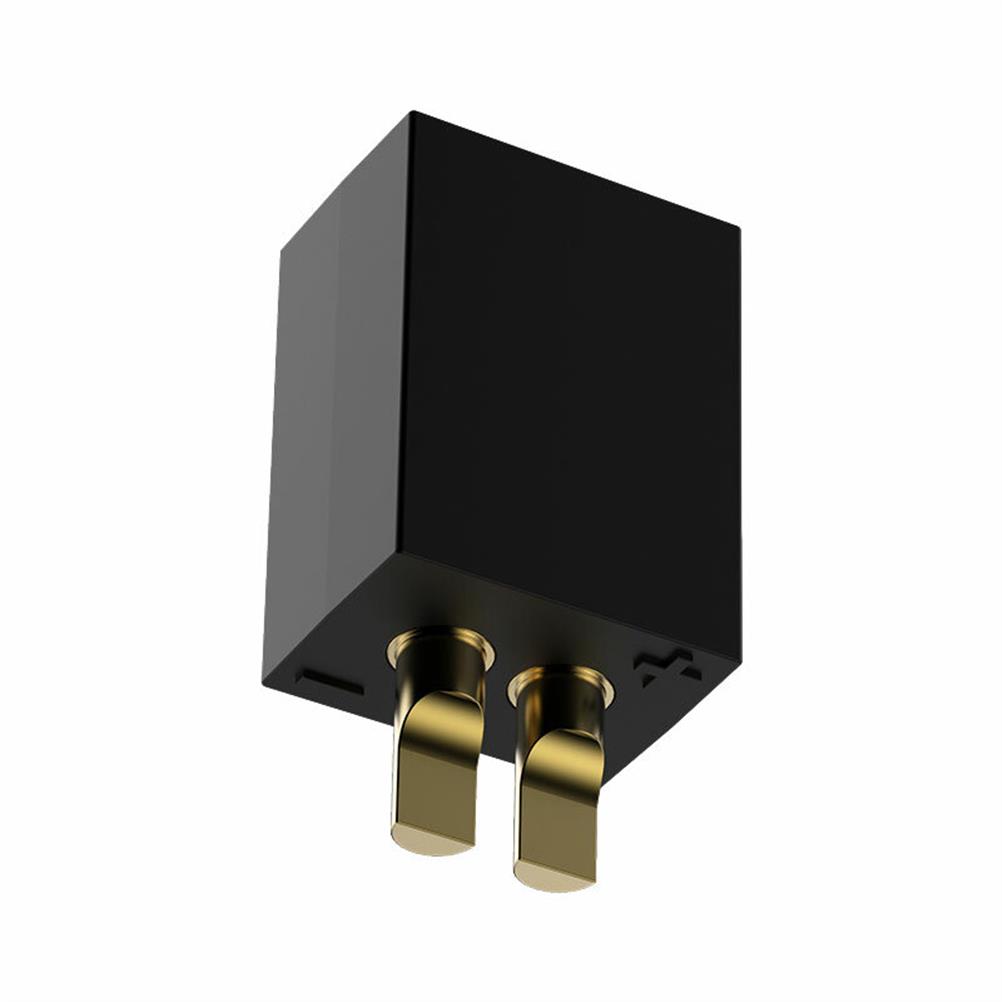

10Pairs GAONENG A30 Connector Adapter for FPV Whoops Quads LiPo Battery for moblite 7
The GAONENG A30 Connector Adapter is engineered to deliver high performance for FPV whoops and quadcopters. Designed to handle up to 15A of continuous current, these connectors ensure a robust and reliable connection with minimal resistance. Unlike the PH2.0 connector, which supports only 4.5A, the A30 connector allows for higher current discharge, providing greater power and extended flight times on 1S whoops. The unique design defines the connector’s gender by plastic, with the female used on the drone side and the male on the battery side, differing from XT30 and XT60 connectors.
GNB A30 High Current Connectors are designed to handle up to 15A of continues current while providing a reliable connection with minimal resistance.
Feature:
GNB A30 connector can support 15A continuous current, while the PH2.0 connector supports ONLY 4.5A continuous current.Compared with the PH2.0 crimped pins, GNB A30 connector can discharge more currents in the same capacity and provide far more power. You can get more flight time in full throttle on 1S whoop.
Specification:
A30 Male ConnectorSize: 6.6mm* 4.3mm*5.7mmWeight: 0.24g/pcsA30 Female ConnectorSize: 7.8mm* 4.2mm*5.8mmWeight: 0.36g/pcsNote:We define this connector’s ‘gender’ by plastic not by metal bullet. Female is used on the Drone side while Male is used on the Battery side. This is opposite of XT30 and XT60.
Package Included:
10 x GNB A30 Male & Female Connector
