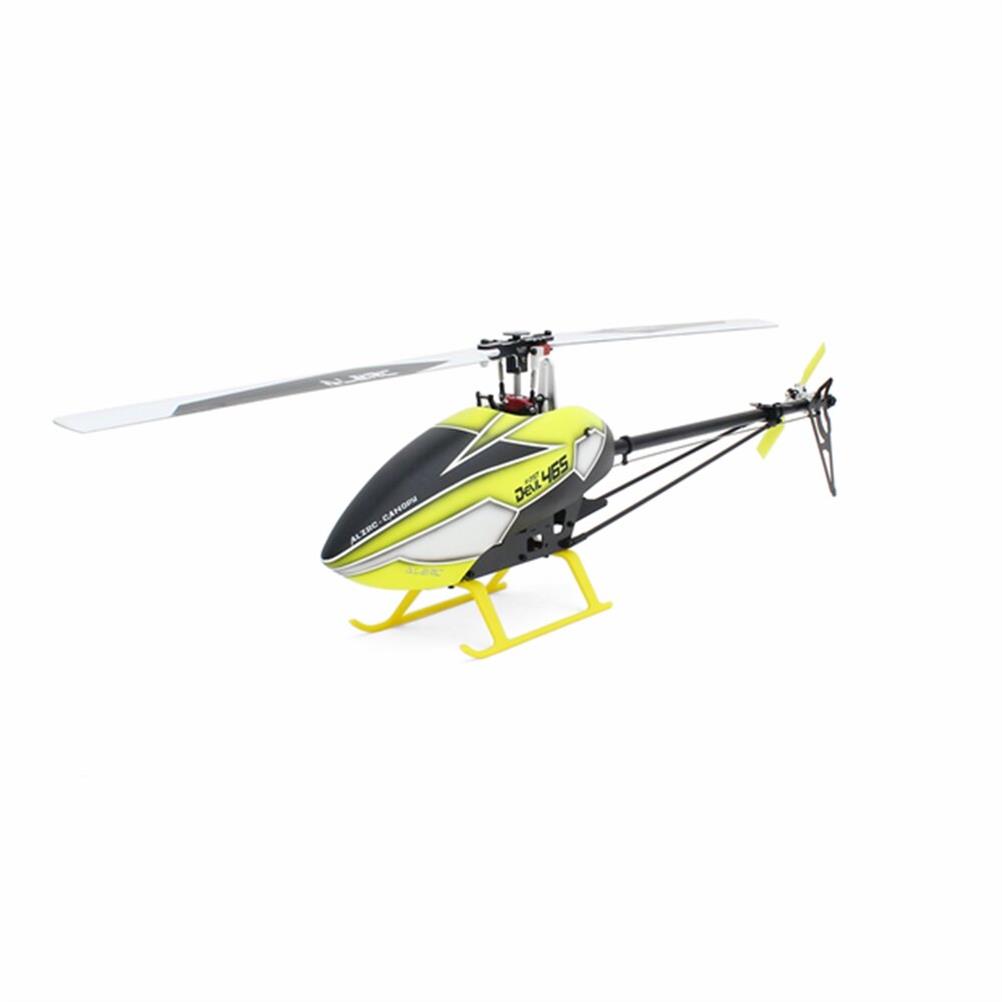

ALZRC Devil 465 FAST RIGID SDC DFC RC Helicopter KIT
ALZRC Devil 465 FAST RIGID SDC DFC RC Helicopter KIT
Product design features:

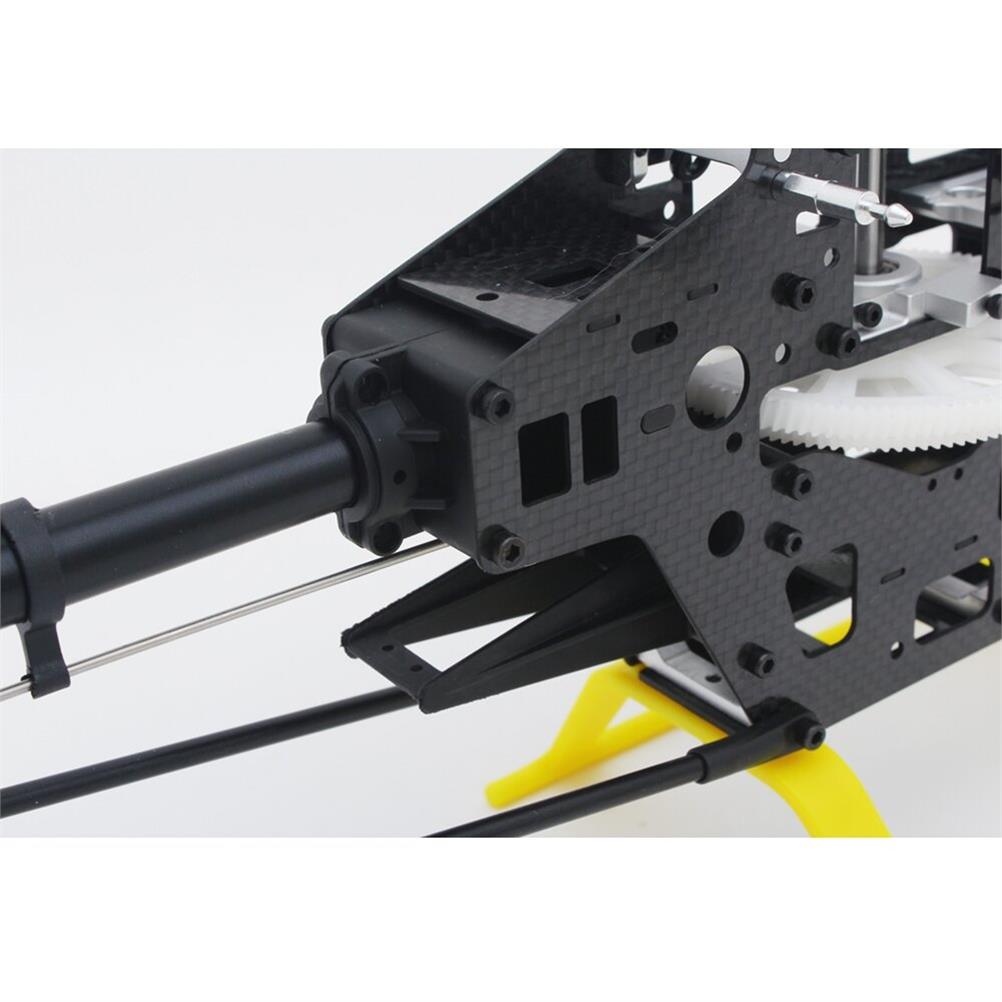

1.Carbon fiber side panels using composite materials technology
2.Join top-mounted motor and battery slide which only in the mainframe body.

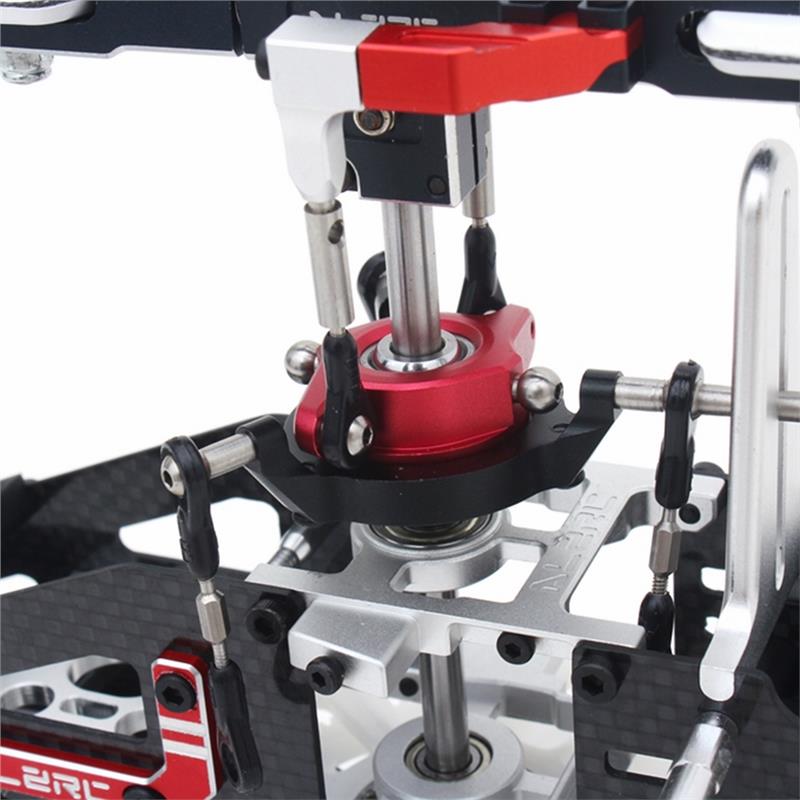

3.Integrated spindle and servers holder, specially designed extended extension swash server holes,so that the larger size of the market micro-server can also be installed, can support the market most of the specifications of the use of micro server.
4.Let the appearance of a large race machine feeling,with the side plate reinforcing sheet, effectively enhance the body structure and torsional strength, bright red anodized more out of the helicopter high texture, perfectly revealing Devil 465 RIGID charming style.
5.Devil 465 RIGID also cleverly using the Devil 450 PRO extends the existing design, make good use of sophisticated design heritage continues.
6.With FBL rotor head set and use for the new 360mm main rotor severe 3D flight design, both flexibility and stability, and the more rigid, torsion resistance and power can enhance flight time, and feel more stable flight !
7.For the Devil 465 RIGID build 480X 6S – 1850KV high performance brushless motor, is the use of 6S voltage power base, so that the motor has more excellent high efficiency, high power, high torque, low current consumption and low temperature performance.
Description:
Length:730mm
Heigh:205mm
weight:110mm
Tail Rotor length:360mm
Tail Rotor Diameter:804mm
Tail Rotor Diameter:171mm
Main motor gear: 11T
Main drive gear: 121T
Tail Drive Gear: 106T
Tail drive gear: 25T
Gear ratio: 1: 11: 4.24
Empty weight: 535g
Equipment required:
1. Transmitter: more than six-channel remote control helicopter model
2. Receiver: more than six-channel
3. Pitch regulation: Digital pitch gauge
4. Battery: 1100 ~ 1400mAh 22.2V 6S Li-Po lithium polymer battery
5. Motor: 480X 6S – 1850KV brushless motor x 1
6. ESC: 50 ~ 60A Brushless ESC x 1
7. swashplate servos: CCPM metal miniature digital servo x 3
8. Lock Rudder: Medium digital lock Rudder x 1
9. gyroscope: three-axis gyroscope Set x 1
10. Other: plug kits and tool kits
Package included:
1 x ALZRC Devil 465 RIGID SDC DFC RC Helicopter KIT
