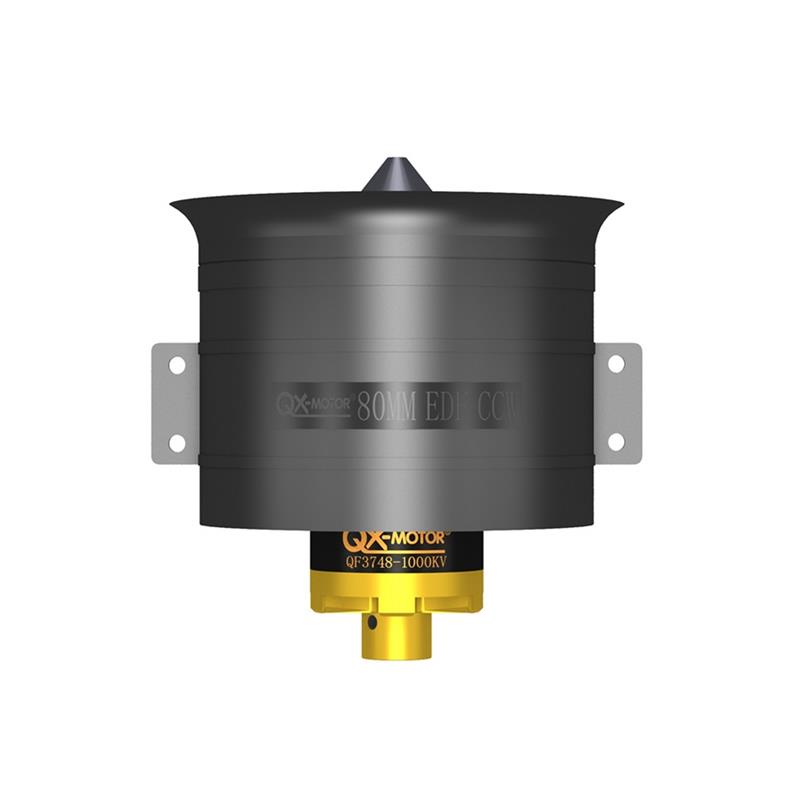

QX-MOTOR 80mm 12-Blades CCW EDF Ducted Fan With QF3748-1000KV Brushless Motor 12S for RC Airplane
Specifications:
Brand: QX-MOTOR
EDF: 80mm 12-Blades CCW

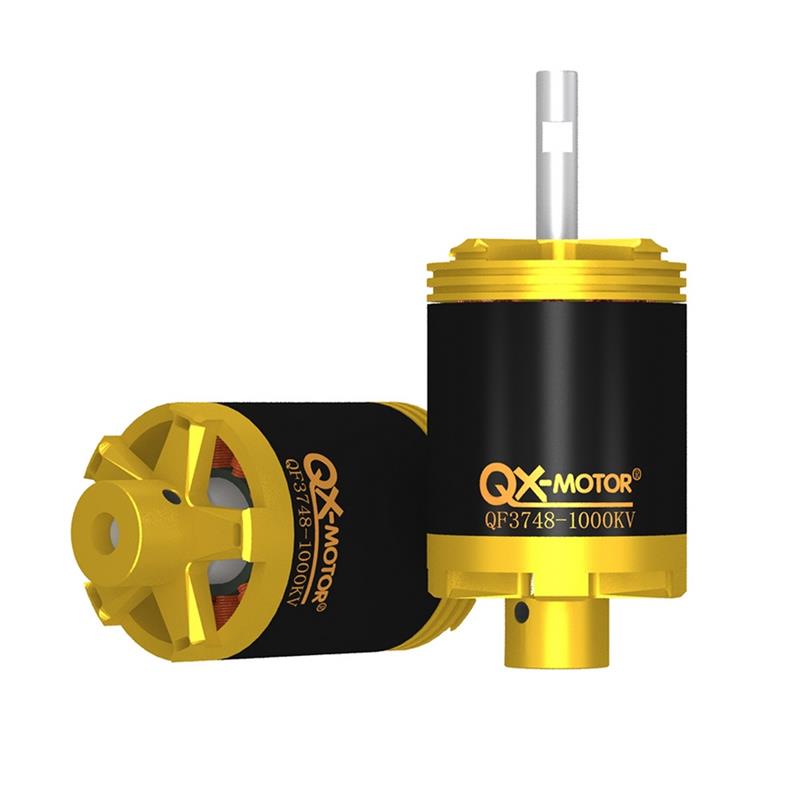

Model: QF3748
KV (rpm): 1000KV
Configuration: 12N10P
Shaft Diameter: 5.0mm
Motor Diameter: 37mm
Weight: 308g
Number of cells: 12S Lipo
Max continuous power/10S: 3400W
Max continuous current/10S: 68A
Test Data:
| Motor | Prop | Voltage(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency (g/w) |
Efficiency (oz/w) |
Throttle | ESC |
| QF3748-1000KV | 80mm EDF 12-Blade | 42 | 57.5 | 2415 | 4000 | 141.09 | 1.66 | 0.06 | 100% | 80 A |
| QF3748-1000KV | 80mm EDF 12-Blade | 48 | 25.0 | 1200 | 2450 | 86.42 | 2.04 | 0.07 | 50% | 80A |
| QF3748-1000KV | 80mm EDF 12-Blade | 48 | 35.0 | 1680 | 3200 | 112.87 | 1.90 | 0.07 | 70% | 80A |
| QF3748-1000KV | 80mm EDF 12-Blade | 48 | 45.0 | 2160 | 3900 | 137.57 | 1.81 | 0.06 | 80% | 80A |
| QF3748-1000KV | 80mm EDF 12-Blade | 48 | 55.0 | 2640 | 4400 | 155.2 | 1.67 | 0.06 | 90% | 80A |
| QF3748-1000KV | 80mm EDF 12-Blade | 48 | 65.0 | 3120 | 5000 | 176.37 | 1.60 | 0.06 | 100% | 80A |
Features:
Superior Performance: The QX-MOTOR QF3748 1000KV motor provides a powerful thrust of up to 5kg, ensuring outstanding flight performance for RC drones and model aircrafts.
High-Quality Materials: The motor is made with Japanese imported silicon steel and Japanese NMB bearings, ensuring durability and high efficiency.
Advanced Design: The 80mm ducted fan uses high-end composite materials and is designed with 12 forward and reverse blades, adding to the aesthetics while improving performance.
Efficient and Cool: Despite the high power output, the QF3748 1000KV motor operates at relatively low temperatures, ensuring longevity and consistent performance.
High Power-to-Weight Ratio: Weighing only 308g and delivering up to 3400W power, the QF3748 offers an impressive power-to-weight ratio.
English Manual, Click Here
Product List:
QX-MOTOR 80mm 12-Blades CCW EDF Ducted Fan With QF3748-1000KV Brushless Motor
