Description

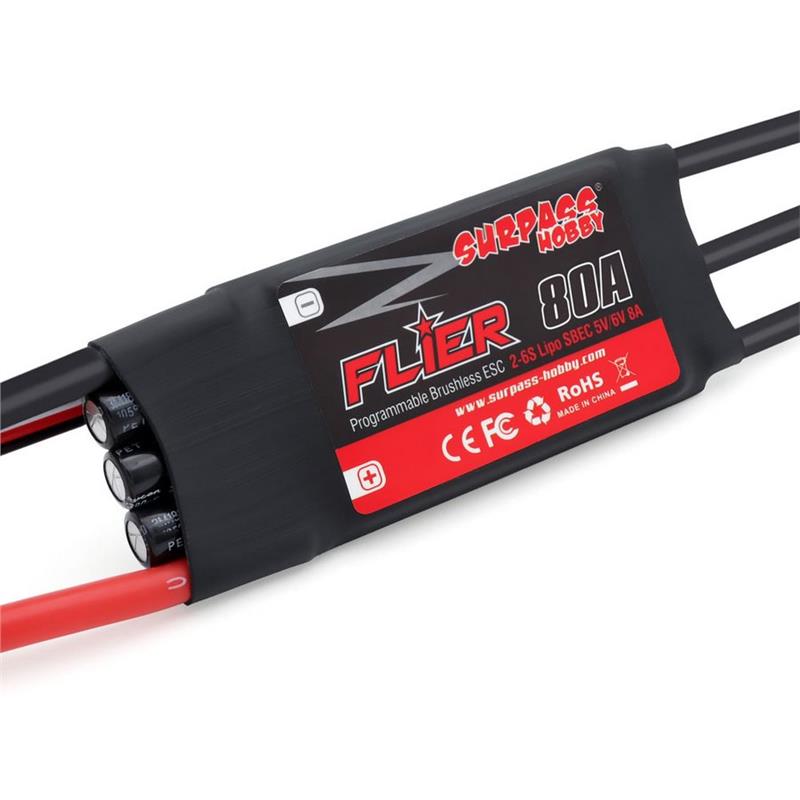

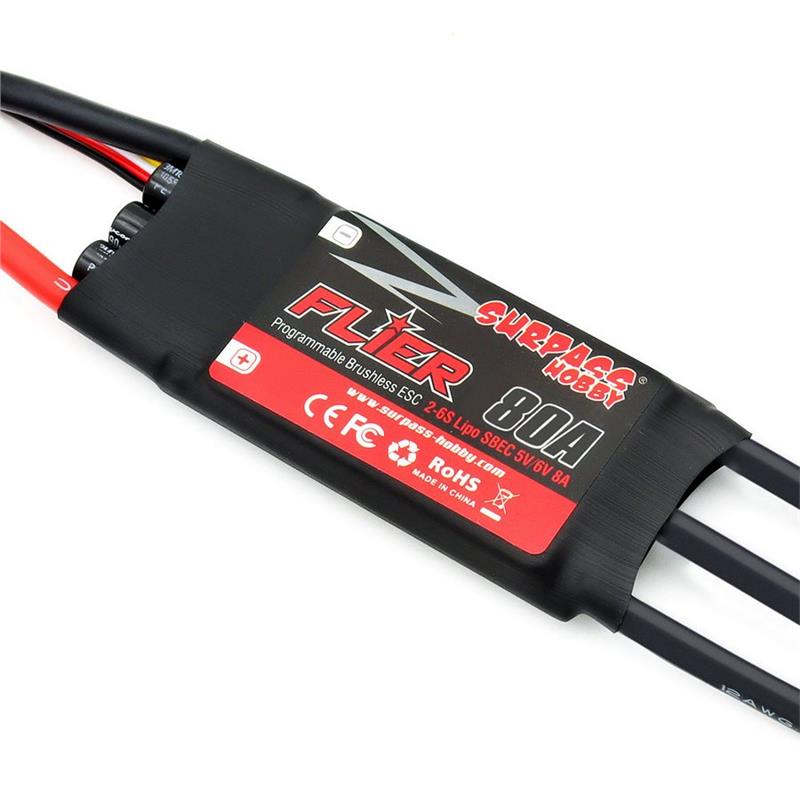

SURPASS-HOBBY FLIER Series New 32-bit 80A Brushless ESC With 5V/6V 8A SBEC 2-6S Support Programming for RC Airplane
The SURPASS-HOBBY FLIER Series 80A Brushless ESC is designed for RC airplane enthusiasts, offering a continuous current of 80A and a burst current of 100A. It supports 5-18NC/2-6S Lipo batteries and weighs only 75g. Featuring a 32-bit microprocessor, it ensures high performance with low heat generation and reliable operation. The ESC provides a super smooth start-up and accurate throttle linearity, enhancing driving efficiency and energy savings. With an adjustable SBEC output of 5V/6V, it delivers powerful support to servos. The ESC includes multiple protections such as start-up, over-heat, low-voltage cutoff, signal loss, and phase loss, and is compatible with most high RPM motors. Programming is supported via an LCD program card for easy operation.
Specifications:
Brand Name: SURPASS-HOBBY
Type: FLIER 80A
Item: SP-300007-03
Continuous/Burst Current: 80A/100A
Battery Cell NiXX/Lipo: 5-18NC/2-6S Lipo
Weight: 75g
BEC Output: 5V/6V 8A
Size(LxWxH): 90x37x10mm
Connector: 4.0mm
User Program: Yes

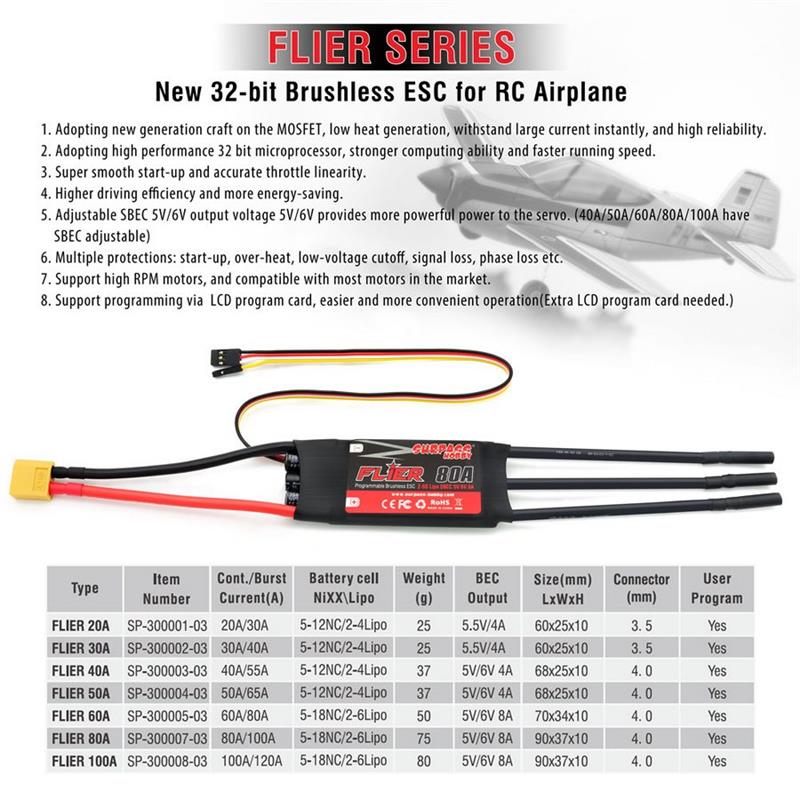

Features:

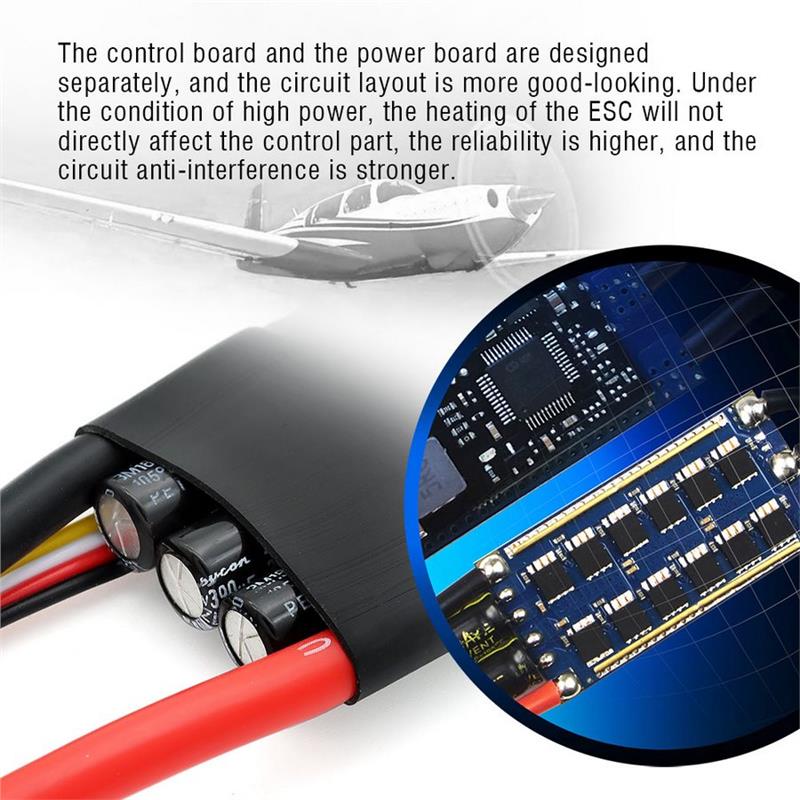

1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Higher driving efficiency and more energy-saving.

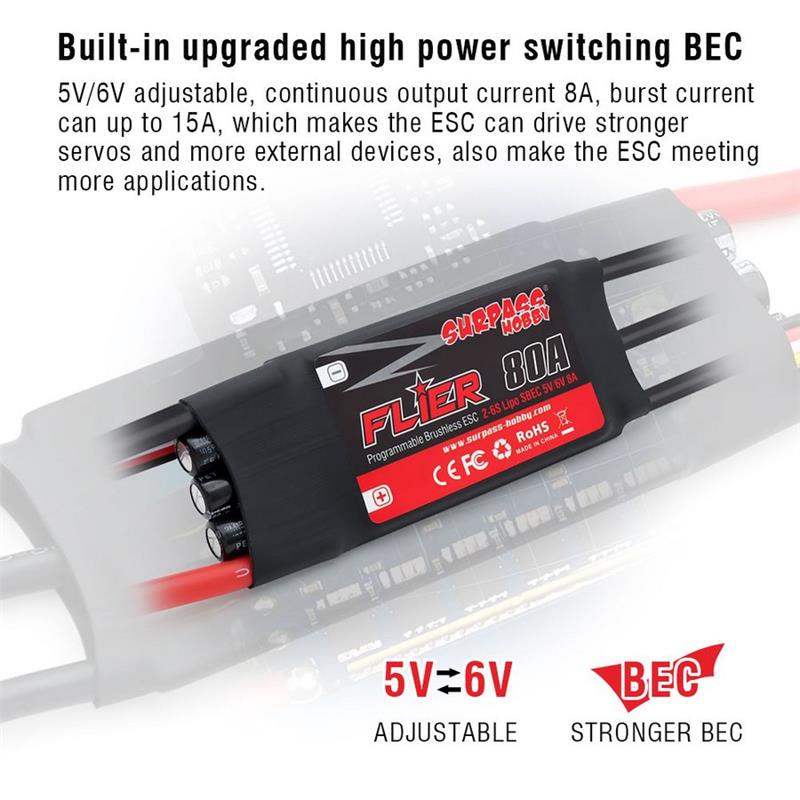

5. Adjustable SBEC 5V/6V output voltage 5V/6V provides more powerful to the servo. (40A/50A/60A/80A/100A have SBEC adjustable)
6. Multiple protections: Start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
7. Support high RPM motors, and compatible with most motors in the market.
8. Support programming via LCD program card, easier and more convenient operation (Extra LCD program card needed, Click Here)
English Manual, Click Here
Package Included:

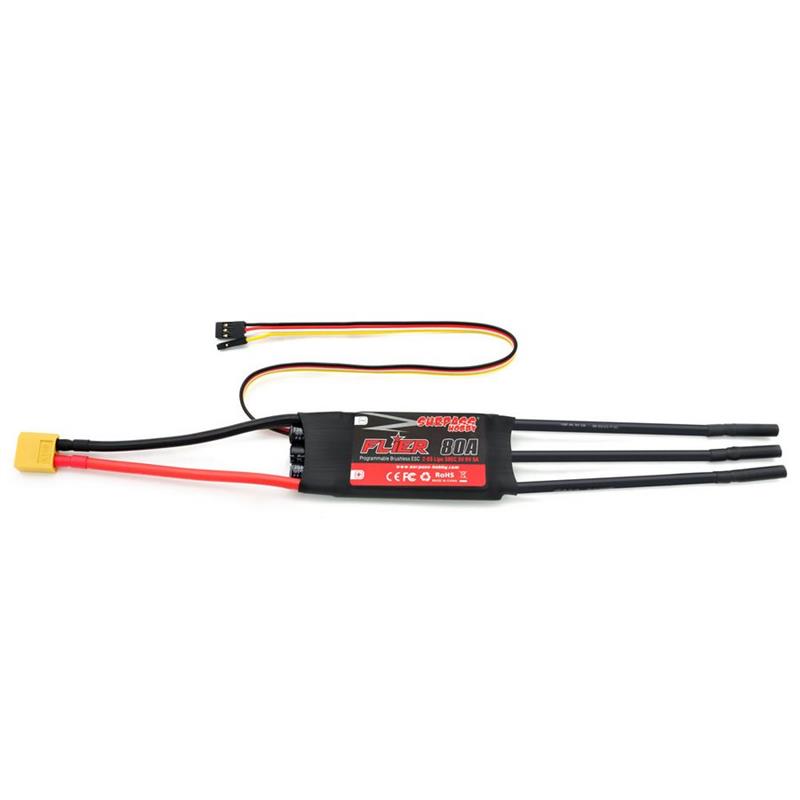

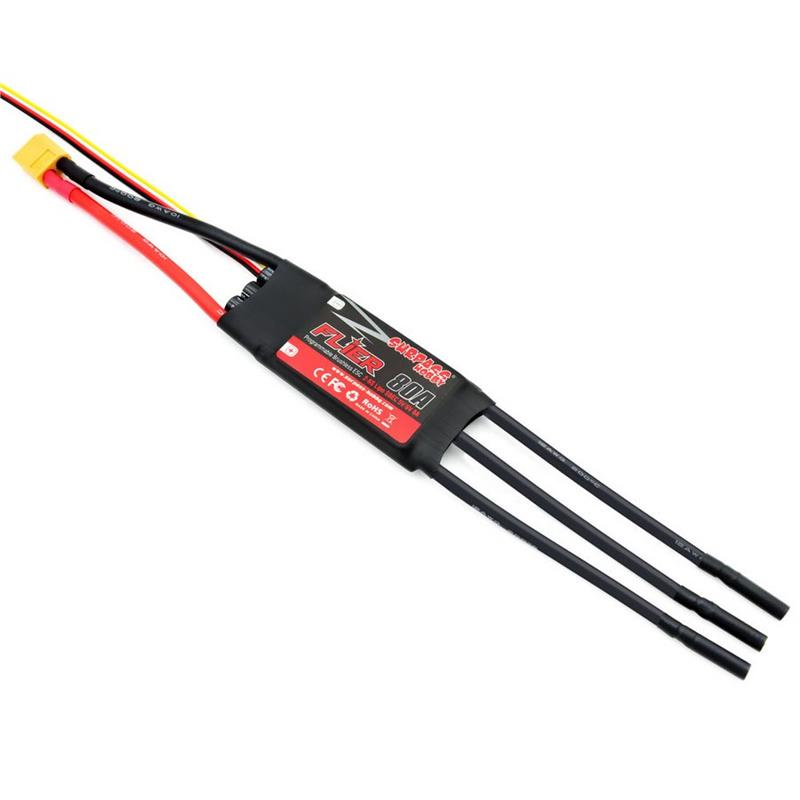

1 x SURPASS-HOBBY FLIER Series New 32-bit 80A Brushless ESC
