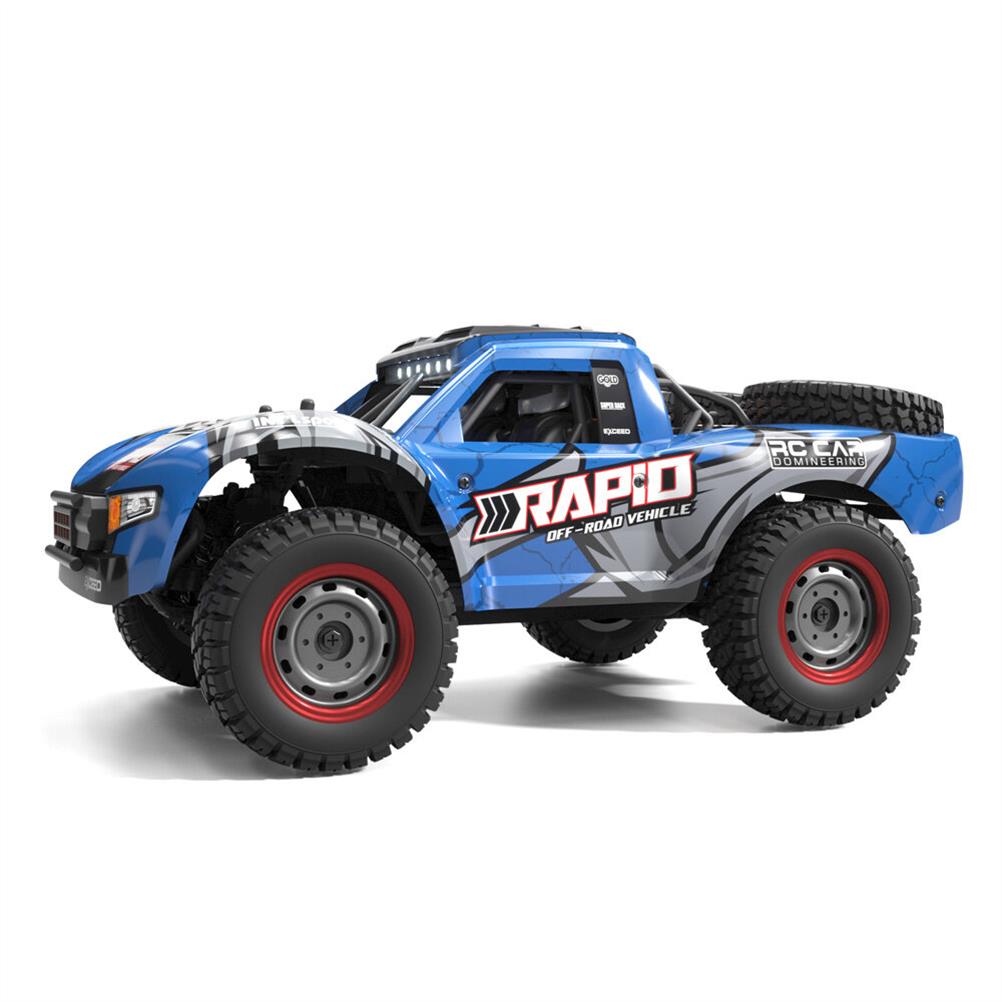

JJRC Q130 1/14 2.4G 4WD Brushed Brushless RC Car Short Course Vehicle Models Full Proportional Control
Attention:
The Red A,blue A are brushed
version,t
he orange B is brushless
version.
Brushed A version:
Description:
| Basic information | Brand:JJRC Models: Q130 A brushed Model:1/14 Speed:48km/h |
Power system | 35A ESC and receiver are 2 in 1 Motor:brush ed 390 (with hot sink) |
| Transmitter | Frequency:2.4 GHZ Battery: 3XAA battery(not included) |
Battery: | 7.4V 1300mAH Li battery (T plug) |
| others | Charge time:180-210min Using time:15-18 min Control distance:120 m Function:forward,backward,left,right Proportional control:proportional control It adopts plant differential. |
Dimension | Size : 34.5*20.5*14.8 CM Transmitter size:13*7.5*21 CM Wheelbase:18.8 cm Axle base:18.5cm Tire:8.5cm Package size: 57.5*36.5*53.5 CM Car weight:1160g Package weight::1900g |
Attention:
1: Charging protection: constant current and constant voltage balanced charging, protection function for battery overcharge and overcurrent.
2: Motor anti-jamming protection: When overloaded, the motor stops working.
3: High temperature protection: When the working temperature is higher than the setting, the drive control circuit stops working, and resumes working after the temperature drops to a safe value.
4: ESC low-voltage power-off function, when the battery is lower than 6.3-6.4V, it will automatically power off to prevent the battery from being damaged due to over-discharge.
Function:
1. Using the simulation structure design, it has the control feeling of a real car, and realizes full-scale continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;
2. Applicable venues: flat ground, sandy ground, muddy ground, grassland.
3. Four-wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;
4. 2.4G full-scale synchronous remote control system. Full-scale throttle/steering;
5. 2.4G splash-proof four-way 30A integrated ESC/receiver;
6. Front wheel cross ball joint drive shaft, rear wheel split dog bone drive shaft;
7. Five-wire 17G steering gear;
8. Super battery power: 7.4V, 18650-1300mAh Li-ion battery (T plug), discharge rate 10C;
9. The whole car adopts 16 ball bearings;
10. Metal second floor, metal front and rear arm yards, metal middle drive shaft;
11. The car shell is made of high toughness explosion-proof PVC car shell;
12. The car shell is equipped with LED headlights, LED roof lights, and LED tail lights; (three modes: constant light, slow flash, fast flash);
13. Simulated off-road tires with strong grip;
Package included:
1*RC Car
1*Controller
1*Rechargeable battery(built-in)
1*Charger
Brushless B version:
Description:
| Basic information | Brand:JJRC Models: Q130 B brushless Model:1/14 Speed:70km/h |
