Description
Surpass Hobby ROCKET RC GECKO MINI 2030 3500KV Sensored Brushless Motor & 30A ESC for Trx4m FCX18 FX118 1/18 Rock Crawler Remote Control Cars Vehicles Models Parts
The Surpass Hobby ROCKET RC GECKO MINI 2030 motor and ESC combo is designed for 1/18 rock crawler remote control cars. This black, metal motor and ESC set offers a sensored brushless motor with a 3500KV rating and a maximum power output of 120W. The motor measures approximately 20x31mm, while the ESC is 17.9x26x10.4mm. The motor features a resistance-free rotor design, ensuring high power output and efficiency. The ESC supports a continuous current of 30A and a peak current of 80A, compatible with 1-2 cell LiPo or 3-6 cell Ni-MH batteries. The set includes a standard 5PIN-1.27 terminal sensor port for easy connection and features a thickened gold-plated PCB for optimal car frame wiring.
Description:
Item Brand:Surpass Hobby ROCKET RC
Item Number:GECKO MINI 2030 +GECKO MINI 18 brushless combo
Item Name:Motor/esc combo
Material:Metal
Color:Black
Product Size:Motor size is about 20*31mm(diameter*length),esc size is about 17.9*26*10.4mm
Product Weight:Motor Weight is about 35g,esc weight is about 9.5g(including wires)
Compatible Models:1/18 rock crawler rc cars vehicles models
Online Manual Download:Motor:Please click here,esc :please click here

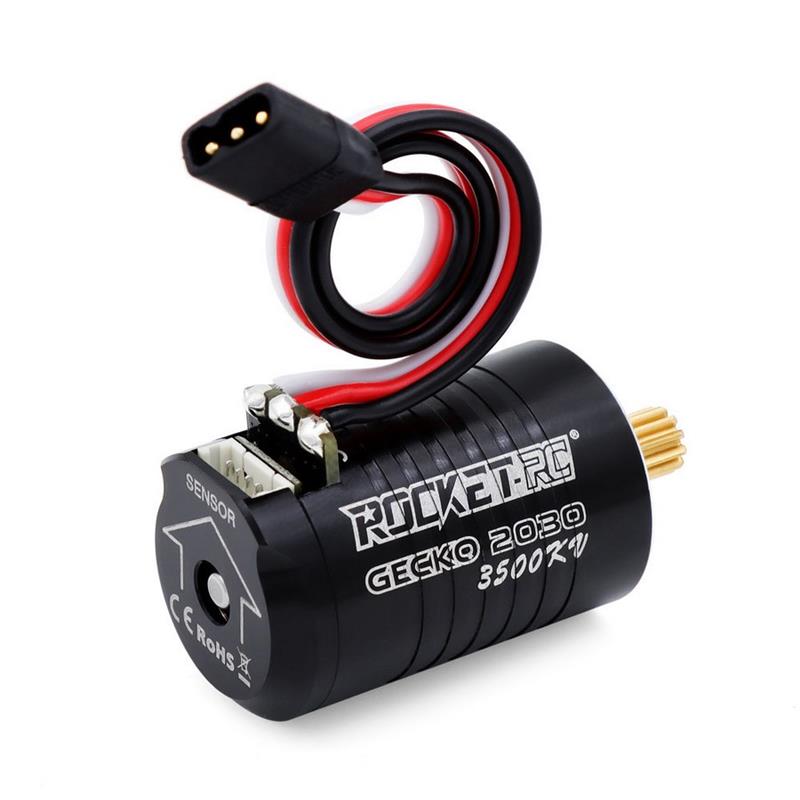

Specification of Motor:
Product:GECKO 2030
Color:Black
Sensor Timing:15锝?br/>KV:3500KV
Watts:120W
Max Voltage:藟8.4V
Max Amps:10A
Rotor Poles:2
IO(7.4V):0.65A
Resistance(m娆?:0.166
Max RPM:50000
Rotor Size(mm):鑰?0x15
Shaft(mm):鑰?x8.5
Specification of ESC:
Continuous Current:30A
Peak Current:80A
Battery:1-2 cells lipo or 3-6 cells Ni-MH
Motor Type:Sensor brushless motor
B.E.C:5V/500mAh(analog mode)
Waterproof:No

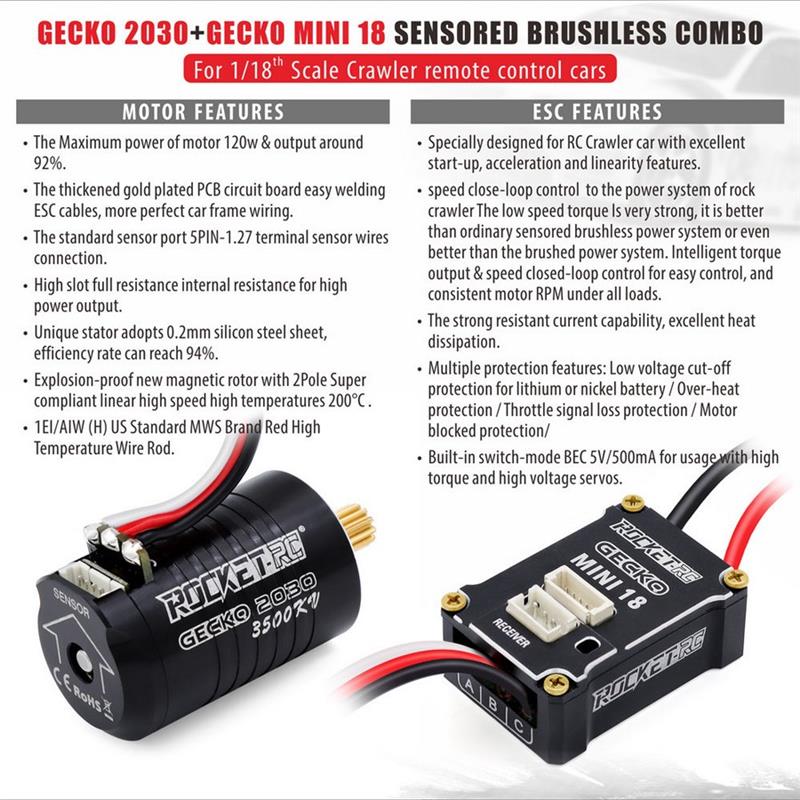

Features:
Surpass Hobby patent-Resistance-free design of the rotor.
The Maximum power of motor 120w & output around 92%.
The thickened gold plated PCB circuit board easy welding ESC cables, more perfect car frame wiring.
The standard sensor port 5PIN-1.27 terminal sensor wires connection.
High slot full resistance internal resistance for high power output.
NMB imported from Thailand, Peilin runs extremely smoothly at high speed.
Unique stator adopts 0.2mm silicon steel sheet, efficiency rate can reach 94%.

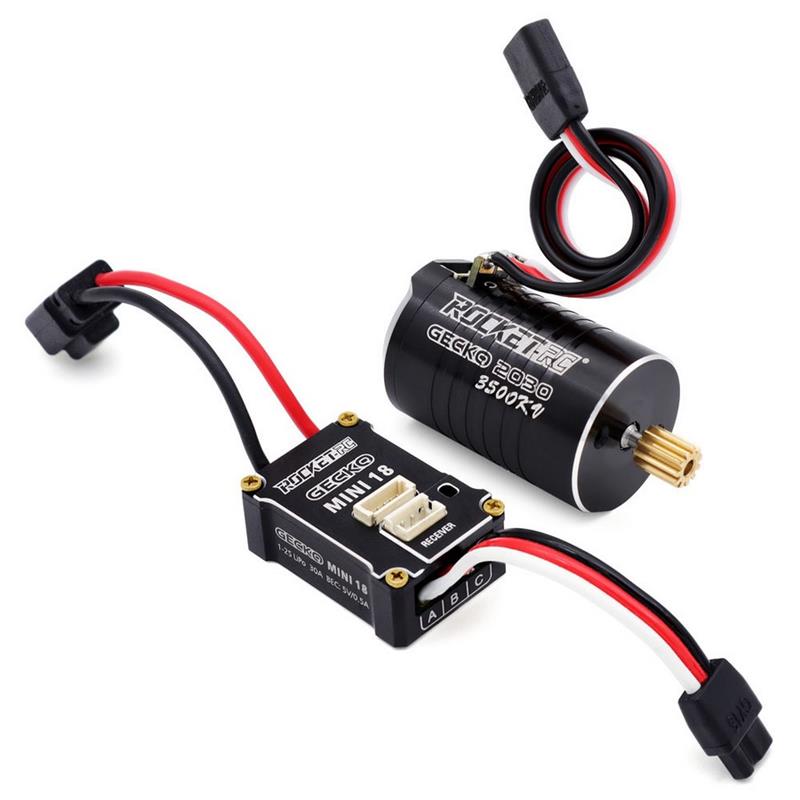

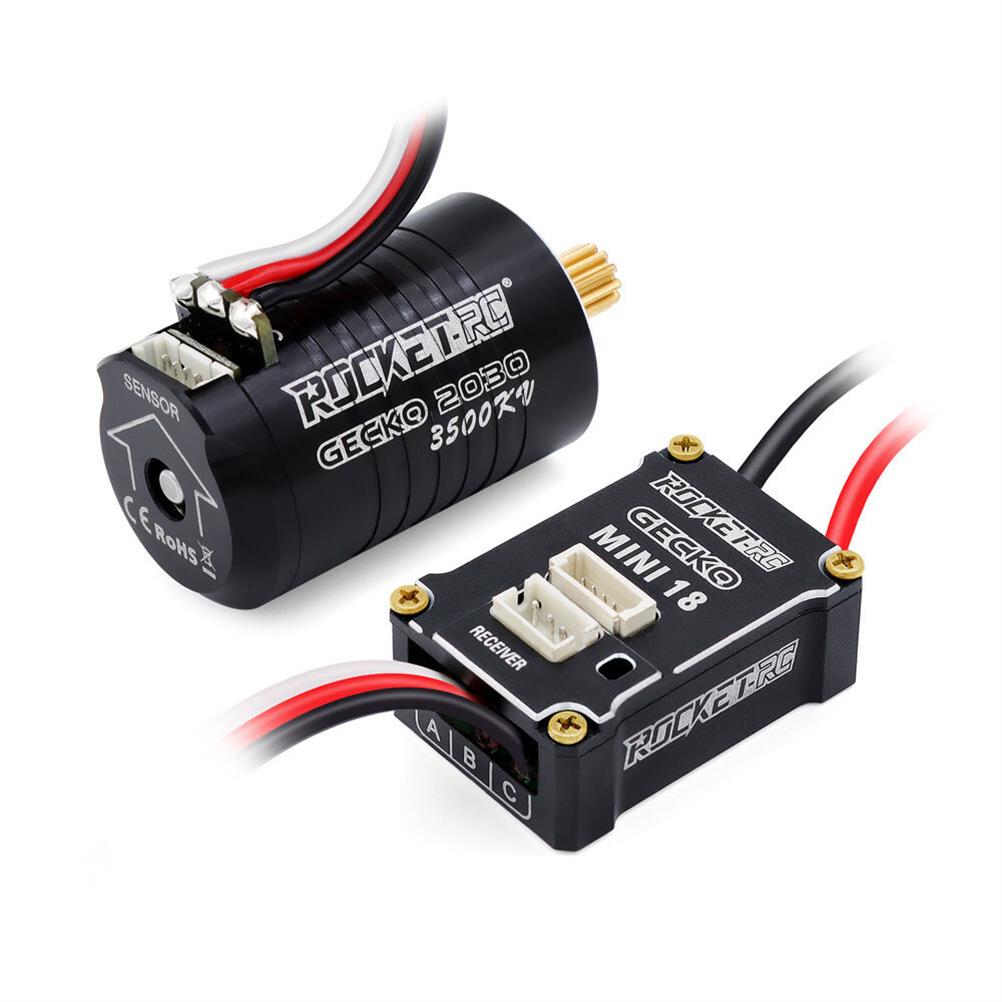

Package Included:
1 x GECKO 2030 Sensored Brushless Motor
1 x GECKO MINI 18 Sensored Brushless ESC
