VIFLY ToothStor 4 Port 2S Balance Charger with Storage Mode for RC FPV Freestyle Cinewhoop Drone DIY Parts
The VIFLY ToothStor 4 Port 2S Balance Charger offers a versatile charging solution for RC FPV freestyle and cinewhoop drones. With dimensions of 109mm x 56mm x 30mm and weighing 142g, this charger supports multiple power inputs including XT60, DC, and USB-C (PD3.0). It features four independent charging channels, allowing you to balance charge four 2S batteries simultaneously without needing them to be the same voltage or size. The colorful LCD screen provides a clear display of the charging status, while the intuitive interface ensures easy operation. The charger supports XH2.54 and BT3.0 battery connectors, and includes a memory function to remember previous settings. Additionally, it has strong heat dissipation capabilities and a buzzer for charge cycle completion notifications.
Specifications:
Dimensions: 109*56*30mm
Weight: 142g
Input connector: XT60, DC(5.5*2.1mm), USB-C(PD3.0)
Input voltage range: 10V-26V
Minimum input power: 65W
Max charging current: 1.5A/port
Support battery connector: XH2.54 3Pin & BT3.0
Battery type: LiHV / LiPo
Storage voltage: 3.80V/Cell & 3.85V/Cell
Max discharge current: 0.2A/port
Balance Current: 0.2A
Features:
▽4 Port 2S Balance Charger with Storage Mode▼You can balance charge four 2S batteries at the same time. And they are 4 independent charging channels, not necessary to ensure the batteries are all the same voltage or the same size. In addition to charging the battery to full voltage, you can charge or discharge it to storage voltage for long time storage.

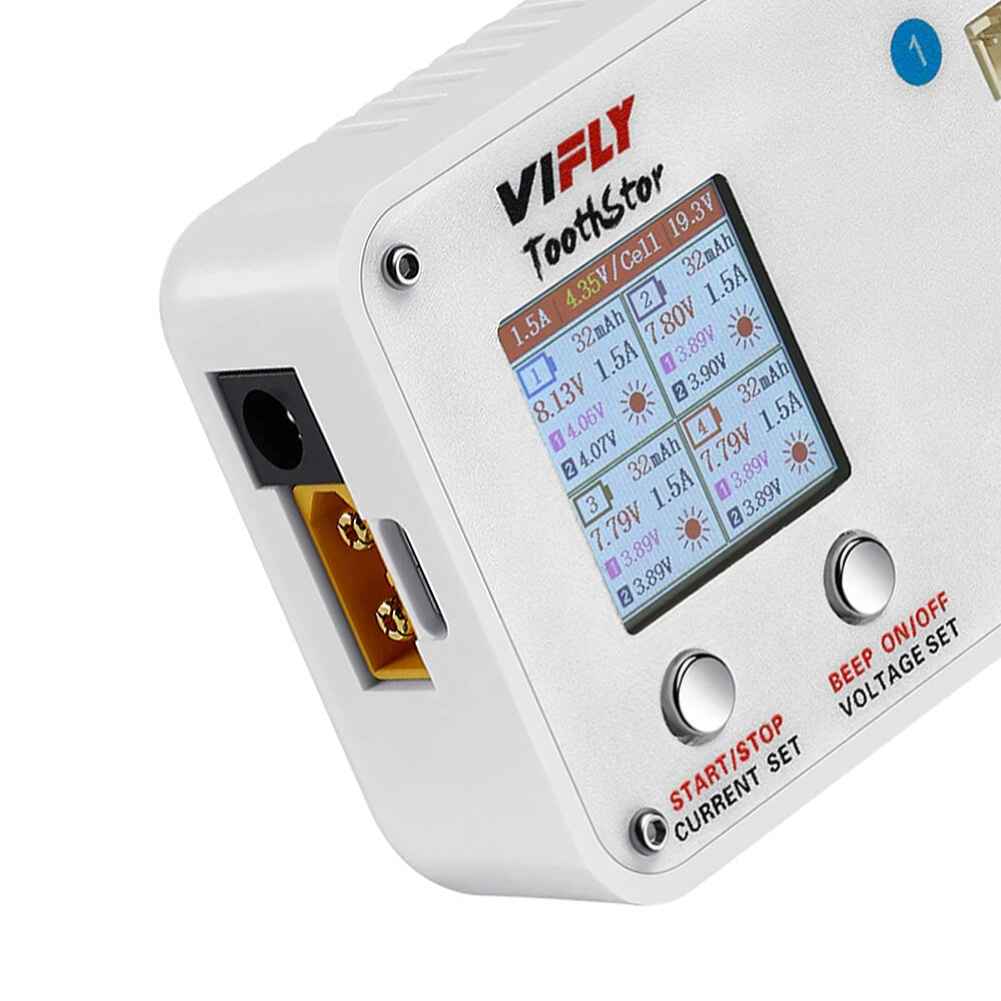

▽Colorful LCD Screen, Intuitive Interface▼VIFLY ToothStor installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.

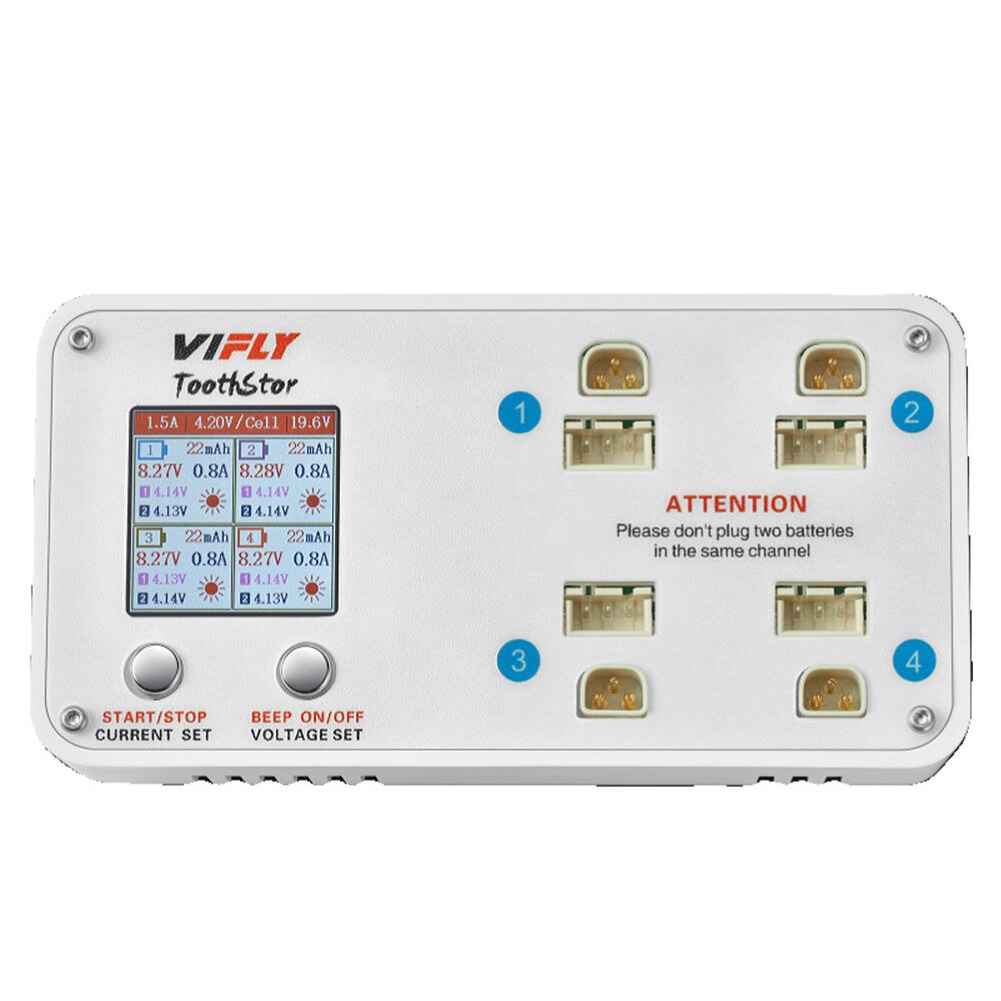

▽Support XH2.54 and BT3.0 Batteries▼VIFLY ToothStor pre-soldered four XH2.54 and BT3.0 connectors, so it can work with any general XT30 2S battery with 3Pin XH2.54 Balance Plug or BetaFPV BT3.0 battery, but don＊t put the two batteries in the same port.
▽Strong Heat Dissipation Capability▼The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.
▽Multiple Power Input▼It supports Type-C, XT60 and DC power input. Type-C supports PD3.0 protocol that requests the input power must be higher than 65W.
▽Memory Function▼VIFLY ToothStor had the memory feature of remembering last time settings, no need to set the charge current every time you turn it on.
▽Buzzer Indication▼VIFLY ToothStor added the buzzer to beep when one charging circle finished, if you don＊t like beeping, you can turn the buzzer off manually.
Package Included:
1 x 4 Port 2S Balance Charger with Storage Mode
