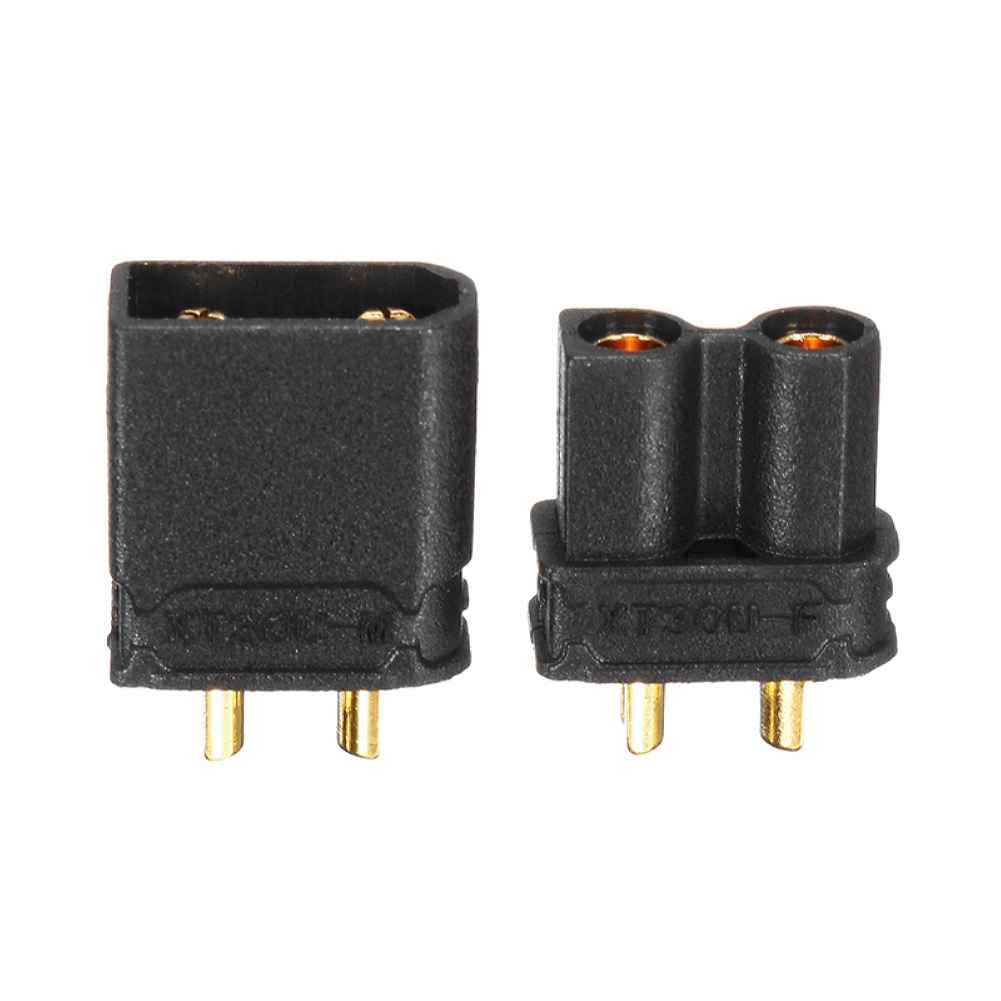

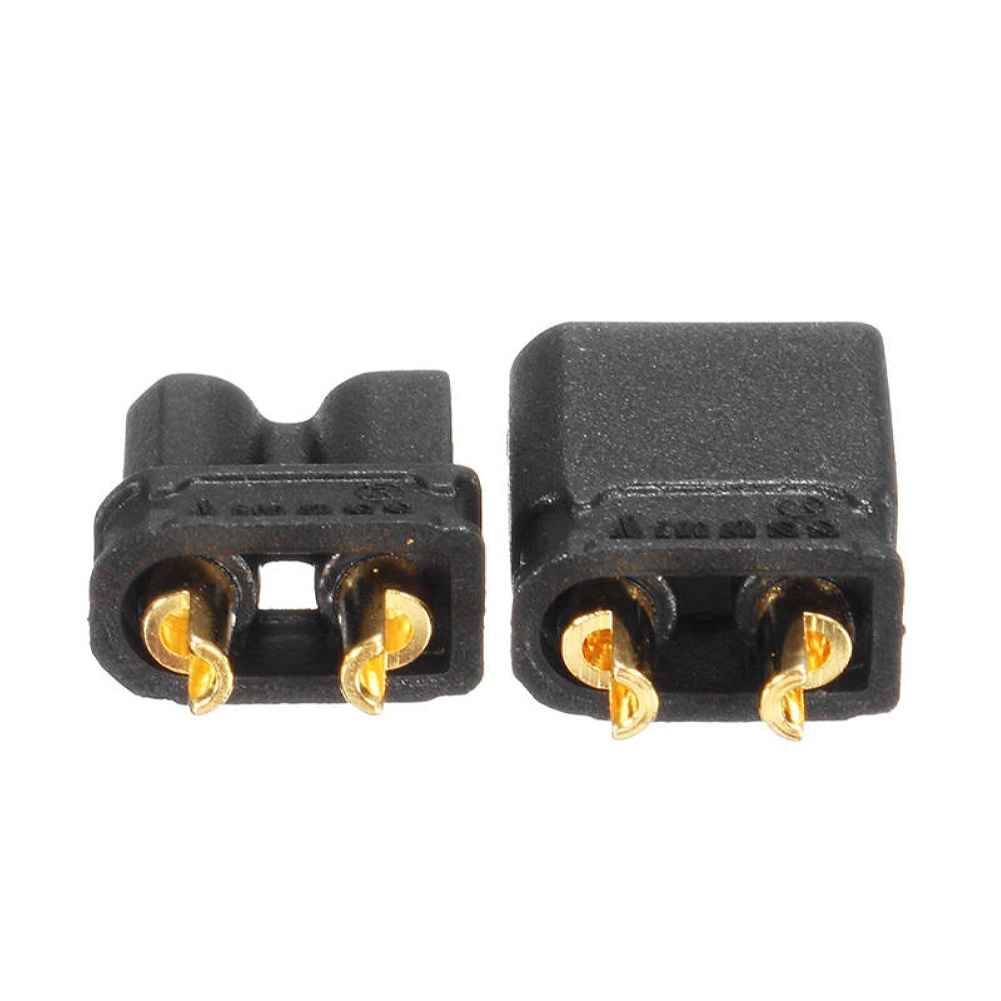

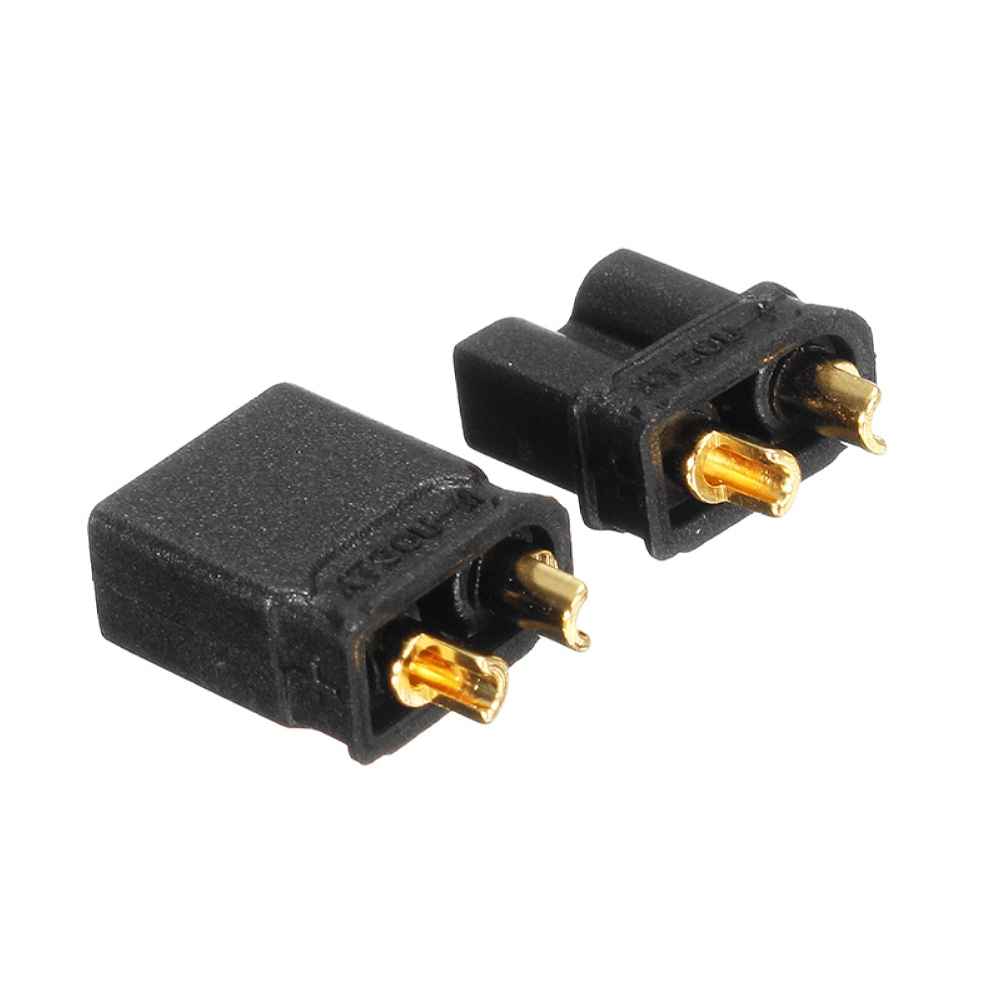

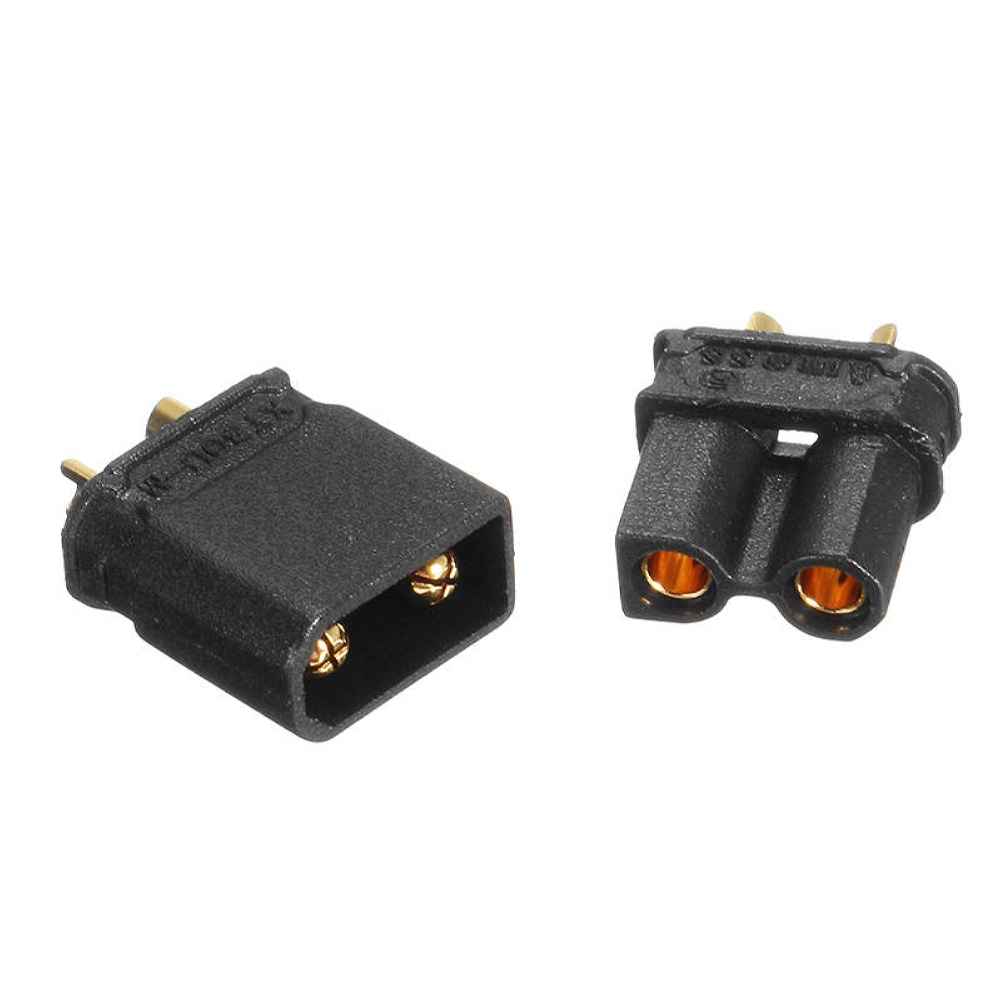

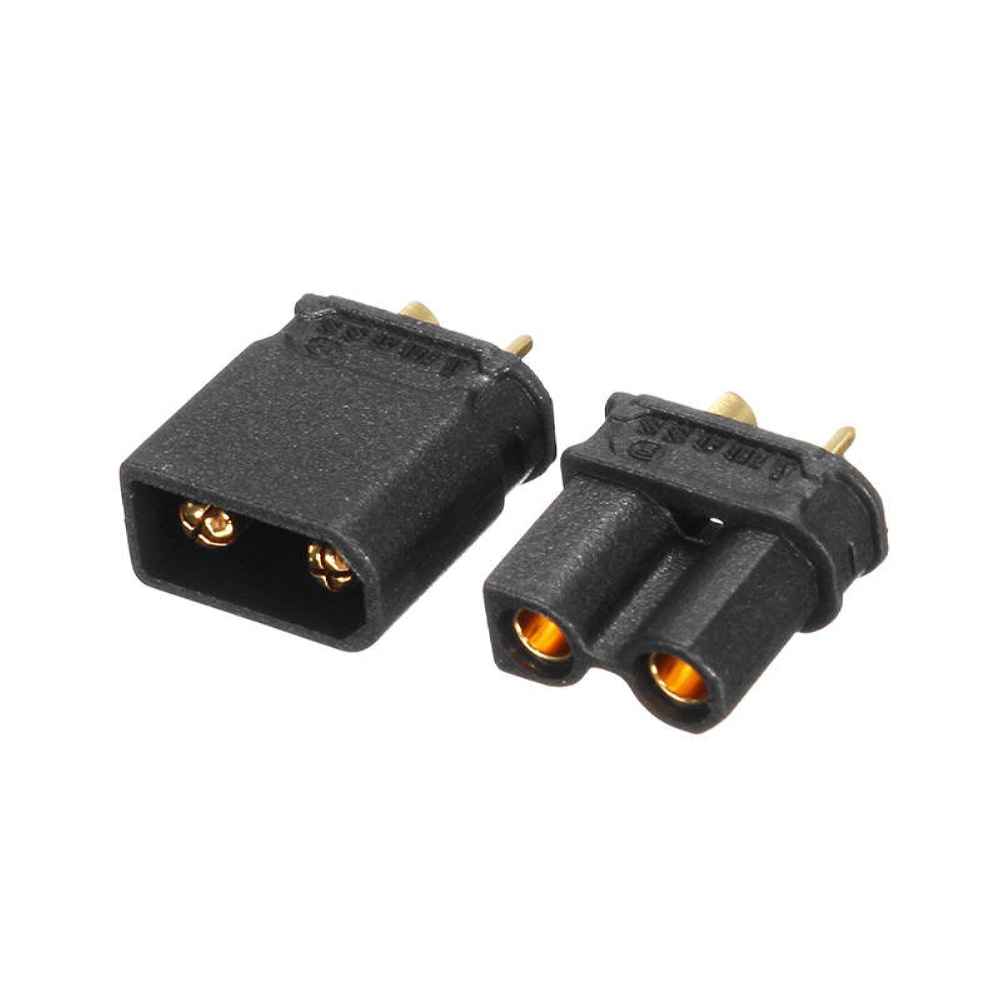

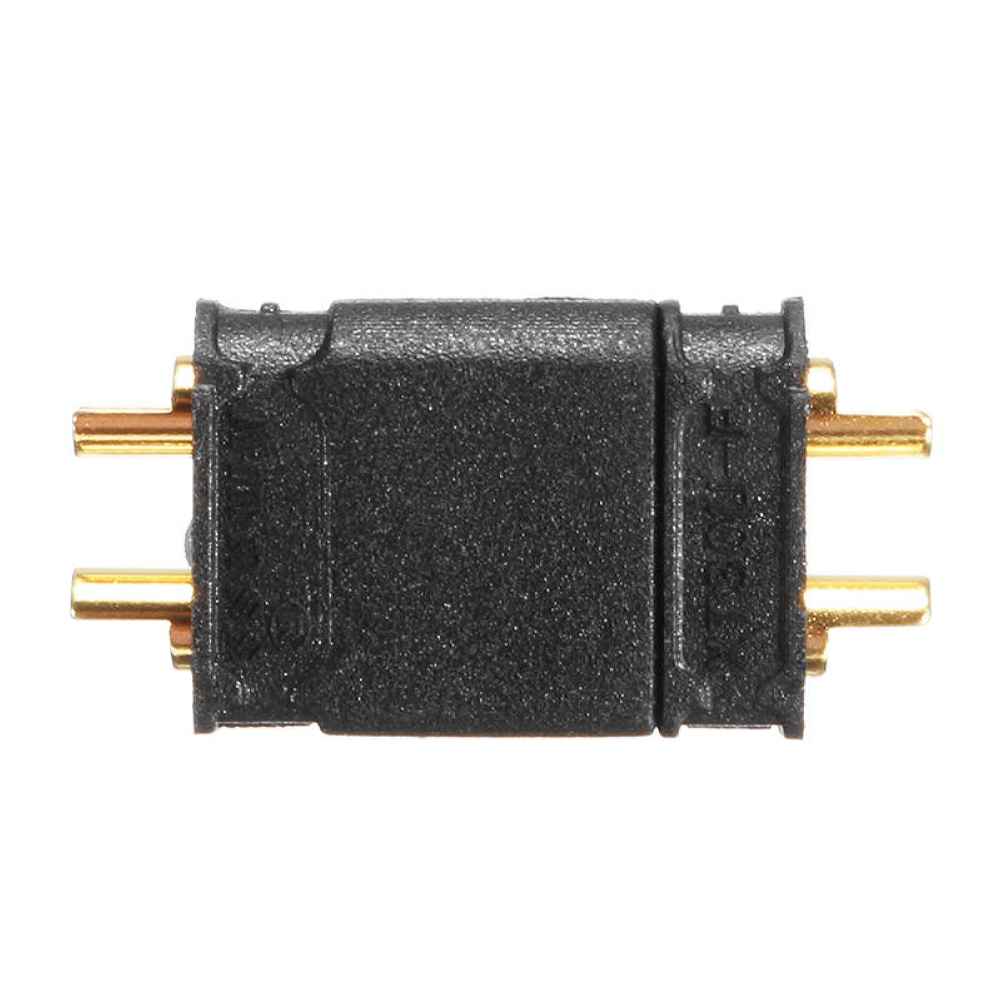

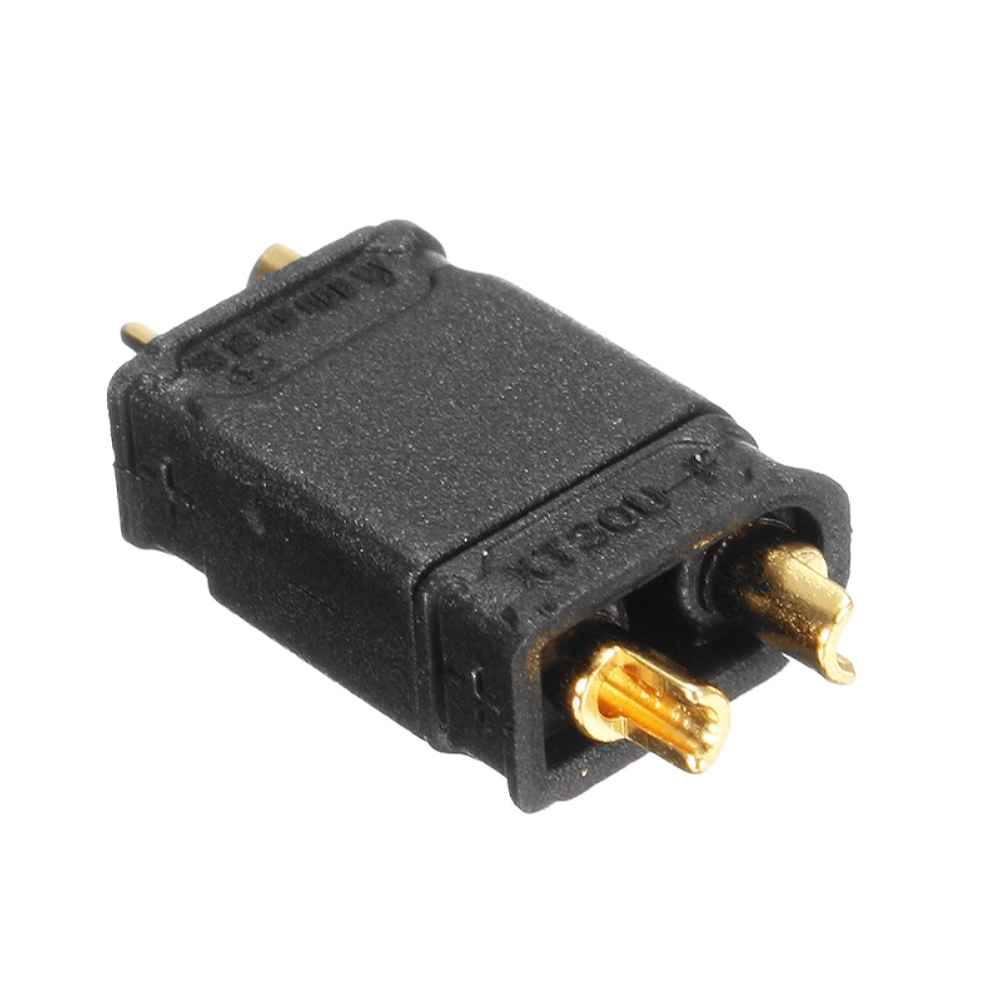

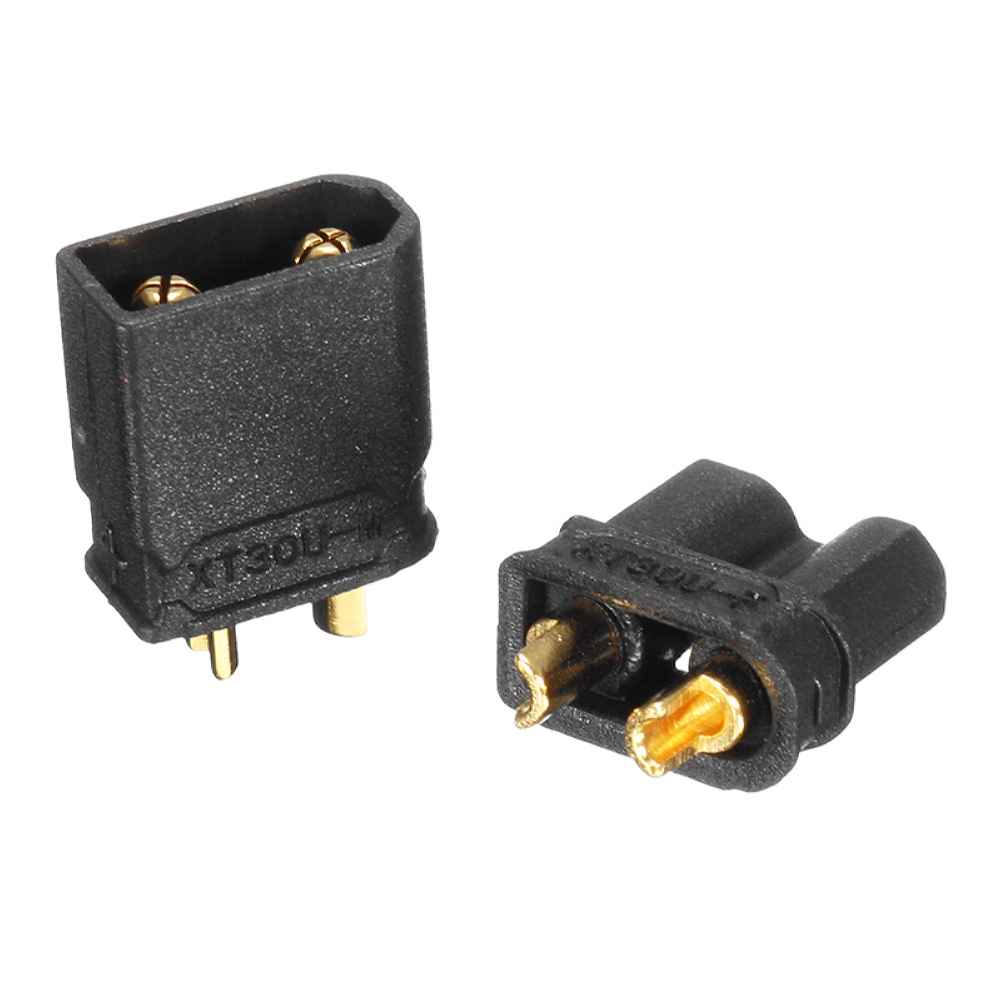

5 X AMASS XT30U Plug 2mm Black Female Male Banana Plug Connector
The Amass XT30U Plug Connector Set is designed for RC enthusiasts needing reliable, high-quality connectors. Each connector is crafted with brass and gold-plated materials for optimal conductivity, paired with nylon insulation for durability. These connectors support a maximum continuous current of 15A and an instantaneous current of 30A, ensuring a secure, high-amp connection. The lightweight and compact design make them ideal for applications requiring small-sized connectors. With a temperature resistance range from -20掳C to 120掳C and a rated voltage of DC 500V, this connector set is both versatile and robust. Certified by CE/UL, it’s recommended for use with 18AWG cables and can endure up to 1000 connection cycles.
Specification:
Brand Name: Amass Bullet Connectors Plugs For RC Lipo Battery
Banana Plug: 2 mm
Body Material: Brass and gold-plated
Insulation Material: Nylon/PA
Internal Resistance:0.30mΩ
Maximum continuous current / instantaneous current: 15A / 30A
Rated Voltage: DC 500V
FR Level: UL94 V0
Temperature Resistance: -20°C – 120°C
Recommend Use: 1000 times
Recommend Cable Spec.: 18AWG
Certification: CE/UL
Features:
1. 100% Amass Brand new and high quality.

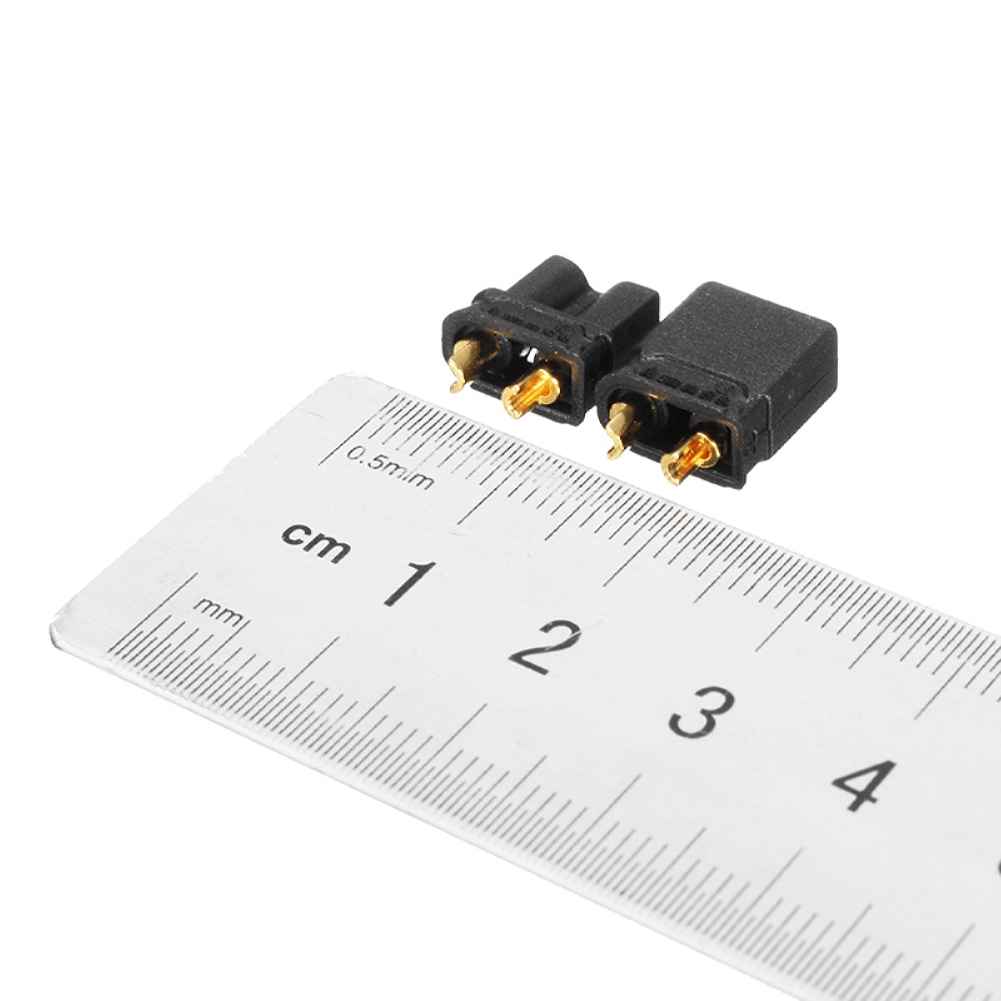

2. Lightweight design,small size, high resistance current.
3.Suitable for the situation that needs a lightweight or small size plug.
4. Ensures high-amp connection.
5. Used in RC battery and motor.
6. Made of high-temp Nylon and gold plated spring connectors, both included in the injection mould at the time when forming the connector.

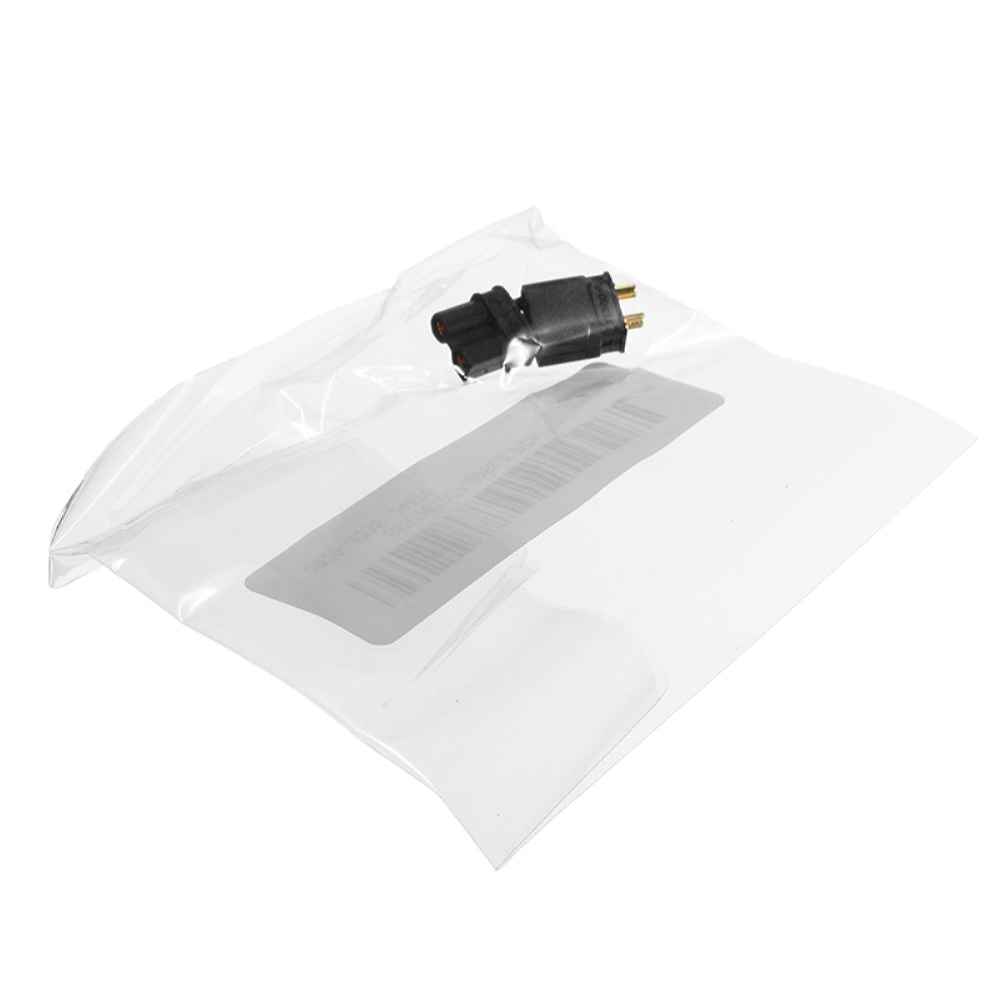

Package Included:
5 x Amass XT30U male connector
5 x Amass XT30U female connector
