Description

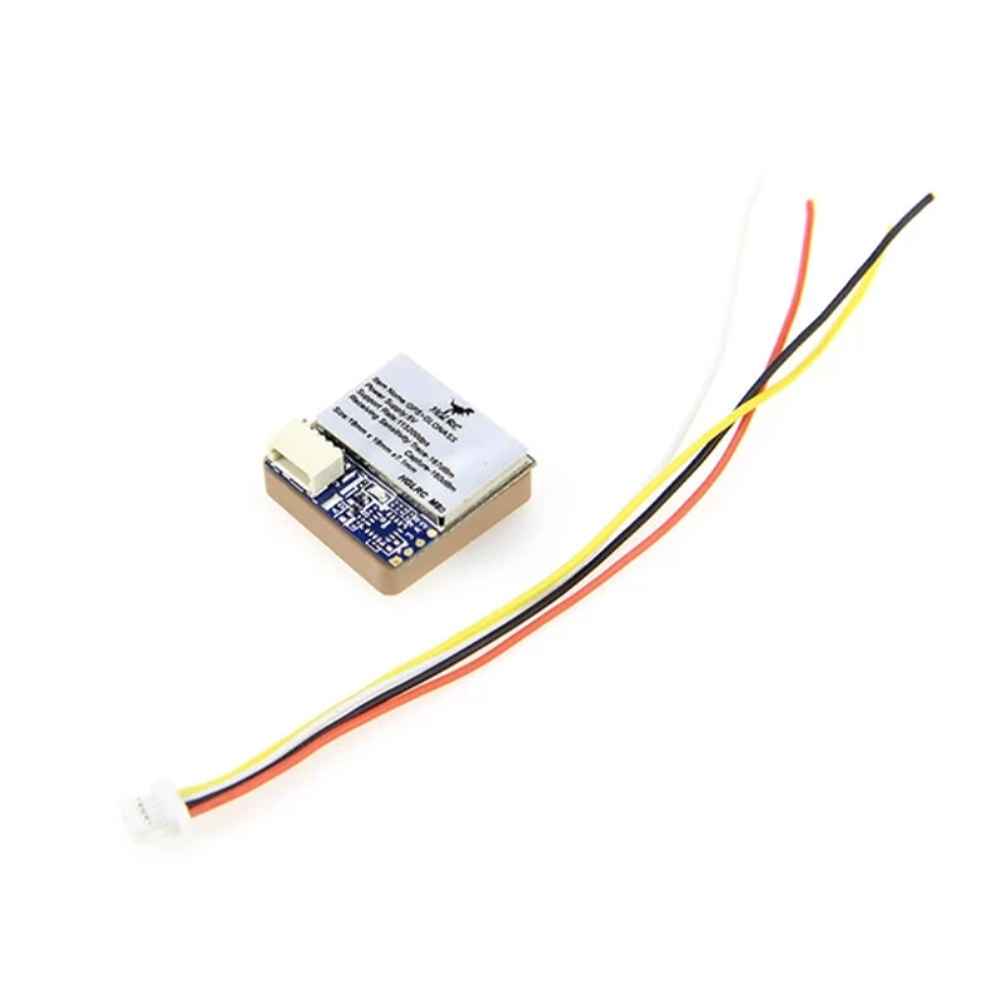

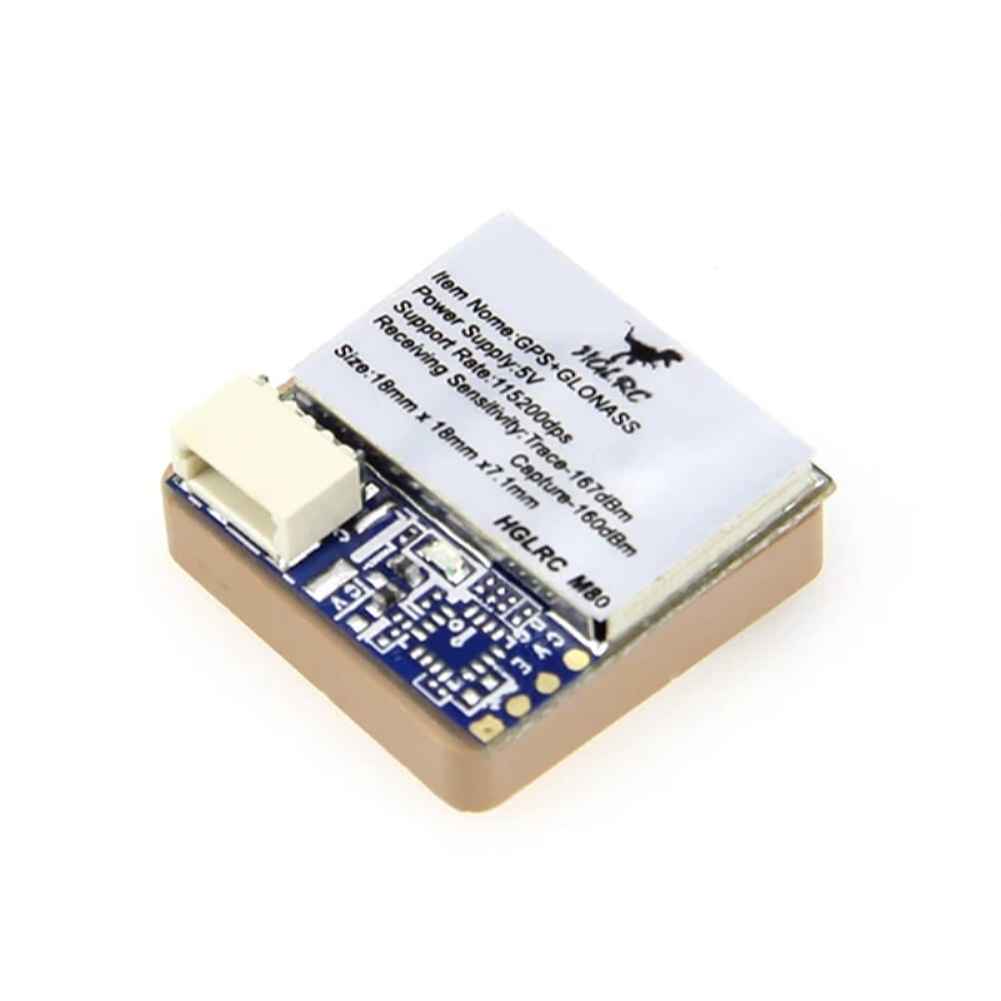

HGLRC M80 GPS Module for FPV Racing Drone Compatibled With GLONASS/GALILEO/QZSS/SBAS/BDS
The HGLRC M80 GPS Module is designed for FPV racing drones, offering compatibility with multiple satellite systems including GLONASS, GALILEO, QZSS, SBAS, and BDS. It features the M8030 chip with a ceramic antenna, providing precise GPS reception. The module supports a 72-channel receiving format and outputs data at a default frequency of 10Hz. It operates efficiently with a power supply of 5V and boasts a high-speed precision of 0.05 m/s. With a level positioning precision of 1.5m in open sky conditions, it ensures accurate navigation. The module is compact, measuring 18.5mm x 18.5mm x 7.1mm, and weighs just 9.4g, making it a perfect fit for high-speed drone racing.
HGLRC M80 GPS for FPV Racing Drone

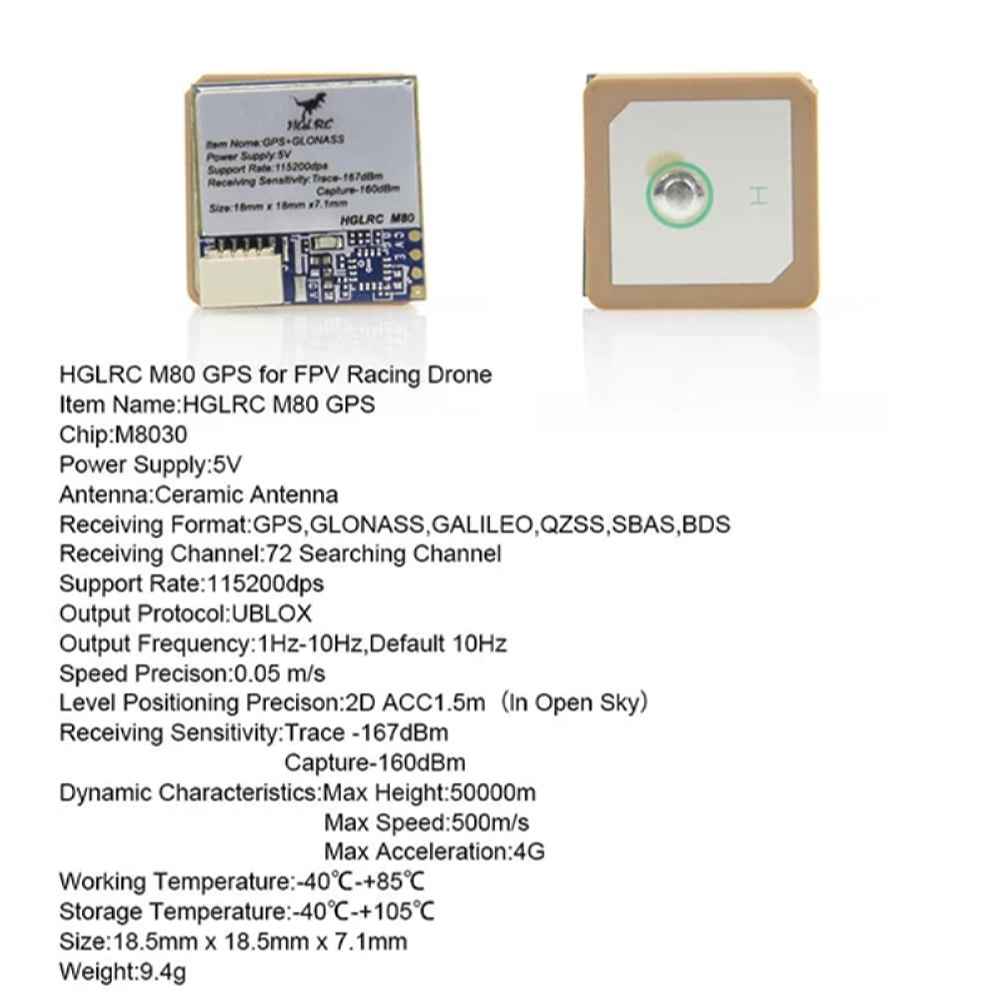

Description:
Item Name:HGLRC M80 GPS
Chip:M8030
Power Supply:5V
Antenna:Ceramic Antenna
Receiving Format:GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
Receiving Channel:72 Searching Channel
Support Rate:115200dps
Output Protocol:UBLOX
Output Frequency:1Hz-10Hz,Default 10Hz
Speed Precison:0.05 m/s
Level Positioning Precison:2D Acc1.5m(ln Open Sky)
Receiving Sensitivity:Trace -167dBm
Capture-160dBm
Dynamic Characteristics:Max Height:50000m
Max Speed:500m/s
Max Acceleration:4G
Working Temperature:-40⊥-+85⊥
Storage Temperature:-40⊥-+105⊥

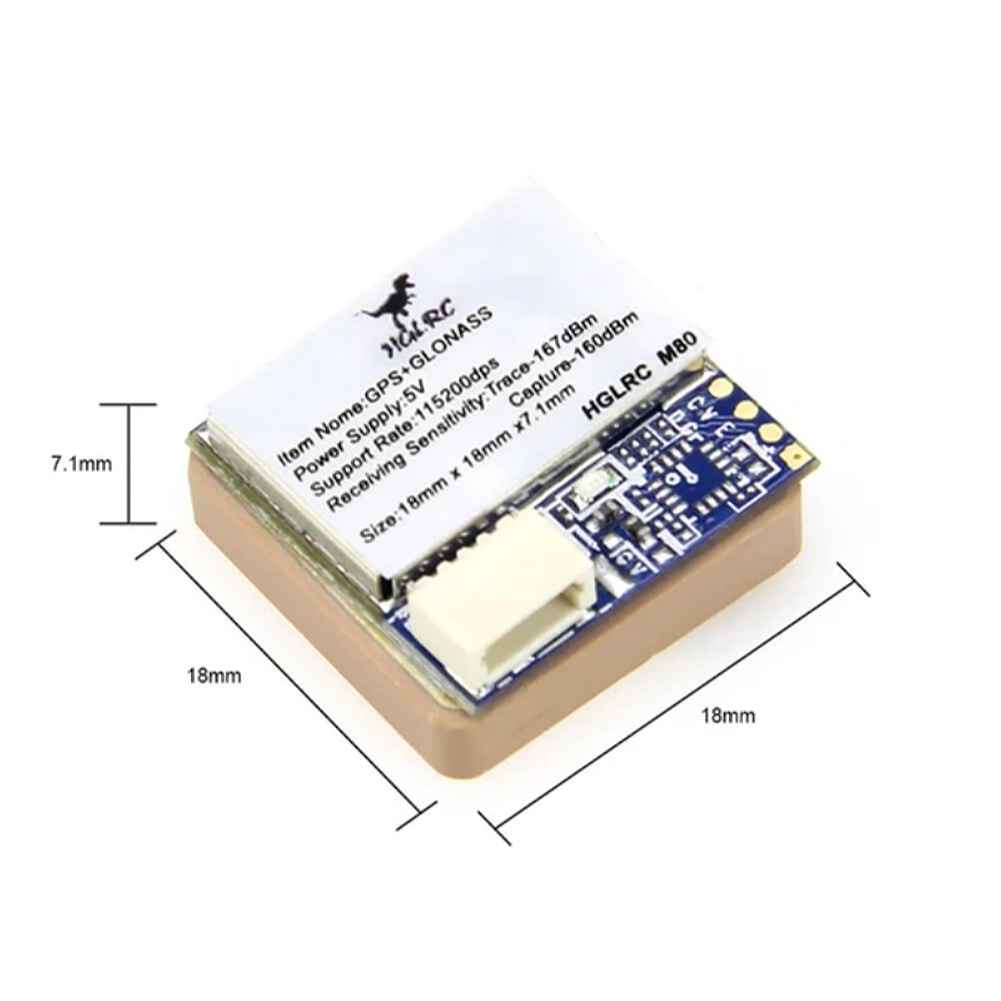

Size:18.5mm x 18.5mm x 7.1mm

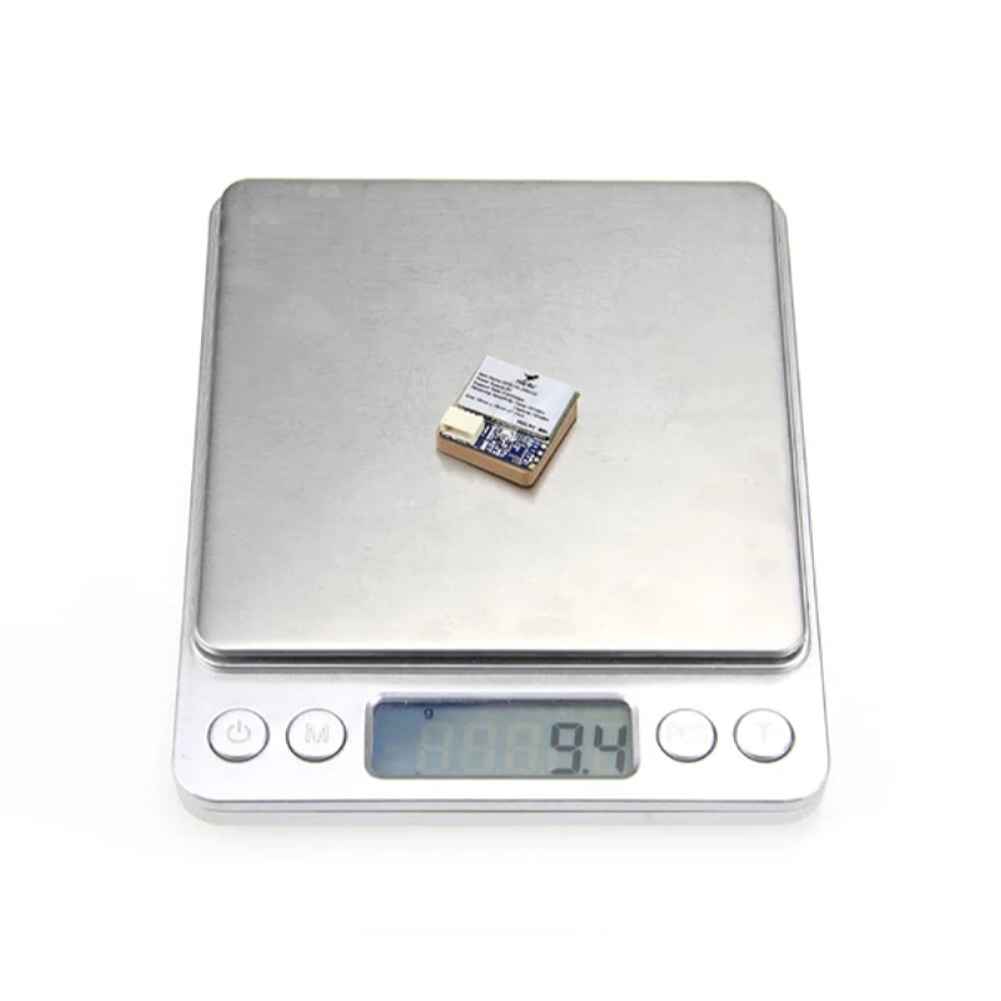

Weight:9.4g
Package Included:
1 x HGLRC M80 GPS
