Description

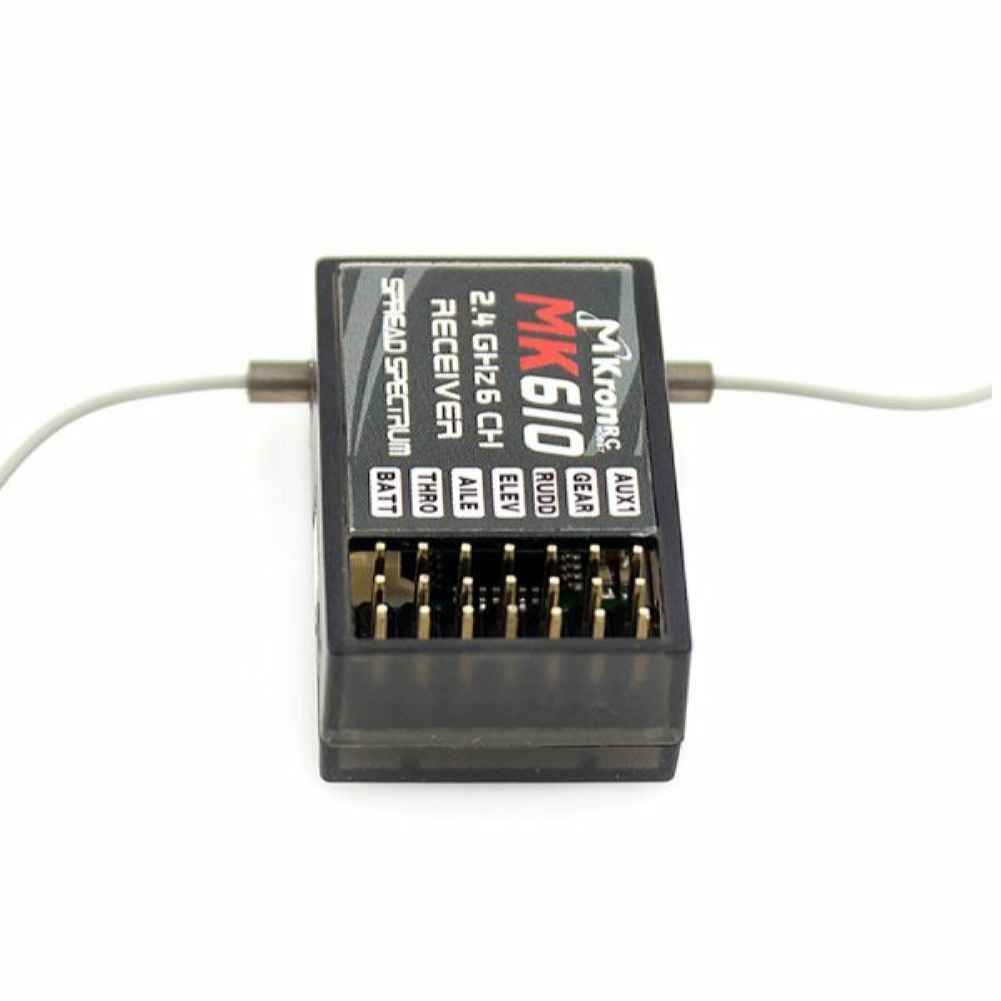

MKronRC MK610 2.4G 6CH Receiver For Spektrum JR DSM2 DX6 DX6I DX7 DSX7 Transmitter
The MKronRC MK610 is a 2.4GHz 6-channel receiver designed for RC airplane enthusiasts. This compact and lightweight receiver, weighing just 6.2g, is compatible with Spektrum and JR DSM2 transmitters, including models such as DX6, DX6I, DX7, and DSX7. It operates within a voltage range of 3.5V to 9.6V and features two 30mm antennas for reliable signal reception. Binding the receiver is straightforward, requiring only a single bind procedure. Please note, this product is not a Spektrum DSM2/X or its replica, and it is exclusively suitable for RC airplanes.
MKronRC MK610 2.4G 6CH Receiver For Spektrum JR DSM2 DX6 DX6I DX7 DSX7 Transmitter
Description:
Brand Name: MKronRC
Item Name: MK610
Version: For RC Airplane version
Band: 2.4GHz
Channel: 6
Modulation: DSM2
Operating Voltage: 3.5V – 9.6V
Antenna Length: 2 x 30mm
Dimension: 32x21x13mm
Weight: 6.2g
Application: Compatible with Spektrum,JR,DSM2 transmitter, such as DX6,DX6I,DX7,DSX7 Transmitter.
Note: Only suitable for RC Airplanes
How to Bind:
a. Insert the bind plug in the BATT/BIND port on the receiver.
b. Supply power to the receive,the receiver LED light is off.
c. Set the transmitter to Non-failsafe protection status (put the throttle control rod to the lowest position).
d. Press and hold the light on the transmitter TX module and turn on the transmitter,note that the LED on the TX module should be flashing,then in few seconds the receiver LED should be flashing,the LED stays on.
e. Remove the bind plug .Transmitter and receiver are bound to each other .
General Notes:
1) This is not a Spektrum DSM2/X product, nor is it a copy of a Spektrum DSM2/X product. The Spektrum and DSM2/X brand is a trademark of Horizons Hobbies USA.
2) This is not an underground black market fakes Spektrum product.
3) Only one bind procedure is required on a new receiver. Repetitive binding provides no extra security. Always remember to remove the binding harness after successful bind is completed.

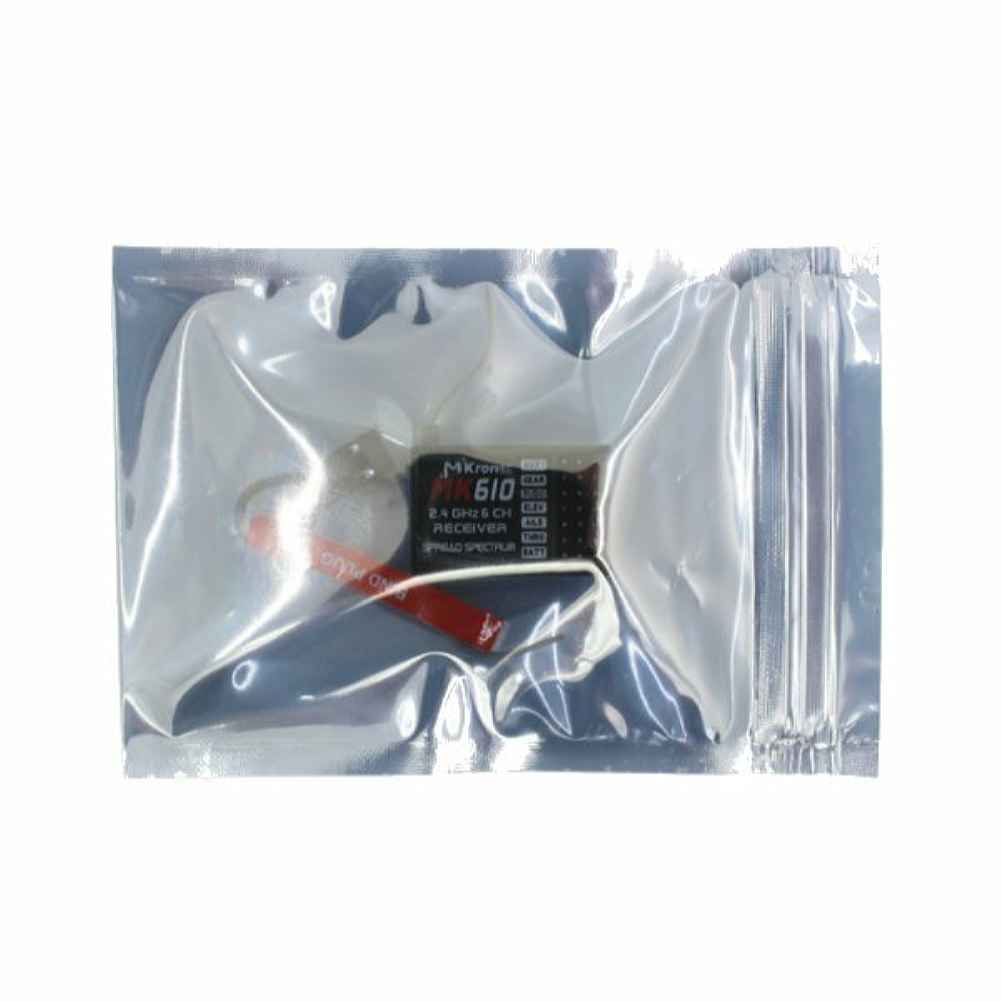

Package Included:
1 x MK610 Receiver
1 x Bind Plug
