CORONA R8SF S-FHSS 2.4GHz 8CH Receiver for Futaba T6J T6K T8J T10J T14SG T18MZT 18SZ

-10%

CORONA R8SF S-FHSS 2.4GHz 8CH Receiver for Futaba T6J T6K T8J T10J T14SG T18MZT 18SZ

Original price was: 30.58$.Current price is: 27.52$.

Compatible with Futaba S-FHSS/FHSS transmitters
Supports 8 channels with S.BUS output
Operates at 3.6-8.5V with 60mA max current
13.6mS or 20.4mS latency for smooth operation
Easy bind procedure with LED indicators

SKU: RC1048817 Category: Radios & Receiver Tags: 2.4GHz 8CH receiver, CORONA R8SF receiver, digital servo support receiver, Futaba compatible receiver, RC hobby receiver, RC receiver for T6J T6K T8J, S-FHSS receiver for Futaba, S.BUS output receiver Brand: CORONA

Description

CORONA R8SF S-FHSS 2.4G 8CH Compatible Receiver for Fuataba T6J T6K T8J T10J T14SG T18MZT 18SZ

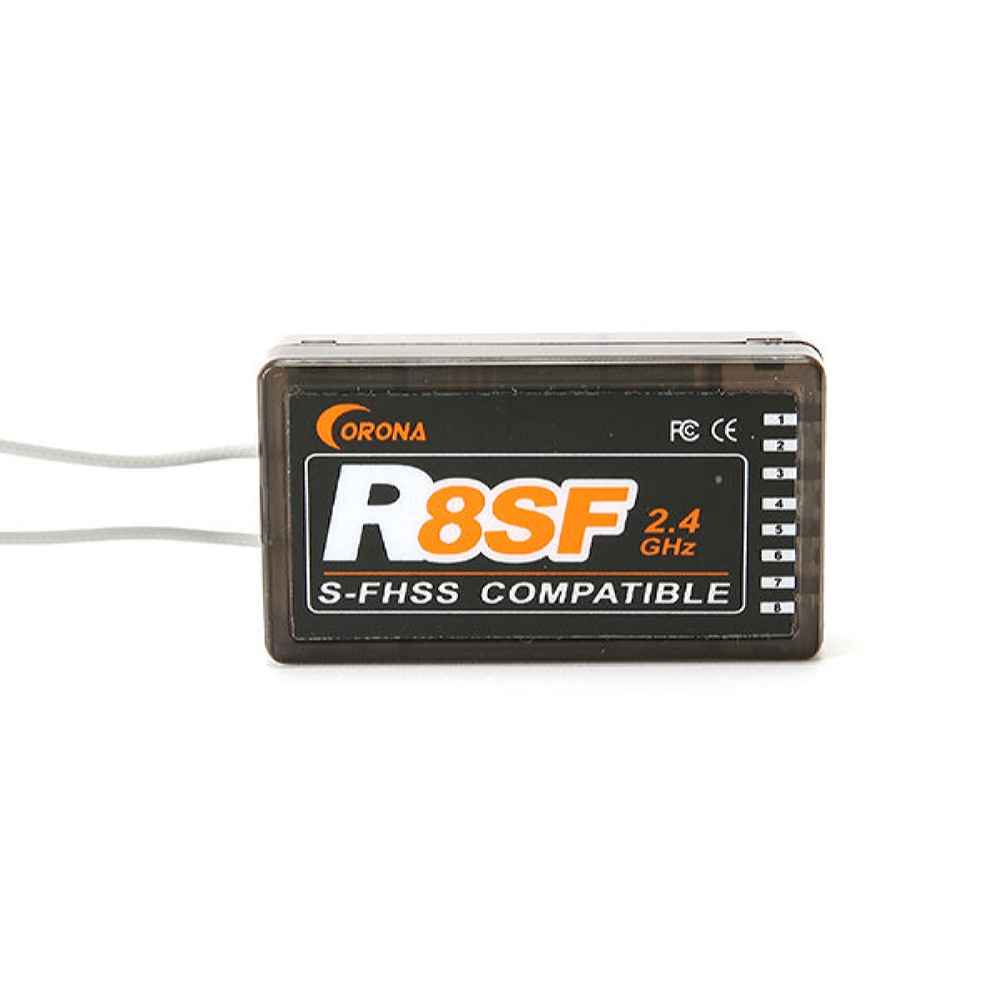

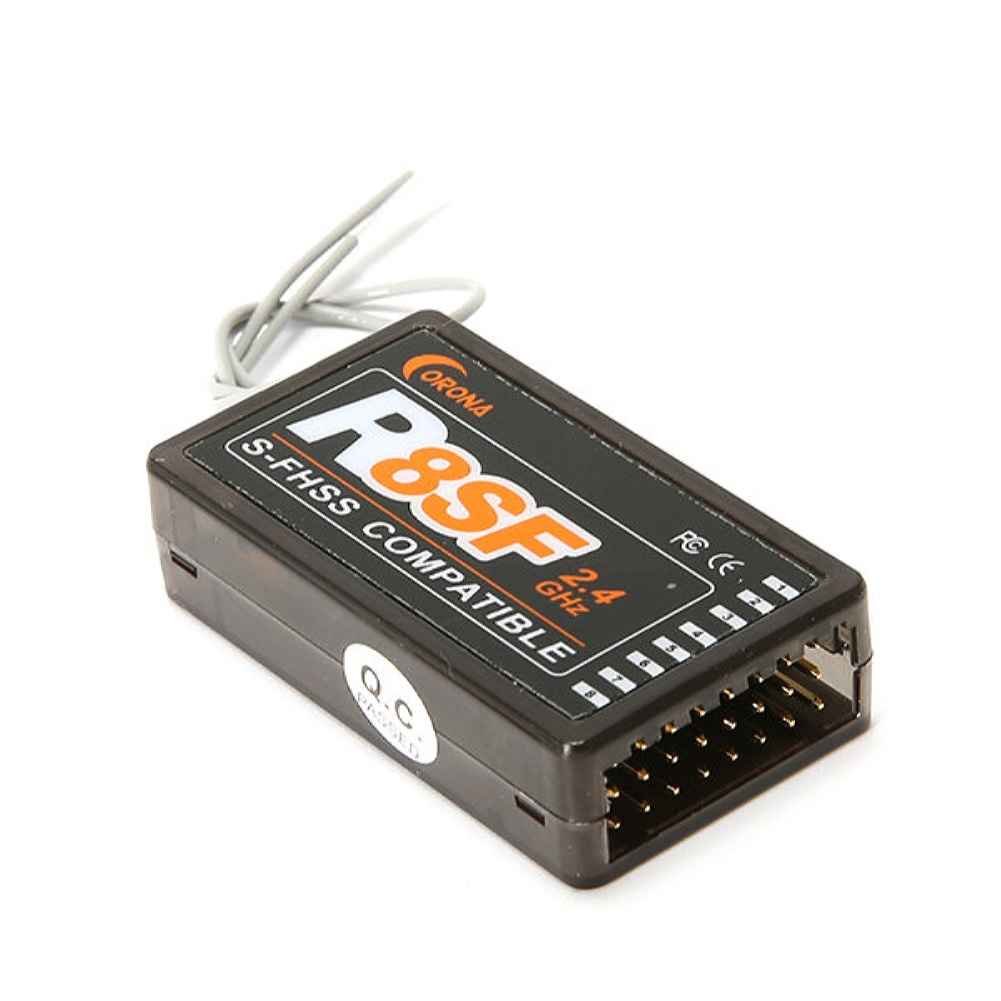

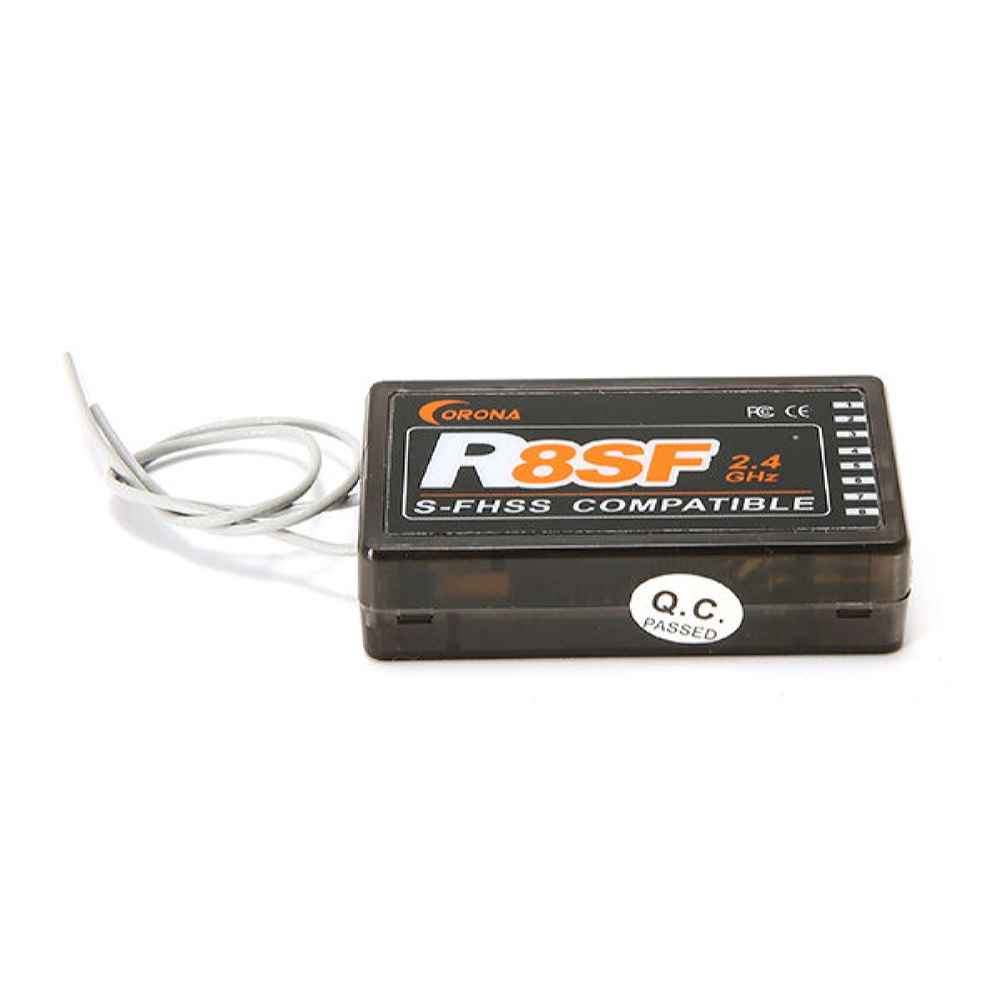

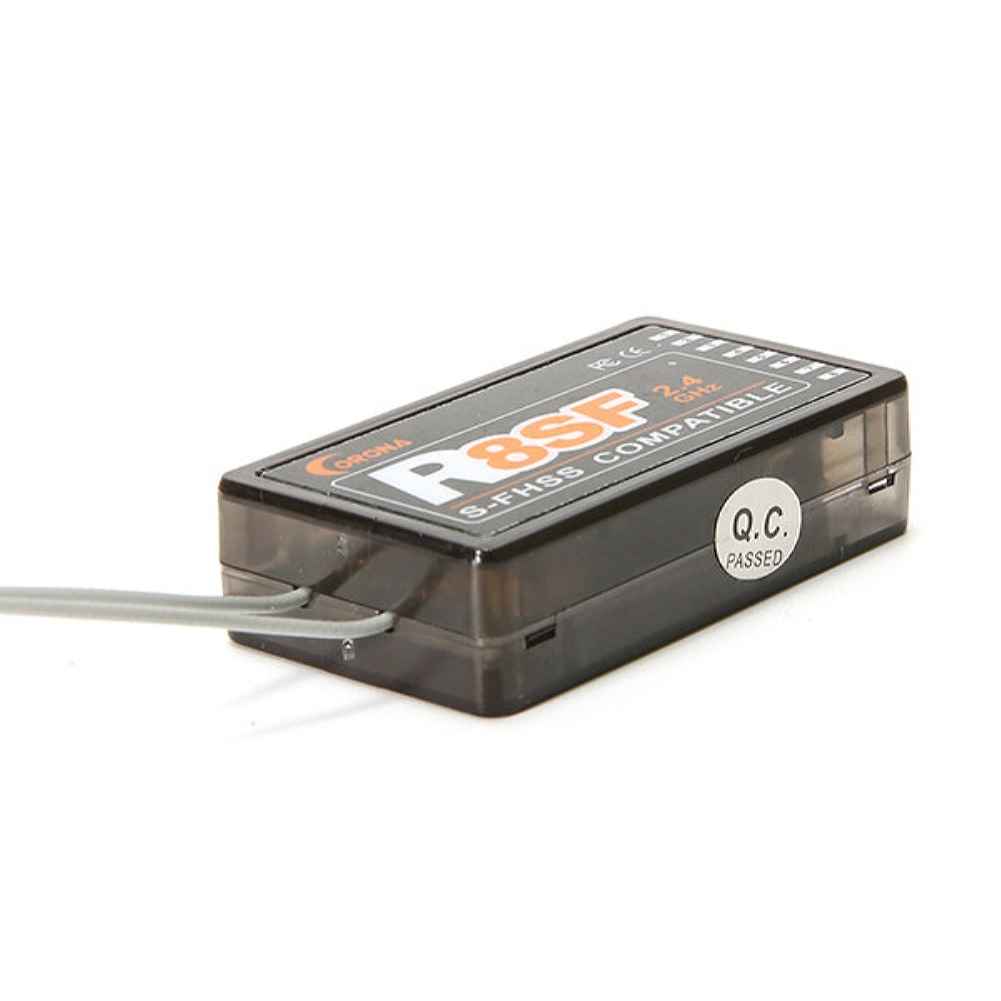

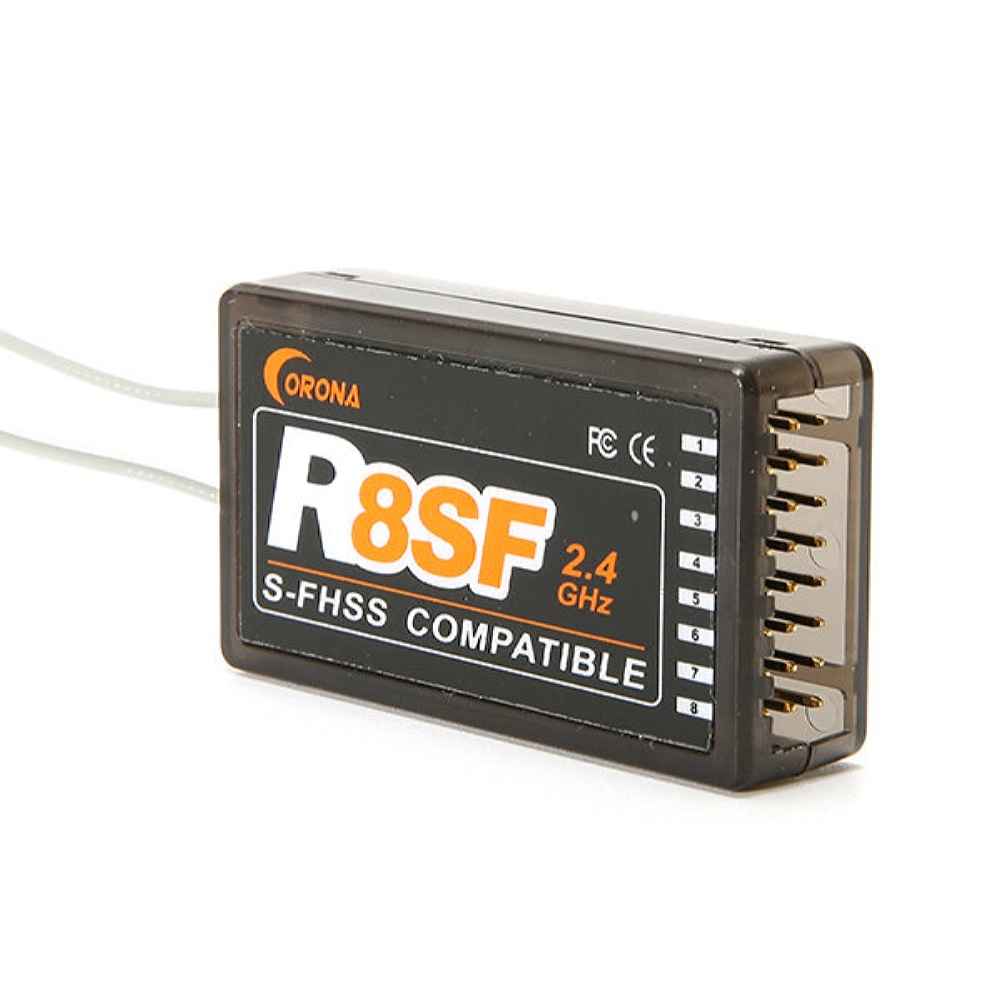

The CORONA R8SF S-FHSS 2.4GHz 8-channel receiver is engineered for compatibility with Futaba’s S-FHSS/FHSS 2.4GHz transmitters, including models like T6J, T6K, T8J, T10J, T14SG, T18MZ, and T18SZ. It operates within a voltage range of 3.6 to 8.5V and supports both analog and digital servos. The receiver features S.BUS output, enhancing servo channel expansion on the 8th channel, and offers smooth flight performance with digital servos. With a latency of 13.6mS or 20.4mS, it ensures reliable performance under varying conditions. The bind procedure is straightforward, requiring the transmitter to be turned on while the receiver is powered up with the F/S button pressed.

CORONA R8SF S-FHSS 2.4G 8CH Compatible Receiver for Fuataba T6J T6K T8J T10J T14SG T18MZT 18SZ
CORONA 2.4GHz S-FHSS Compatible Receiver is designed to use with FUTABAS S-FHSS/FHSS 2.4GHz transmitters, such as air system T4YF,T6J,T6K,T8J,T10J, T14SG ,T18MZ,T18SZ or surface system 3PL,T3PRKA,4PLS,T4PX,T4GRS under S-FHSS/FHSS protocol mode.
Description:
Brand: Corona
Item Name: R8SF
CH: 8
Voltage Range :3.6~8.5V
Operating Current: 60mA max and 45mA under linked
Operation temperature: -10~70 degC
Latency: 13.6mS or 20.4mS
Sensitivity: about -100dBm for R8SF, -98dBm for R6SF and -95dBm for R4SF
Weight: 11g
Features:
S.BUS output support expanding servo channels on the 8th channel of R8SF
20.4mS latency under normal status after bind support analog servos,13.6mS latency under special status supply enhancement smooth flight with digital servos.
Bind procedure:
Turn on the S-FHSS/FHSS transmitter, leave it 0.5M~1M away the receiver.
Connect the battery to the receiver while pressing receiver＊s F/S button.
Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.
