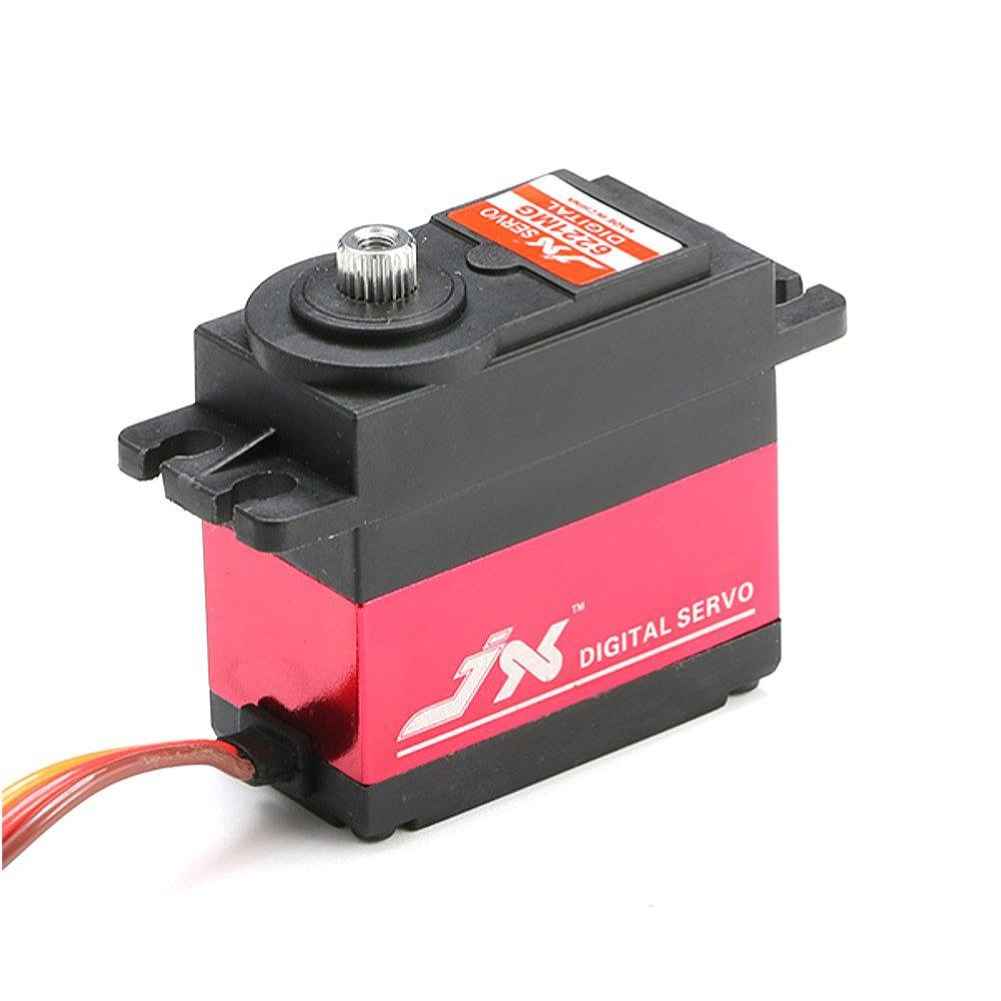

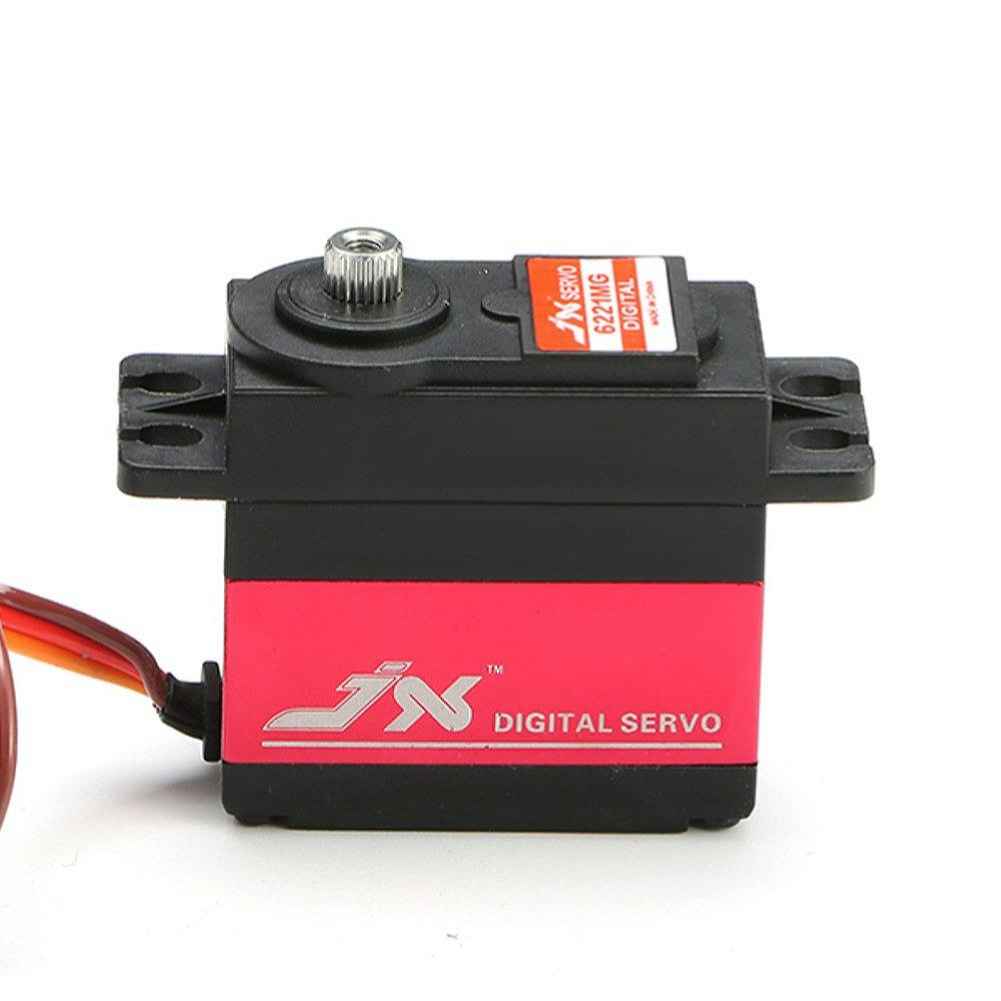

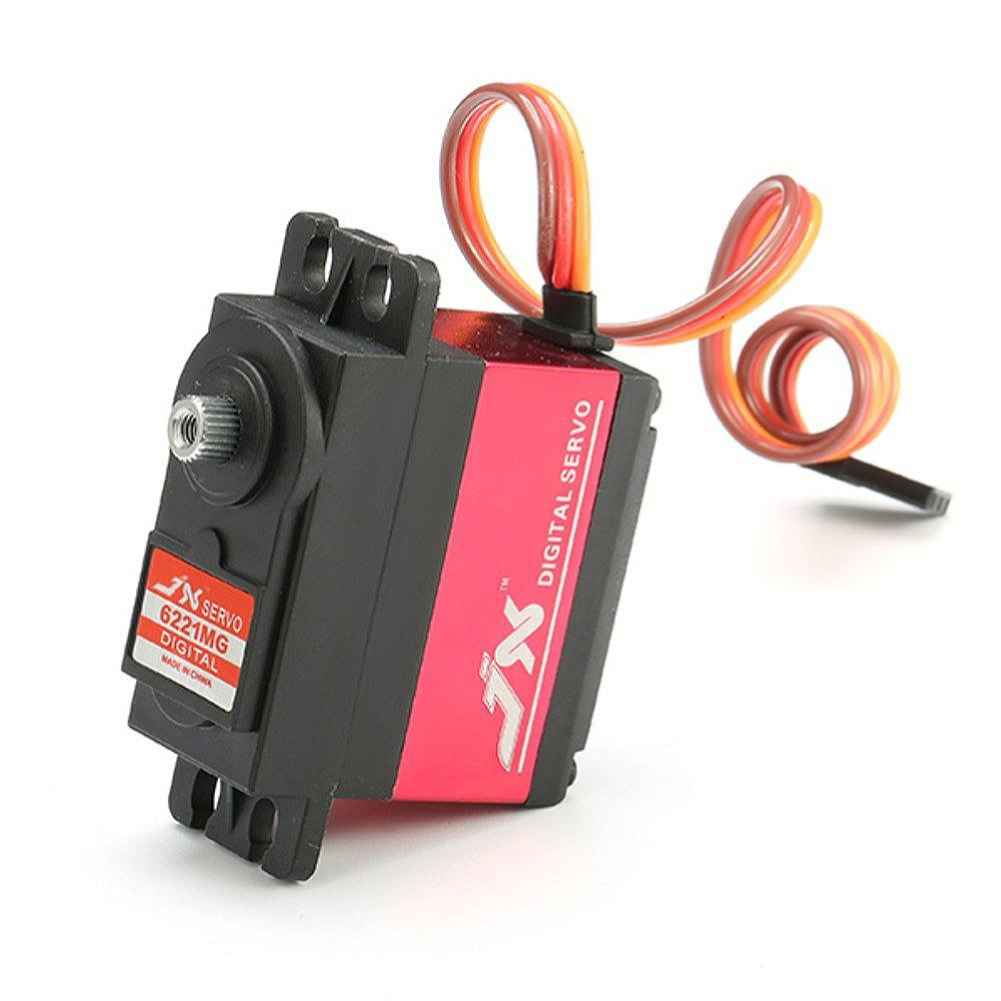

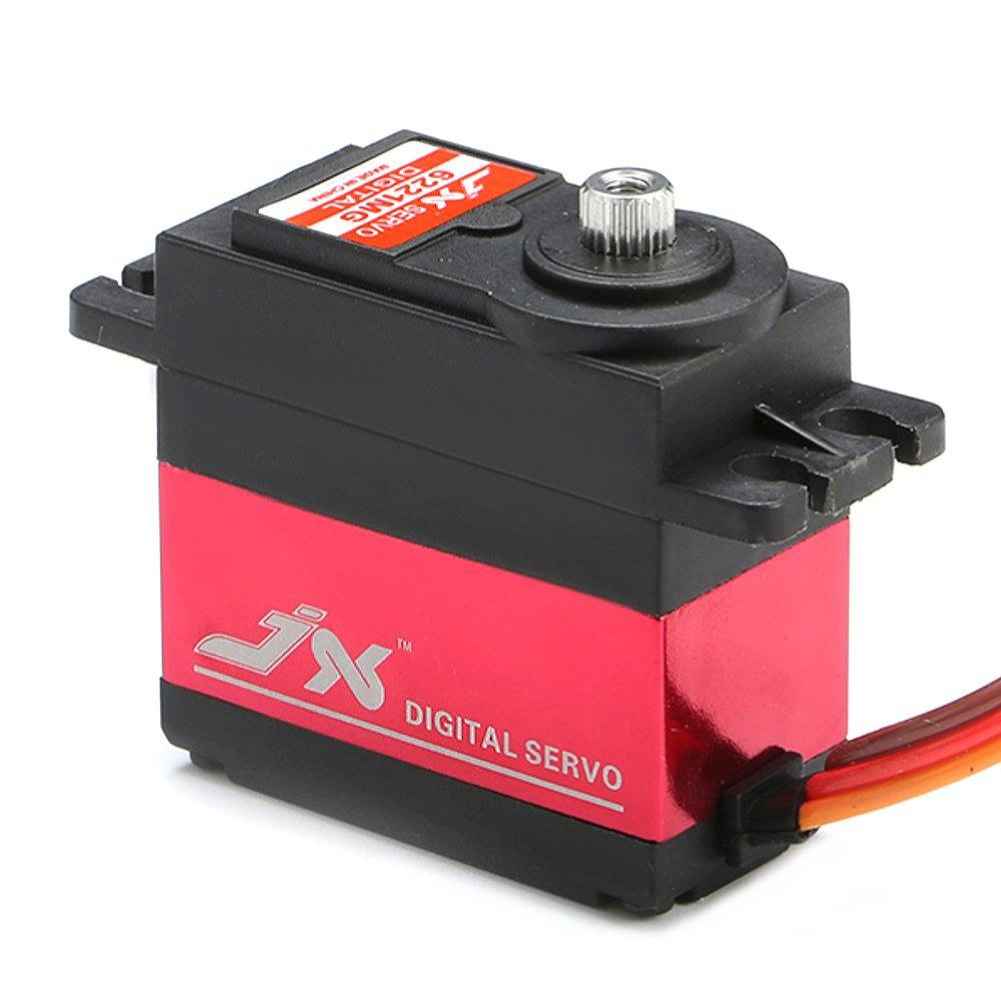

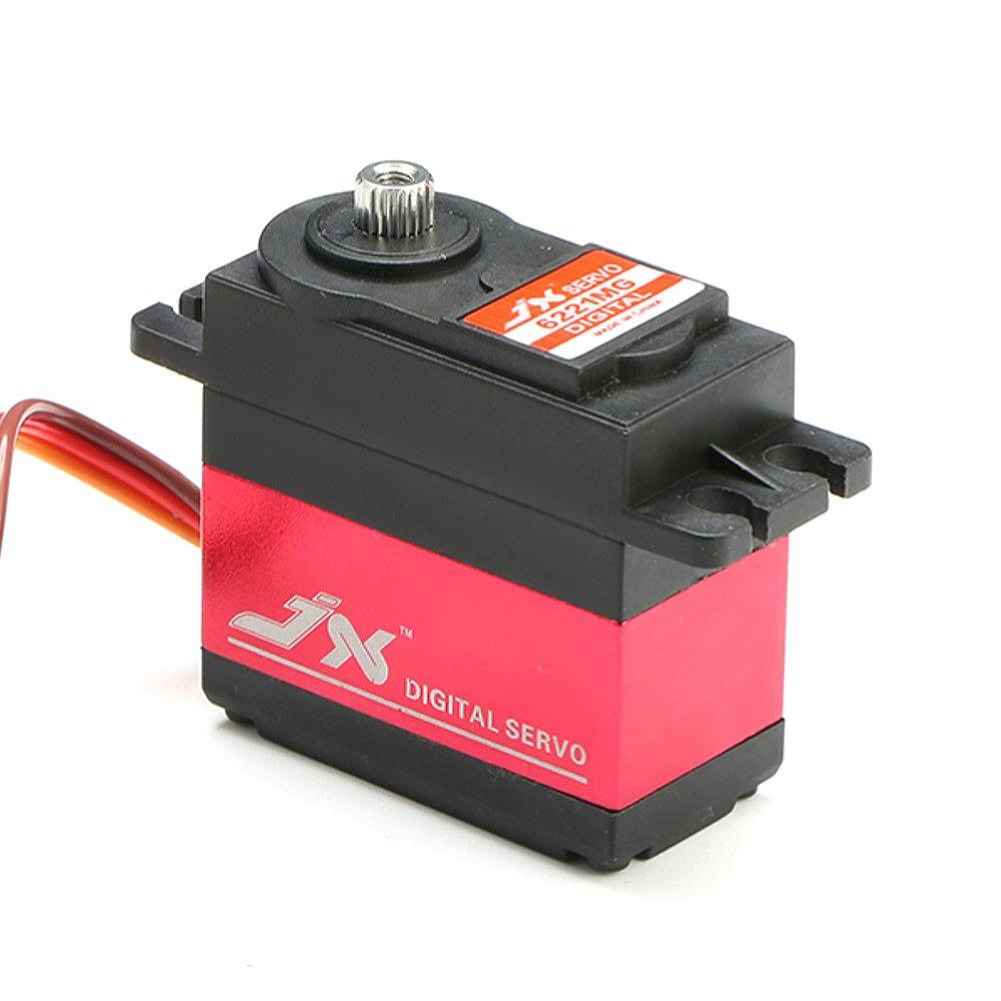

6PCS JX PDI-6221MG 20KG Large Torque Digital Standard Servo 180 Degree For RC Airplane
The JX PDI-6221MG is a high-performance digital standard servo designed for RC airplanes. It features an impressive torque of 20KG and operates within a 180-degree range. This servo is equipped with high-precision aluminum gears with hard anodizing, ensuring durability and reliability. The CNC aluminum middle shell and dual ball bearings contribute to its smooth operation. With a dead band of 2渭s and a working frequency of 500渭s/2500hz, it delivers consistent performance. The servo operates at speeds of 0.18 sec/85掳 at 4.8V and 0.16 sec/85掳 at 6V, with stall torques of 17.25 kg.cm and 20.32 kg.cm, respectively.
Description:
Brand:JX
Item: PDI-6221MG 20KG Large Torque Digital Standard Servo
Degree: 180°
Dead band: 2μs
Working frequence: 500μs /2500hz
Angle Range: 172±2°
Operating Speed (4.8V): 0.18 sec/85°
Operating Speed (6V): 0.16 sec/85°
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 62 g (2.18oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Features:
– High performance digital standard servo
– High-precision aluminium gears with hard anodizing
– CNC aluminium middle Shel
– Dual ball bearings
Package Included:

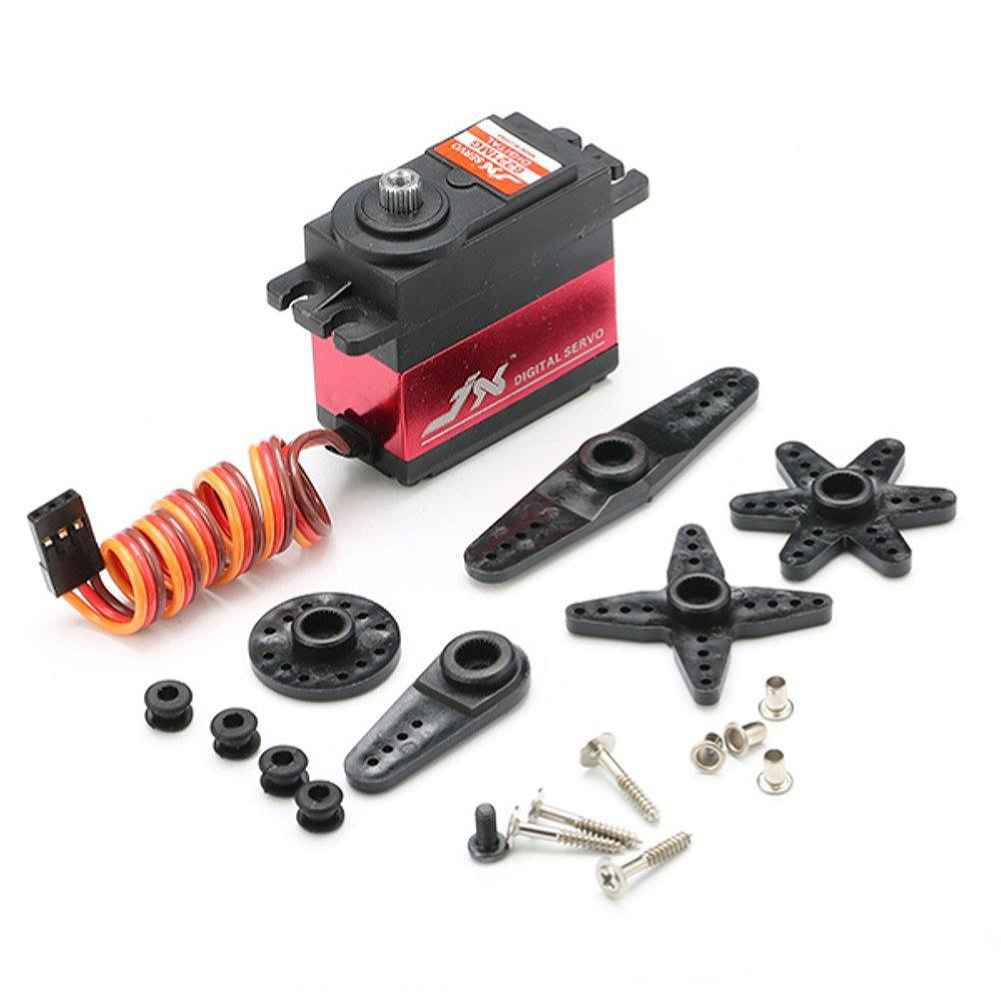

6 x PDI-6221MG 20KG Large Torque Digital Standard Servo 180 Degree
