Description

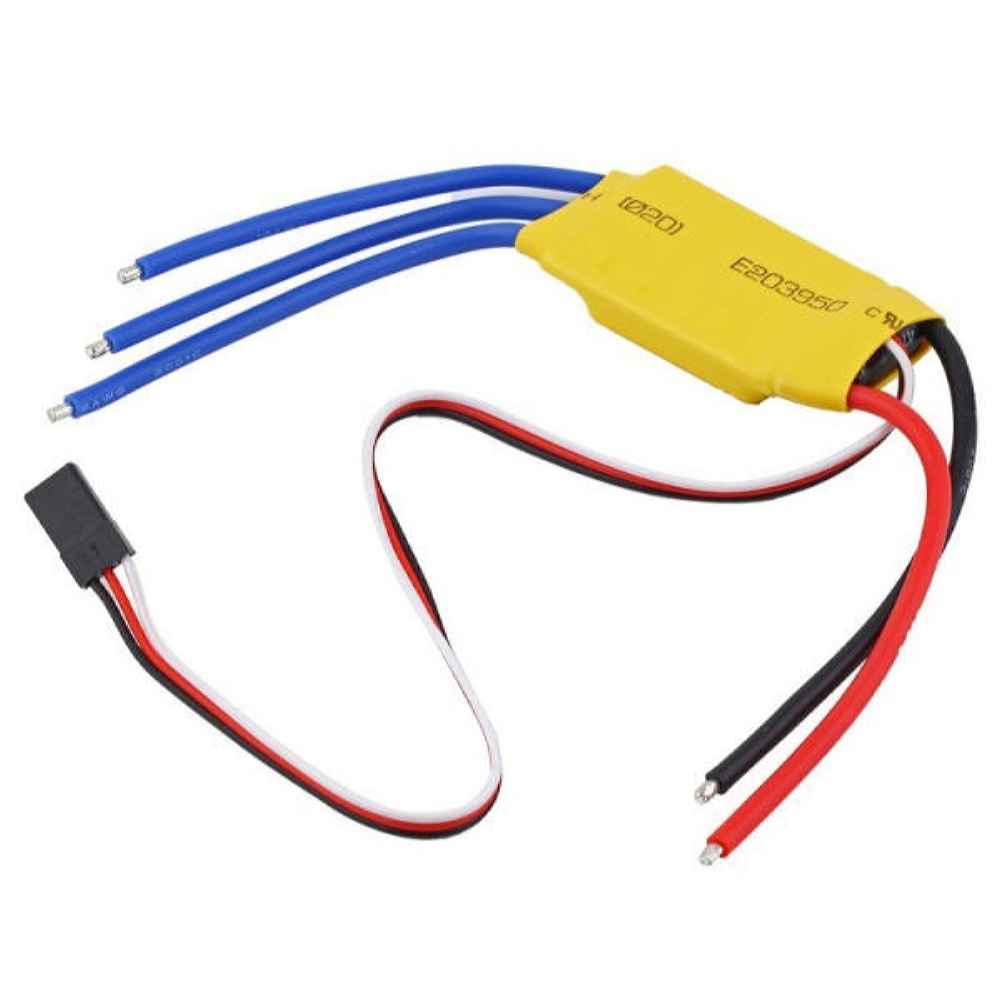

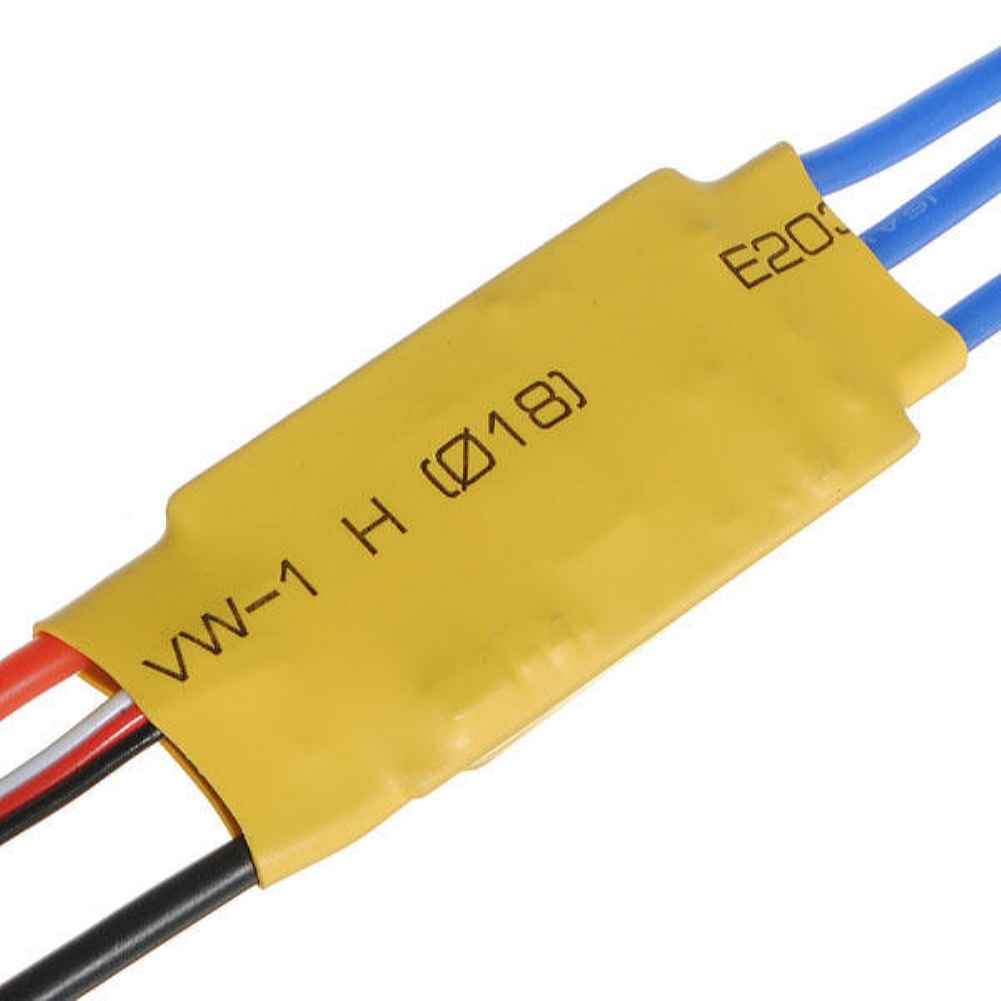

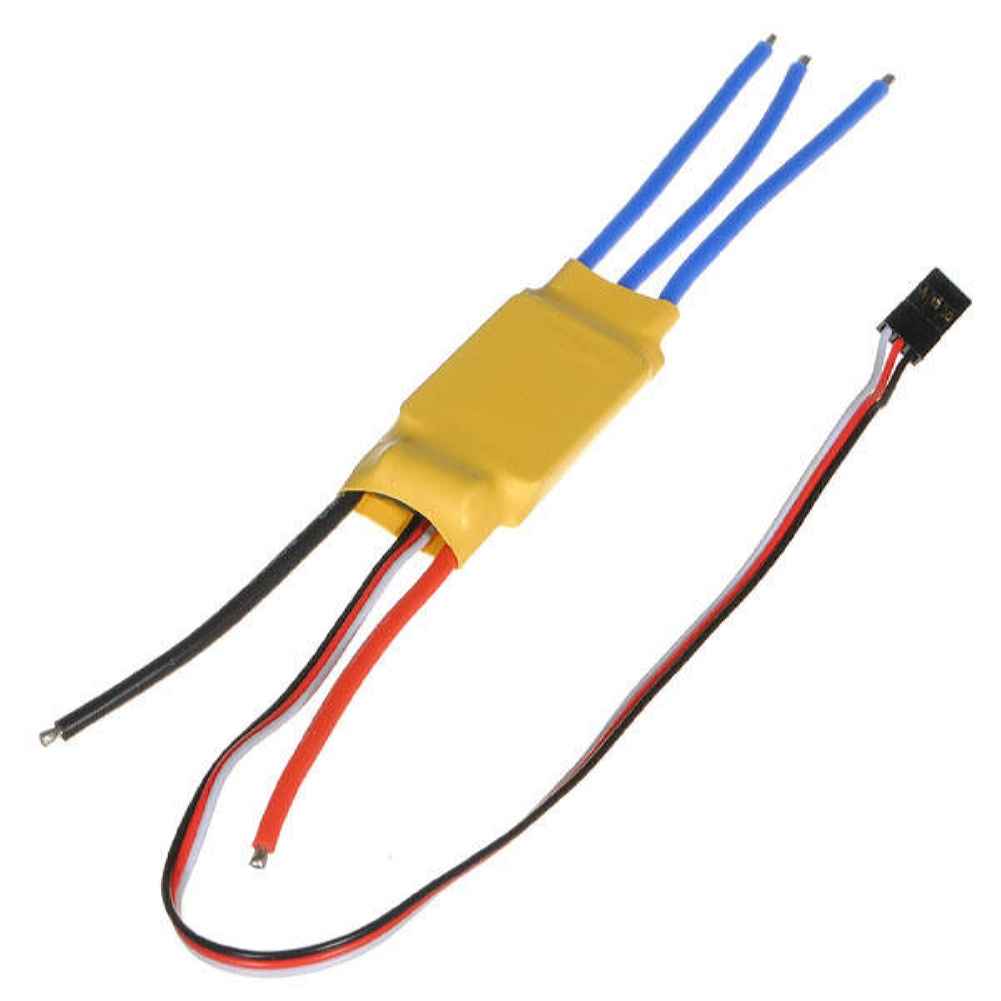

4X XXD HW30A 30A Brushless Motor ESC For Airplane Quadcopter
The XXD HW30A Brushless ESC is designed for use with airplanes and quadcopters, offering a reliable power input range of 5.6V to 16.8V. It supports 2-3 cell Li-Poly or 5-12 cell Ni-MH/Ni-Cd batteries. With a constant current of 30A and a maximum of 40A for less than 10 seconds, this ESC ensures efficient performance. Weighing just 25g and measuring 45 x 24 x 11mm, it is compact and lightweight. The ESC features a safe power function, preventing immediate motor start regardless of throttle stick position, and a throttle calibration function for improved throttle response linearity. Note: Do not use the BEC with 4S LiPo batteries, and avoid using this ESC on aircraft with high current or voltage to prevent damage.
Description:Brand Name: XXDItem Name: HW30A ESCPower input: 5.6V – 16.8V (2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery)BEC: 2AConstant current: 30A (Max 40A less than 10 seconds)Weight: 25gDimensions: 45 x 24 x 11mmQuantity: 4
Features:Safe power function:regardless of the throttle stick in any position the motor will not start immediatelyThrottle Calibration function:Adapt to different remote throttle travel difference, improve throttle response linearity, with a smooth, delicate feel and excellent speed linear speedLow Voltage Protection Mode ,Low-voltage protection threshold
Note:4S lipo not allows to use the BEC.Please don’t use this ESC on any airplane with big current or big voltage,otherwise it will burn the ESC.
Pakacge Included:4 x HW30A Brushless ESC
,,,
Package Included:
4 x HW30A Brushless ESC
