Description

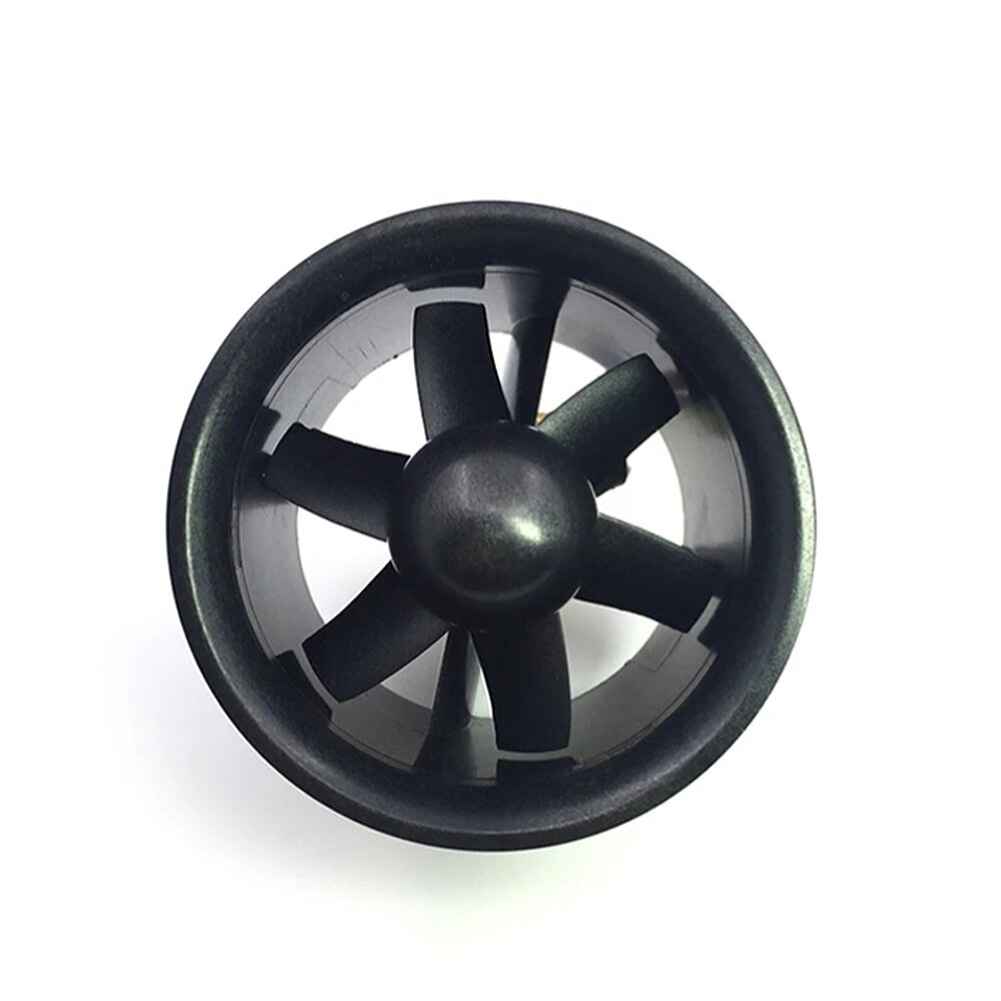

QX-Motor 70mm 6 Blade EDF Ducted Fan Unit With QF2822 3000KV 4S Brushless Motor for RC Airplane Jet

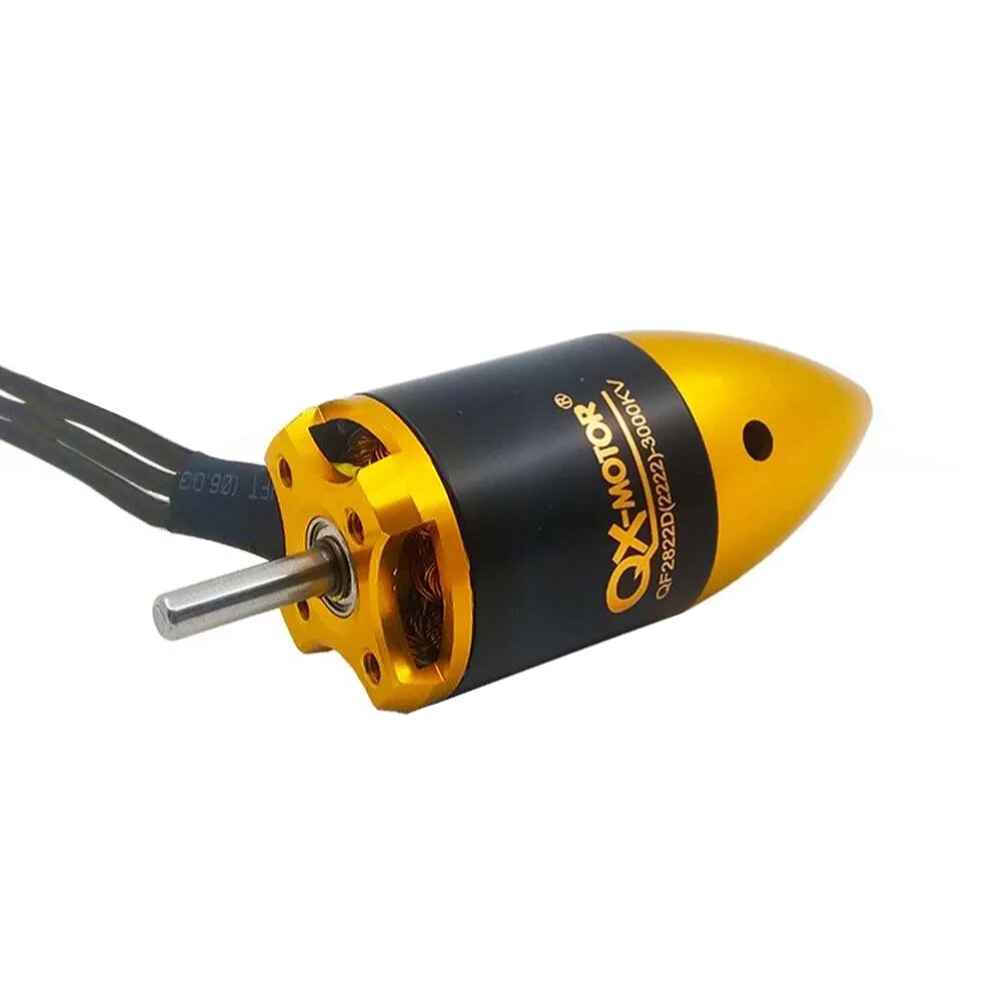

The QX-Motor 70mm 6 Blade EDF Ducted Fan Unit, equipped with a QF2822 3000KV brushless motor, is designed for RC airplane jets. This unit features a 9N6P configuration and a 22mm shaft diameter, ensuring optimal performance. The motor, with a dimension of 28x61mm and weighing 145g, runs efficiently with an idle current of 2.6A at 10.0V. Designed for a 4S Lipo battery, it achieves a maximum continuous power of 700W and a current of 45A for 10 seconds. Constructed with advanced PC material and aluminum, this unit offers high resistance to impact and temperature, providing stability and durability.
Specifications:
Model: QF2822(2222)
KV(rpm): 3000KV
Configuration: 9N6P
Shaft Diameter: 22mm
Stator Length: 22mm
Motor Dimension(Diaxl): 28*61
Weight: 145g
IDle Current@10.0v: 2.6A
No.f cells: 4S Lipo
Max Continuous Power/10s: 700W
Max Continnuous Current/10s: 45A
Package Size: 10.5 * 8.5 * 8.5cm / 4.1 * 3.3 * 3.3in
Package Weight: 175g / 6.2oz
Features:
– The advanced PC material, which is striking resistance and also high temperature resistance that can guarantee the stiffness and toughness, great decrease the damage ratio.
– The combination is made by aluminum, which maks it more stable.
Package Included:
1 x QX-Motor 70mm 6 Blade EDF Ducted Fan Unit With QF2822 3000KV Brushless Motor
