Description

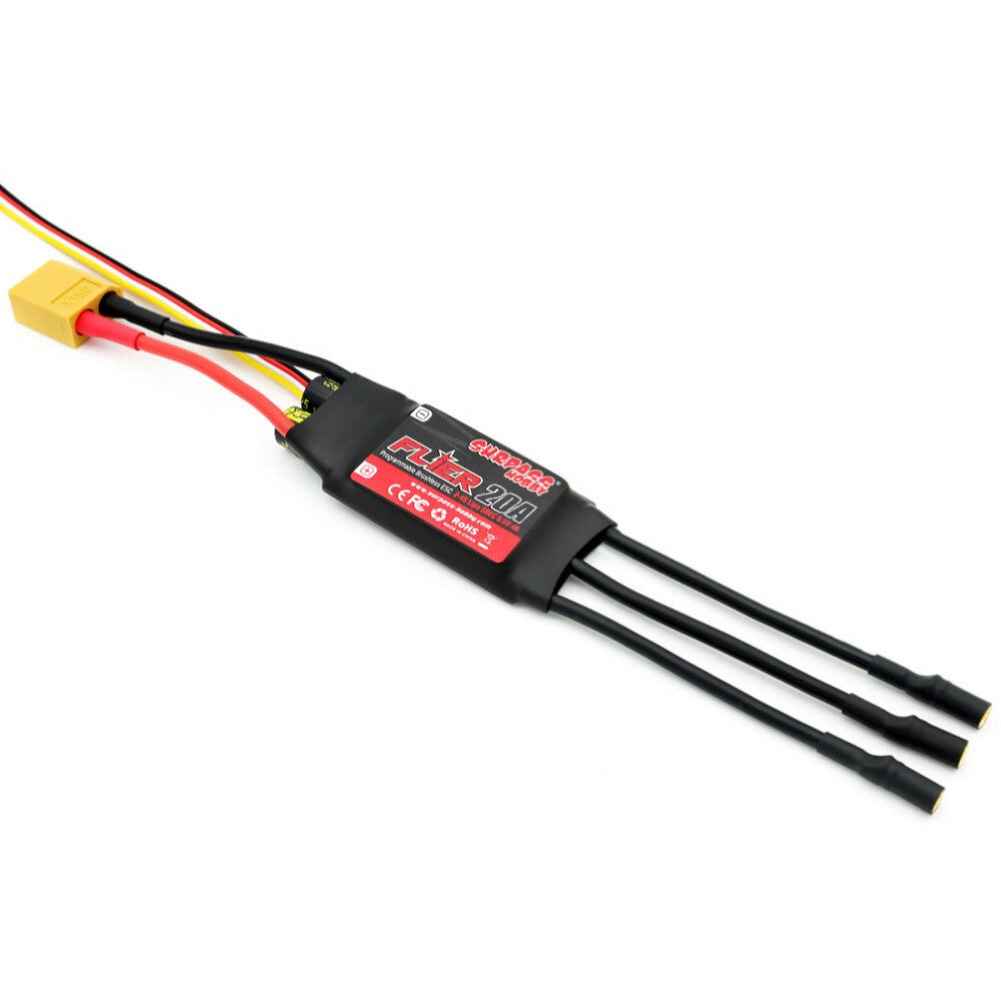

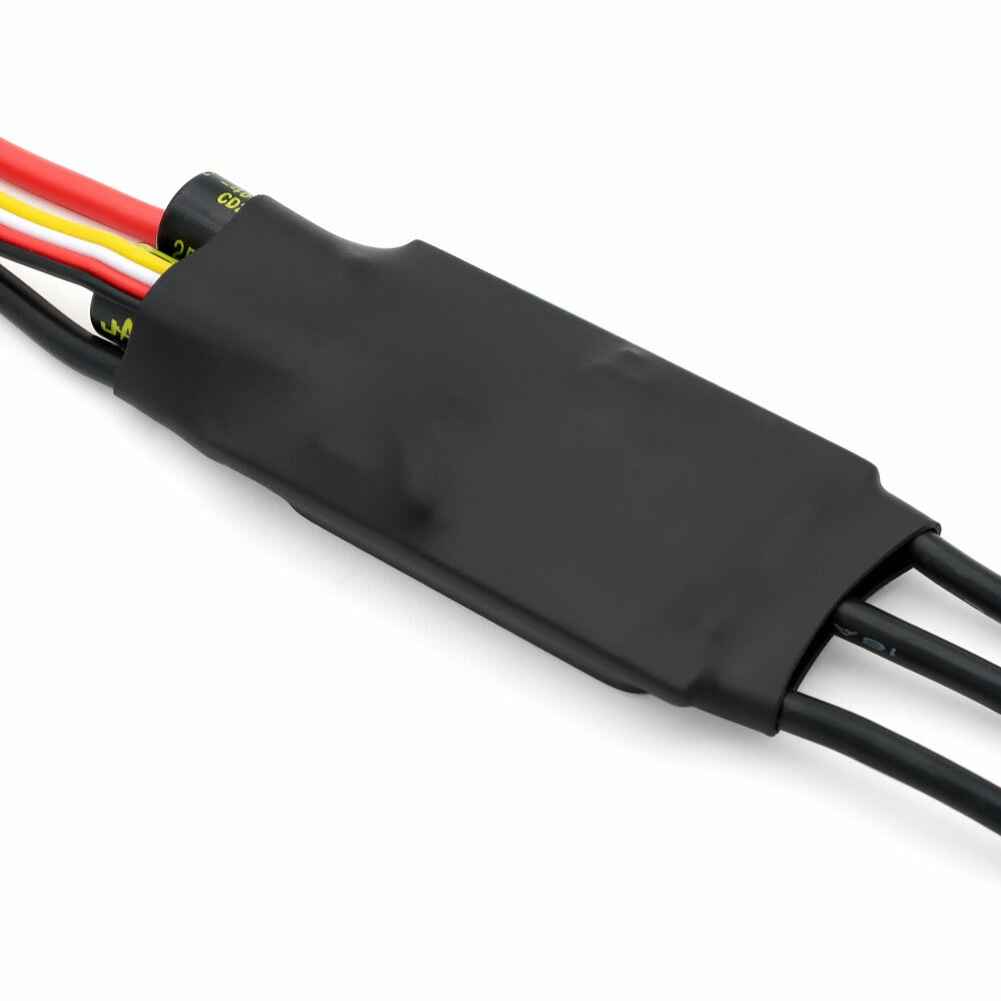

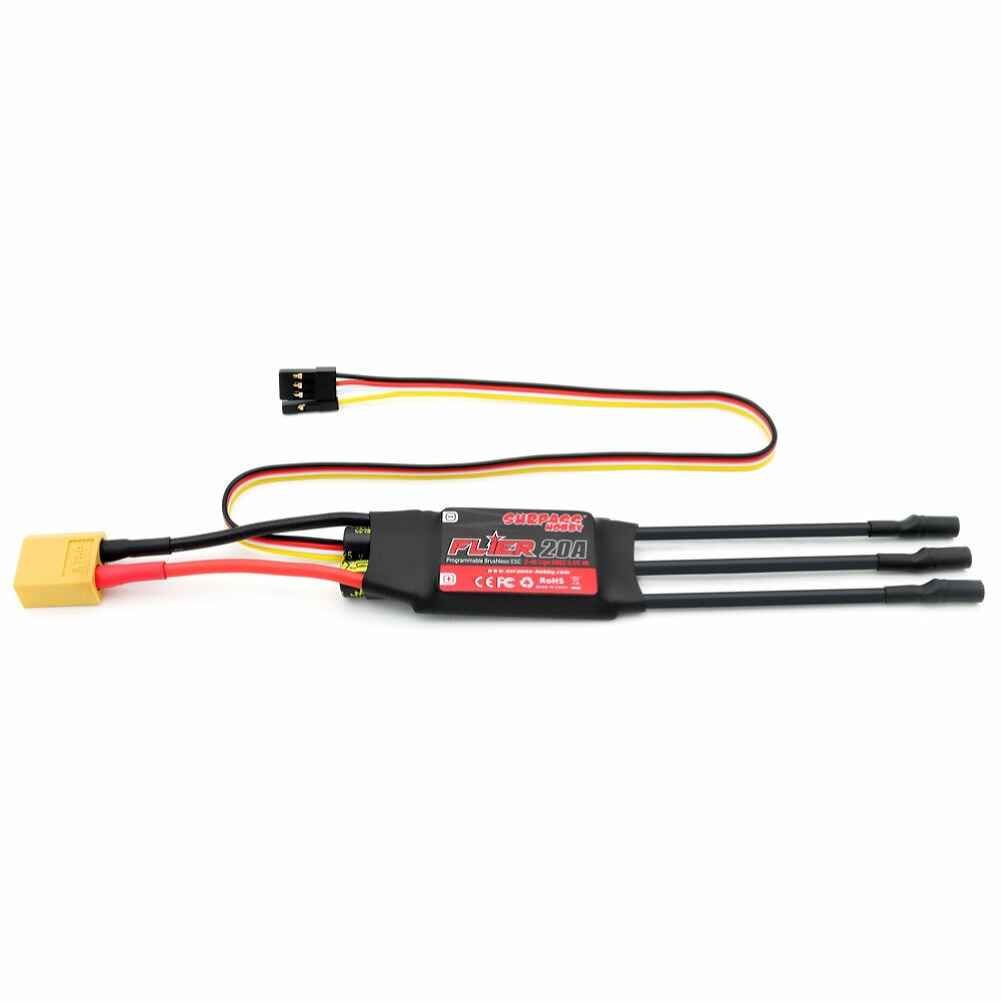

SURPASS-HOBBY FLIER Series New 32-bit 20A Brushless ESC With 5.5V/4A BEC Support Programming for RC Airplane
The SURPASS-HOBBY FLIER Series 32-bit 20A Brushless ESC is designed for RC airplane enthusiasts seeking high performance and reliability. Featuring a 32-bit microprocessor, it offers superior computing power and faster operation. With a continuous current of 20A and a burst current of 30A, this ESC supports 5-12NC or 2-4S Lipo batteries. It includes a 5.5V/4A BEC output and an adjustable SBEC output voltage of 5V/6V, providing enhanced power for servos. The ESC boasts a super smooth start-up and precise throttle linearity, ensuring efficient and energy-saving performance. It also includes multiple protective features such as start-up, over-heat, low-voltage cutoff, and more. Compatible with high RPM motors, it supports programming via an LCD program card for convenient operation.
Specifications:
Brand Name: SURPASS-HOBBY
Type: FLIER 20A
Item: SP-300001-03
Continuous/Burst Current: 20A/30A
Battery Cell NiXX/Lipo: 5-12NC/2-4S Lipo
Weight: 25g
BEC Output: 5.5V/4A
Size(LxWxH): 60x25x10mm
Connector: 3.5mm
User Program: Yes
Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Higher driving efficiency and more energy-saving.
5. Adjustable SBEC 5V/6V output voltage 5V/6V provides more powerful to the servo. (40A/50A/60A/80A/100A have SBEC adjustable)
6. Multiple protections: Start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
7. Support high RPM motors, and compatible with most motors in the market.
8. Support programming via LCD program card, easier and more convenient operation (Extra LCD program card needed, Click Here)
English Manual, Click Here
Package Included:
1 x SURPASS-HOBBY FLIER Series New 32-bit 20A Brushless ESC
