Description

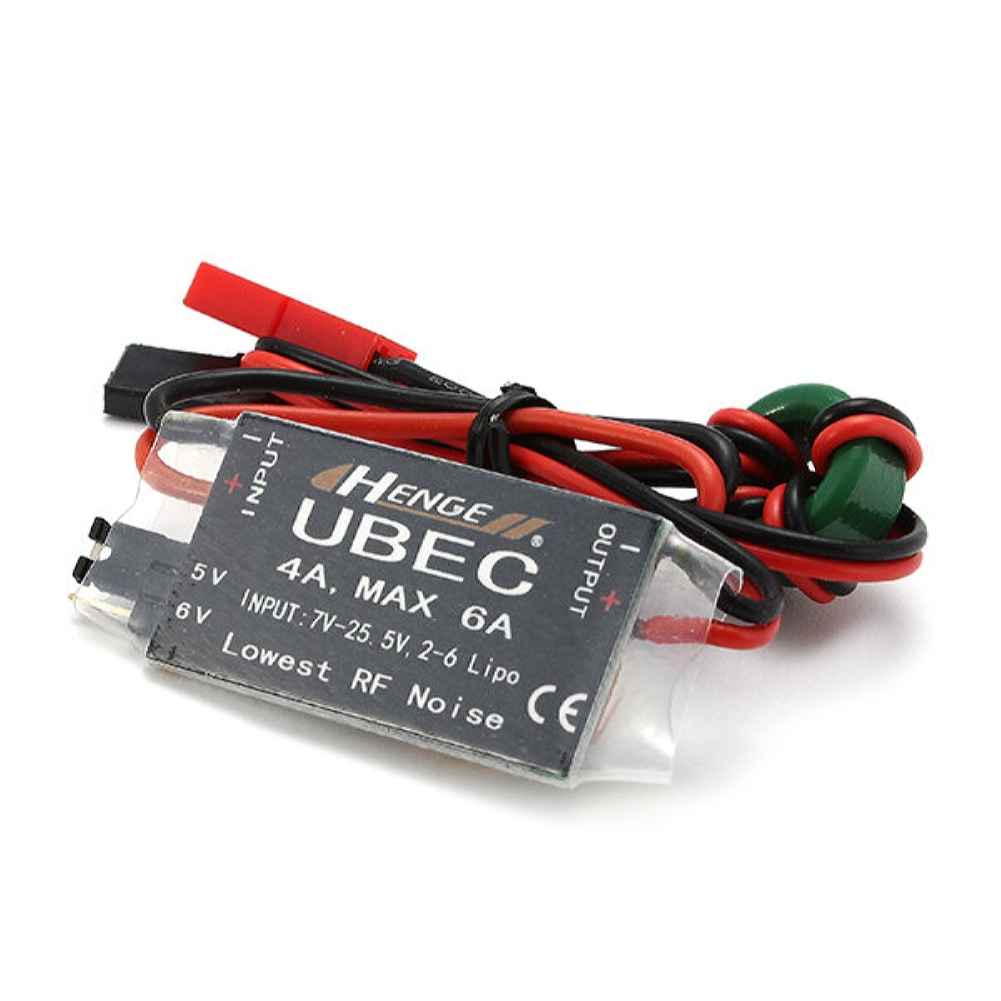

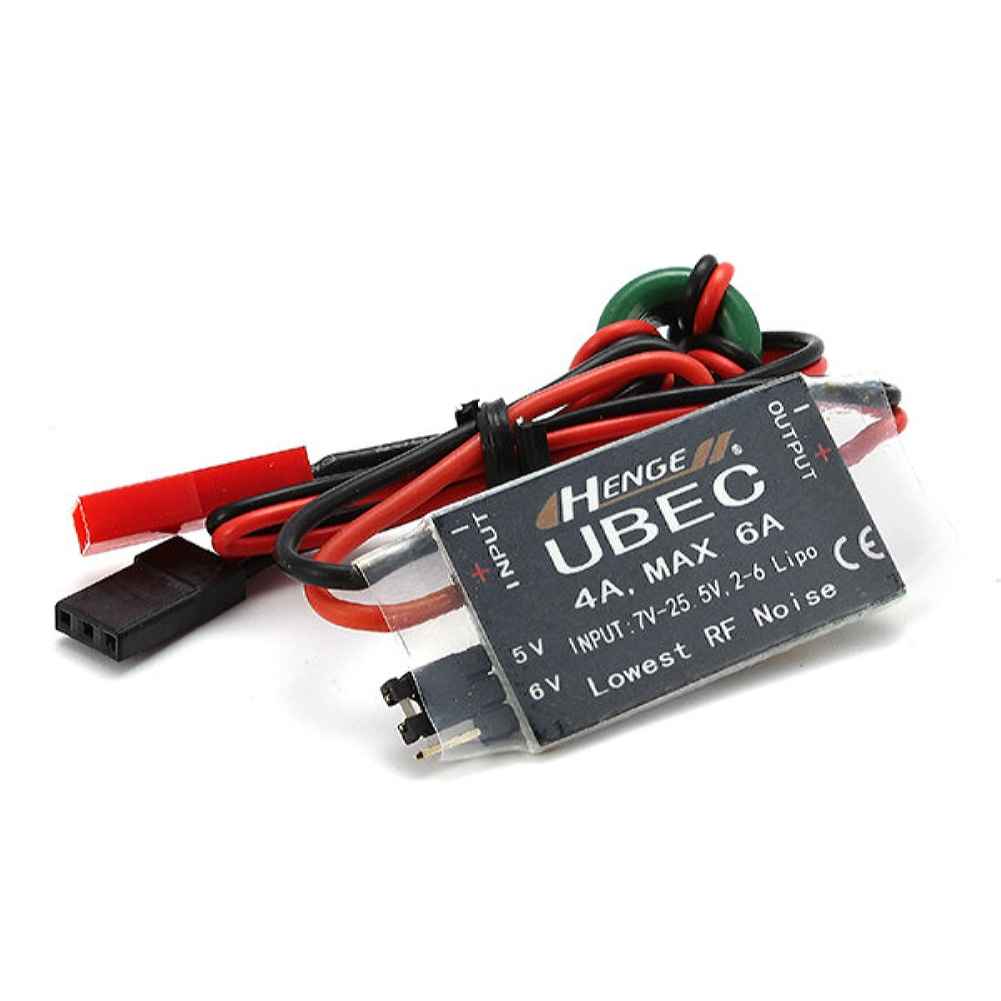

HENGE UBEC 6V 6A 2-6S Lipo NiMh Battery Switch Mode BEC for RC Airplane
The HENGE UBEC is a switch mode BEC designed for RC airplanes, providing a selectable output voltage of 5V/4A or 6V/4A. It supports input voltages ranging from 7V to 25.5V, compatible with 2-6S Lipo or 6-16 cell NiMh batteries. Featuring an advanced synchronous rectification switching power supply control chip, it offers over-current and thermal protection with a peak output current of 6A for up to 15 seconds. The UBEC has a compact size of 35mm x 20mm x 5.8mm and weighs only 14g. It includes a magnetic filter to minimize electromagnetic interference and an LED indicator to show operational status, making it ideal for RC models with limited built-in BEC output capabilities.
Switch Mode UBEC HENGE 5v/6v 4A/6A, 2-6S LIPO/ 6-16 cell Ni-Mh. Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93%.

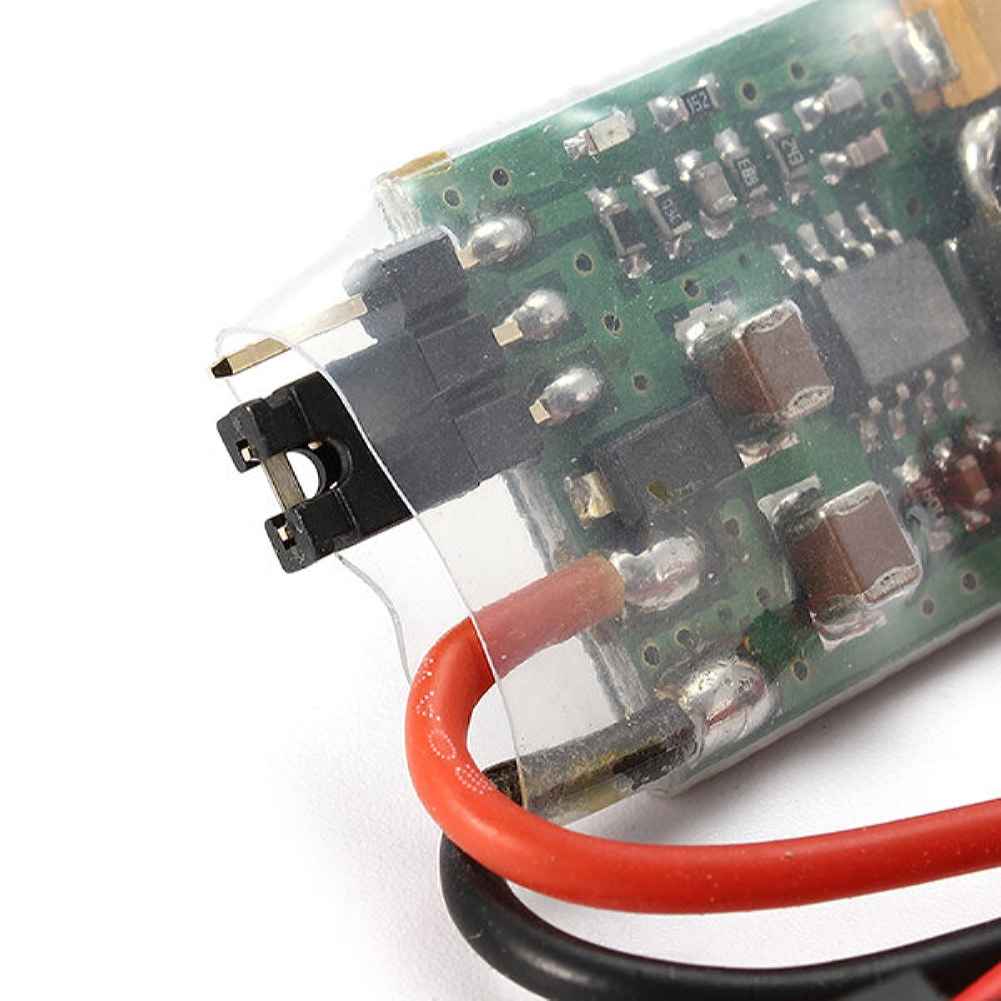

Description:Brand Name: HENGEItem Name: 4A-UBECOutput Voltage:5V/4A or 6V/4A(Selectable by using a jumper connector)Input Voltage:7V-25.5V (2-6S Lipo or 5-18 cells NiMH /NiCd)Continuous output current: 4APeak output current:6A(Less than 15 second)Ripple:less than 45mVp坼p(@2A/12V)Size: 35mmx20mmx5.8mm(L*WX*G)Weight: 14g
Features:

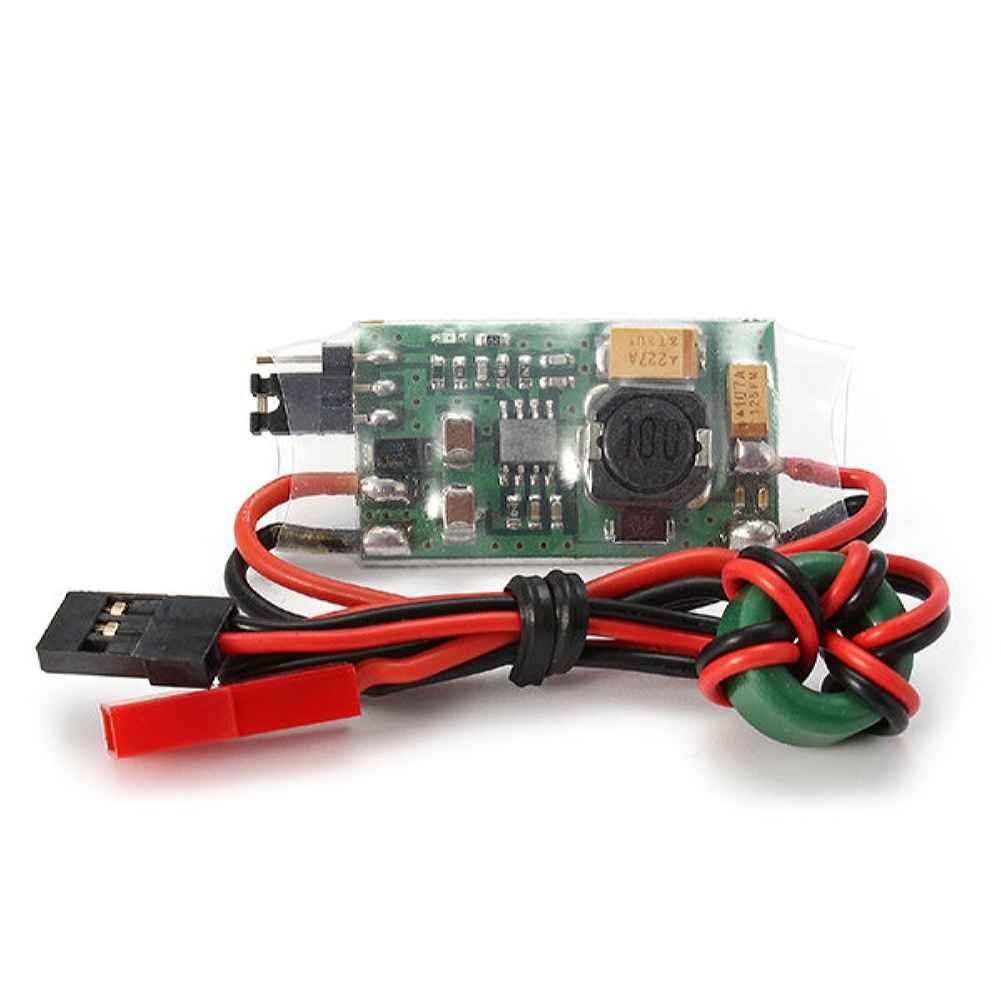

Uses an advanced switch mode DC-DC regulator IC.Having protective function of overcurrent or overheat.Highest efficiency of IC is 93%
4A Output Voltage and 6A peak output current can provide sufficient current for RC model.

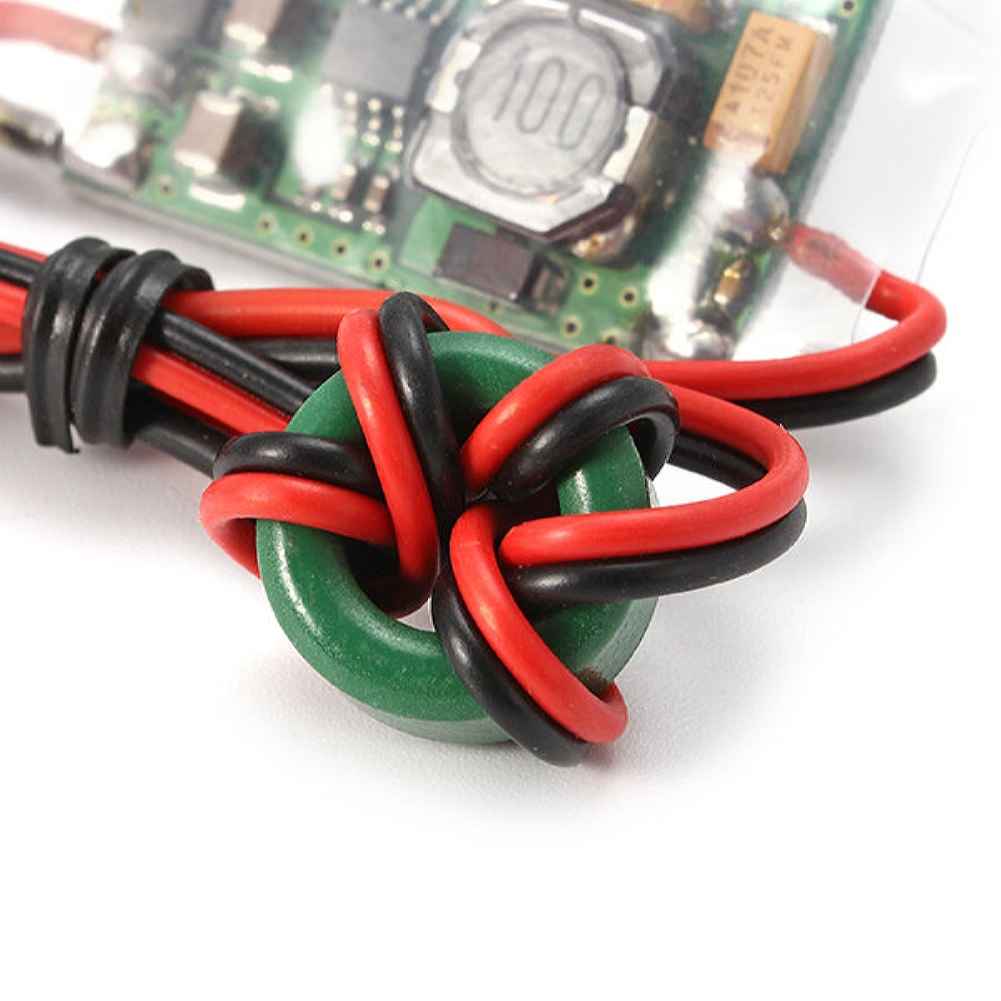

Output cable was added Magnetic filter to reduce electromagnetic interference.
The working status is shown by an LED, it lights when the UBEC works normally.
Enough voltage operating range(7V-25.5V)
It is very suitable for RC airplane and other RC models especially when the built-in BEC in the speed controller has a very limited output capability.
Note:
Even though 4A-UBEC was added Magnetic filter to reduce electromagnetic interference. electromagnetic interference is inevitable for switching type UBEC in sometimes.
In order to receiver operating ,Please do not put Output filter magnet and MPU together.
Package Included:
1 x HENGE UBEC
