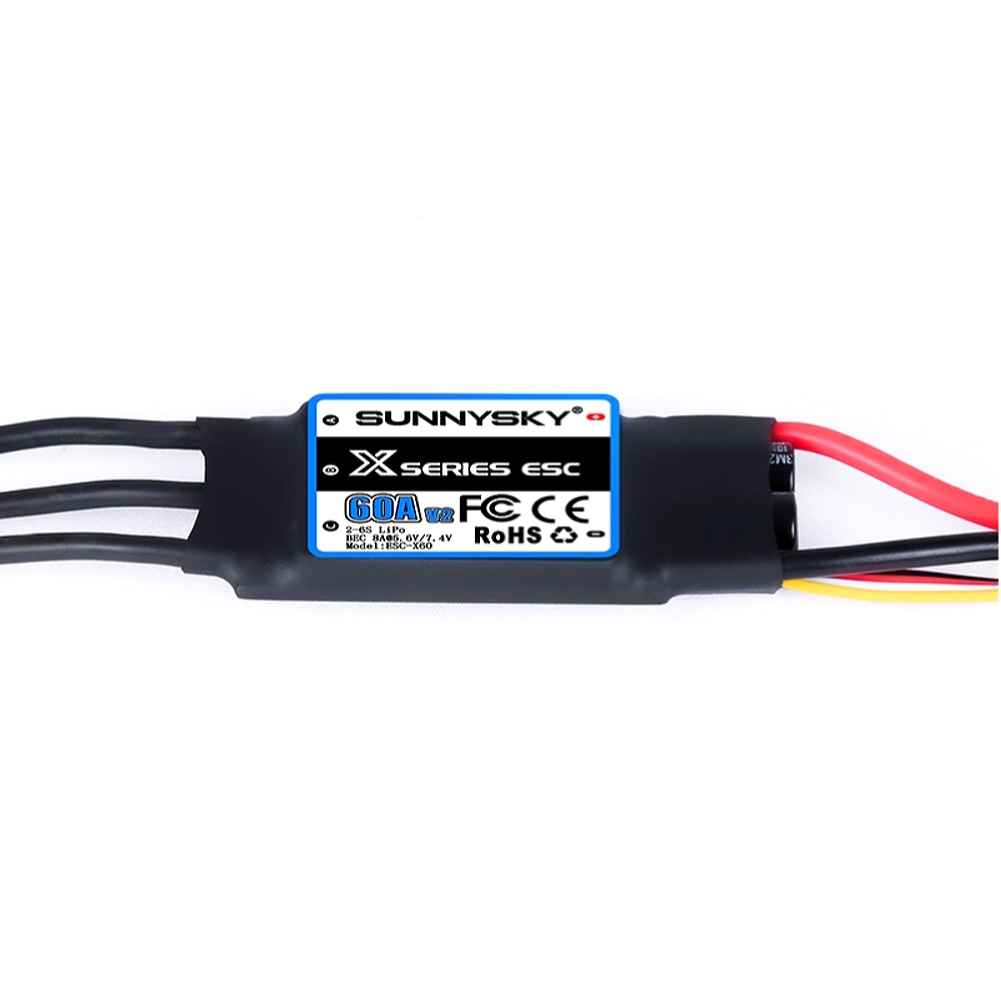

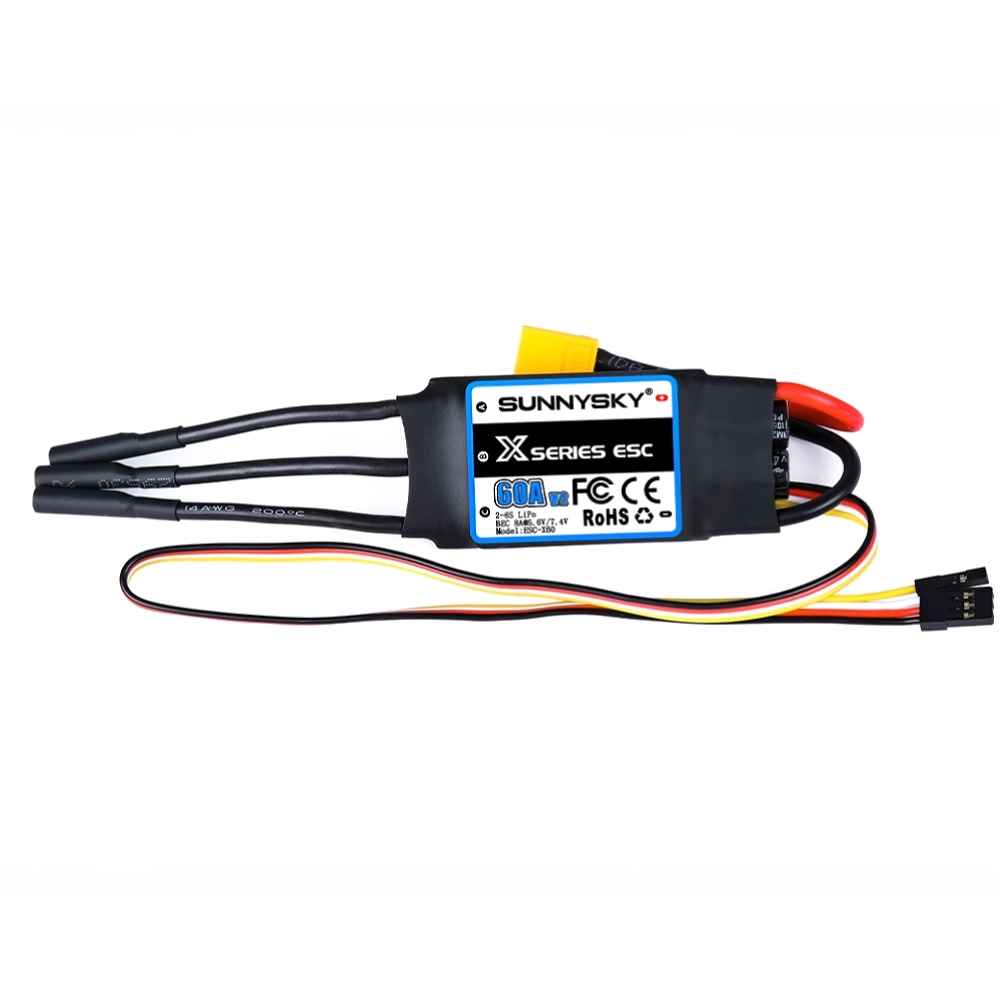

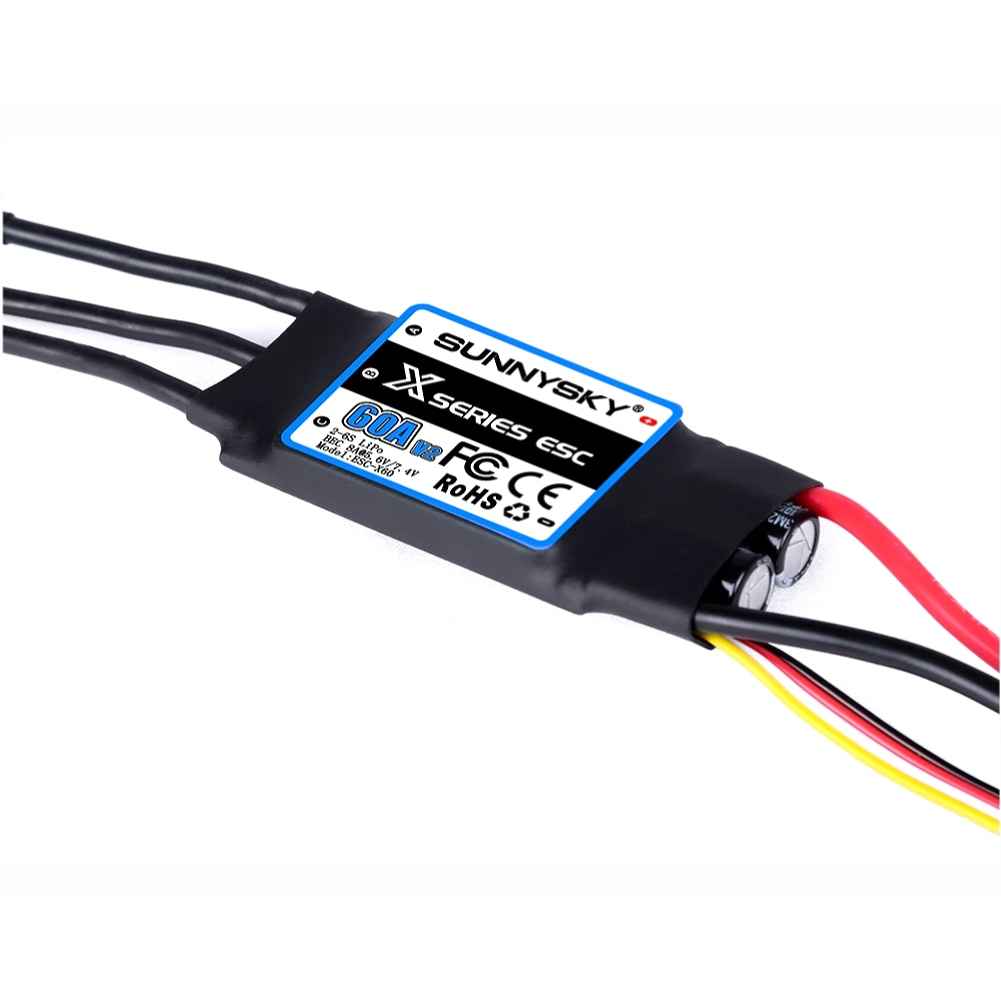

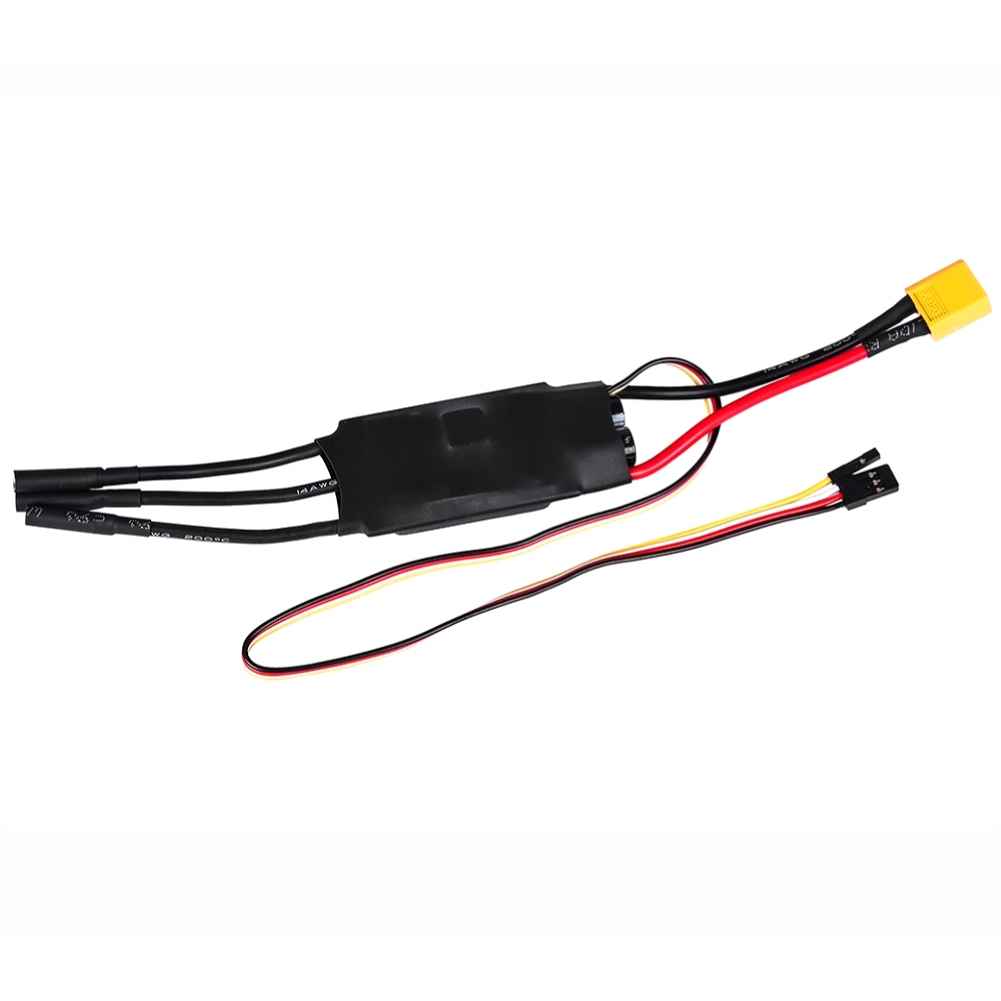

SUNNYSKY X Series 60A V2 2-6S Brushless ESC With 5.6V/7.4V 8A BEC 3.5mm XT60 Plug For RC Airplane
The SUNNYSKY X Series 60A V2 Brushless ESC is designed for RC airplane enthusiasts seeking reliable performance. It features a powerful C8051F850 MCU with an 8-bit core, ensuring smooth speed regulation and fast throttle response. The ESC supports a continuous current of 60A and a burst current of 75A, with input voltage compatibility ranging from 2-6S LiPo or 5-18NC. It includes a built-in adjustable BEC output of 5.6V/7.4V at 8A, easily switchable via a dedicated switch. Safety is prioritized with multiple protection functions, including start-up, temperature, throttle signal loss, and low voltage protections. The ESC’s user-friendly cyclic menu setting allows for easy customization according to your needs.
Specifications:
Brand Name: SUNNYSKY
Continuous Current: 60A
Burst Current: 75A (≒10s)
Input Voltage: 2-6S LiPo/5-18NC
BEC Output: 5.6V/7.4V @8A
Motor Connector: 3.5mm Banana Plug
Battery Connector: XT60
Dimensions: 70℅35℅12mm (excluding wires)
Weight: 61g
Features:
– Adopt powerful C8051F850 MCU with 8-bit C8051 core.- Elaborate circuit design, super anti-interference.- Start-up mode can be set, fast throttle response and very smooth speed regulation linearity.- Low voltage protection threshold can be set.- A variety of protection functions: start-up protection, temperature protection, throttle signal loss protection, battery low voltage protection, etc..- Good power-on safety: the motor will not be activated immediately when the power is turned on regardless of the position of the throttle lever of the remote control.- Setting alarm tone to judge the working condition after power on.- Users can set the function according to their own needs. Cyclic menu setting, easy to operate.- Built-in 5.6V/7.4V, 8A adjustable BEC, you can switch the BEC through the switch according to your needs, the voltage is 5.6V by default, make sure the BEC voltage is correct before connecting it (40A is 5V by default, the BES voltage is not adjustable).
Note:
* Please ensure all solder joints are insulated with heat shrink where necessary.
* Default 5.6V BEC voltage. Make sure BEC voltage is correct before connection.
Package Included:
1 x SUNNYSKY X Series 60A V2 ESC
1 x PE Bag
1 x User Manual
