Description

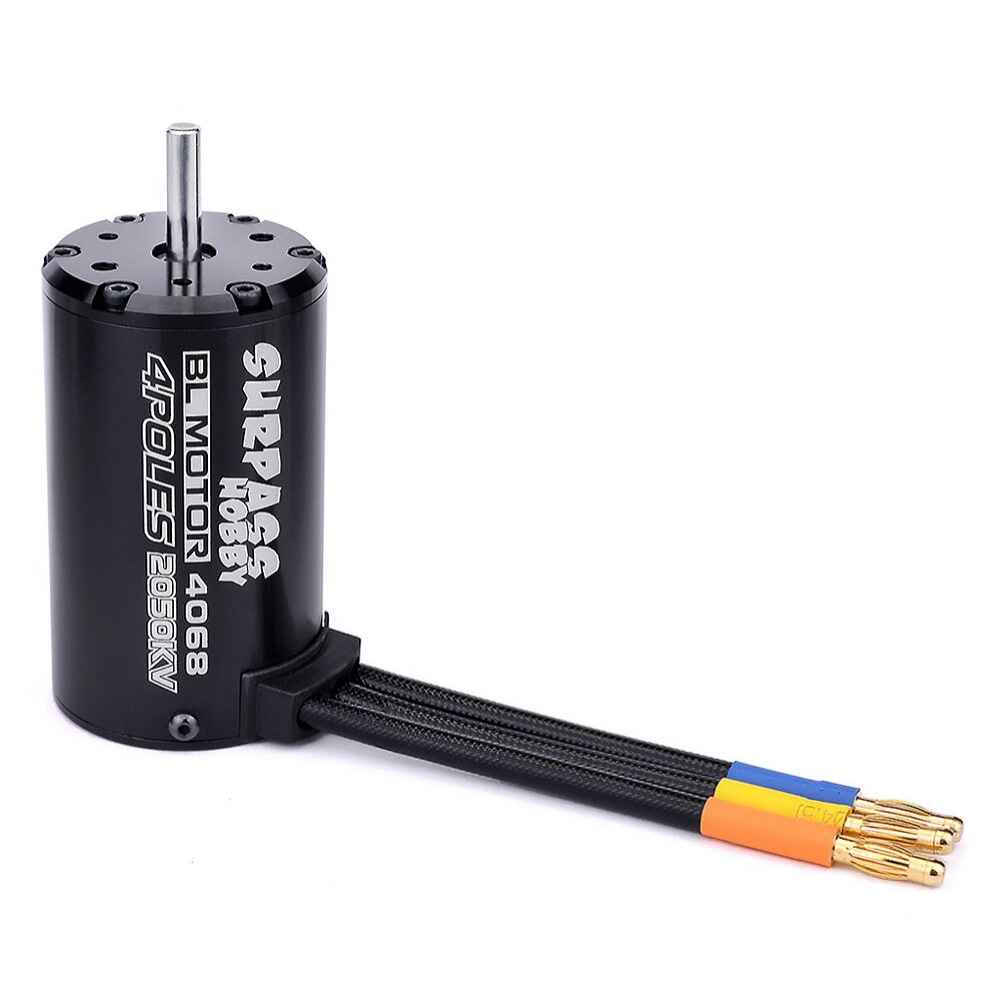

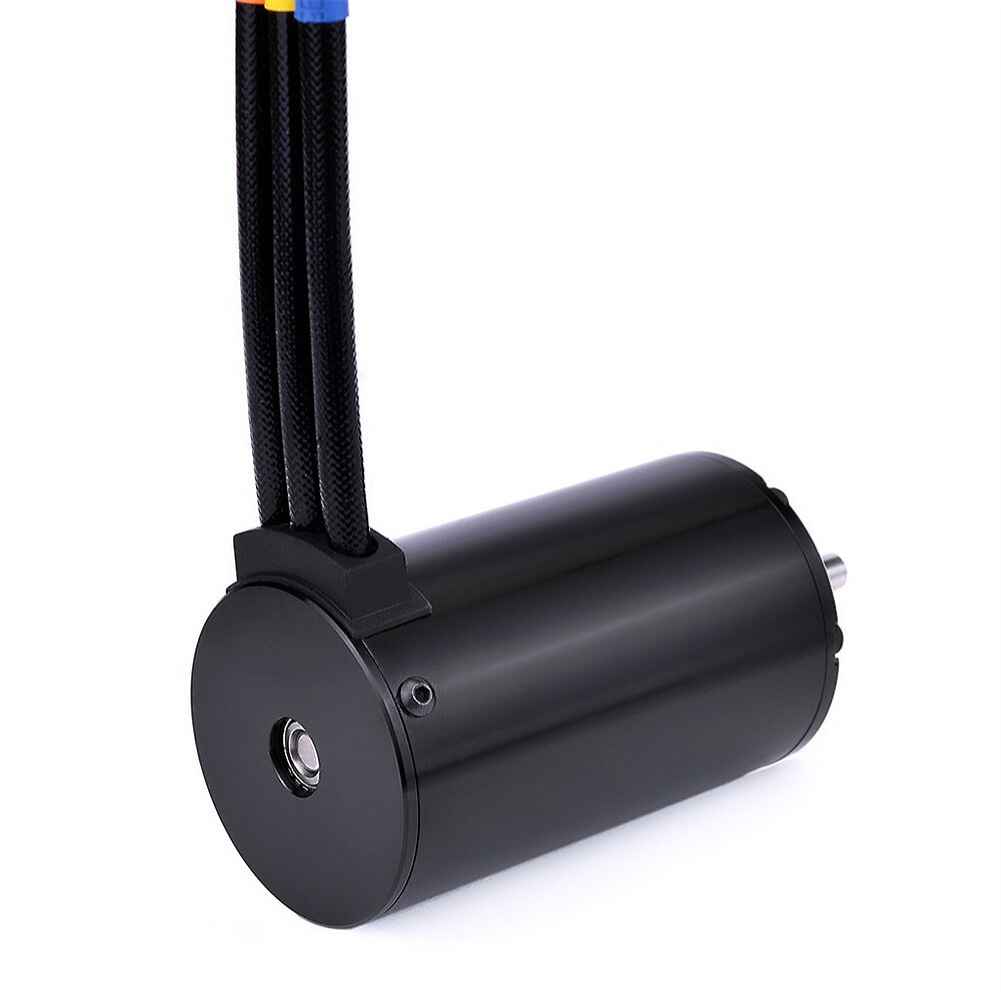

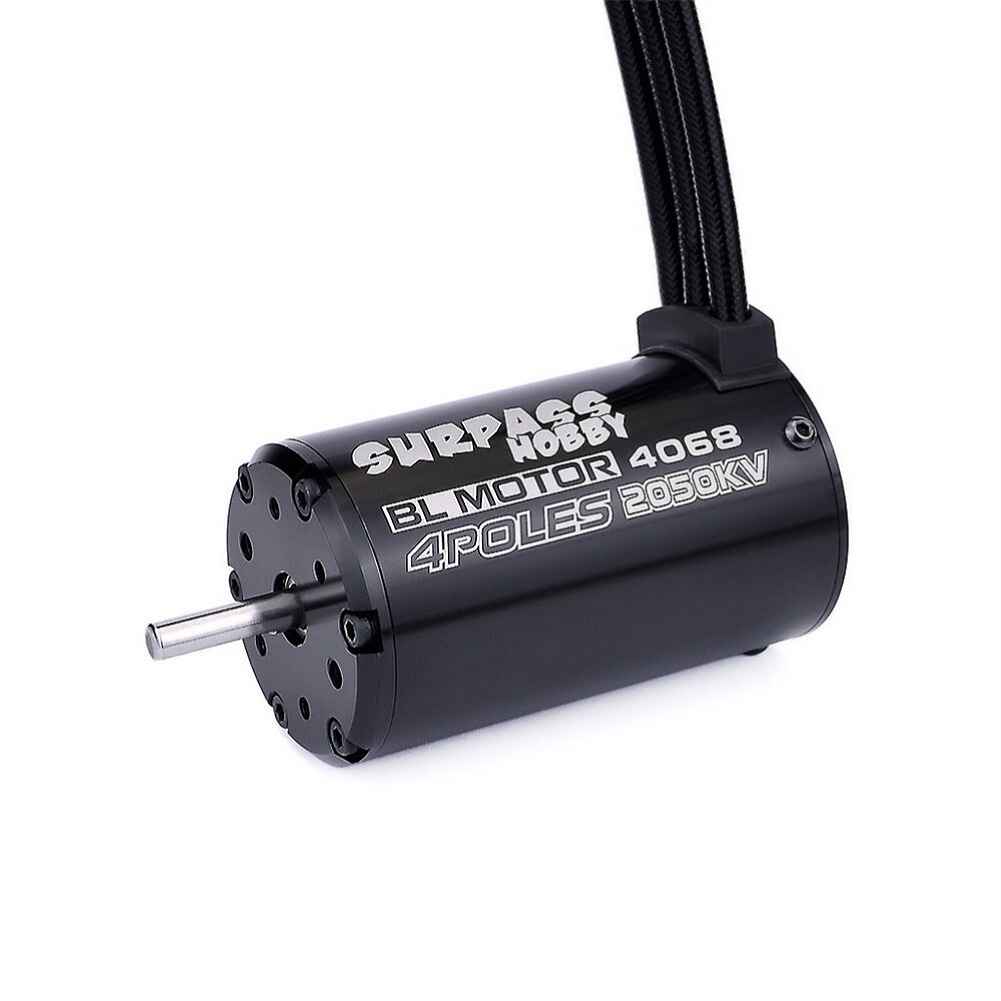

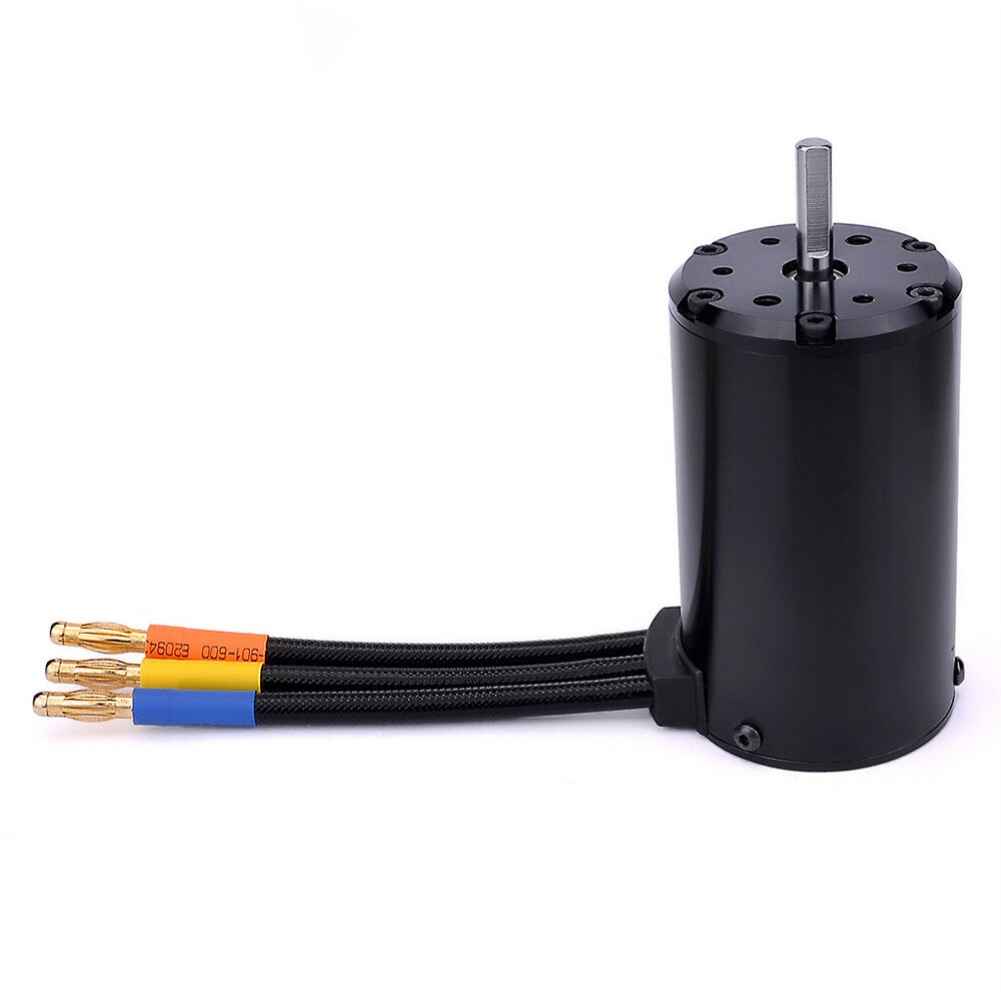

Surpass Hobby 4068 Brushless Waterproof Sensorless Motor 2050KV 120A ESC For 1/8 Cars RC Car Parts
The Surpass Hobby 4068 Brushless Motor and 120A ESC combo is designed for 1/8 scale RC cars, offering a splash-proof, high-performance solution. The 4-pole, 12-slot motor features a CNC machined 6061 billet aluminum heatsink can for optimal cooling and high-purity copper windings for maximum efficiency. It supports a universal fit for both 1/8 and 1/10 brushless cars. With a maximum power of 2200W and a maximum RPM of 50000, this motor ensures smooth operation and reliability. The ESC is specially designed for RC cars, providing excellent start-up, acceleration, and linearity. It includes multiple protection features such as low voltage cut-off, over-heat, and throttle signal loss protection.
Surpass Hobby 4068 Brushless Waterproof Sensorless Motor 2050KV 120A ESC For 1/8 Cars RC Car Parts
Description:
Brand: Surpass hobby
Item: 4068 Motor (2050KV) & 120A ESC
Waterproof Level: Splash-proof
Motor Features:
– 4 pole 12 slot hi-torque motor design

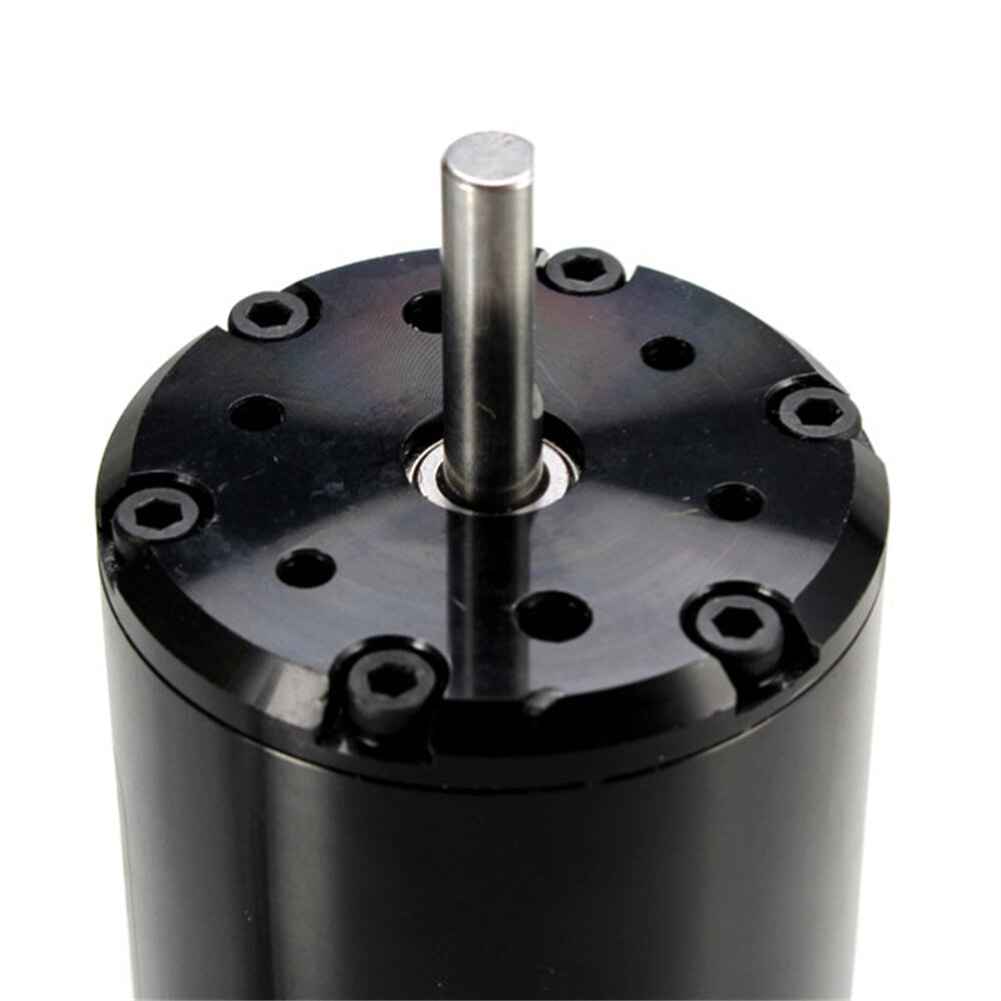

– CNC machined 6061 billet aluminum heatsink can
– High purity copper windings maximizes efficiency
– High RPM ABEC 5 oversized bearings
– Universal fit, fits all 1/8, 1/10 brushless cars
– Precision balanced rotor, smoothness for best reliability and maxium RPM
– Stator- super thin 0.2mm laminations
– Removalbe/replaceable rotor
– Precision engineered for maxium energy coversion
– ROAR legal
Motor Specification:
Max Power: 2200W
Max Voltage: < 21V
Max Amps: 105A
Rotor Poles: 4
IO: 2.3A
Resistance: 0.0095
KV (RPM / Volt): 2050
Max RPM: 50000
Length: 68mm
Diameters: 40 / 42mm with fins
Weight: About 345g
Shaft: 朴5mm
Length of Extend Shaft: 18mm
Connector: 6.5mm gold

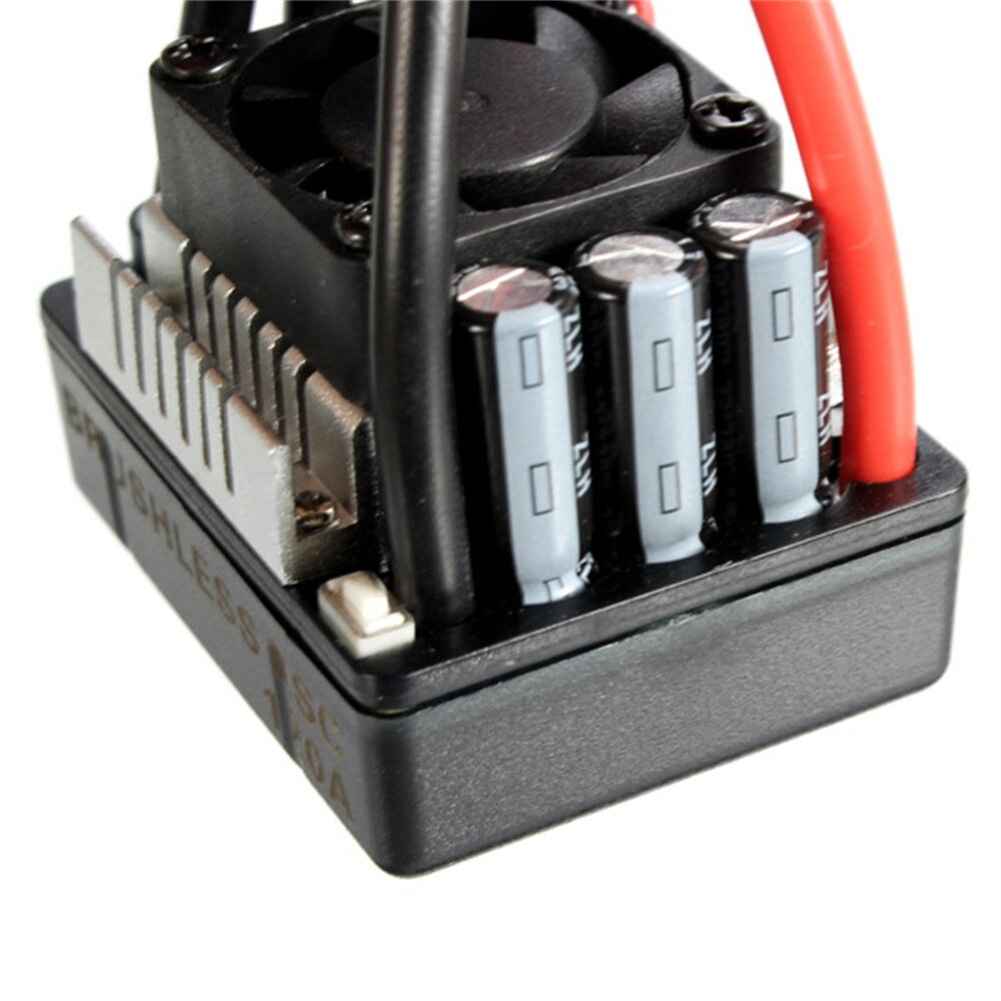

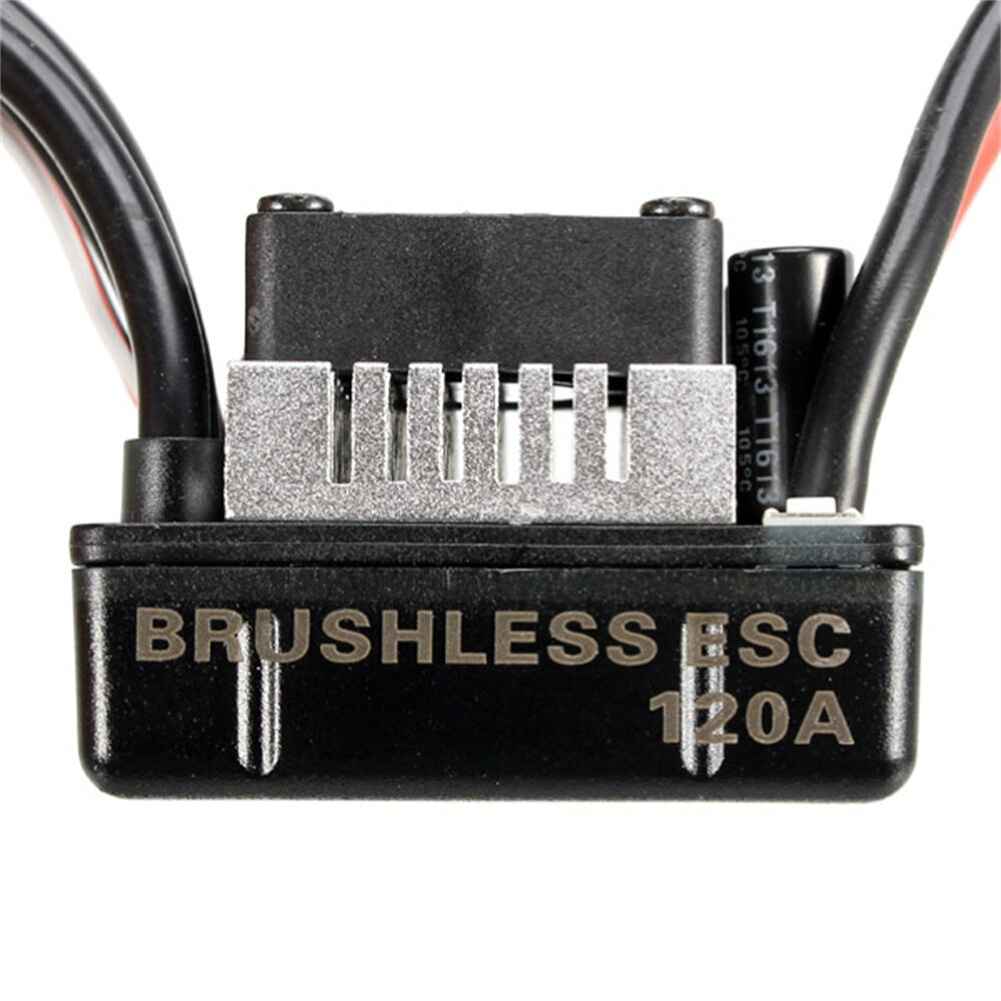

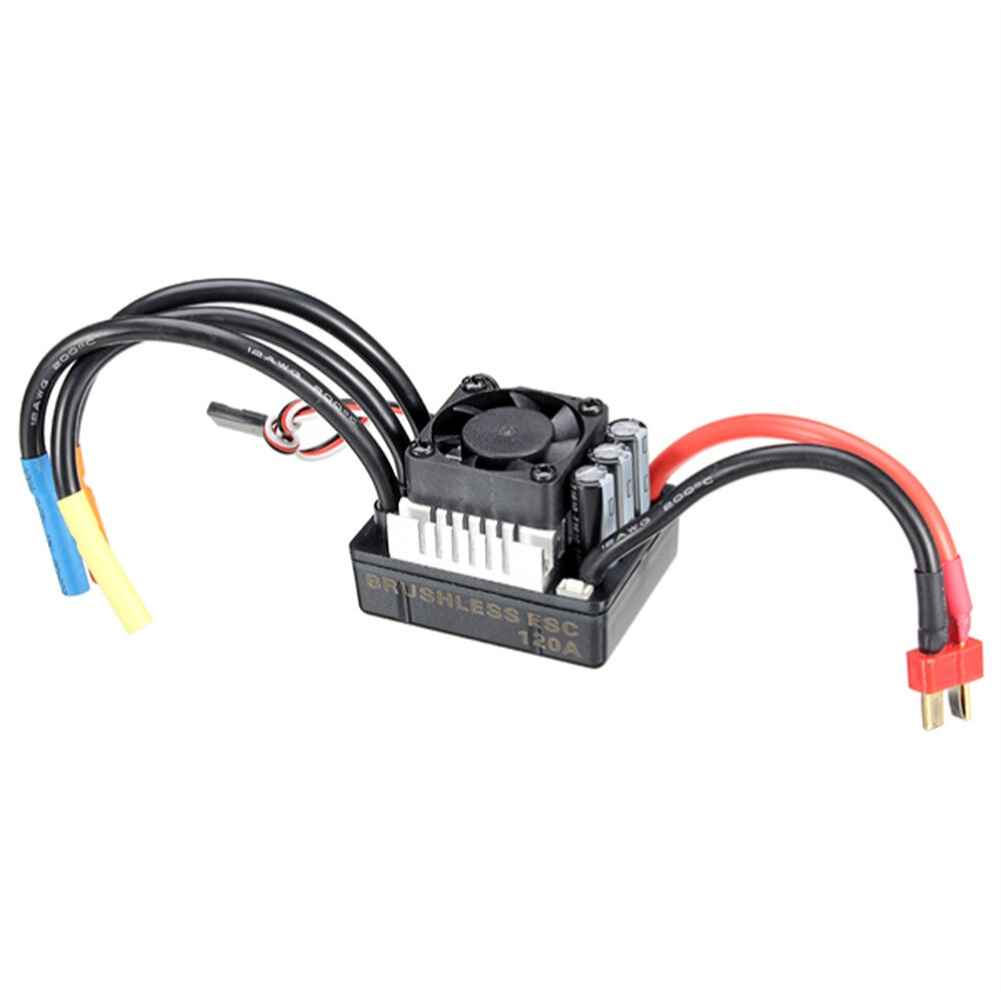

ESC Features:
– Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
– Compatible with sensorless brushless motor
– The strong resistant current capability, excellent heat dissipation
– Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
– Easily programmed and compatible with pocket-sized program card
ESC Specifications:
Instructions:
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC
5. When the connection of motor and battery is finished, the motor emits ‘Beep-Beep’ tone
6. When the throttle stick is the neutral position, the motor re-emits ‘Beep-Beep’ tone
7. The ESC is workable
For ESC program card, please click
Package Included:
1 x Motor
1 x ESC
1 x Instruction
