Flipsky Dual FSESC4.20 ESC Pro Switch Plus with Anodized Aluminum Heatsink

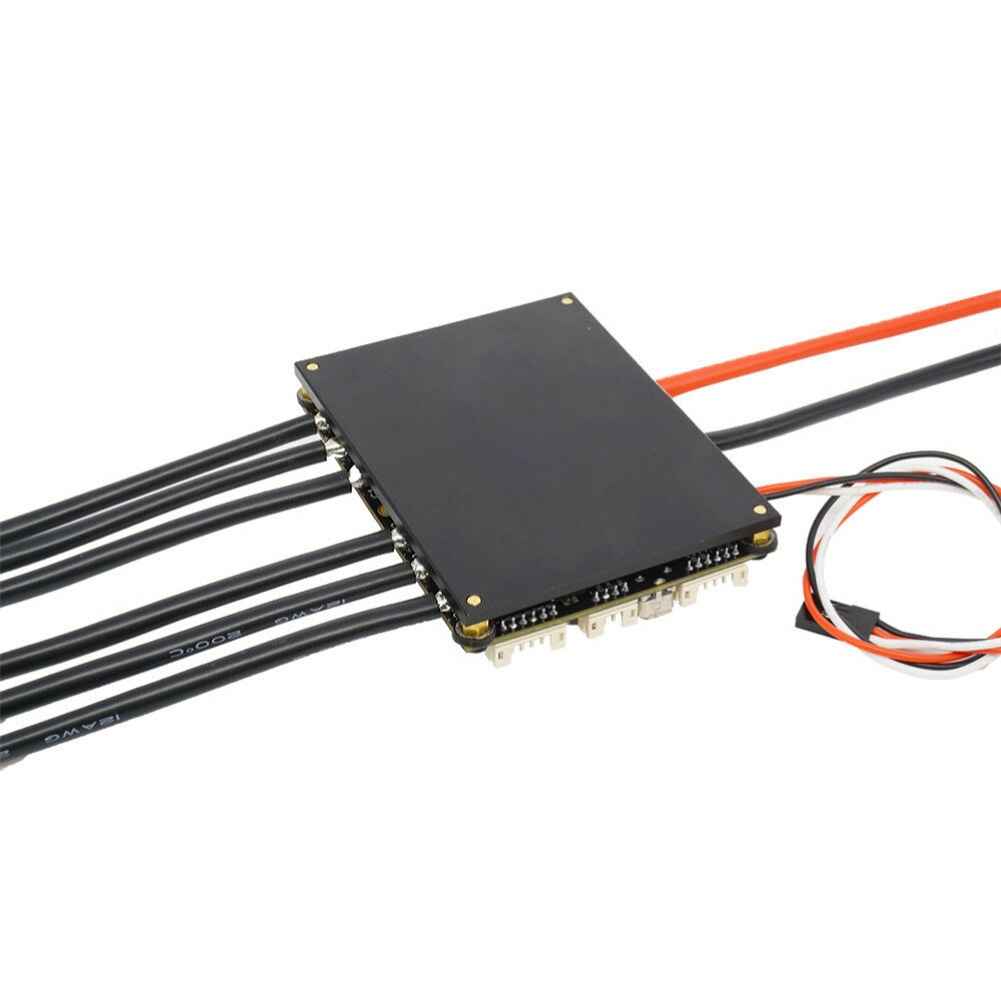

The Flipsky Dual FSESC4.20 ESC Pro Switch Plus is designed for electric longboards, RC cars, e-bikes, and e-scooters. It features an anodized aluminum heatsink and measures 84x64x20.5mm. This ESC supports a voltage range of 8V-60V and can handle up to 50A continuous per single and 100A continuous per dual with burst capabilities of 150A and 300A respectively. It includes an integrated anti-spark switch function and supports regenerative braking. The device is equipped with an internal BEC driver, software calibration timing, and a programmable cutoff voltage. Please ensure the LED button is connected before powering on.
Description:
Item Brand:FLIPSKY
Item name:Dual FSESC4.20 ESC Pro Switch Plus
Color:As the picture shown

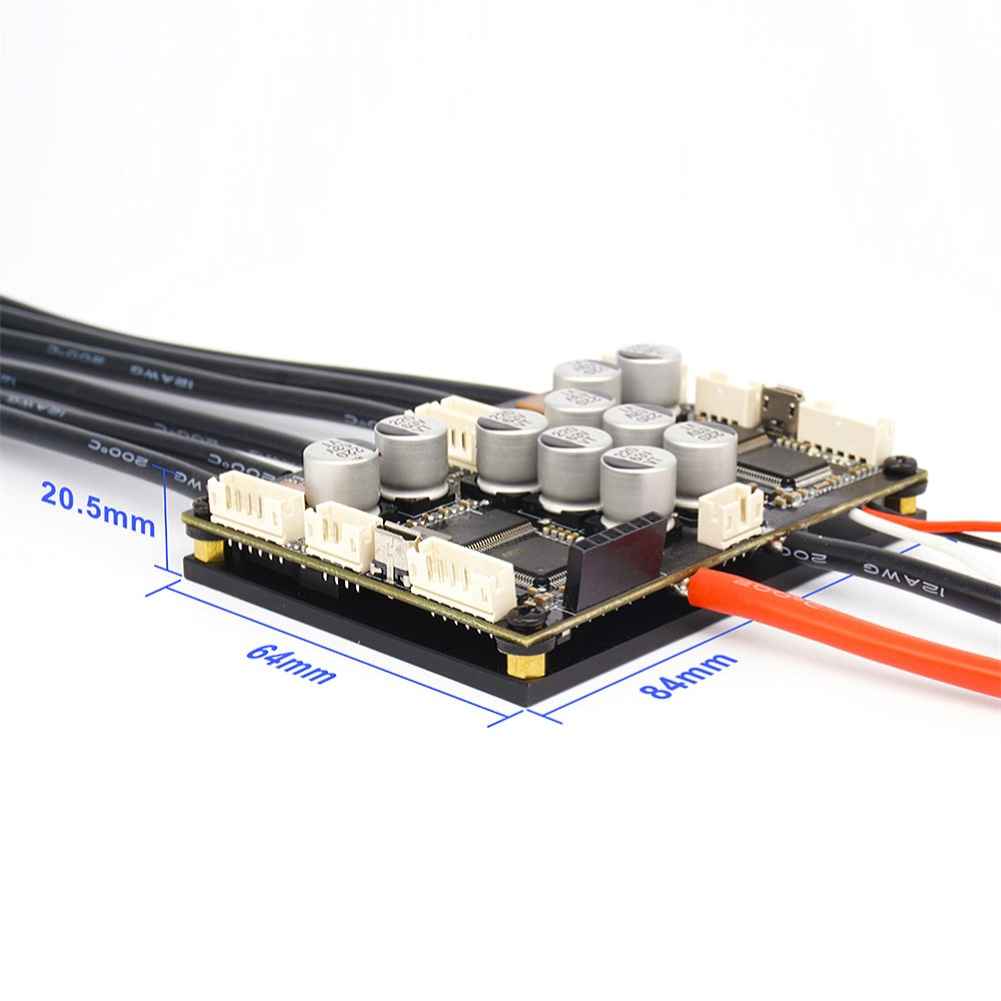

Product Size:84*64*20.5mm(Included Heatsink)
Fit For:Electric Longboard RC Car/E-bike/E-scooter
For more detailed information,please click here
Spec:
Hardware:V4.20
Firmware: Latest Version
Amps: 50A continuous/single, 100A continuous/dual ,
burst 150A/single, burst 300A/dual
Voltage: 8V-60V(Cells: 3-13S LiPo)
BEC: 5V@1.5A
BEC type: Internal driver support
Timing: Software calibration
Cutoff Voltage: Programmable
Frequency: PWM input
Programming card: No
Reverse: Yes
Regenerative braking power: support
Plus Features:
Integrated anti-spark switch function in the PCBA (Reminds : the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.)

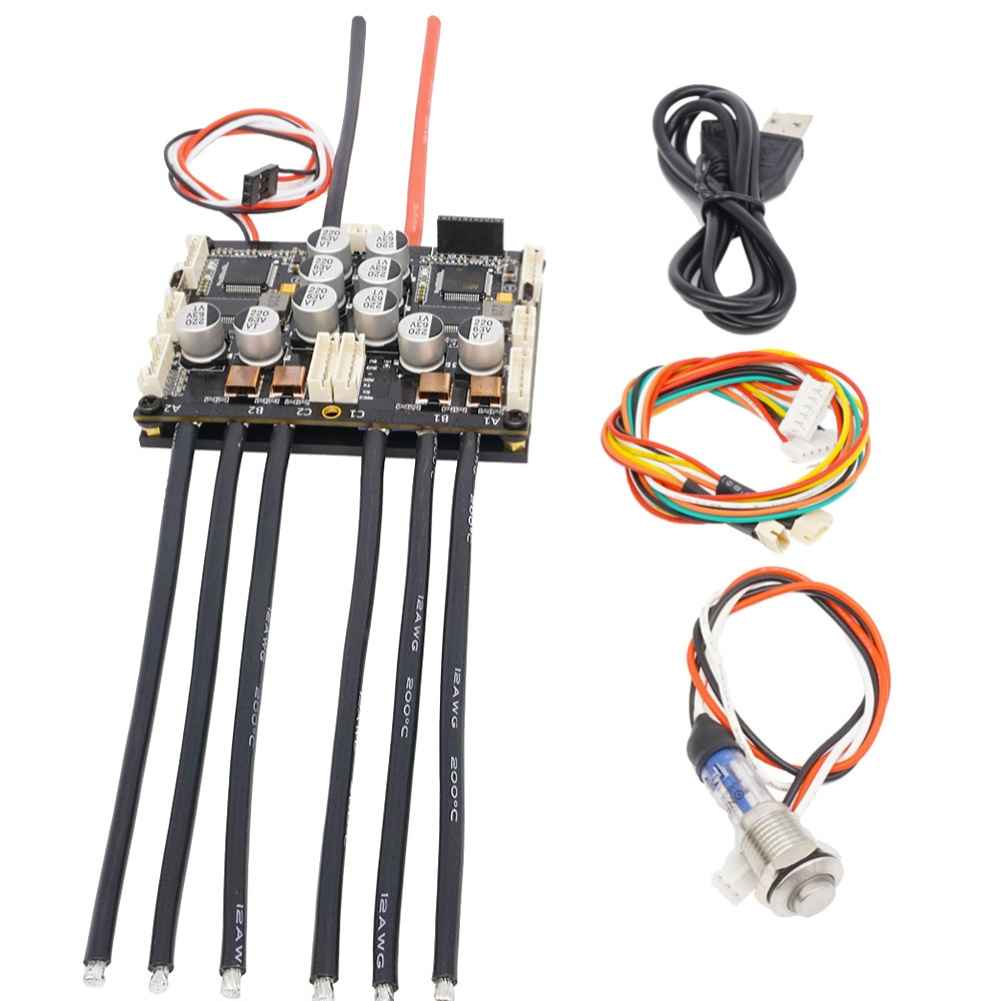

Package Included:
1 x Dual FSESC4.20 Plus + Heatsink
1 x 12mm LED button
2 x Sensor Wires
1 x Micro USB
1 x Manual
