Description
RadioMaster Nexus Balance Flybarless Flybarless Control Unit Rotorflight CNC Case Flight Controller for RC Helicopter
The RadioMaster Nexus Balance Flybarless Control Unit is a high-performance flight controller designed for RC helicopters. Featuring Rotorflight 2.0 firmware and an STM32F722RET6 MCU, it provides precise control and stability. The unit includes a gyro (IMU) ICM-42688-P and a 128Mb flash memory for data logging. It supports various receiver protocols, including CRSF, ELRS, and S.BUS. With six UART ports and four servo connections, it offers extensive compatibility. The unit supports a voltage supply of 5 – 12.6V and includes telemetry options like S.BUSH and HoTT. Its compact dimensions of 41.3 x 25.4 x 13.1mm and weight of 16.8g make it a lightweight choice for hobbyists.
SPECIFICATIONS:
Item: Nexus Heli Flight Controller
Firmware: Rotorflight 2.0
MCU: STM32F722RET6
GYRO (IMU): ICM-42688-P
FLASH MEMORY (BLACK BOX. IC): 128Mb (W25N01GVZEIG)
BAROMETER: SPL06-001
UART:
6 – DSM[UART1]. S.BUS[UART2]. A-CRSF[UART4]
PORT-B[UART6]. PORT-C[UART3]
SERVO: 4 – S1, S2. S3. TAIL
RPM SENSOR: 1 – FROM ESC FREQUENCY SENSOR
RECEIVER SUPPORT: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUSEXBUS, PPM, MSP, DSM2, DSMX
VOLTAGE SUPPLY (DC): 5 – 12.6V
A-B-C SERIAL PORT POWER OUTPUT: 5V – 2.0A
DSM SERIAL PORT POWER OUTPUT: 3.3V – 0.5A
Telemetry: S.BUSH, HoTT, S.Port, MSP, EDGETX, ELRS
ESC: Oneshot, Multishot, Dshot
Support Tail ESC: 760ps/1520ps Servo
Support Tail motor: Yes
DIMENSIONS: 41.3℅ 25.4℅13.1mm

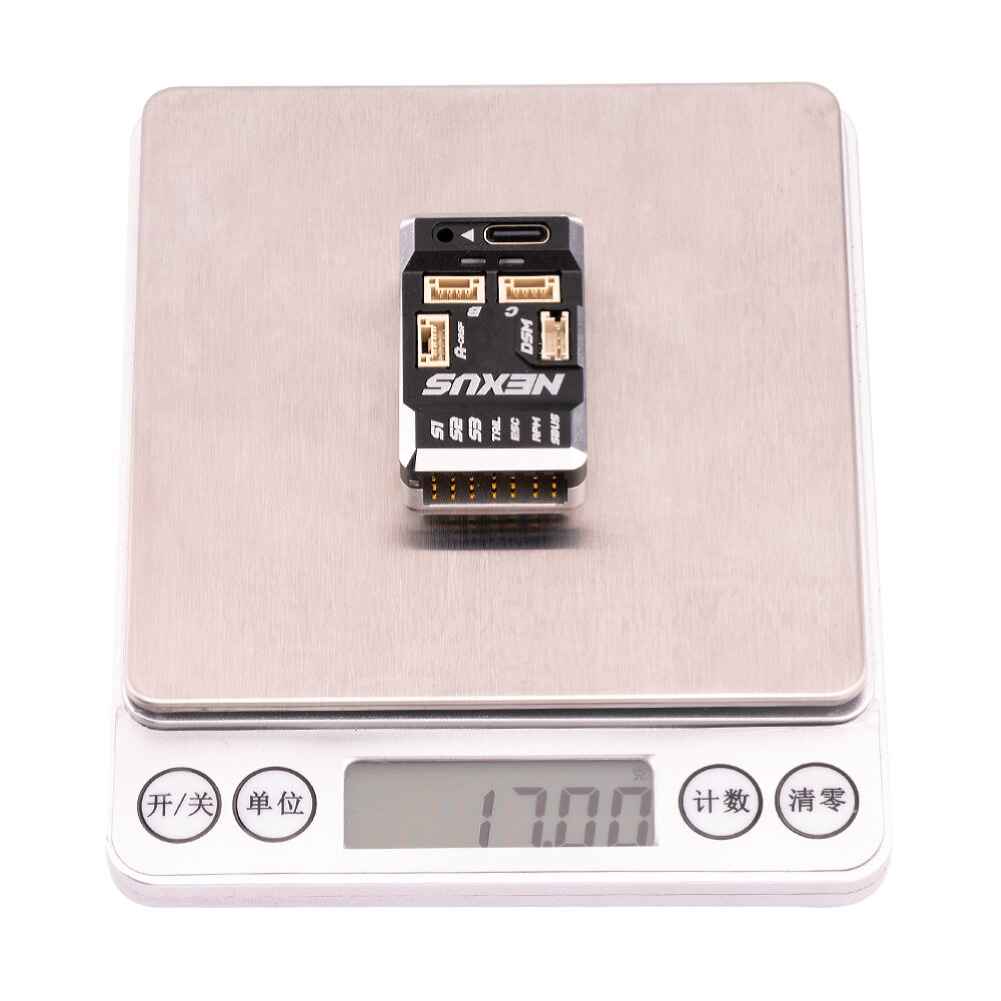

WEIGHT: 16.8g

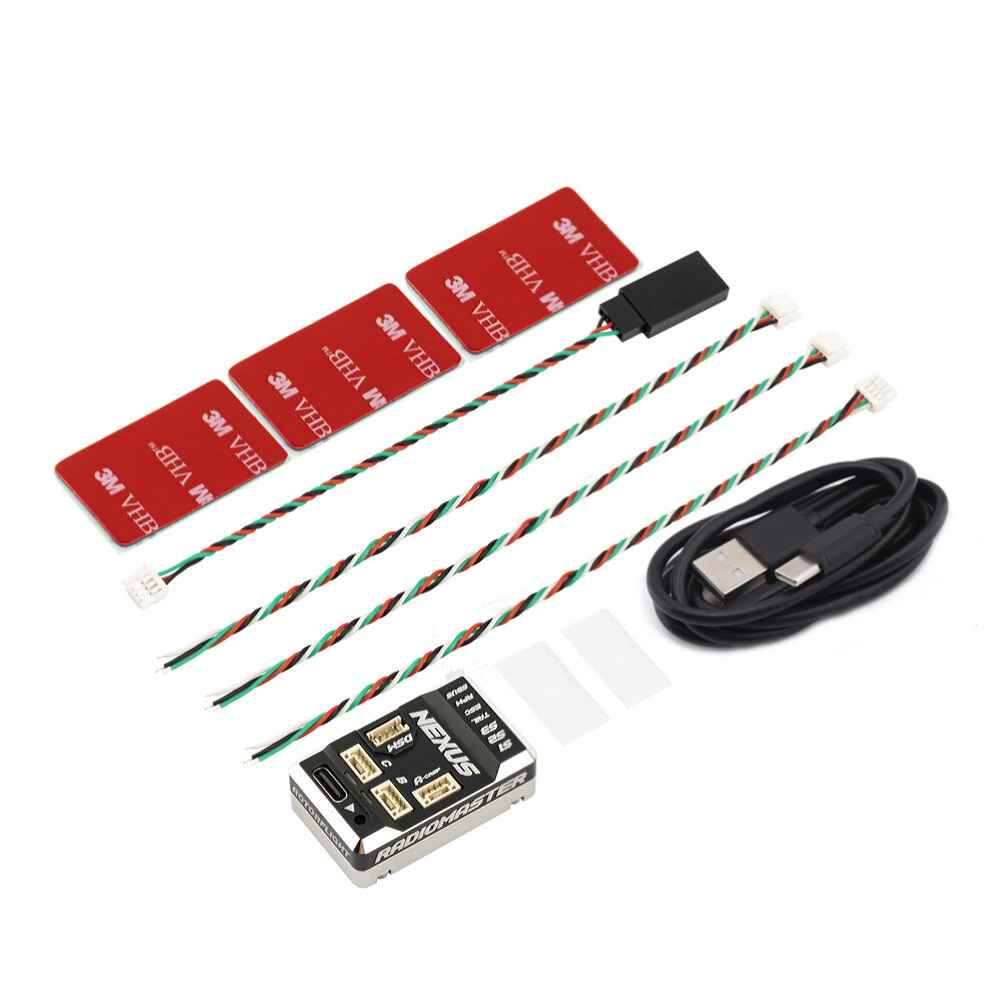

Package Included:
1 x JST-GH to Servo Plug (dupont 3 pin connector)
1 x Type C extension cable
4 x JST-GH 4 Wire pigtail cables
1 x Nexus Heli Flight Controller
1 x Ultra lightweight and flexible USB-C extender
2 x Heat shrink tubing
3 x 3M double-sided mounting tape
