Description
YXZNRC F09-S F180 F11-S 5.8g Image Transmission Camera RC Helicopter Parts

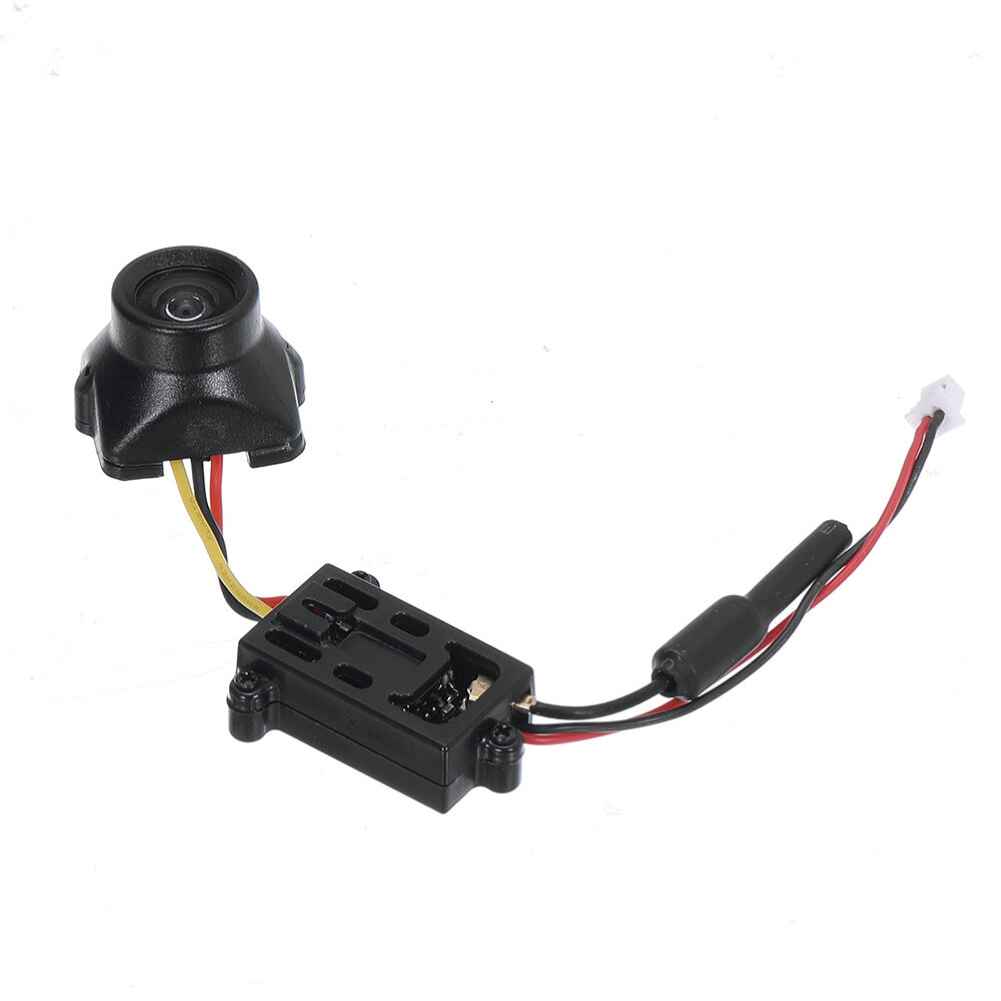

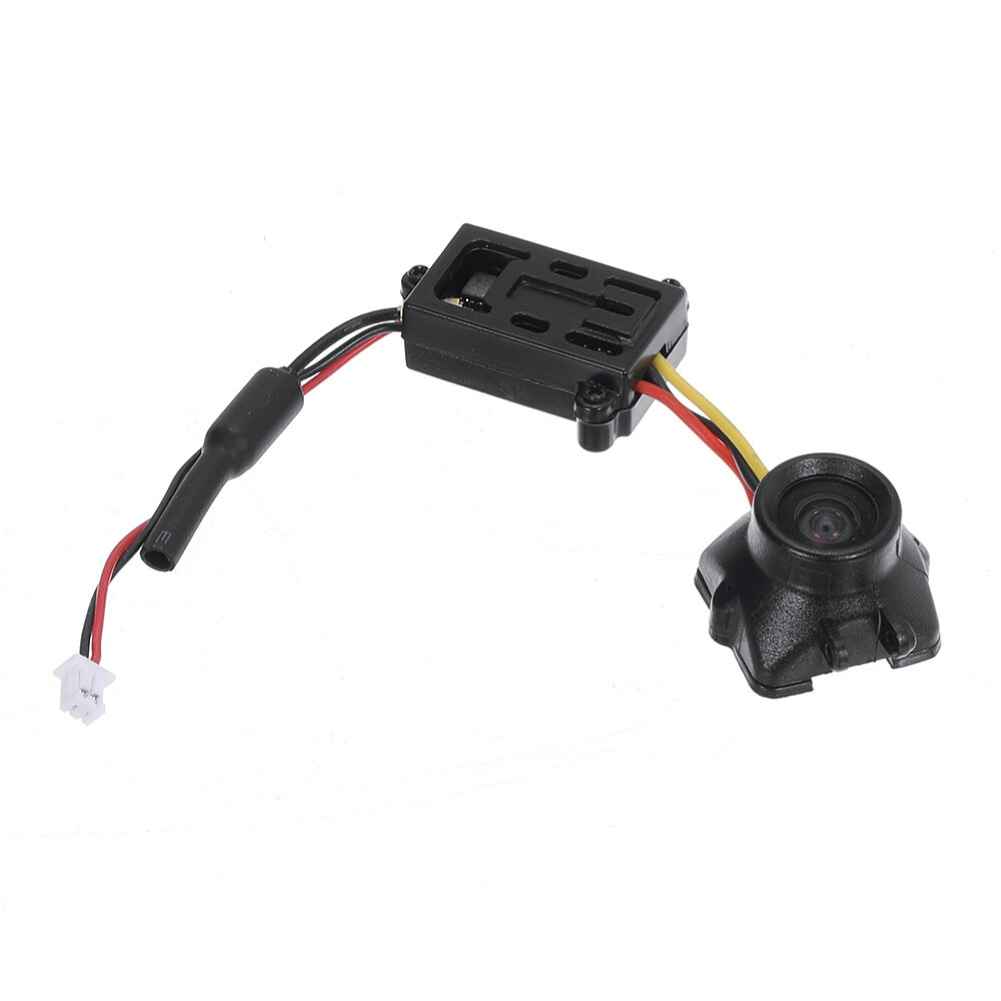

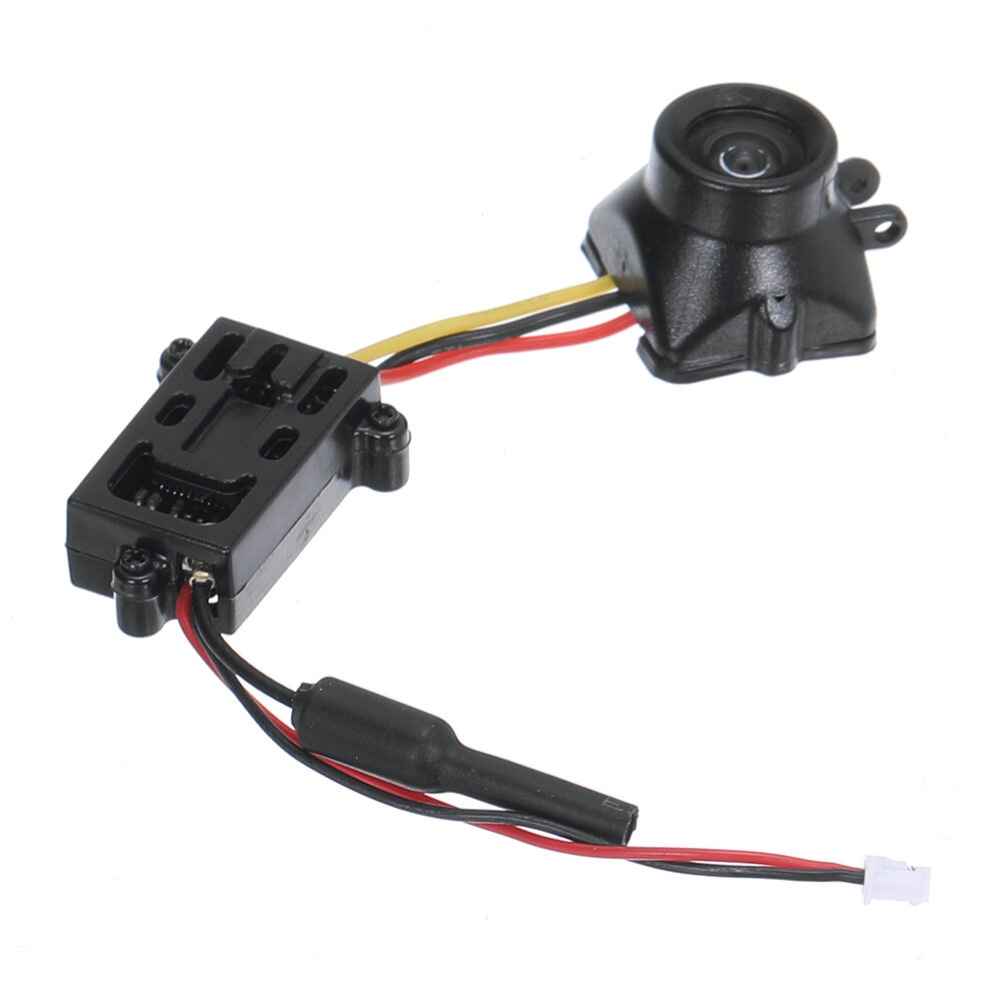

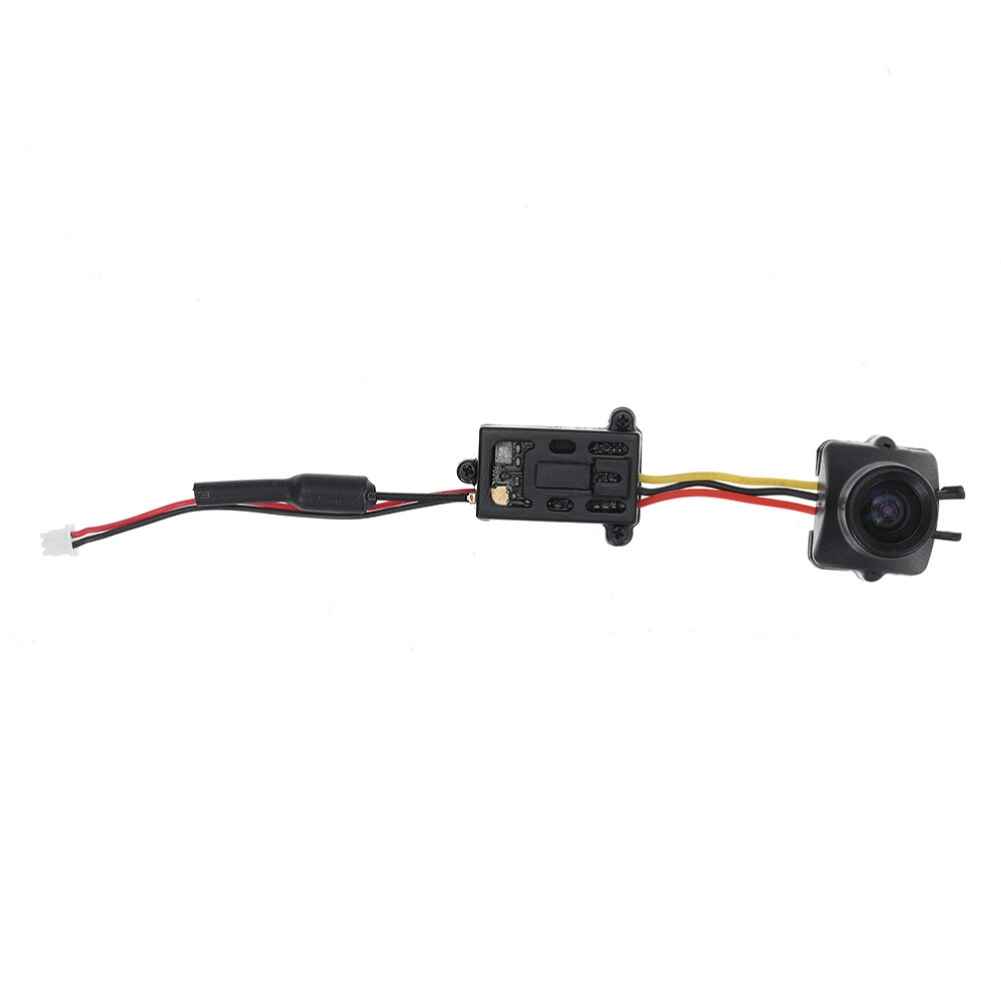

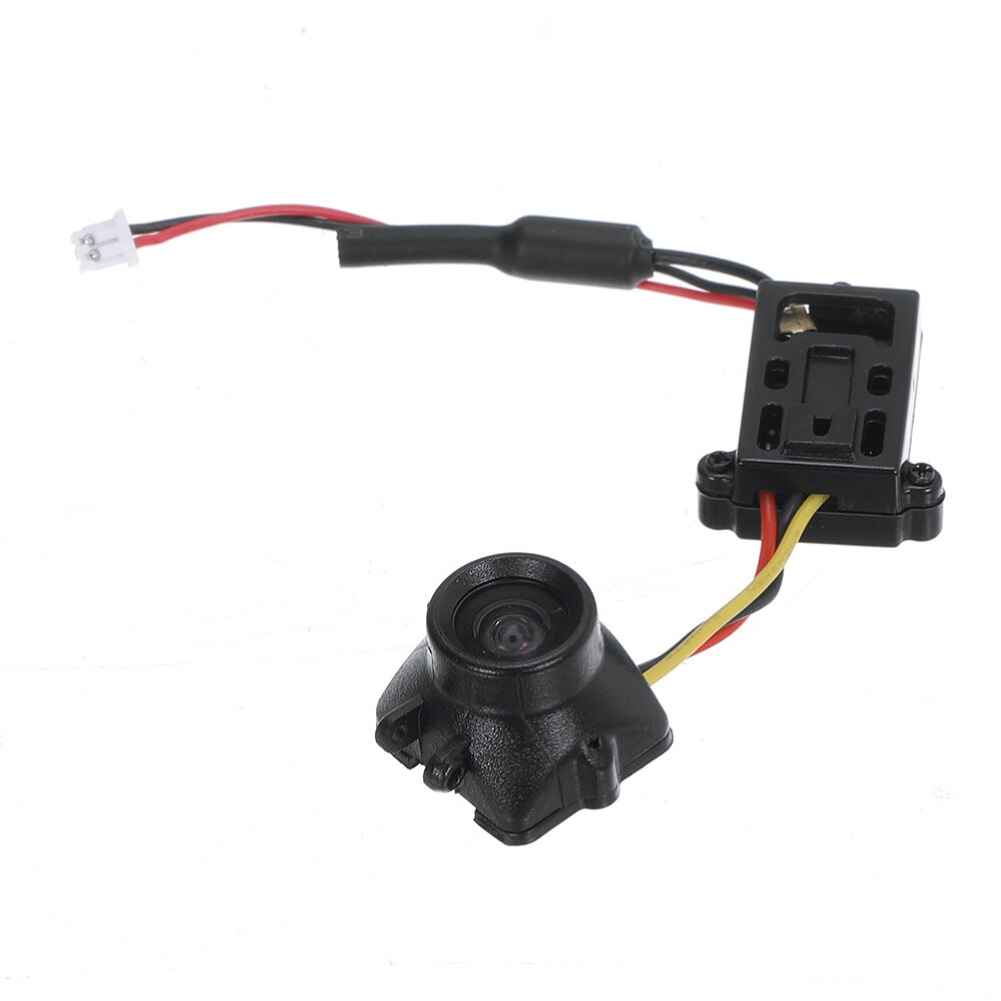

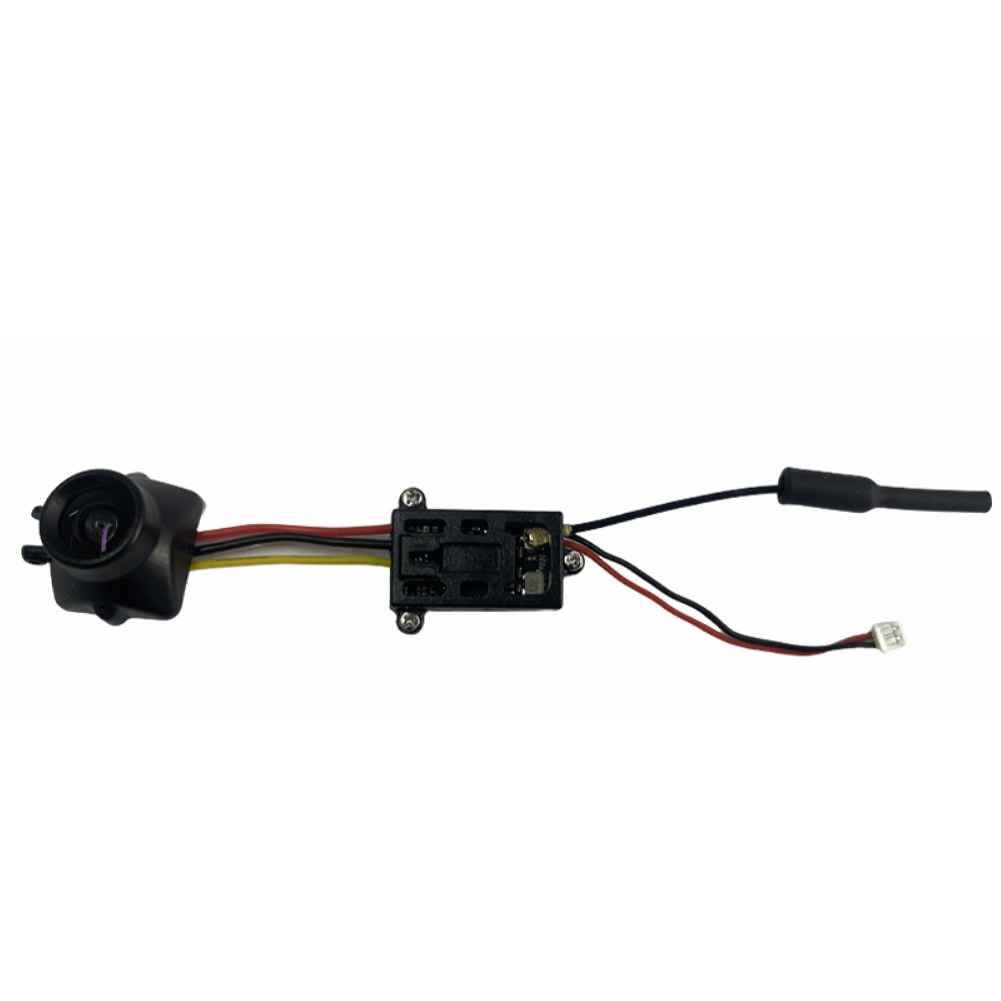

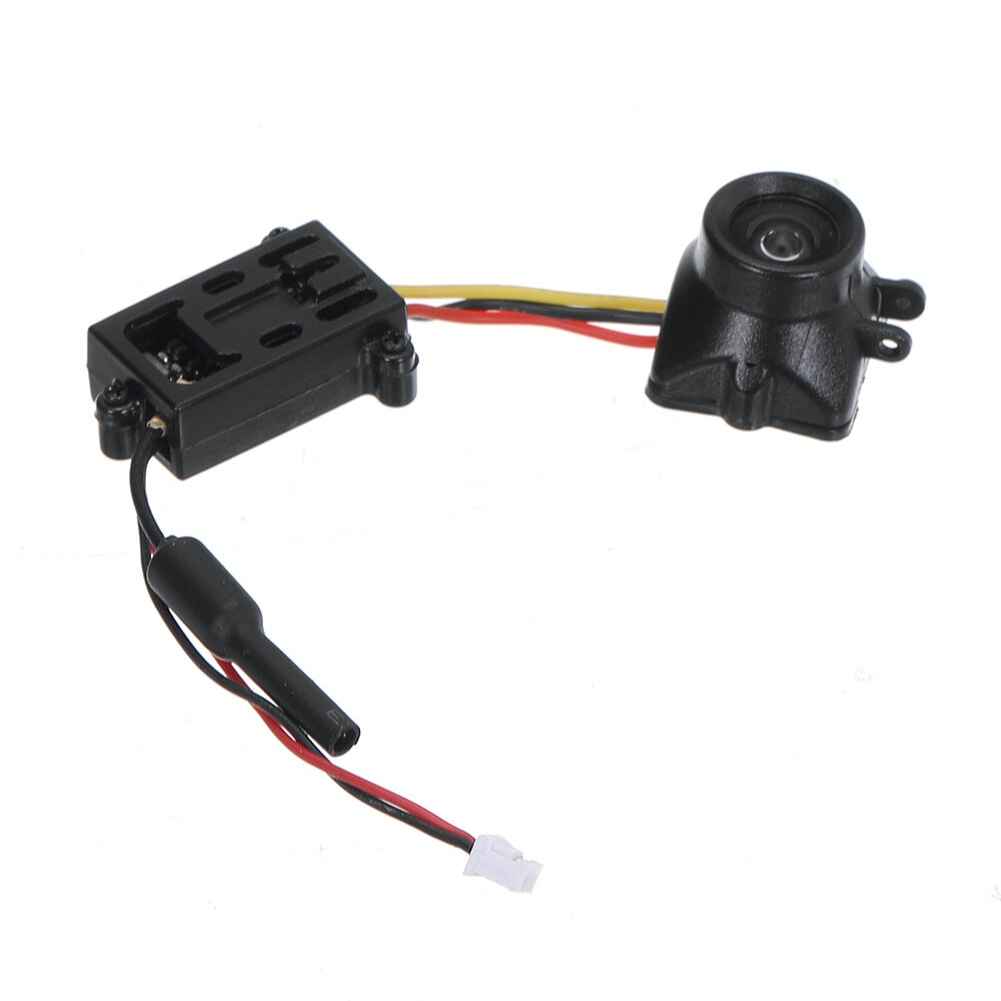

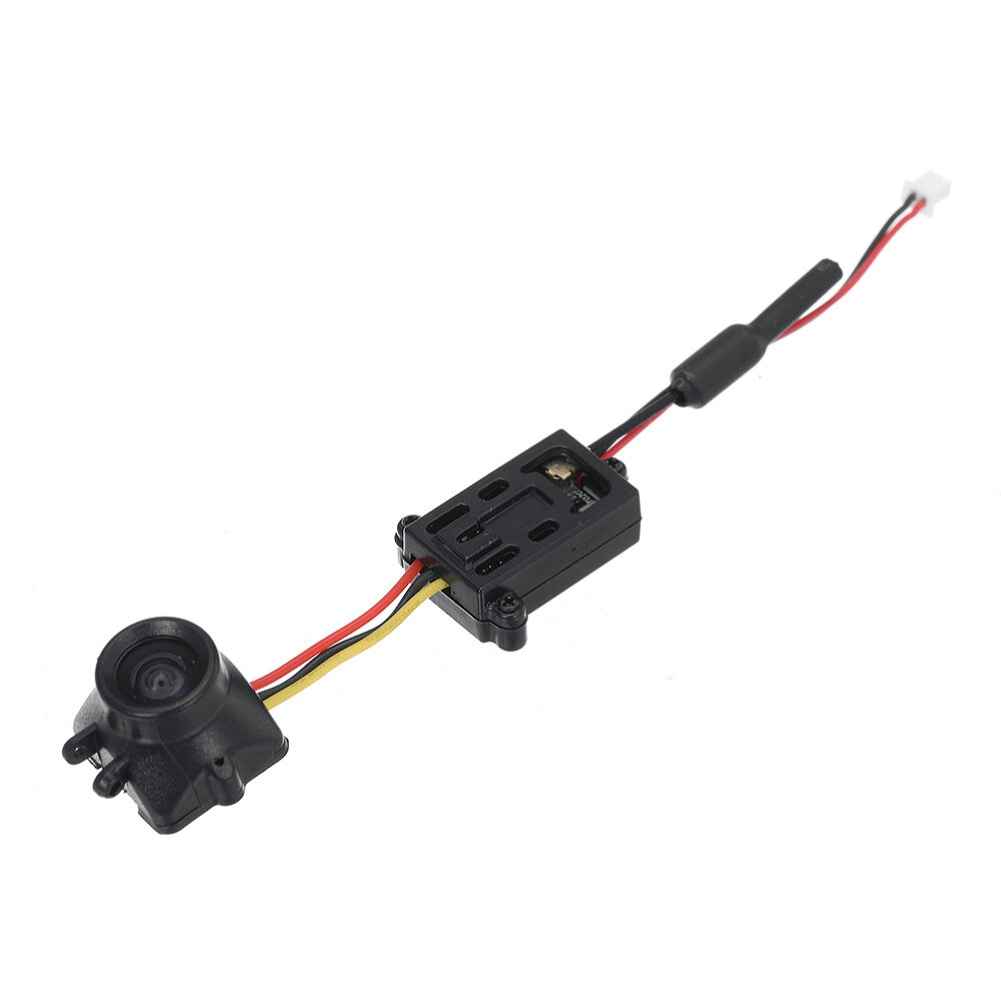

The YXZNRC F09-S FPV Camera is designed for RC helicopter enthusiasts seeking high-quality image transmission. Featuring a 1/4″ CMOS sensor with 800TVL resolution, this camera offers a 150° field of view for comprehensive coverage. It supports both NTSC and PAL video formats and operates on a wide voltage range of 2.5 to 5.5V. With 40 channels including RaceBand, it ensures reliable connectivity. The compact and lightweight design includes a unique split type for versatile installations. The camera can enter standby mode to conserve power, making it an efficient choice for prolonged use. RF power output is rated at 25MW.
Specification:
Model: S4
Name: 5.8G Micro FPV Camera
Image sensor: 1/4 ‘CMOS
Clan: 800TVL
Legend: M7 Lens
Angle: 150 ～ Fov Horizontal
Video format: NTSC/ PAL Optional
Output impedance: 50 ohm
Output signal intensity: 13 ‘+-1 dbm
Channel: 40 Channel
Antenna: 5.8G 3DBI
Power: DC5V 0.5V
Output power: MAX.25MW
Power: 220MA ~ 40OMA @3.0V ~ 5.0V
Camera size: 11 * 11 * 11 mm
Feature:
Compact design, limit size and weight;
Unique Split Type Design;
Wide Voltage 2.5 ~ 5.5V Input (3 ~ 5V Recomge);
Can ENTER Standby Mode When Not in Use, Saving Electricity;
5 Bands 40 Channels with RaceBand;
RF Power Output: 25MW;
Package Included:
1 x 5.8G Micro FPV Camera
1 x User Manual
