Walksnail Avatar HD Pro Kit 5.8Ghz Digital System FPV Transmitter 32GB 22ms Low Latency With SonyStarvis1080p/120fps 160 Night Version FPV Camera
Bullet Point :
-1/1.8 inch Sony Starvis sensor, come with extremely clear night vision as long as day vision.
-Support 1080P/120fps high frame, also the first high frame night vision HD camera in FPV market.
-Supporting Gyroflow for more stable and smoother footage.
-Add 20*20mm mounting holes for easy installation.
-Add 32g built-in storage option.
-Updated the design of PCB board and outer shell, more durable.
-A spare pad is added to provide two power connection modes.
-Optimized antenna base design and frequency button position for greater convenience.
Features:
1080P 120fps compatibilityHigh frame starlight22ms low latencyRanging Mode4km rangeLight weight designFOV160??Built-in 32G storage6V-25.2VSony Starvis Technology
Specification:
Camer A
| Model | Avatar HD pro camer A |
| Image Sensor | 1/1.8-Inch Sony Starvis /span> Sensor |
| Resolution | 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160?? |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.00001Lux |
| Weight | 9.5g |

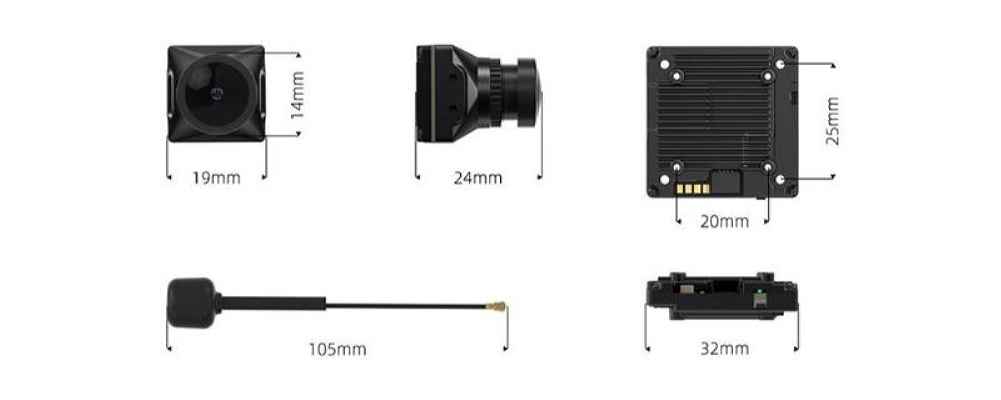

| Dimensions | 19*19*24mm |
| Coaxial Cable | 140mm |
VTX
| Model | Avatar V2 module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Dimensions | 33.5*33.5*10.5mm |
| Storage | 32G |
| Recording | 1080p/720p |
| Weight | 17.6g |
| Operating Temperature | -20-40br> |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 1(IPEX) |
Avatar V2 antenn A
| Polarization | LHCP |
| Frequency range | 5600MHz-6000MHz |
| Gain | 1.9dBi |
| VSWR | .5 |
| Input Impedance | 50?? |
| Interface | IPEX-1 |
| Size | R15 X 45mm(without cable) |
| Weight | 2g |
Packing List
Walksnail Avatar HD Pro Kit 32G X1
USB transfer extension cable X1
4 Pin silicone cable X1
M2*4mm screws X8
M2*5mm screws X4
M2*6mm screws X4
M2*14mm screws X4
M2*5*0.5mm gasketX4
