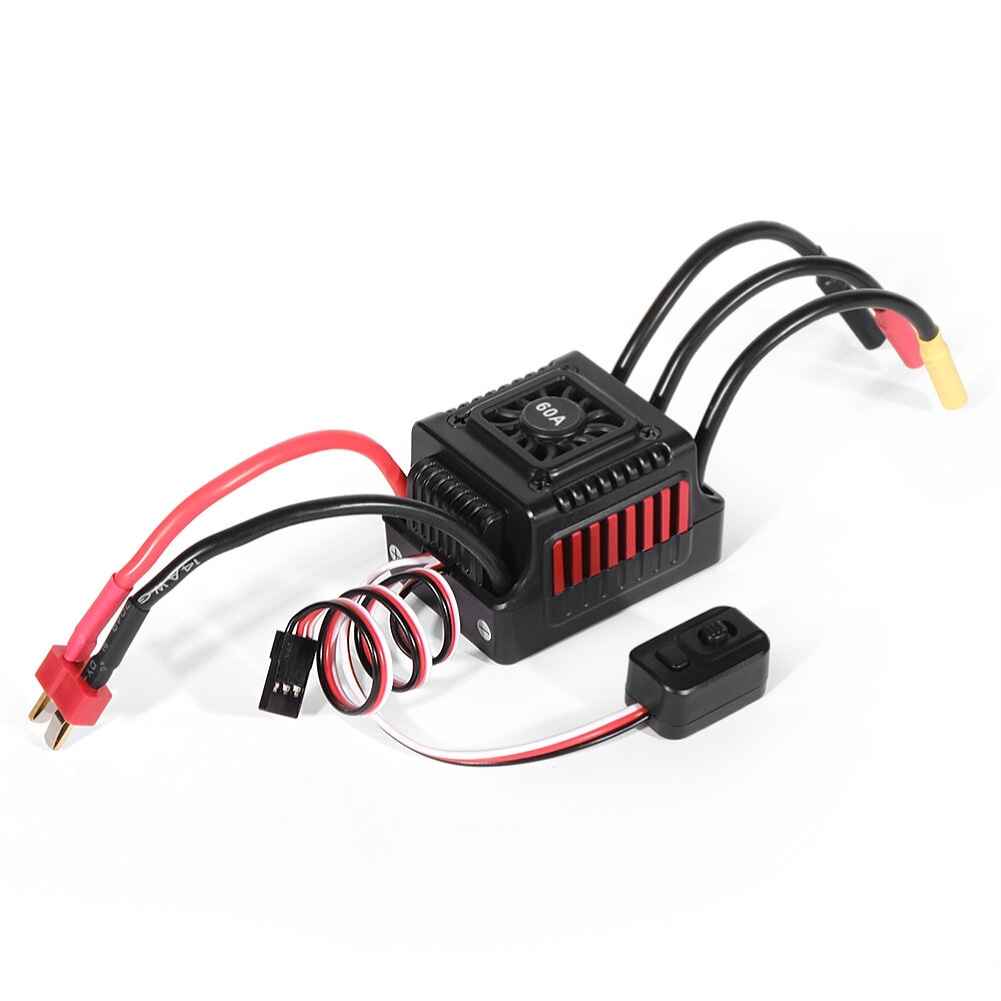

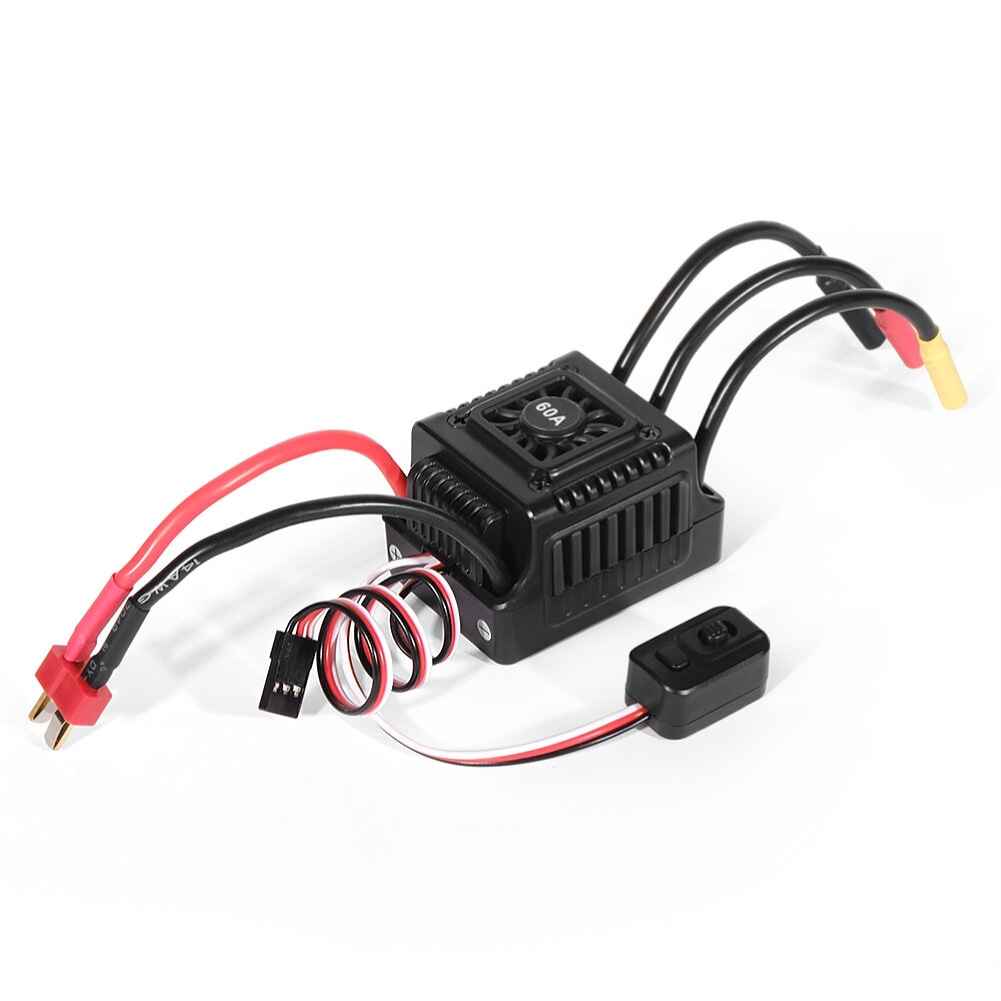

WSDT-60A RC Sensorless Brushless Waterproof ESC with Programming Card for 1/10 RC Cars

Description

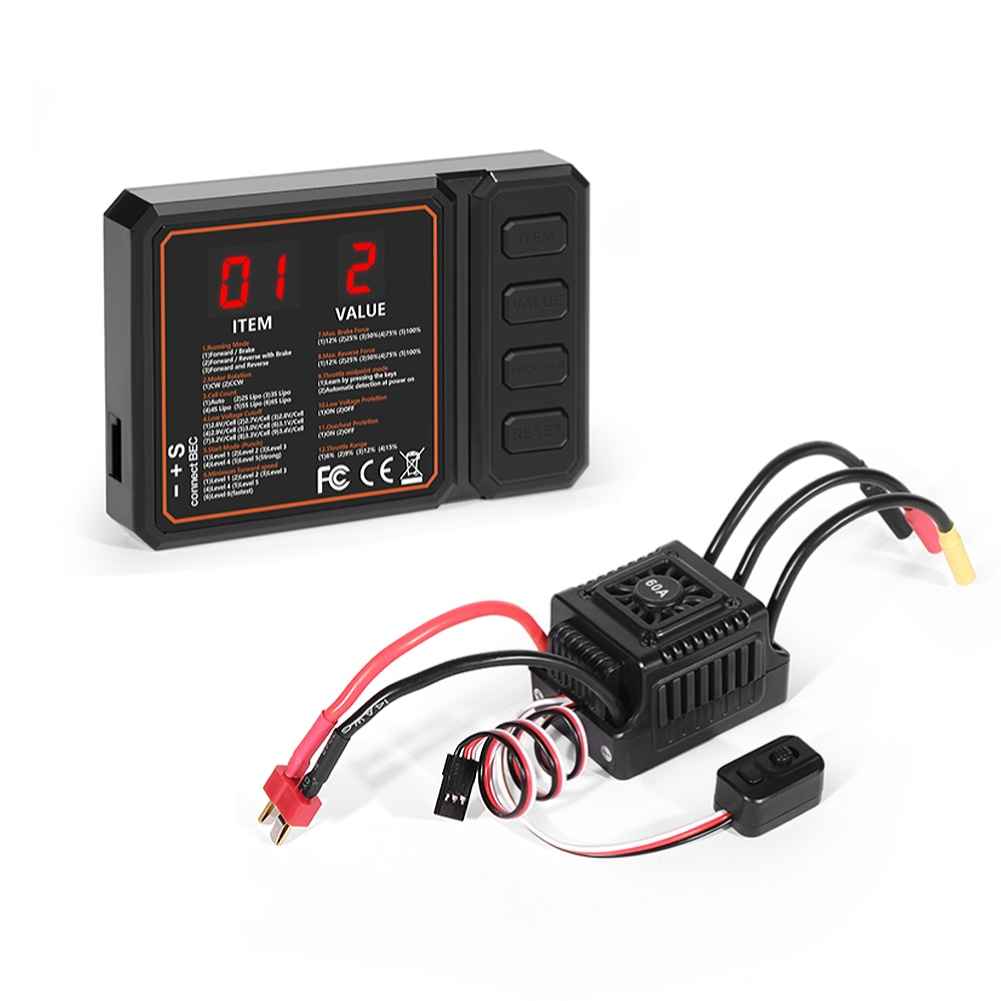

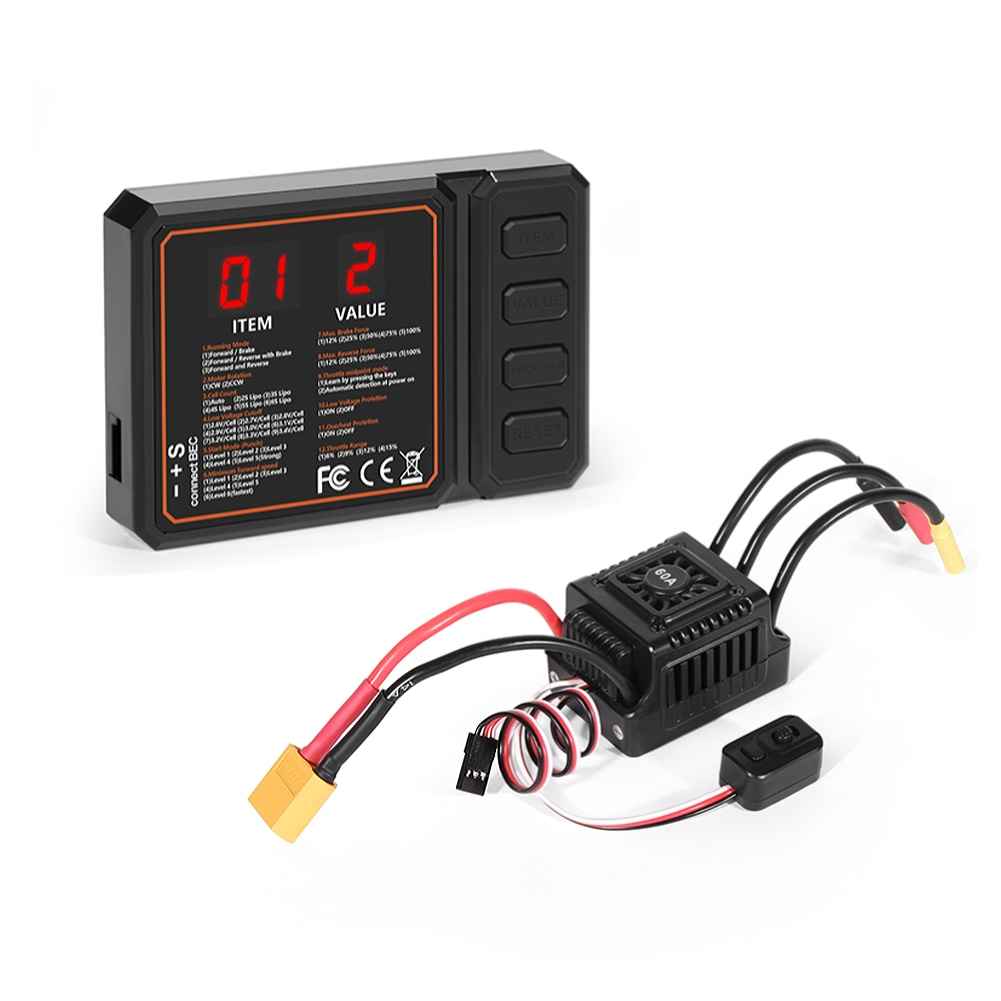

WSDT-60A RC Sensorless brushless waterproof ESC With Programming Card Combination Set for 1/10 RC Car

The WSDT-60A RC Sensorless Brushless Waterproof ESC is designed for 1/10 scale RC cars, offering compatibility with a range of brushless servos. Ideal for both entry-level and intermediate users, this ESC provides a continuous current of 60A and a peak current of 180A. It supports 4-9 cells NiMH or 2-3S Lipo batteries, with a motor limit tailored for various on-road and off-road models. The ESC features multiple protections, including low voltage cut-off, over-heat, and motor lock-up protection. Equipped with an external programming port, it allows easy connection to the included programming card for convenient settings adjustments. The waterproof design ensures all-weather performance, making it suitable for short course trucks, buggies, and monster trucks.

Description:
WSDT-60A RC sensorless brushless waterproof 60A ESC suitable for 1/10 RC ,compatible with various brushless servos.Simply operation that built for entry-level and intermediate players.
Specifications:
Item Name: SENSORLESS BRUSHLESS ESC FOR CAR
Model: WSDT-60A
Cont. Current: Fwd. 60A / Rev. 60A
Peak Current: Fwd. 180A / Rev. 180A
Resistance: 0.001棒
Cars Applicable: 1:10 On-road/Off-road/Buggy/Monster
Battery: 4-9 Cells NiMH, 2-3S Lipo
Motor Limit:
For 2S Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<6000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with
the KV<4000
Off-road/Buggy/Monster: 3656-size or
smaller motor with the KV<3000.
BEC Output: 5.85V/3A
Cooling Fan:
From battery directly without regulating
The stock fan can work with 2S and 3S Lipo
Dimensions: 52(L)X39(W)X35(H)mm
Weight: 73g

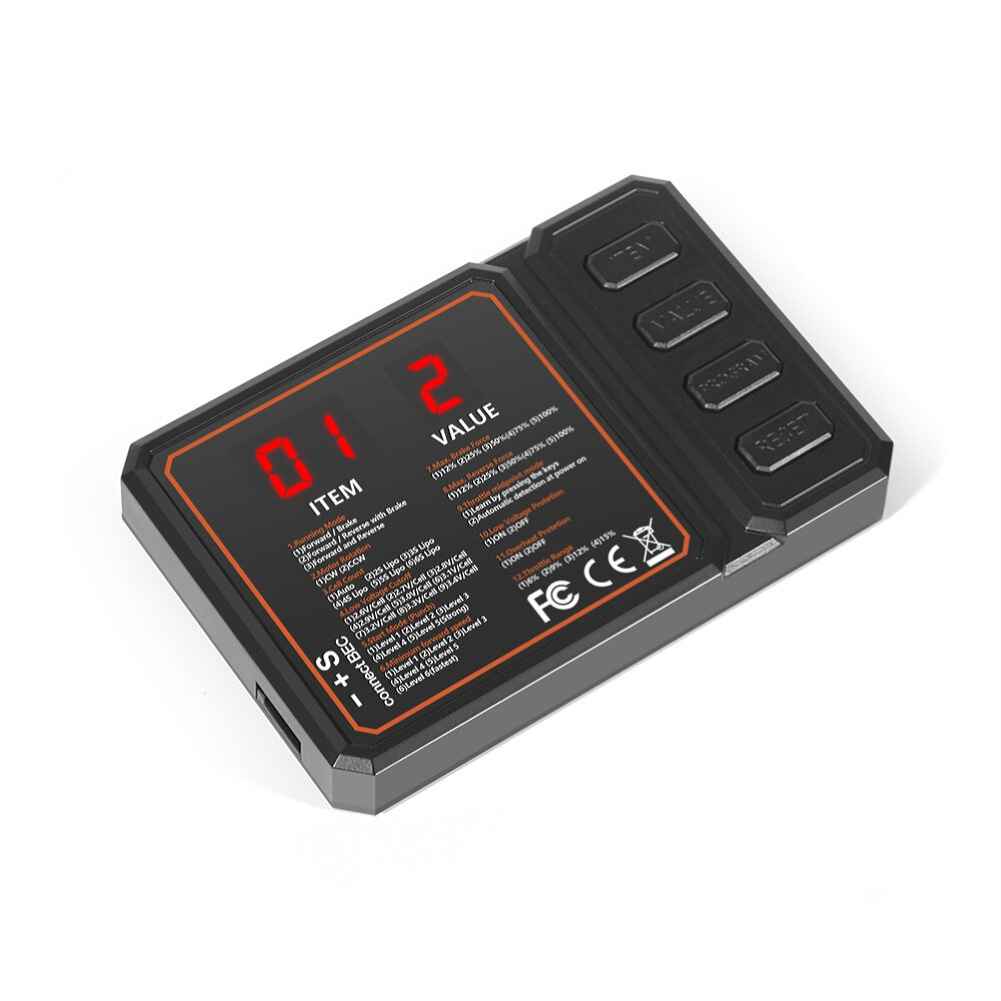

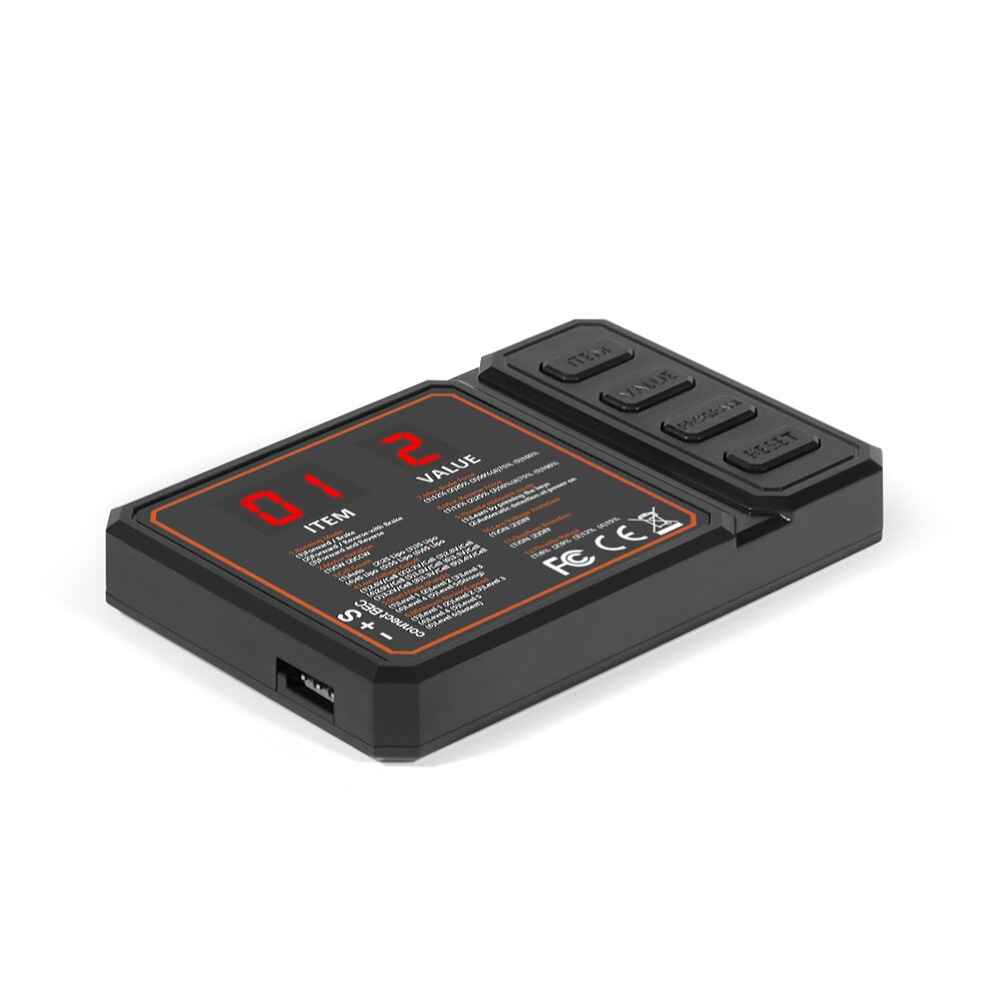

Item Name:Programming Card
Weight券35G
Size券83*55*14mm
Certification券CE FCC
Features:
1.Water-proof and Dust-proof: The WSDT-60A brushless RC 60A ESC suitable to all-weather sport races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.External Programming Port: Easy to connect to the Program Card when setting the ESC
3.Multiple Protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection
4.Performance: Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment; 9 steps of acceleration(punch) adjustment from ↗soft∫ to ↗Very aggressive∫ to fit for different kinds of models, tires and tracks
5.Application: This WSDT-60A brushless ESC suitable for 1/10th short course trucks, buggies, trucks, and monster trucks.The built-in switch mode BEC with a maximum output of 6Amp and voltage of 6V make this RC Brushless ESC compatible with various servos
Tips: Compatible with optional device – the portable Digital LED Program Card which is especially convenient for outdoor use.If necessary, you can consult our customer service to recommend for you.
Note:The programming card needs to be sold together with the ESC. The programming card can only be used for our ESC.

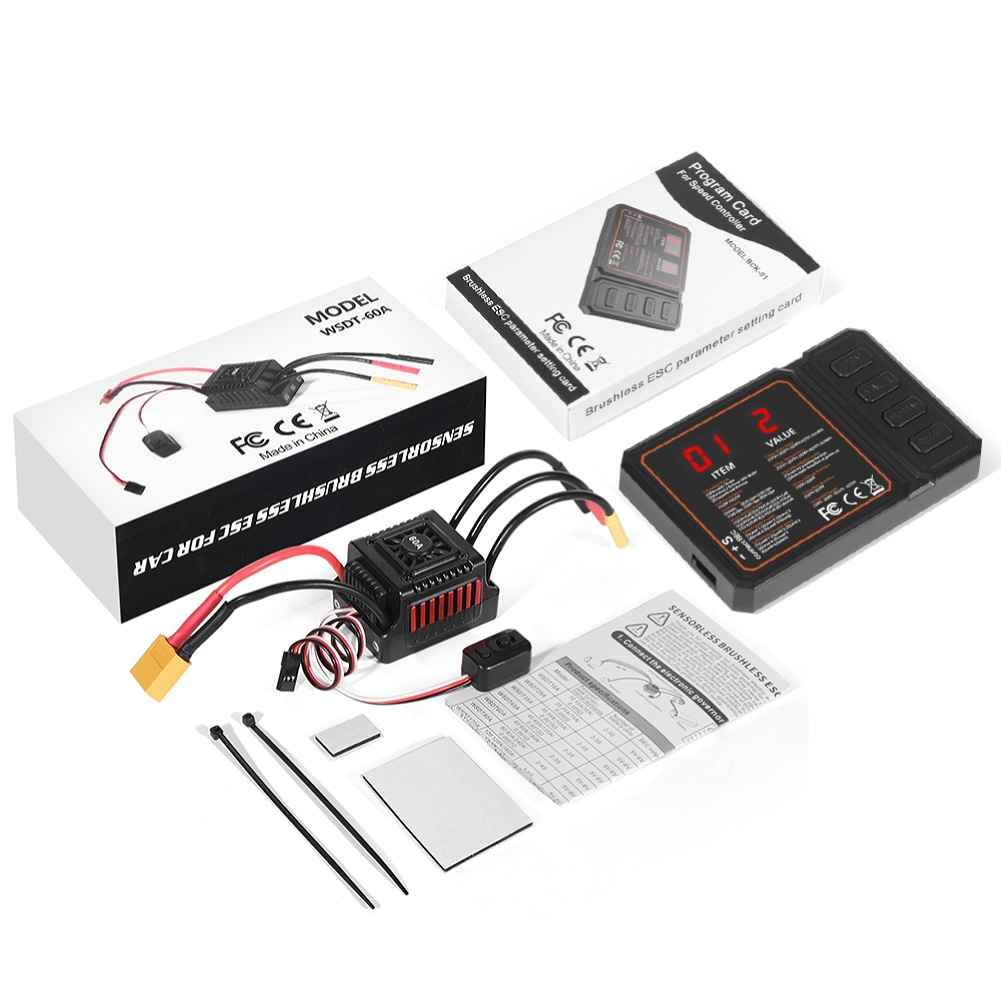

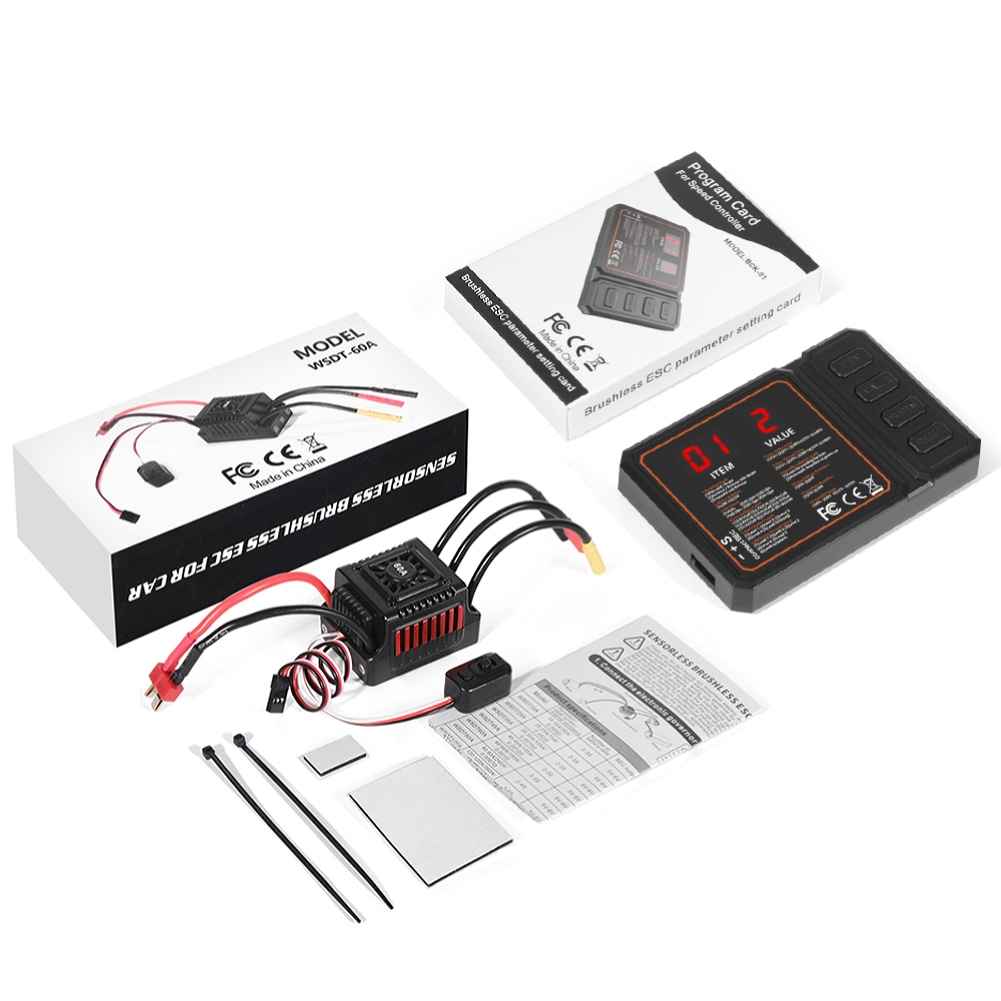

Package Included:
1 x Programming Card
1 x ESC
2 x Instruction Manual
1 x Double-sided Tape
2 x Rolling Tape
