Description

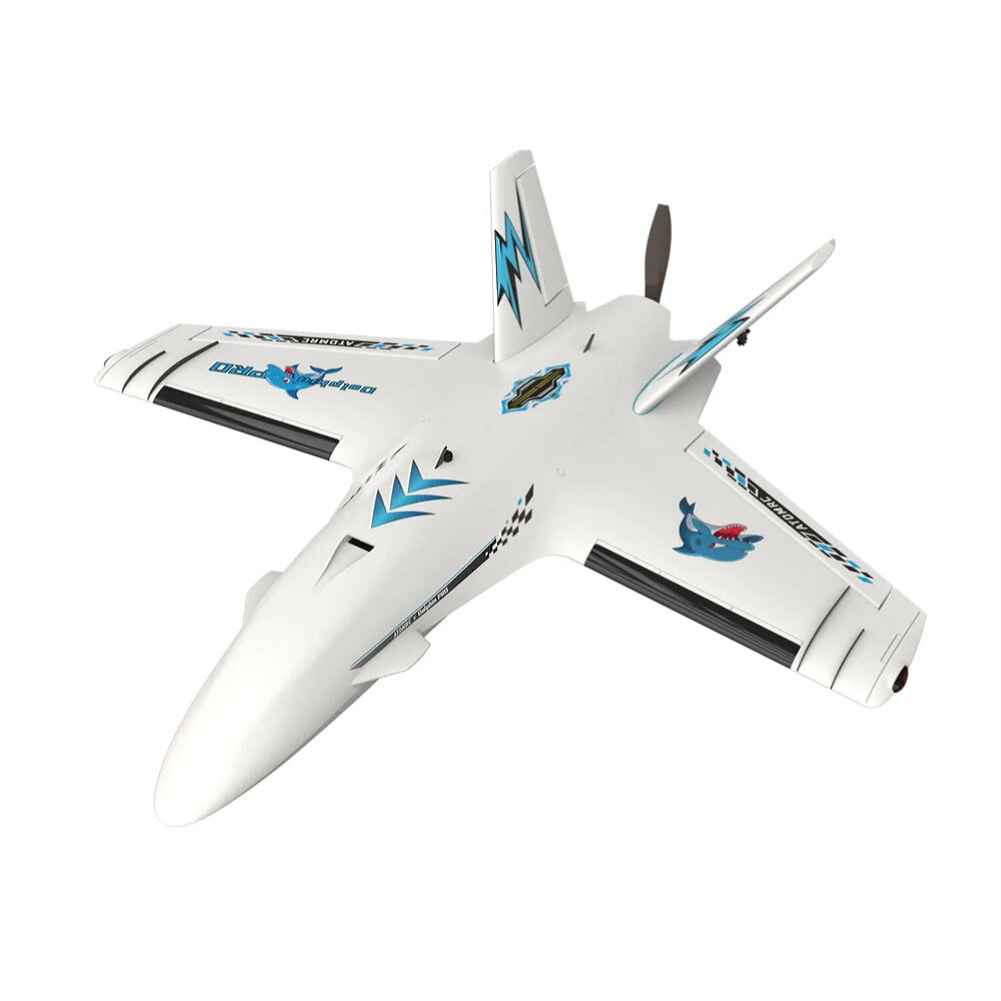

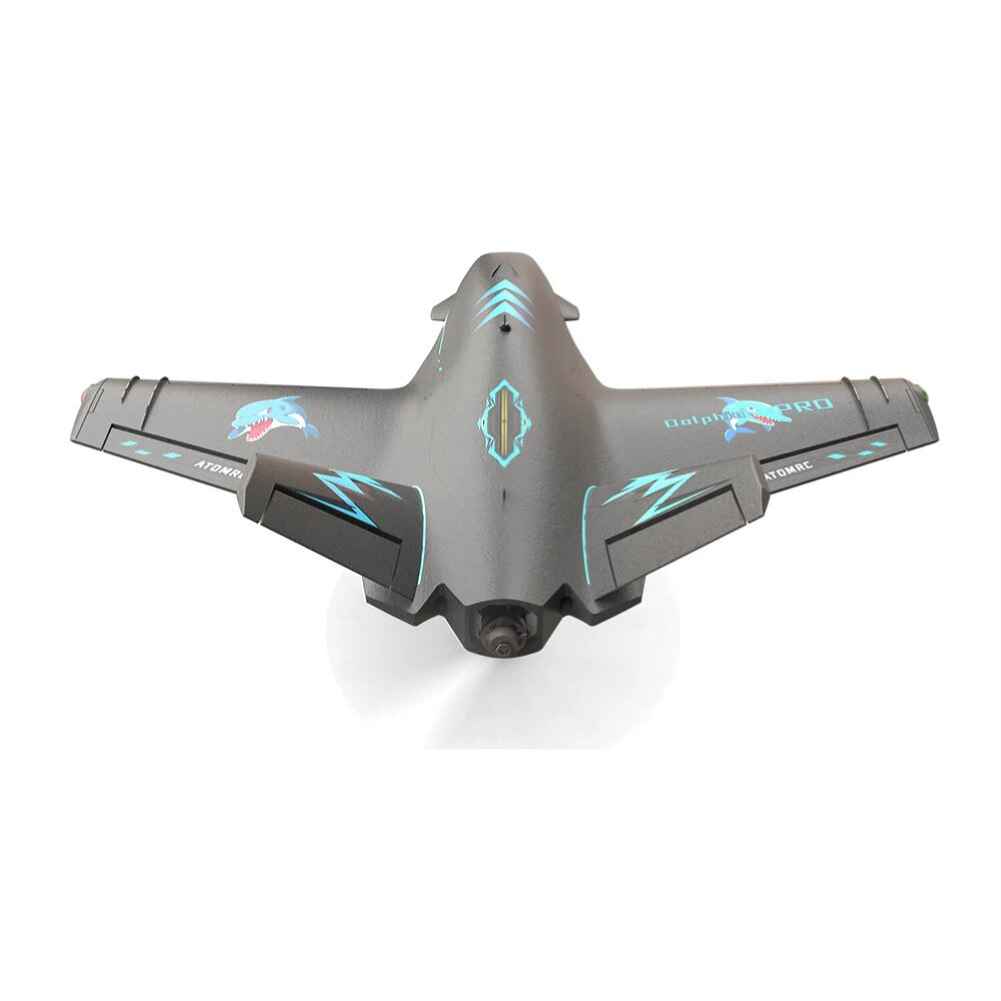

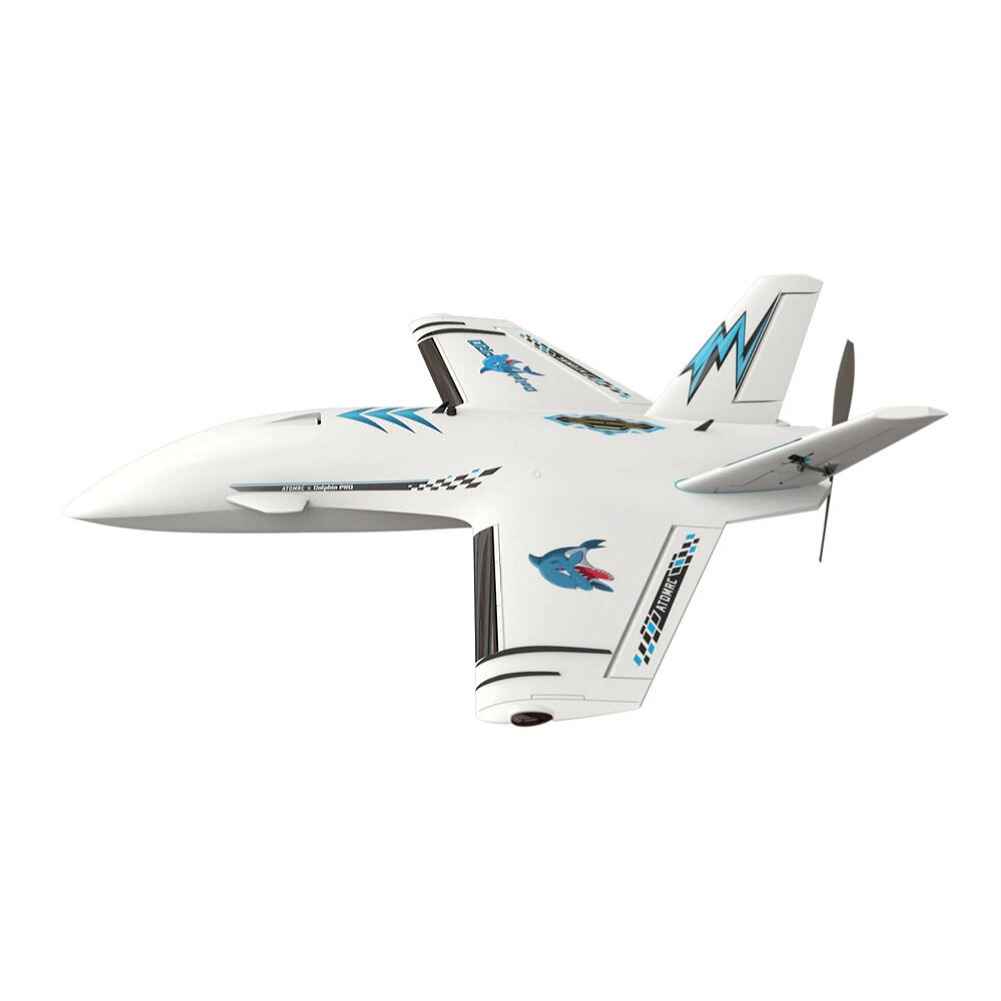

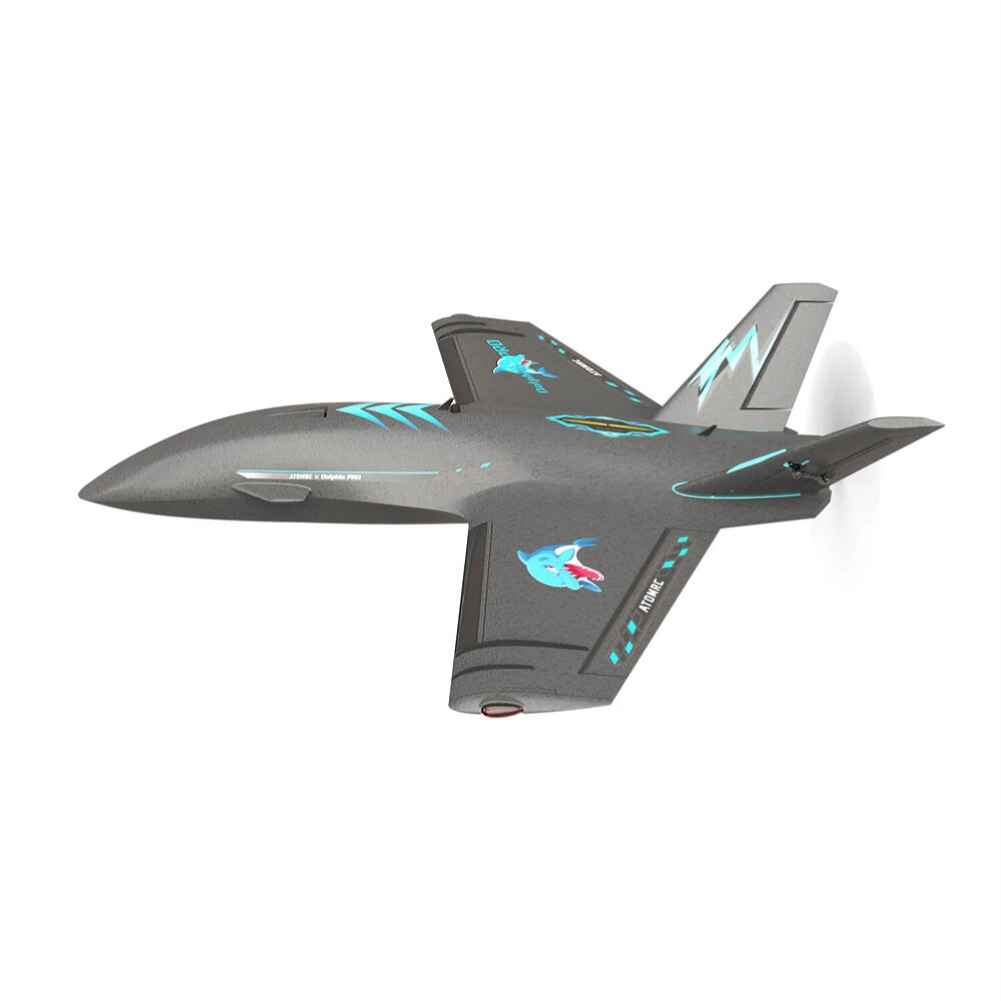

ATOMRC Dolphin Pro 800mm Wingspan EPP FPV Airplane Fixed Wing KIT/ PNP+S/ RTH
The ATOMRC Dolphin Pro is an enhanced version of the popular Dolphin FPV airplane, designed for superior low-speed flight stability with optimized aerodynamics. It features a 2807 1100KV motor and a BLS 6S 50A electronic speed controller, providing a thrust-to-weight ratio of 1.3-1.4 and a full-load pulling force of 2081g. The aircraft is compatible with the DJI 04 Pro/03 video transmission system and includes LED navigation lights on the wings and abdomen. Made from durable EPP foam, the Dolphin Pro offers a quick-release structure and a movable V-tail for enhanced performance.
Description:
The dolphin pro fixed wing is an upgrade for our popular dolphin, which optimized Aerodynamic Configuration with Enhanced Low-Speed Flight Stability, equipped with a 2807 1100KV motor and a BLS 6S 50A electronic speed controller. The front part of the Dolphin PRO FPV aircraft can be equipped with the DJI 04 Pro/03 video transmission system. The thrust-to-weight ratio is increased to 1.3-1.4, full-load pulling force reaches 2081g. Both the navigation lights on the wings andthe lights on the abdomen adopt LED lights.
Specification:
Brand Name: ATOMRC
Item Name: Dolphin Pro
Color: White/Gray (Optional)
Wingspan: 800mm
Length: 862mm
Wing Area: 16.96d儸
Material: EPP
Recommend Parts (Not included):
Motor: 2807 1100KV Motor
ESC: √6S 50A BEC ESC
Propeller: 8040-2 Prop *2pcs
Servo: S09M 9g Metal Gear Servo*4pcs
Battery : 6S1P 21700
Flight Controller: ATOMRC F405 Delux FC
GPS: BE220 GPS
Feature:
– Optimize aircraft aerodynamics.
– High lift.
– Movable V-tail.
– Full-aircraft quick-release structure.
– EPP foam material.
– Equipped LED navigation lights.
Atomrc Dolphin Pro Versions (optional):
KIT Version: Pre-assembled Fixed Wing
PNP Version: KIT+Motor+ESC+Servo
RTH Version: PNP+Pre-turned FC+GPS
KIT Version included:
1 x Pre-assembled Foam Kit
PNP+S Version included:
1 x Pre-assembled Foam Kit
1x 2807 1100KV Motor
1x BLS 6S50A ESC
2x 8040-2 Prop
4x S09M 9g Metal Gear Servo
RTH Version included:
1 x Pre-assembled Foam Kit
1x 2807 1100KV Motor
1x BLS 6S50A ESC
2x 8040-2 Prop
4x S09M 9g Metal Gear Servo
1x ATOMRC F405 Delux FC
1x BE220 GPS
Note:
– DJI O3/O4 VTX are not included.
Package Included:
1 x Pre-assembled Foam Kit
