Surpass Hobby Rocket V2 Waterproof Brushless ESC 50A/60A/90A/110A for 1/10 RC Cars

Description

Surpass Hobby Rocket V2 Waterproof 50A/60A/90A/110A Brushless ESC for 1/10 RC Car Vehicles Model Parts

The Surpass Hobby Rocket V2 Brushless ESC is a high-performance electronic speed controller designed for 1/10 scale RC cars, both on-road and off-road. Available in 50A, 60A, 90A, and 110A options, this ESC features a sensorless brushless motor compatibility and supports 2S-4S LiPo or 4-12 NiMH battery configurations. It boasts an IP67 waterproof and dustproof design, ensuring durability in various conditions. Enhanced with Infineon MOSFET chips and high-quality capacitors, the ESC provides improved low voltage protection and increased throttle travel settings. Its BEC output is switchable between 7.4V and 8.4V at 6A, offering flexibility for different setups.

Description:
Item Brand:Surpass hobby
Item Name:50A/60A/90A/110A Brushless ESC
Material:Metal and plastic
Color:Black
Product Size:50*35*34mm
Product Weight:50A and 60A is about 90g,90A and 110A is about 96g
Compatible Cars:1/10 on-road off-road monster rc cars vehicles models
Specification:
50A ESC
Continue Current: 50A
Burst Current:240A
Motor Type:Sensorless Brushless MotorFor 2S Lipo or 6 cells NiMH:
1.On-road:3650-size or smaller motor with the KV<5600
2. Off-road / Monster:3650-size or smaller motor with the KV<3900
For 3S Lipo or 9 cells NiMH:
1. On-road:3650-size or smaller motor with the KV<3800
2. Off-road / Monster:3650-size or smaller motor with the KV<2700
Resistance:0.0014ohm
Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:7,4V/8.4V 6A(switch mode)
60A ESC
Continue Current:60A
Burst Current:360A
Motor Type:Sensorless Brushless MotorFor 2S Lipo or 6 cells NiMH:
1.on-road:3660-size or smaller motor with the KV<6000
2. Off-road / Monster:3660-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road:3660-size or smaller motor with the KV<4000
2. Off-road / Monster:3660-size or smaller motor with the KV<3000
Resistance:0.0007ohm
Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:7,4V/8.4V 6A(switch mode)
90A ESC
Continue Current:90A
Burst Current:480A
Motor Type:Sensorless Brushless MotorFor 2S Lipo or 6 cells NiMH:
1.on-road:3665-size or smaller motor with the KV<6000
2. Off-road / Monster:3665-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road:3665-size or smaller motor with the KV<4000
2. Off-road / Monster:3660-size or smaller motor with the KV<3000
Resistance:0.0005ohm
Battery:2-3S cells lipo battery/4-9 cells NiMH
BEC Output:7,4V/8.4V 6A(switch mode)
110A ESC
Continue Current:110A
Burst Current:520A
Motor Type:Sensorless Brushless MotorFor 2S Lipo or 6 cells NiMH:
1.on-road:3670-size or smaller motor with the KV<6000
2. Off-road / Monster:3670-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
1. On-road:3670-size or smaller motor with the KV<4000
2. Off-road / Monster:3670-size or smaller motor with the KV<3000
For 4S Lipo or 12 cells NiMH:
1. On-road:3670-size or smaller motor with the KV<3000
2. Off-road / Monster:3670-size or smaller motor with the KV<2000
Resistance:0.0004ohm
Battery:2-4S cells lipo battery/4-12 cells NiMH

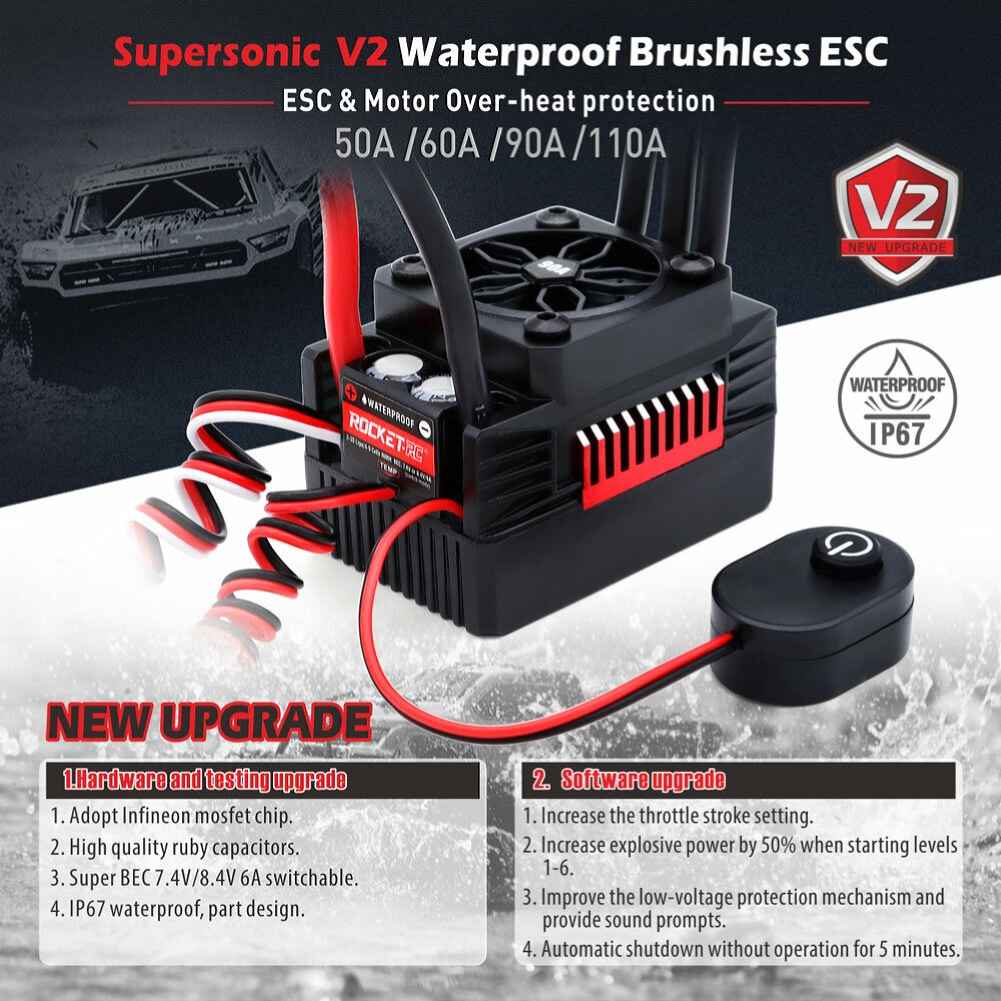

BEC Output:7,4V/8.4V 6A(switch mode)Features:
Infineon mosfet chip
High quality carbuncle capacitors
Super BESC 7.4V/8.4V 6A swithable

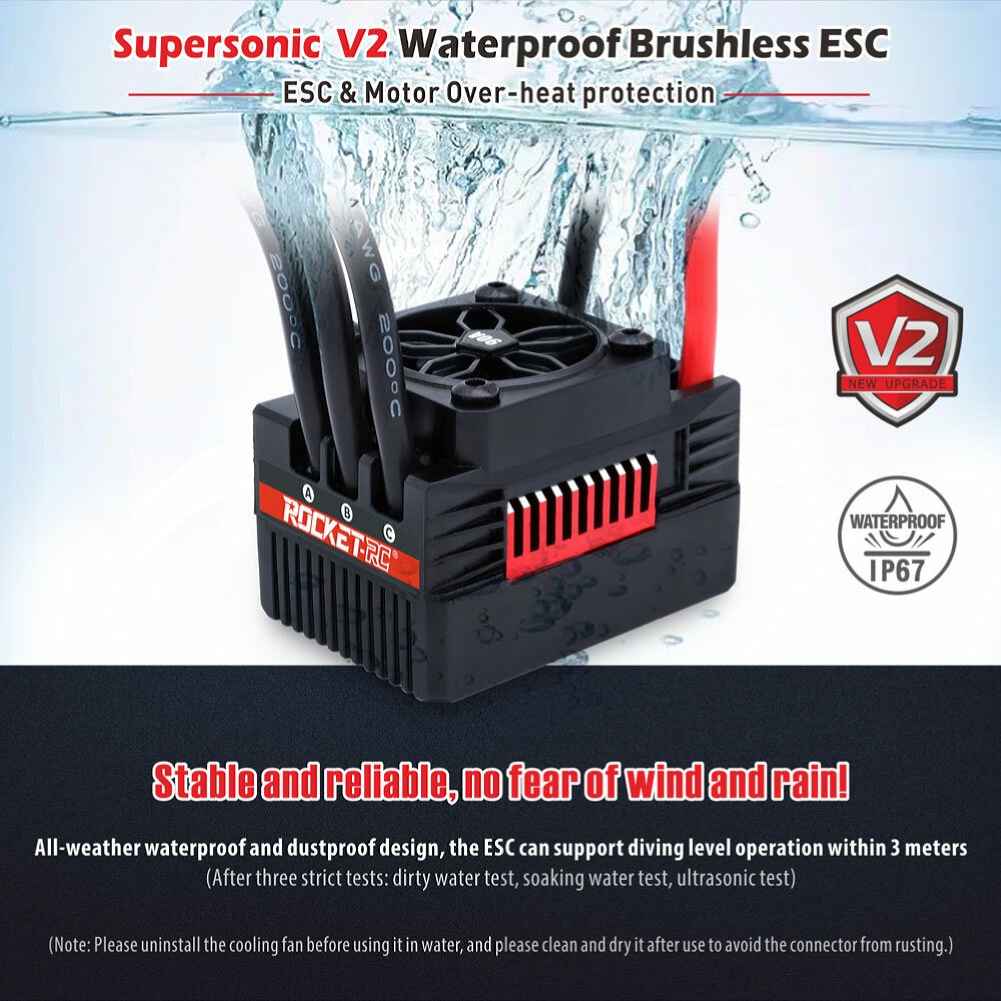

IP67 waterproof and dustproof design
Start explosive power increased by 50%
Improve low voltage protection meachanism sound prompt
5 min on operation automatic shutdown protection
Increase throttle travel setting

Package Included:
1 x Brushless ESC (50A/60A/90A/110A, chosen by customer)
