Description

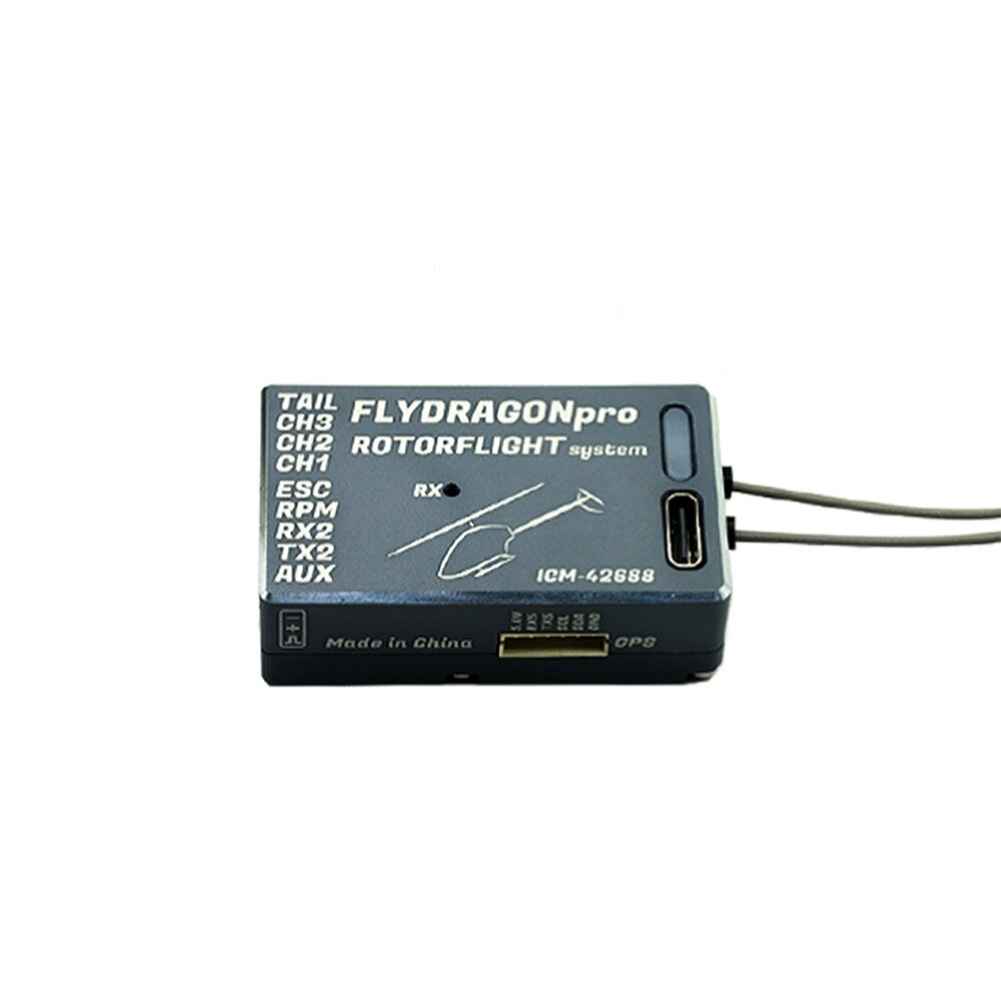

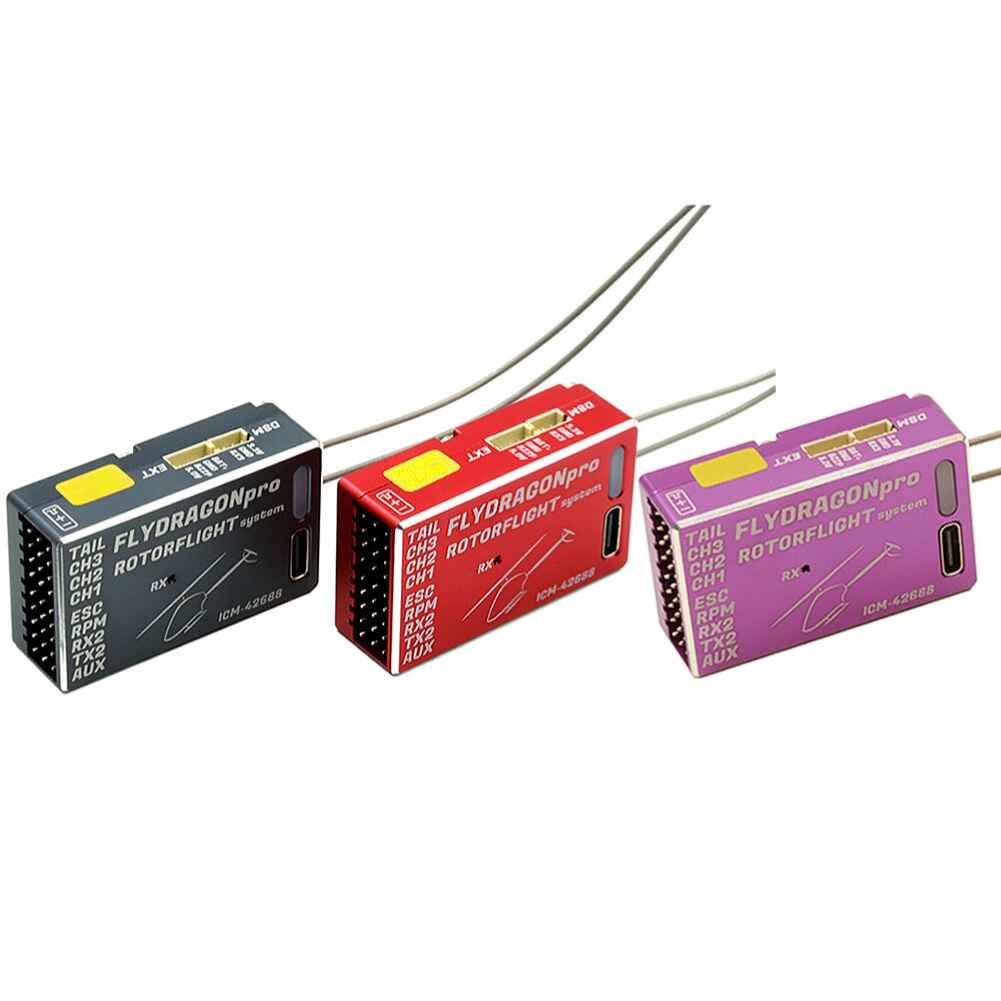

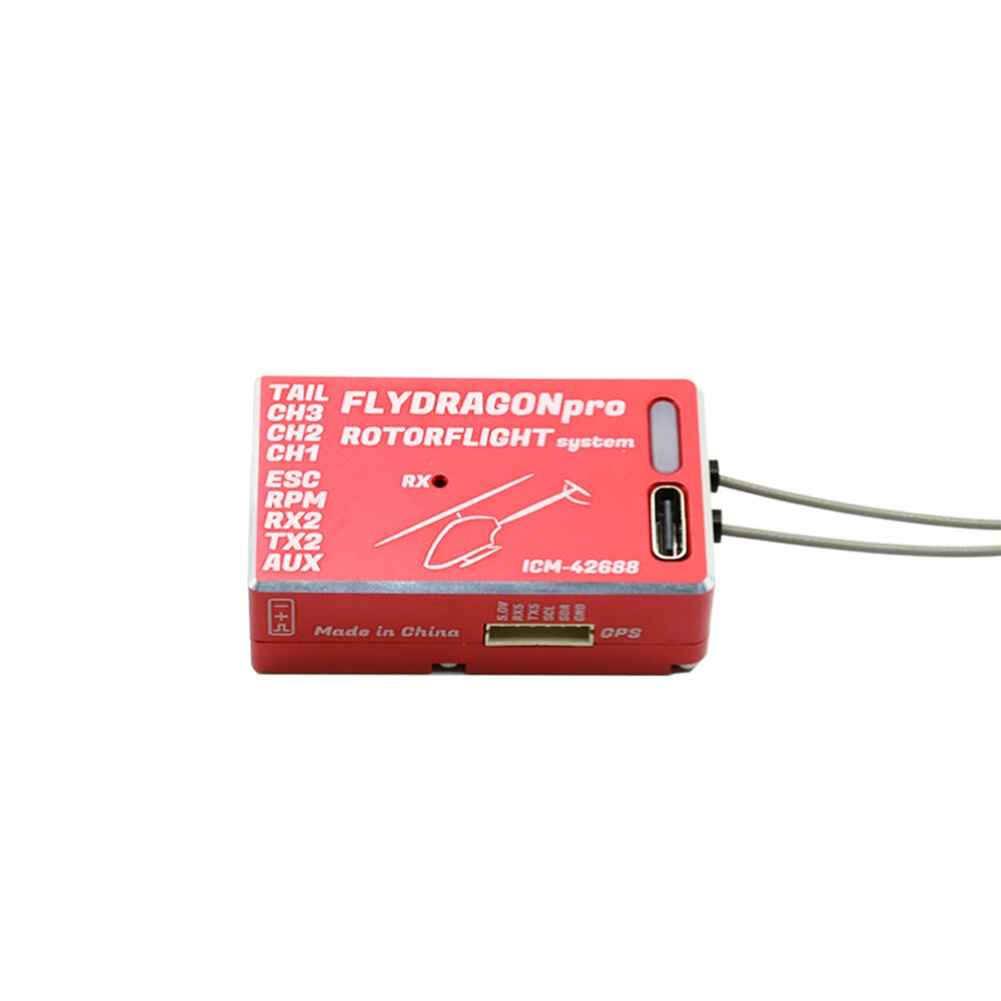

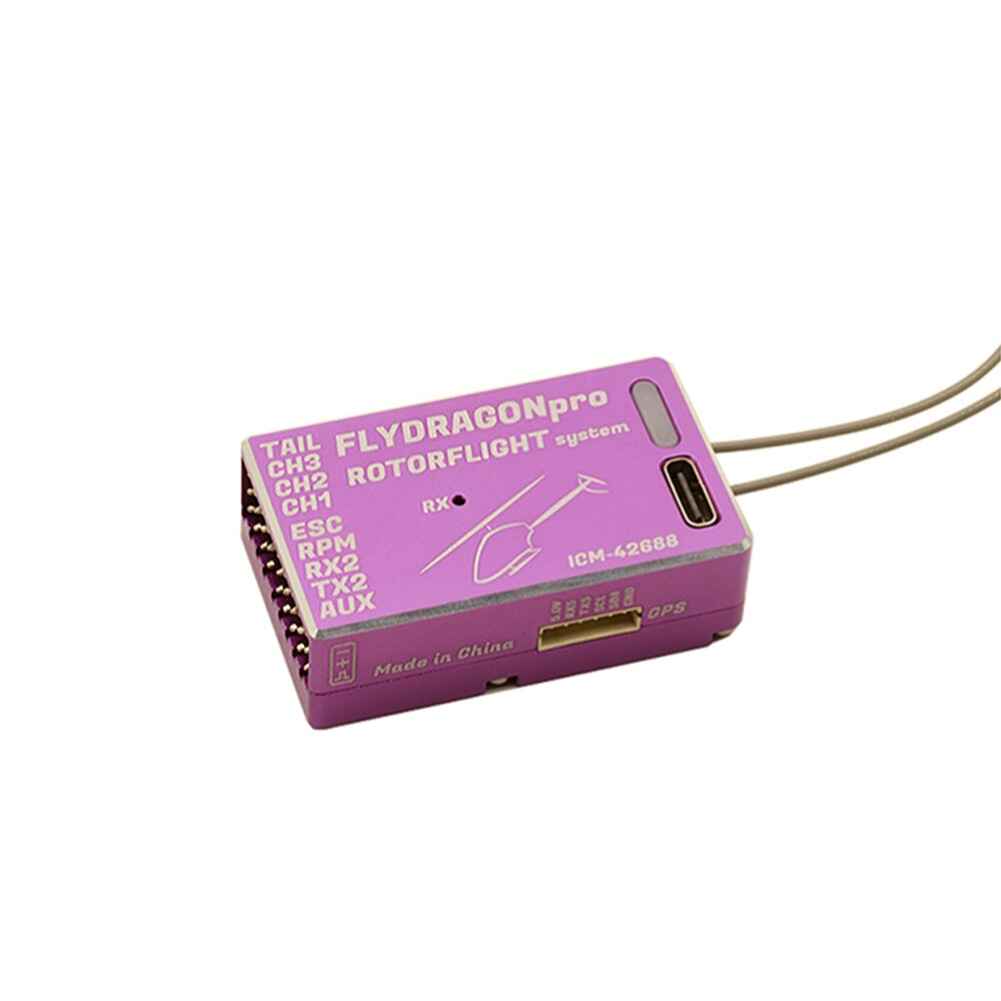

Steam FLYDRAGON Pro F722 V2.2 Gyroscope Rotorflight Upgraded Version Built-in Receiver Rescue Mode for RC Helicopter
The Steam FLYDRAGON Pro F722 V2.2 Gyroscope is an advanced flight controller designed for RC helicopters. It utilizes the open-source Rotorflight firmware, based on Betaflight 4.5, offering enhanced features tailored for helicopter enthusiasts. The system integrates an STM32F722RET6 master, MPU-6000/ICM-42688-P gyroscope, and a 128MB black box for comprehensive flight data logging. Additional features include WS2812B colored lights, a 5V active buzzer, and Type-C USB connectivity. The built-in ELRS dual antenna receiver supports a wide range of external receivers, and the gyroscope is compatible with multiple ESC protocols like DSHOT and PWM. With a compact design of 45x27x14.5mm and weighing just 27g, it delivers reliable performance for hobbyists.
Introduction:
FLYDRAGON Pro gyro uses the open source Rotorflight firmware, which is based on Betaflight 4.5, enjoying all the powerful features of the Betaflight platform, as well as many new features added for helicopters. Rotorflight also borrows ideas and codes from Heliflight3D.
Specification:
Brand: Steam
Model: V2.2 Gyroscope RF FLYDRAGONPro Rotorphlight System
Master: STM32F722RET6
Gyroscope: MPU-6000 / ICM-42688-P
Black box: W25N01G (128MB)
Barometer: SPL06-001 (I2C2)
Colored lights: WS2812B
Buzzer: 5V active buzzer
USB: Type-C
Serial port: UART2, UART3, UART5
I2C: I2C1
ADC: ADC_BATT (0-62V), ADC_BEC (0-30V), ADC_BUS (0-8V)
Servo channel: CH1-CH2-CH3-TAIL
Speed input: RPM
Auxiliary channel: AUX
BEC voltage: 5-18V
5V power output: 5V-2A
Built-in receiver: ELRS dual antenna receiver 2.4G (serial port 1)
External receiver: TBS CRSF, Futabas S.BUS, Futabas S.BUS2, FrSky F.PORT, FrSky F.PORT2, FrSky FBUS, Spektrum DSM/1024, Spektrum DSM/2048, Spektrum DSMSRXL, Spektrum DSMSRXL2, ImmersionRC GHOST, Graupner SUMD, Graupner SUMH, Flysky IBUS, JR XBUS Mode A, JR XBUS Mode B, JR XBUSIRJ01, Jeti EXBUS, CPPM
ESC protocols: PWM, ONESHOT125, ONESHOT42, MULTISHOT, BRUSHED, DSHOT150, DSHOT300, DSHOT600, PROSHOT, CASTLE
ESC feedback support: BLHeli32, Hobbywing Platinum V4 / FlyFun V5, Hobbywing Platinum V5, Scorpion, Kontronik, OMPHobby, ZTW, APD
OpenYGE, FLYROTOR, Graupner, XDFLY
Dimensions: 45x27x14.5mm
Weight: 27g

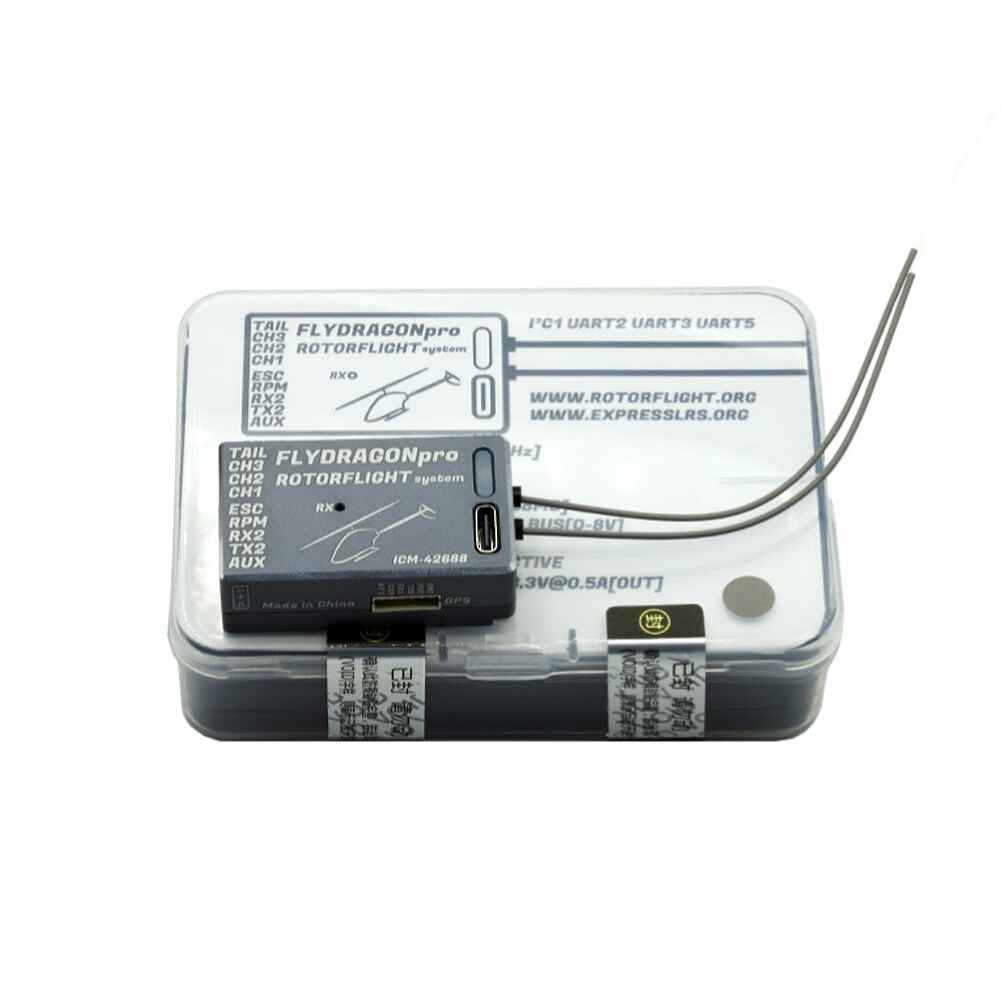

Package Included:
1 x V2.2 Gyroscope RF FLYDRAGON Pro Rotorphlight System
