Description

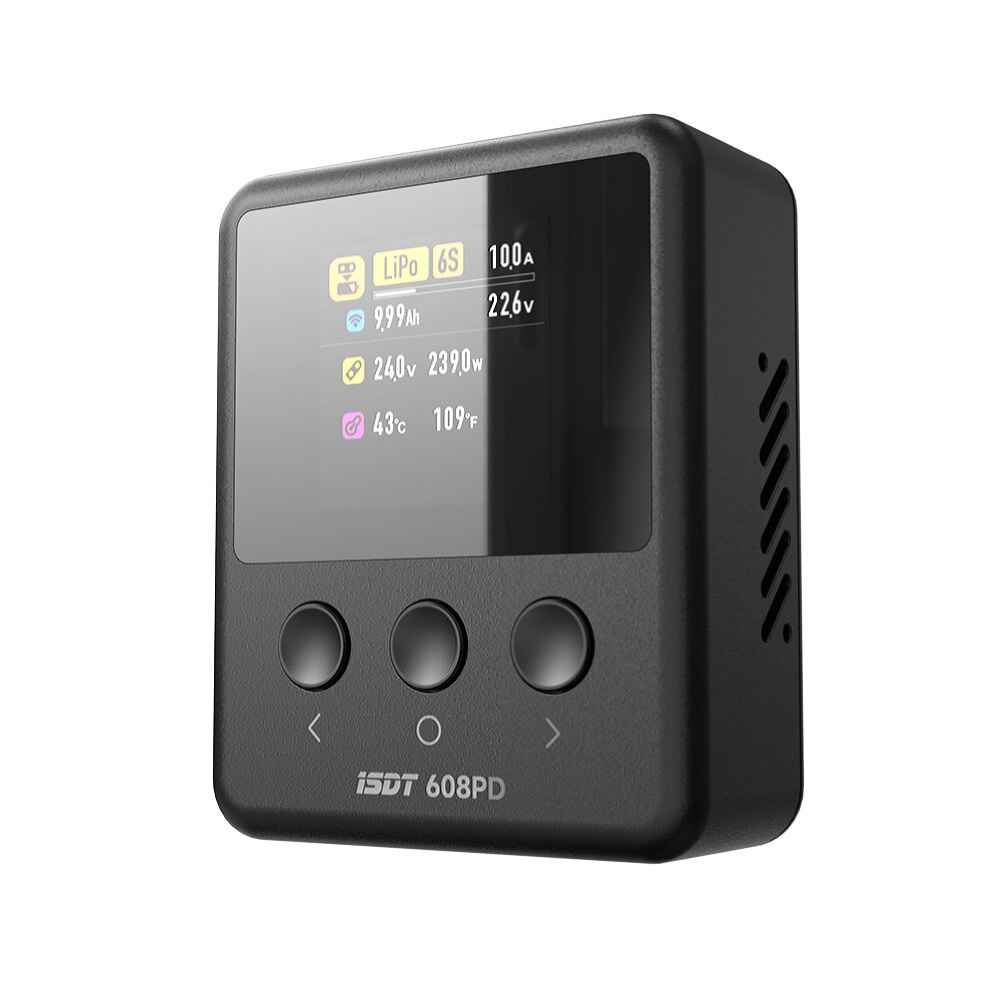

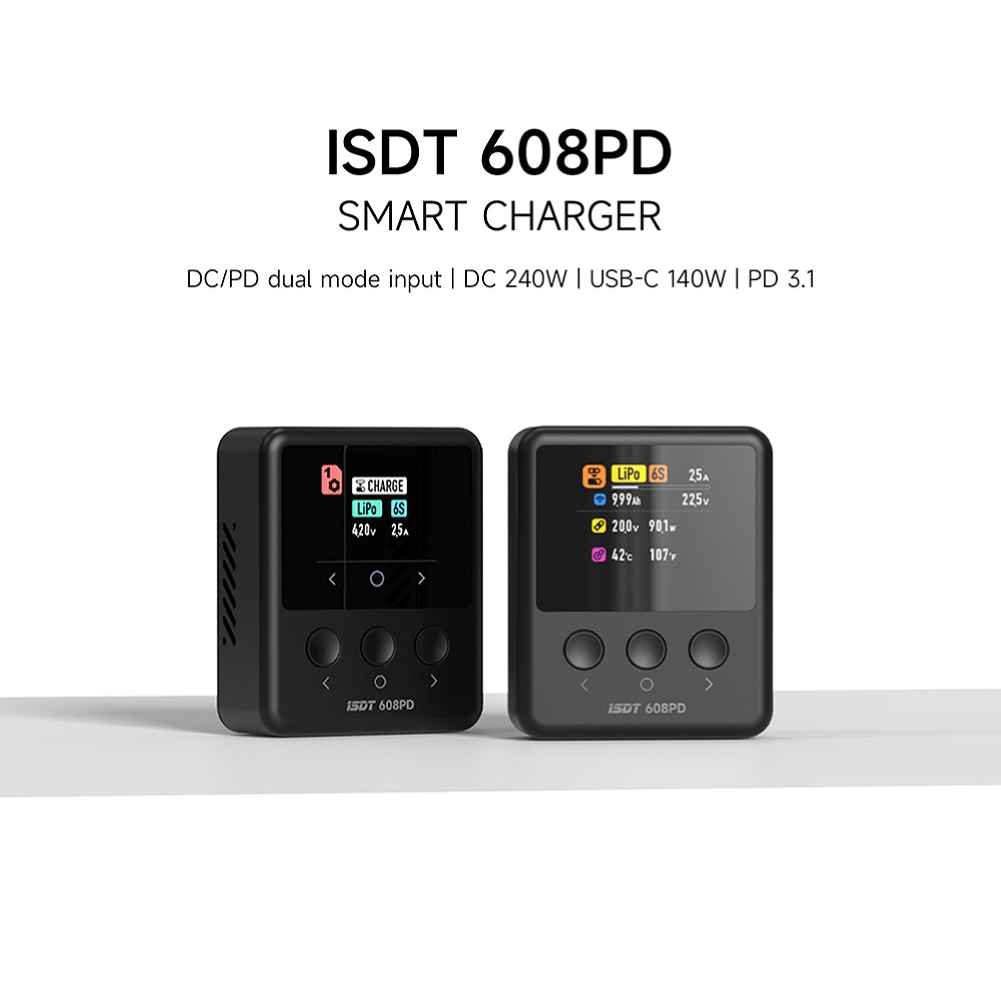

ISDT 608PD DC 240W/10A USB C 140W/5A Smart Digital Charger for LiFe/Lilon/LiPo/LiHV/NiMH/Pb Battery
The ISDT 608PD Smart Digital Charger is designed for enthusiasts needing a reliable charging solution. It offers a maximum input current of DC 10A and USB-C 5A, with an input voltage range of DC 5-30V. The charger supports a wide array of battery types, including LiFe, LiPo, LiHv, Pb, and NiMH, with a charging current range from 0.5A to 10A. The 2.4-inch IPS screen provides clear visibility and adjusts brightness automatically, ensuring optimal viewing even in bright conditions. Its advanced cooling system, featuring a cross-flow air duct and ball bearing fan, ensures efficient heat dissipation. The charger also supports intelligent battery management via an app, allowing easy monitoring of battery parameters and charging status.

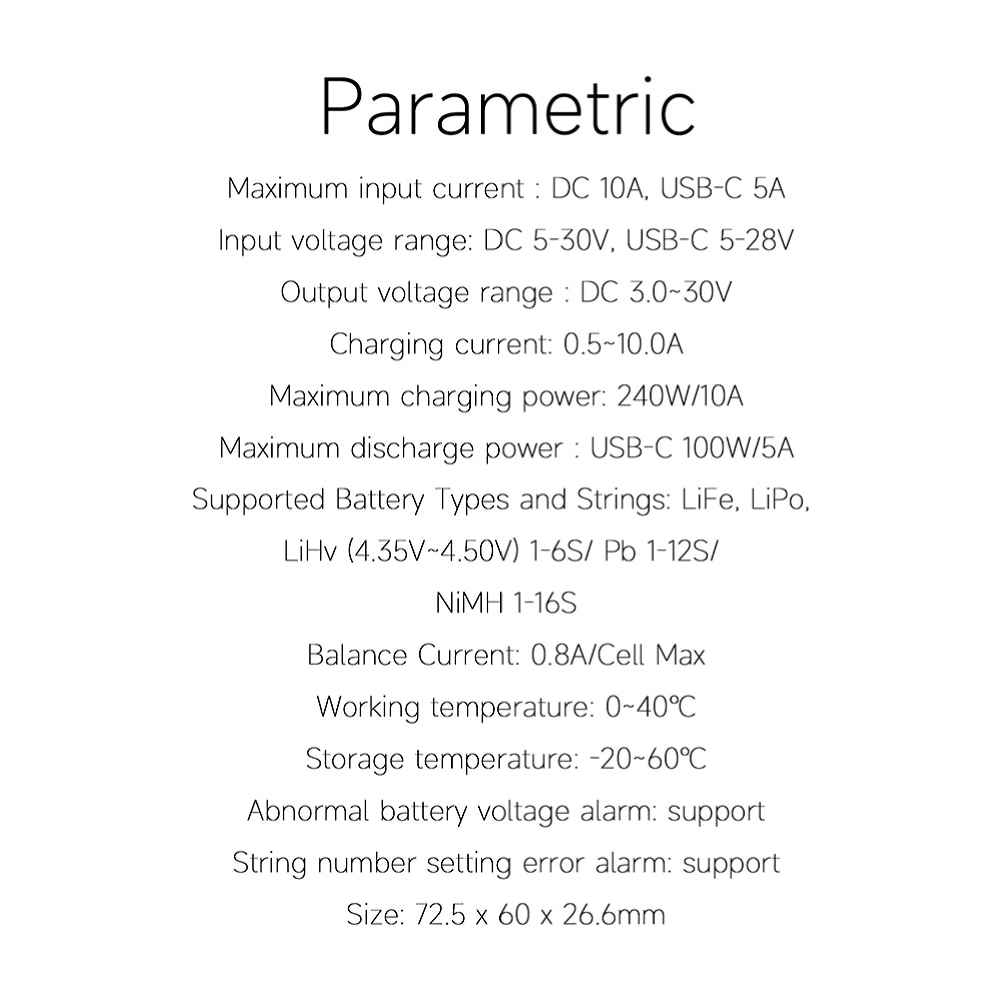

Specifications:

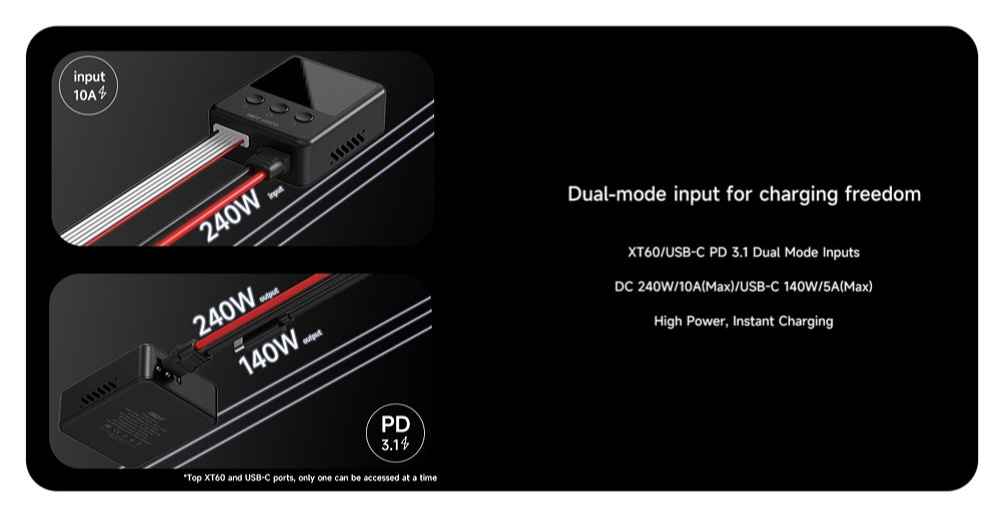

Maximum Input Current: DC 10A,USB-C 5A
Input voltage range: DC 5-30V, USB-C 5-28V
Output Voltage Range: DC 3.0~30V
Charging Current: 0.5~10.0A
Maximum charging power: 240W/10A,140W/5A

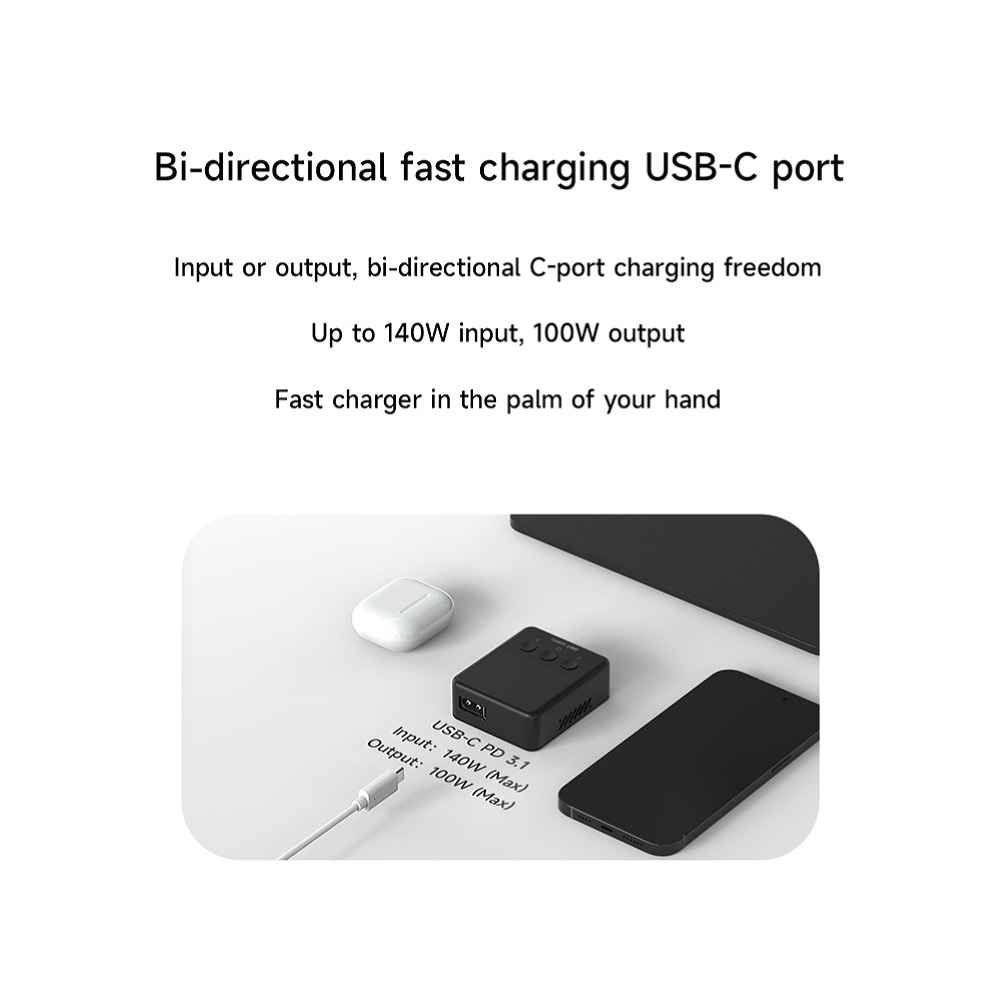

Maximum Discharge Power: USB-C 100W/5A
Support battery type and series: LiFe,LiPo,LiHv(4.35V~4.50V)1-6S/Pb 1-12S/NiMH 1-16S
Balance Current: 0.8A/Cell Max
Operating Temperature: 0~40﹠ Storage Temperature: -20~60
Abnormal battery voltage alarm: Support
Alarm for string number setting error: Support
Dimension: 72.5沁60沁26.6mm
Weight: 85g(呼10%)
Features:

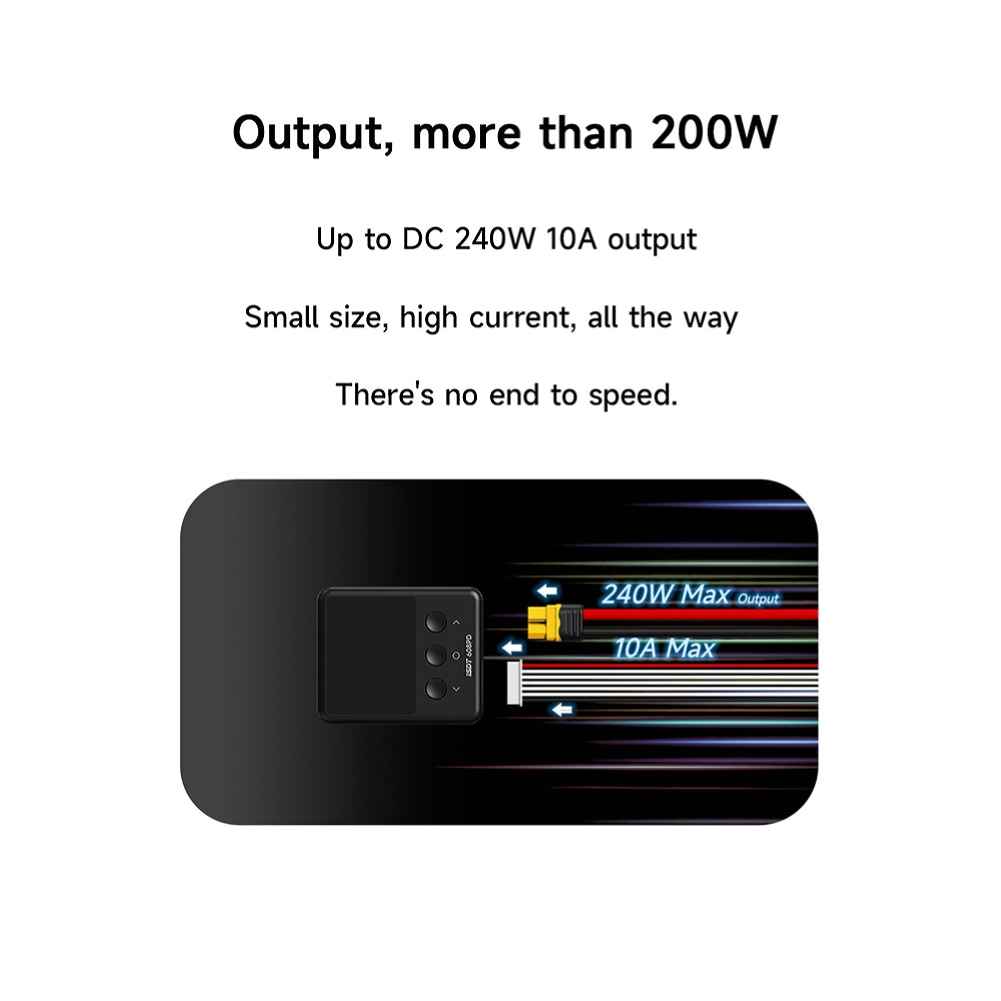

New generation of pocket chargers: DC 240W high power / max 10A output with USB C 140W/5A max output,meet your multi-scenario high power for Lipo battery charger needs.

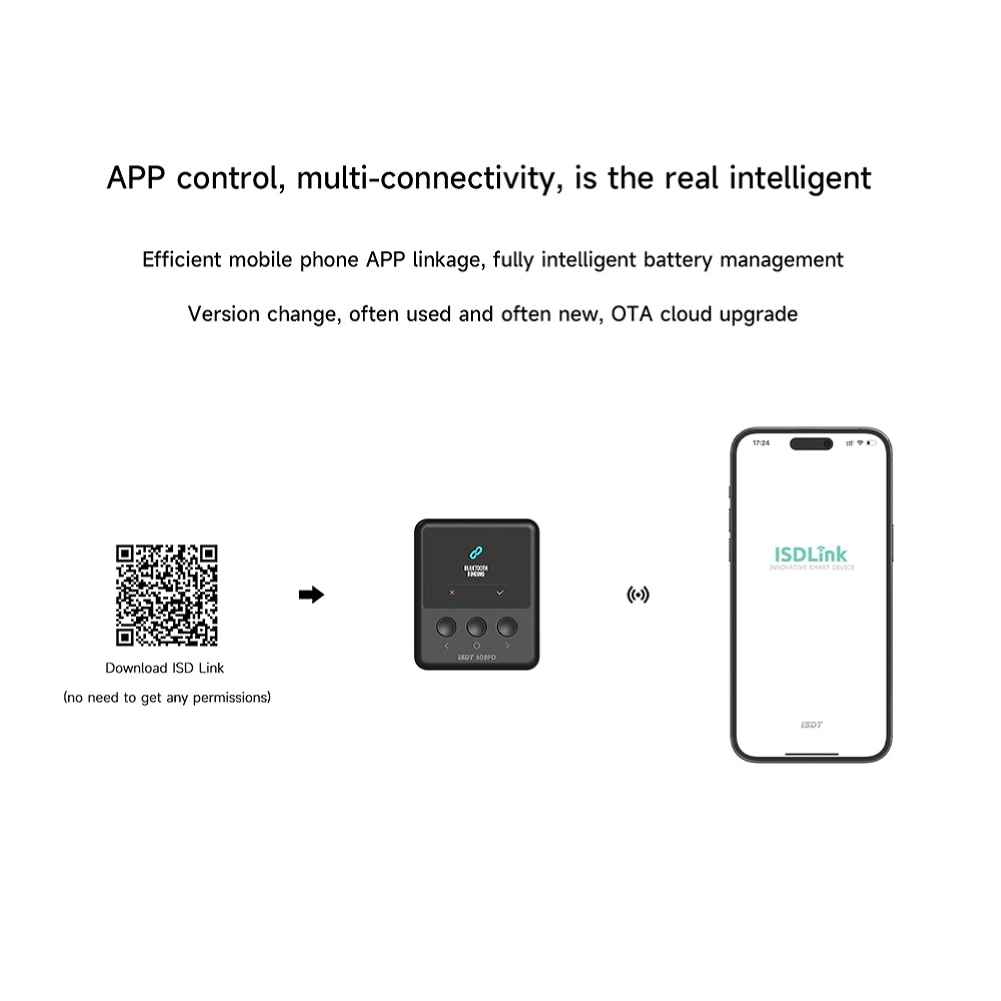

Truly intelligent charger: Support APP connection, fully intelligent battery management, one-click view of battery parameters and charging status.

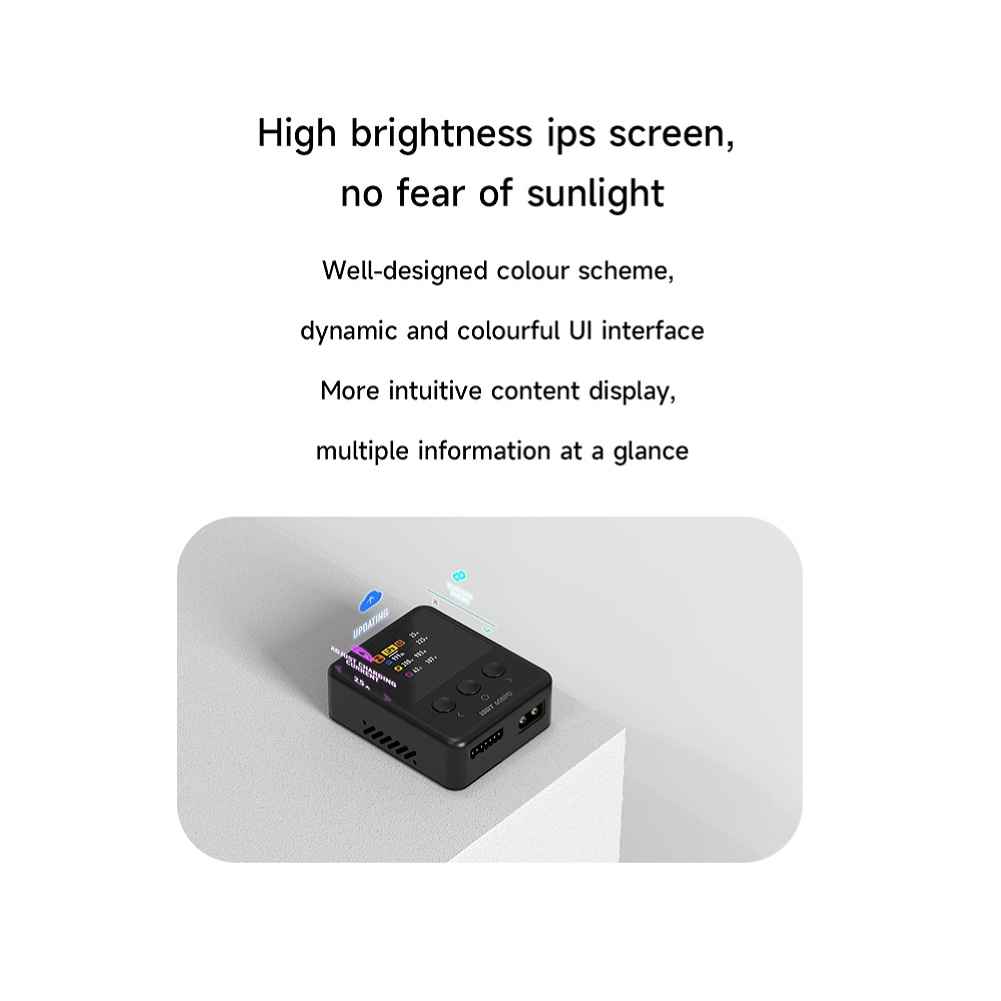

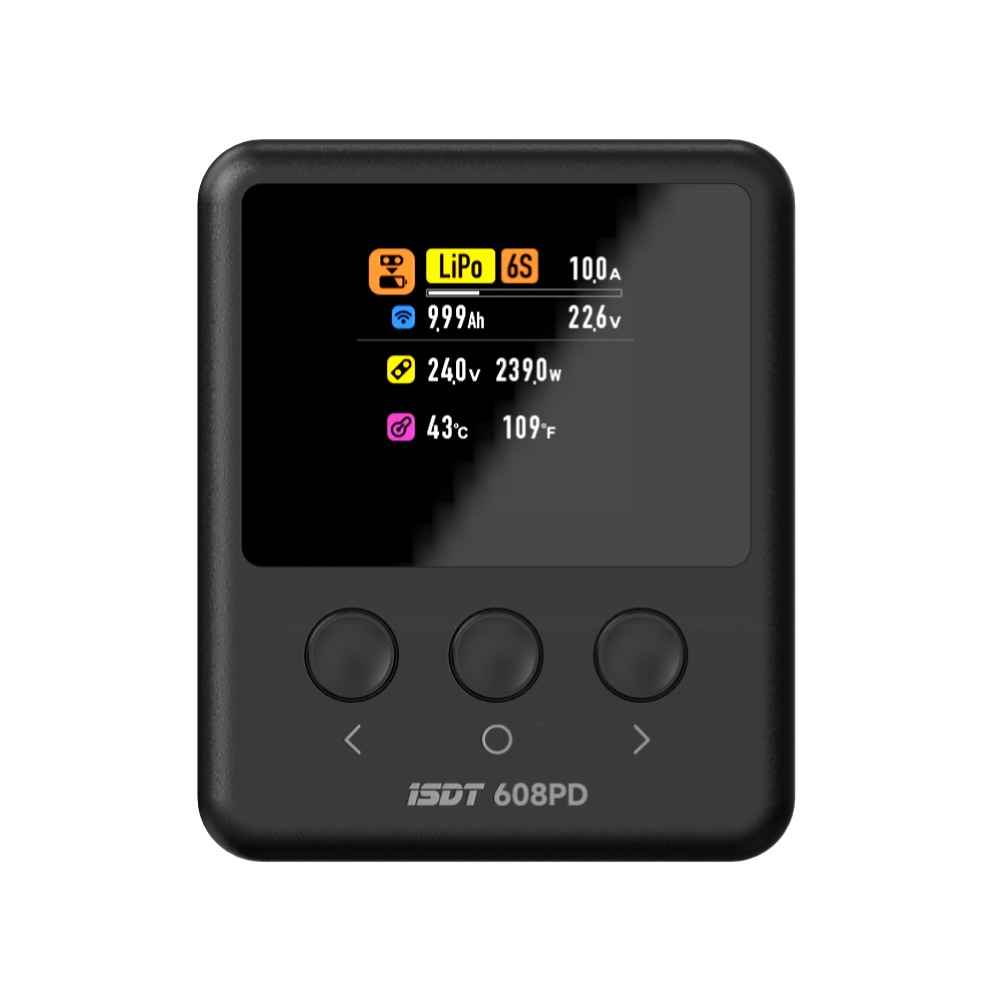

IPS screen: Low power consumption, 2.4 inch IPS screen, automatic brightness adjustment, viewing angle 178‵, clear and clear display, even in difficult environments or angles, even in strong sunlight.

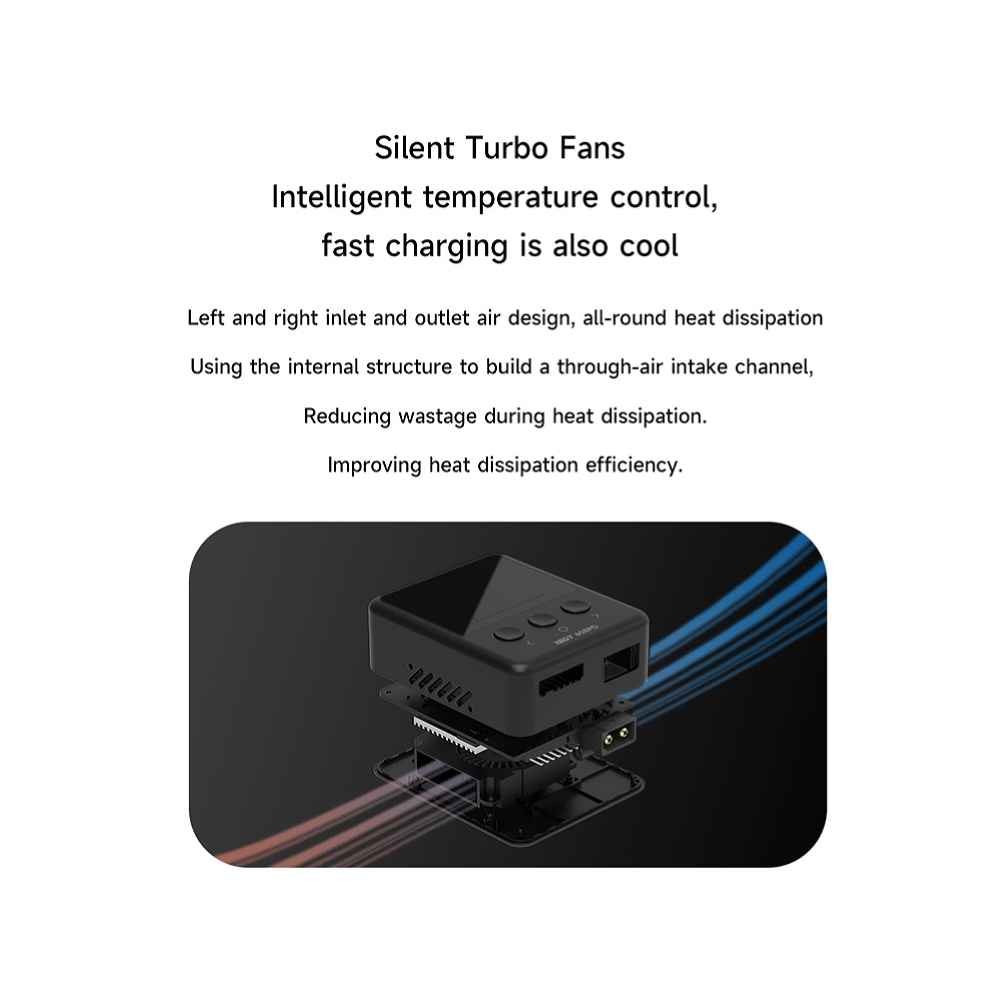

Powerful cooling system: Advanced cooling air duct, active design of the cross flow cooling air duct, initiator ball bearing fan, with precisely engineered aluminium alloy fins and hi-tech silicon heat conducting pad, construction of a highly efficient heat dissipation system.

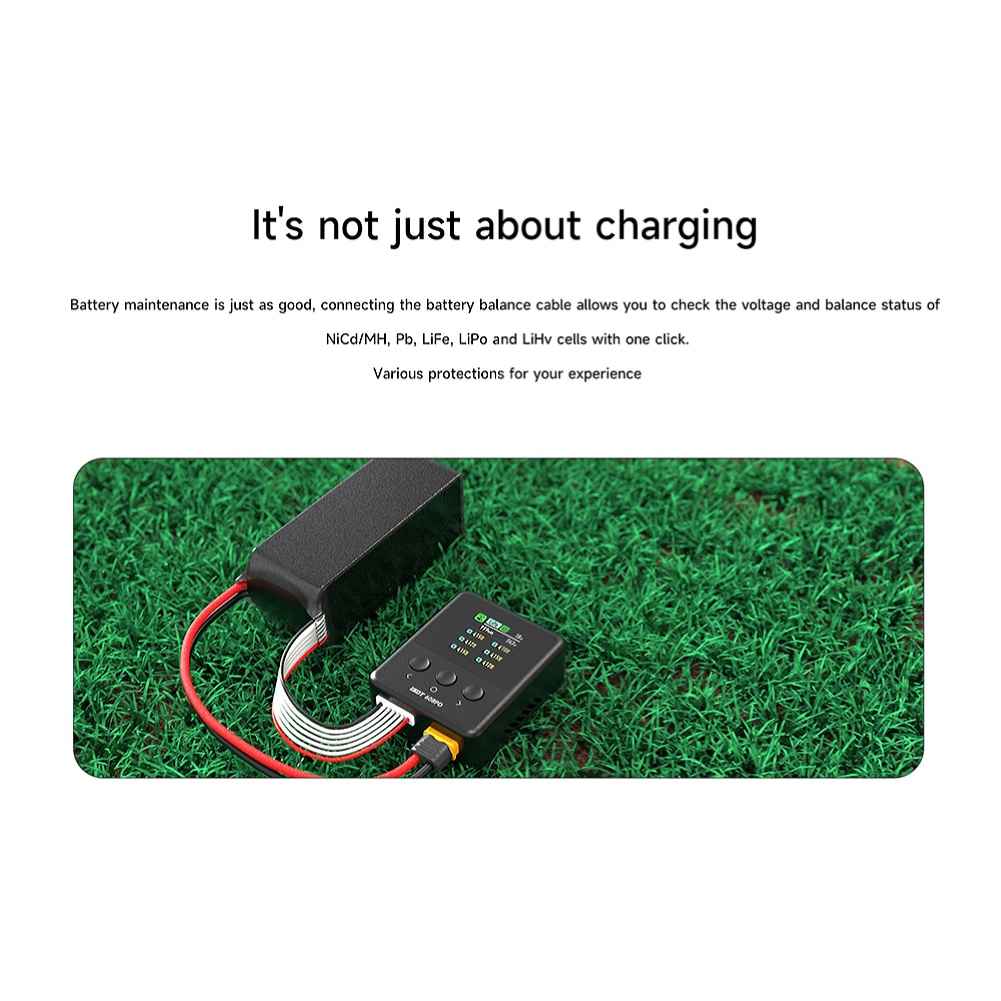

Universal charger: Supports charging and discharging for most batteries, including: LiFe, LiPo, LiHv (4.35V~4.50V) 1-6S/Pb 1-12S/NiMH 1-16S, etc.

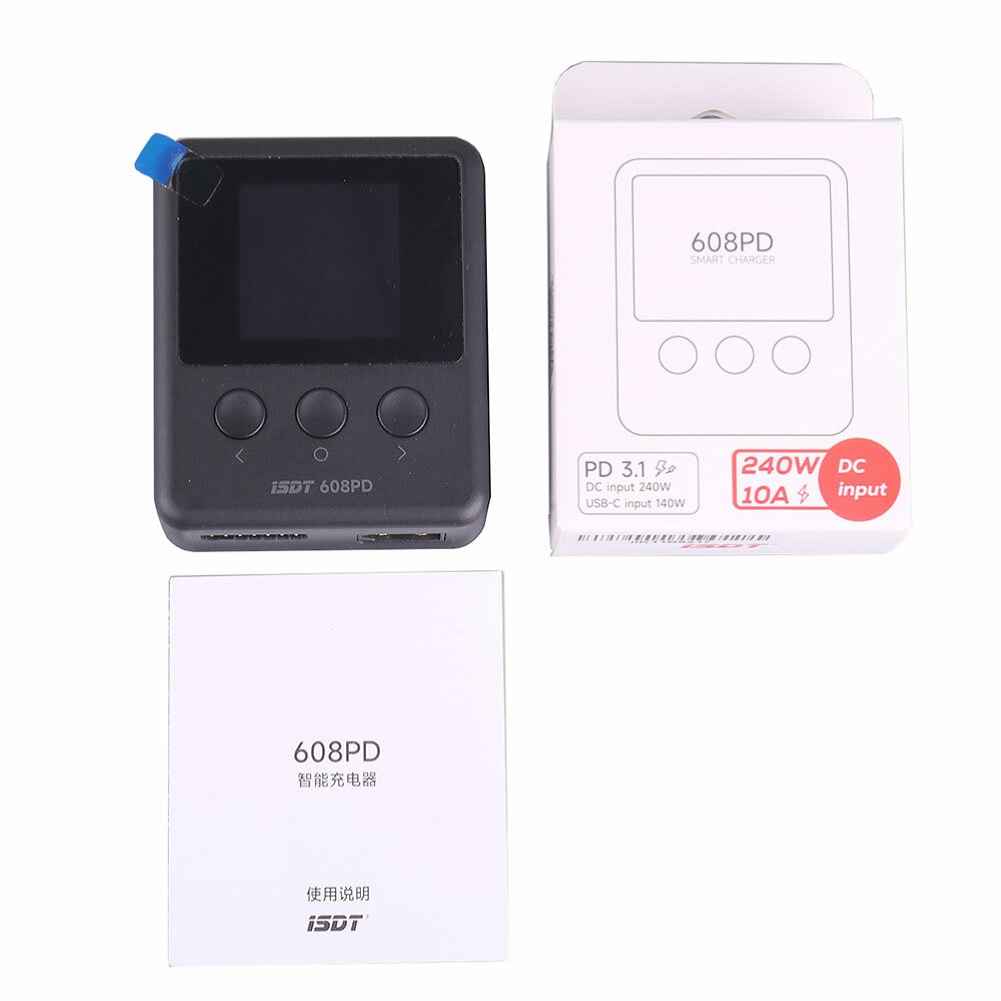

Package Included:
1 x ISDT 608PD Lipo Charger
