RGT Shooter 136100 PRO 1/10 4WD Brushless RC Car with FOC Hobbywing Power, Off-Road Climbing Truck, LED Lights, Carbon Chassis

Description

RGT Shooter 136100 PRO 1/10 2.4G 4WD Brushless RC Car FOC Hobbywing Power Rock Crawler EP Off-Road Climbing Truck LED Light Vehicles Models Carbon Chassis Rail Toys

The RGT Shooter 136100 PRO is a high-performance 1/10 scale RC car, designed in collaboration with Hobbywing Technology. This off-road climbing truck features a brushless FOC system with a 2200KV motor, delivering powerful low-speed torque and smooth operation. The vehicle’s low center of gravity and 6/4 counterweight ratio enhance stability, while the carbon fiber chassis and CNC metal components ensure durability. The car is equipped with a 15kg digital metal gear servo and a 2.4G FS MG6-BS remote controller, offering a control range of over 150 meters. Available in pink and metallic blue, the RC car includes LED headlights and decorative accessories, providing a realistic and engaging driving experience.

Description:

Basic information

Brand:RGT
Item No:136100 PRO
Scale:1/10
Color:Pink and blue

Power System

ESC:FOC/30A esc
Motor:Brushless FOC system,2200kv motor
Steering Servo:Digital metal gear 15kg servo

Transmitter

FS MG6-BS remote controller
Frequency:2.4G
Channel:6CH
Remote Distance:>150m
Required Battery:4X 1.5V AA battery(not included)

Battery

Recommended Battery:2-3S Lipo or 6-9 cells NIMH battery(not included)

Others

Material:Plastic,hardware and electronic parts
Car Weight:1.69kg
Soft/PC1.2 body shell
Approach Angle:74‵
Departure Angle:69‵
Ramp Angle:26‵
Gear Ratio:37:1
Carbon fiber chassis rail
All steel gears

Dimension

Car Size:420*210*200mm
Wheelbase:275mm
Ground Clearance:68mm(chassis),40mm(axle)
Wheel:105mm/38mm(diameter/width)
Box Size:270*260*515mm

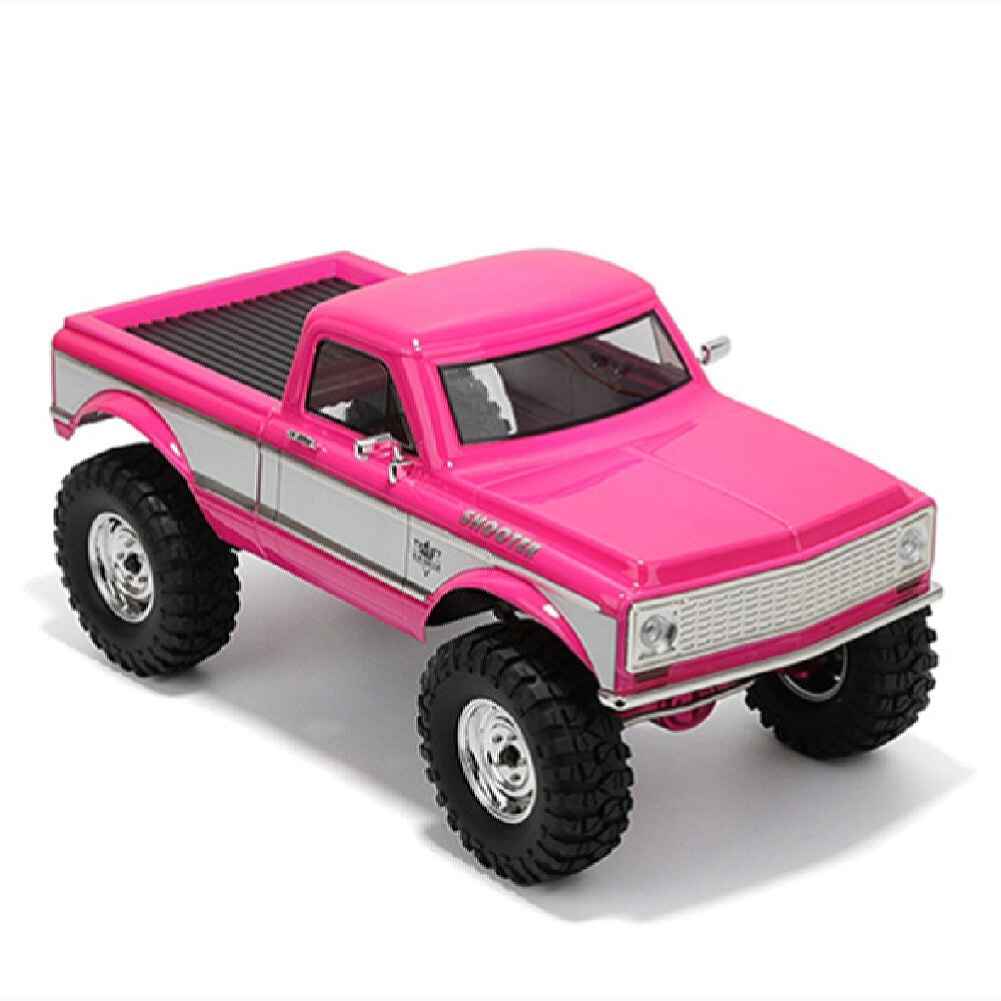

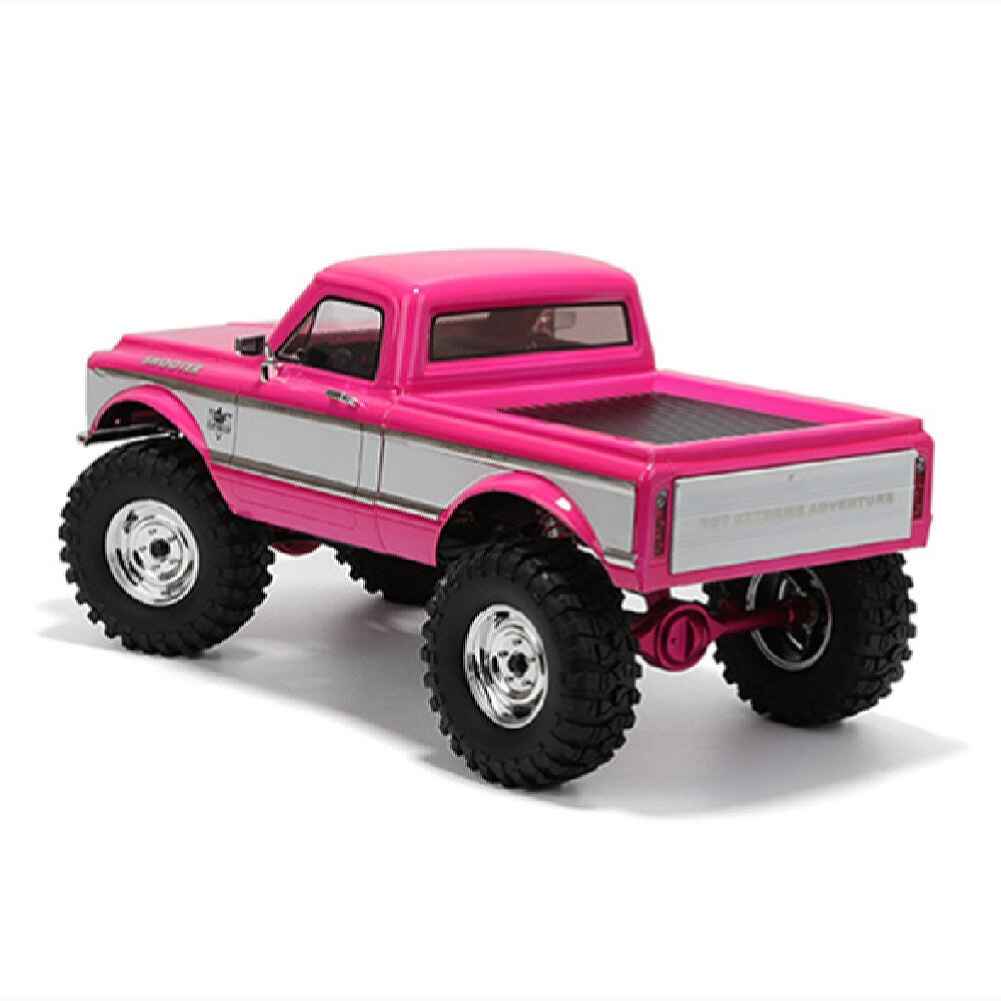

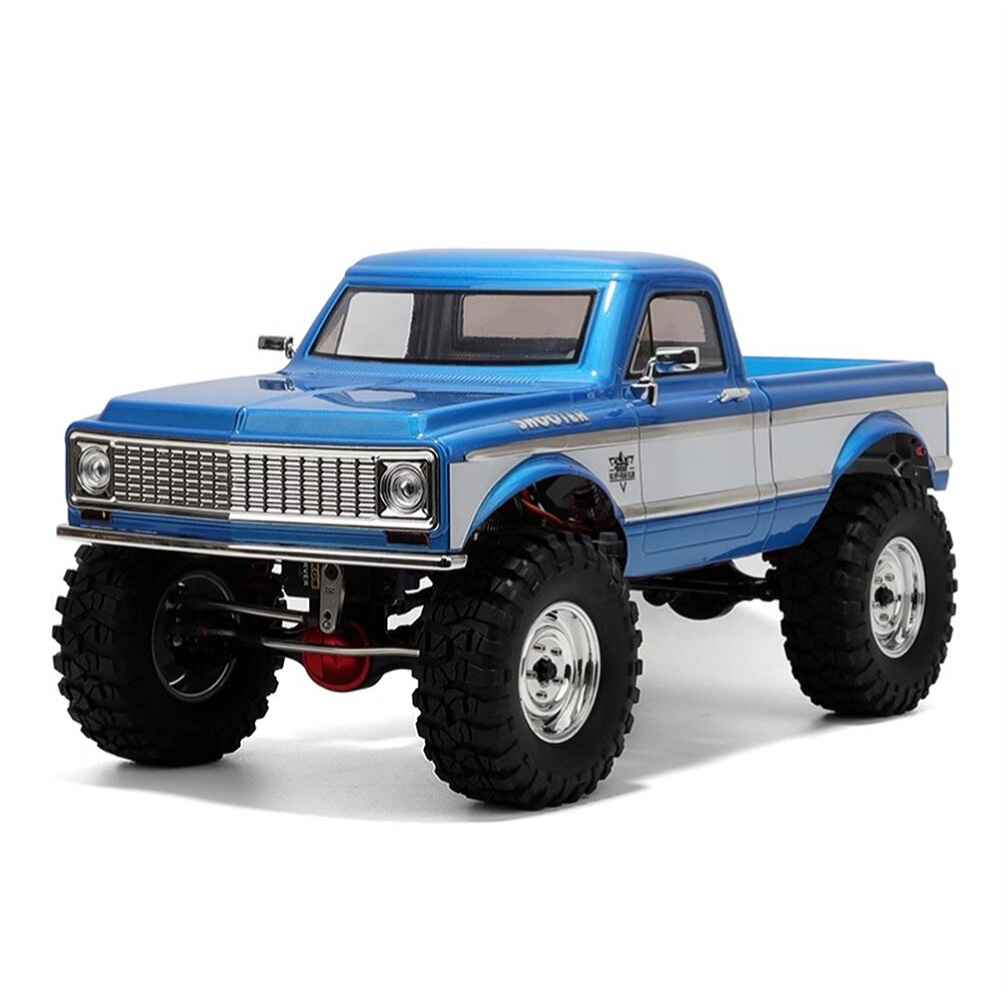

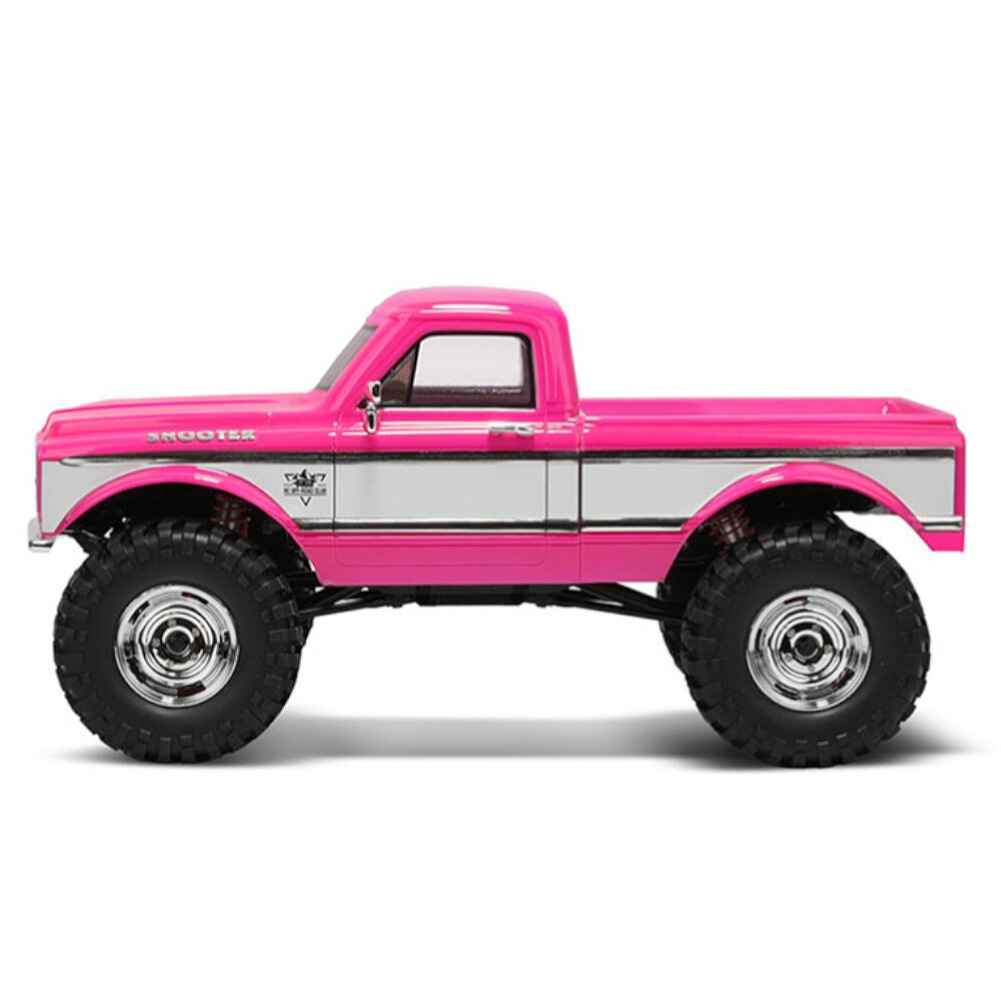

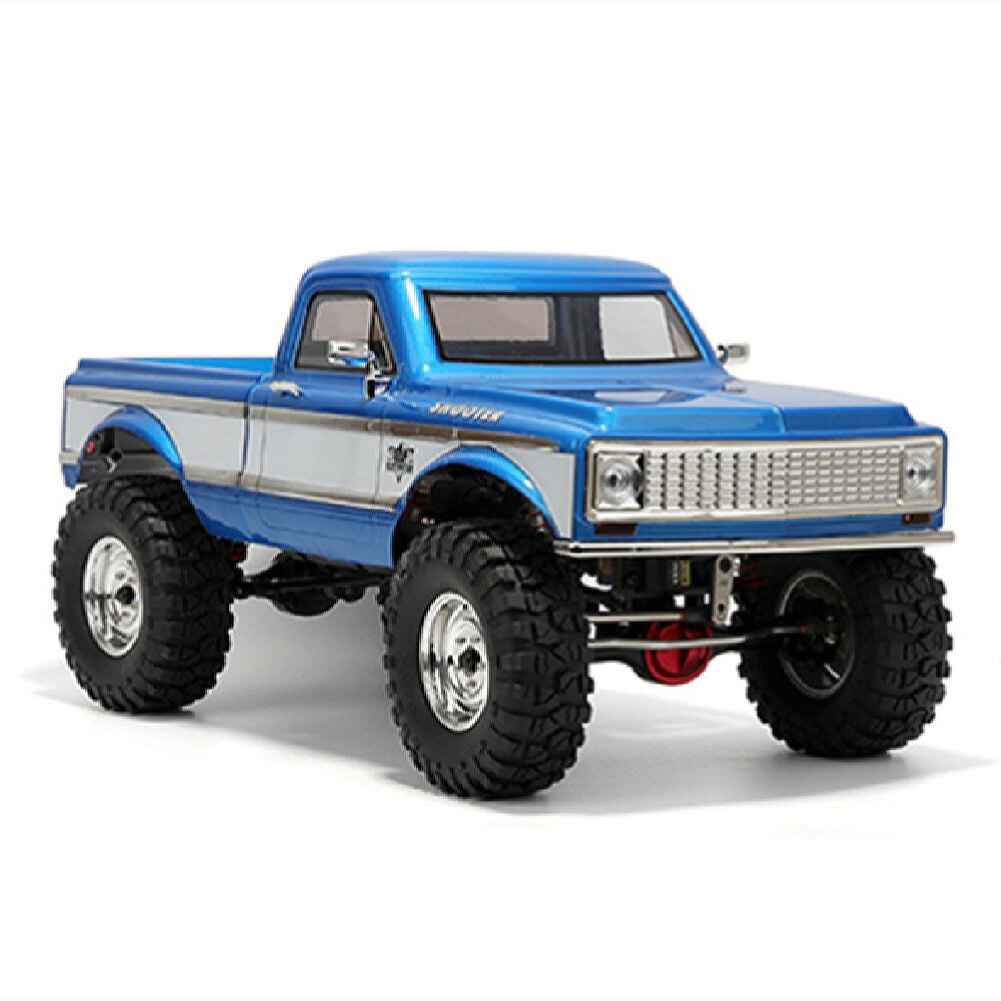

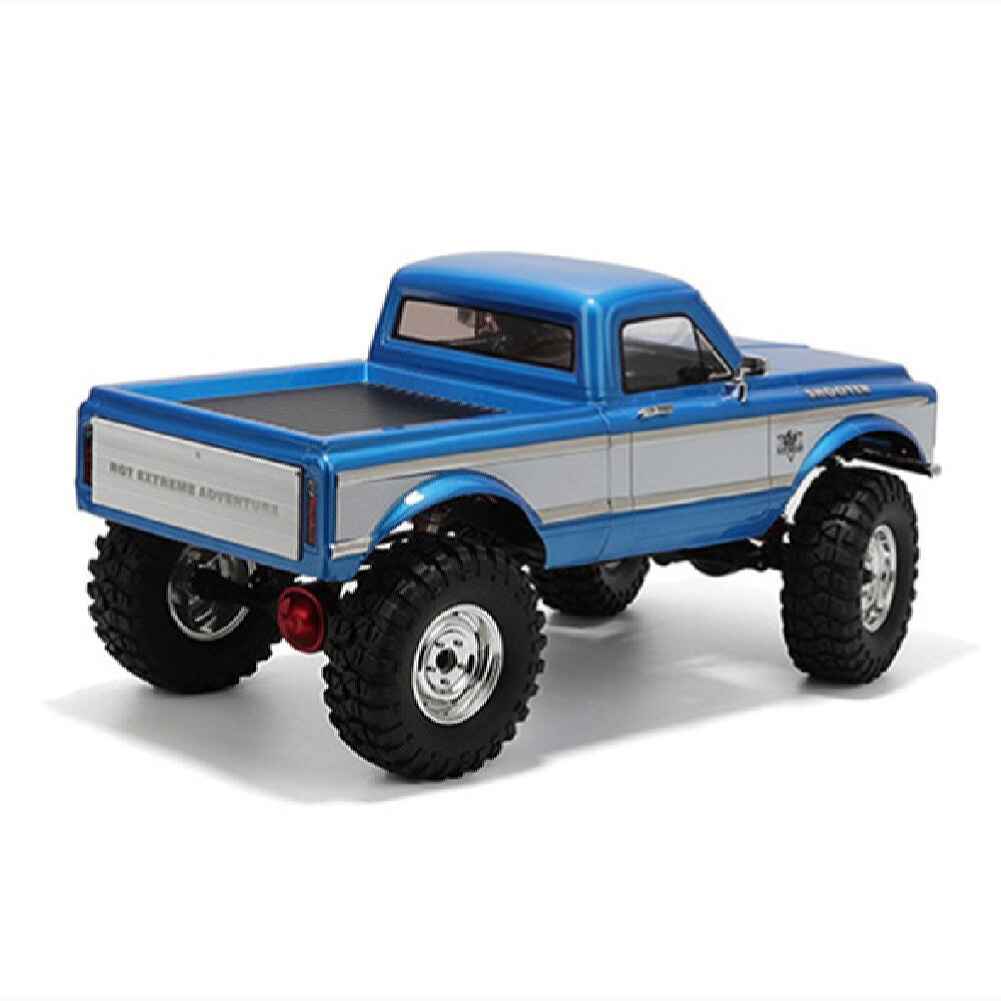

136100PRO ‘Shooter’, an LCG-FOC brushless version and 1/10 high-performance crawler, is jointly developed by RGT and Hobbywing Technology. ‘Shooter’ is RGT’s first RTR vehicle equipped with brushless motor and low center of gravity structure. The new design is reflected in its excellent material usage佾75% of vehicle chassis is assembled with CNC metal material parts, and the material consists of carbon, copper, 45# steel and aluminum. ‘Shooter’ has distribution structure, motor-mounted in front, and the counterweight ratio is 6/4 at front and rear of chassis. ‘Shooter’ is equipped with an all-in-one brushless FOC ESC motor, the ESC is 30 A and the brushless motor is 2200KV. The internal rotor magnetic field directional control drive mode has strong low-speed torque and super good linearity, and the motor runs smoothly and quietly, with excellent waterproof and dustproof performance, easily coping with various climates and site environments. ‘Shooter’ comes in two colors, one is lively and cute pink body with pink metal axles, and the other is metal blue body with calm black metal axles.

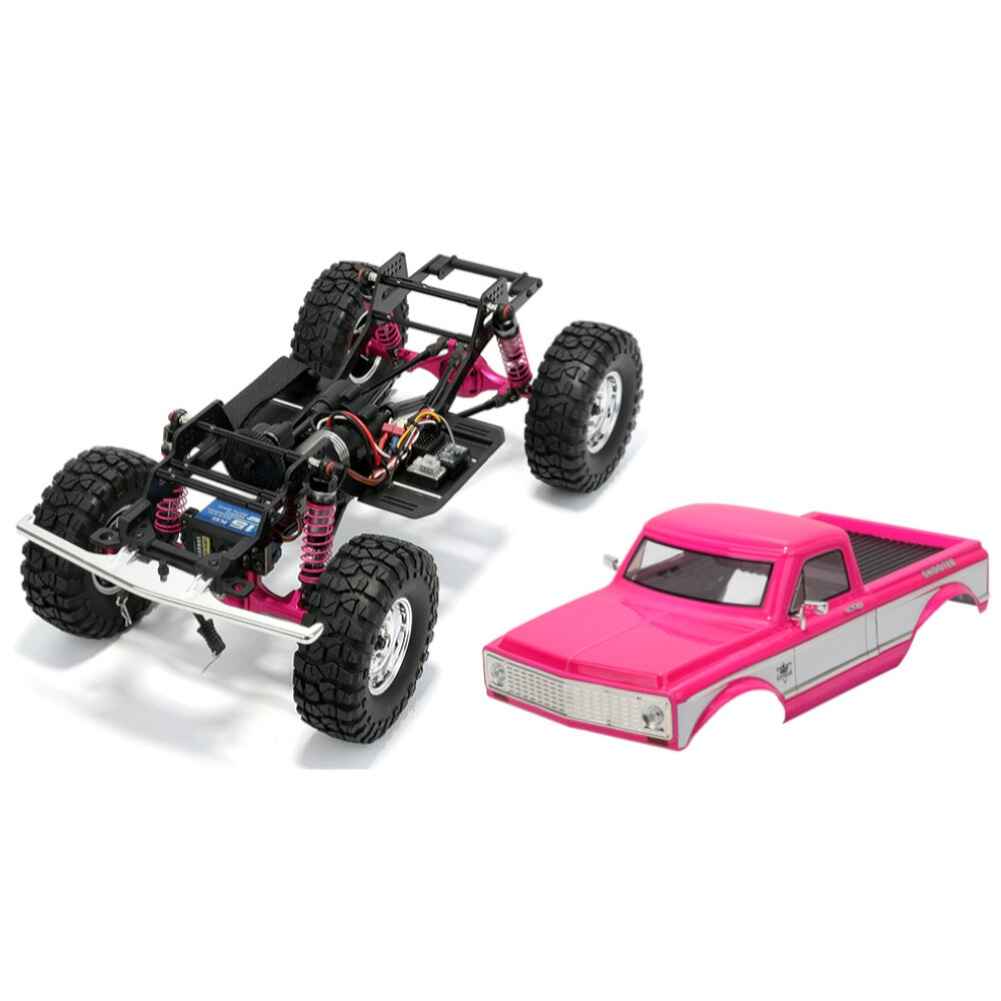

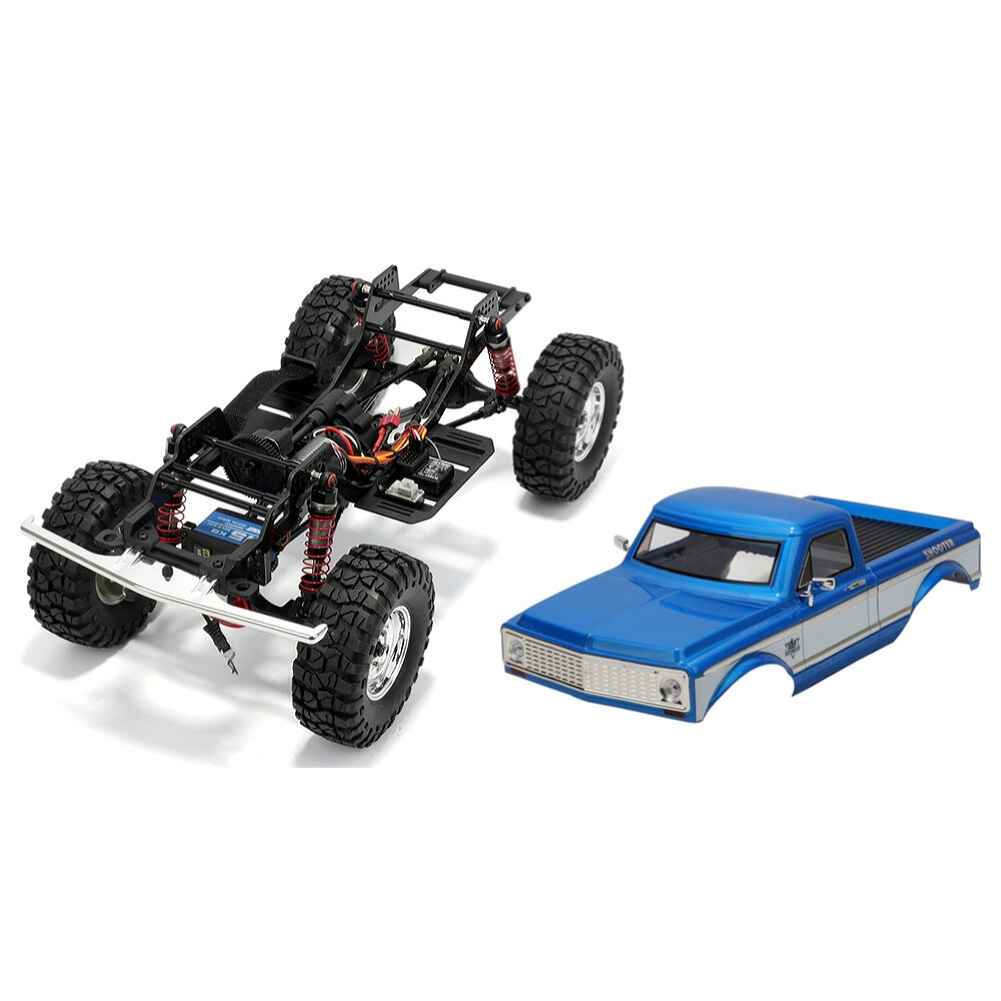

Chassis Structure:
*. 2.5mm carbon chassis rails, 4.5mm diameter solid alloy links;
*. CNC 6061 aluminum integral straight axle with caster angle步
*. front steering shafts are made of steel #1144CVA步
*. 46 degree super steering angle, resulting in smaller turning semi-diameter;
*.servo mounted on axle, brass steering servo mount, aluminum wheel hex, 25T metal servo horn步
Deceleration system券
*.LCG structure, 6/4 counterweight ratio at front and rear of chassis, Reduction drive use metal gears with #45 steel reduction shaft;
*.# steel central transmission shaft步
*. CNC aluminum gearbox and CNC aluminum motor fixed plate
30A 2200KV all-in-one FOC Power System券
*. The integrated design of ESC and motor greatly reduces the overall volume and weight, and makes the layout and wiring of carframe simper and more convenient.
*.Low speed torque is strong, and low-speed linearity is excellent. The motor runs quiet and more smooth.
*.The protection grade of the whole set of power is IP67, with excellent waterproof and dustproof performance, easily coping with various climates and site environments.
*.Intelligent torque output and speed closed-loop control, fully experience the cruise control and steep slope slow descent function.
*.Multi-stage drag brake force adjustment, the maximum drage braking force is about twice than ordinary brushless power, providing super parking capacity on ramp.
*.Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
*It supports LED setting box to set ESC parameters, and has independent parameter setting interface which is integrated on electronic switch, making setting parameters more conveniene.
Links券
*4.5mm diameter solid aluminum 8-links;
*. ball joint end uses reinforced nylon material in new formula, more resistant to friction and deformation.
Suspension and wheels:
*.The suspension system adopts CNC aluminum alloy twisted oil filled shock absorber, which brings more convenient damping adjustment;
*. The tires are made of butyl rubber. 105mm diameter MT tires come with 1.9-inch retro electroplated wheel hub for better climbing grip and more durablility.
Bodyshell:
*. 1.2mm PC soft bodyshell;
*. Enviromentally spray paint with transparent windows and cover-hidden bodyshell post

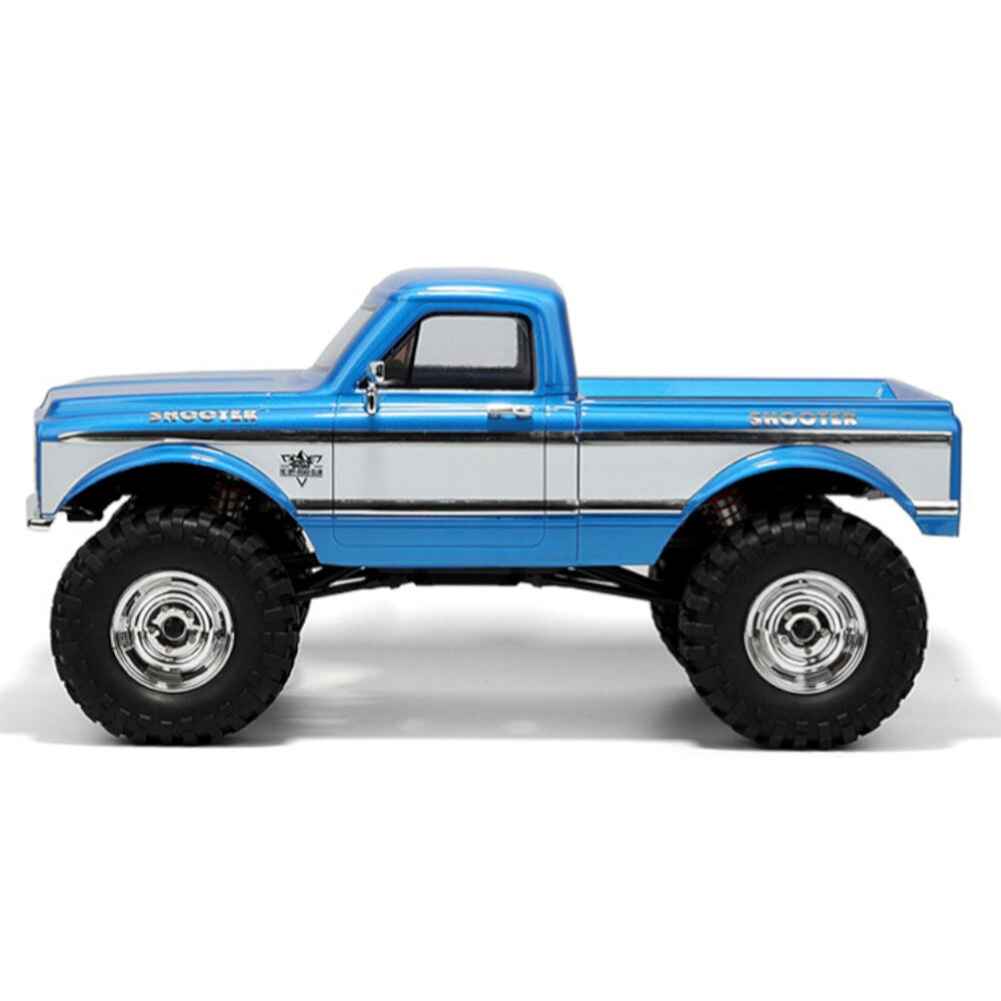

*. Equipped with plastic decorative assessories such as LED headlights, rearview mirriors and door handles. Available in two colors (Pink, metallic blue)
Electronic Parts券
* Shooter will be in 90% RTR version to players, equipped with brushless FOC electric motor integrated system, 15kg metal gear servo, ‘FS’ 6-channel 2.4 G remote controller, ESC could apply 2-3S Li-po.

Package Included:
1 x RC Car (battery and charger not included) 1 x Remote Controller 1 x Manual
