Description

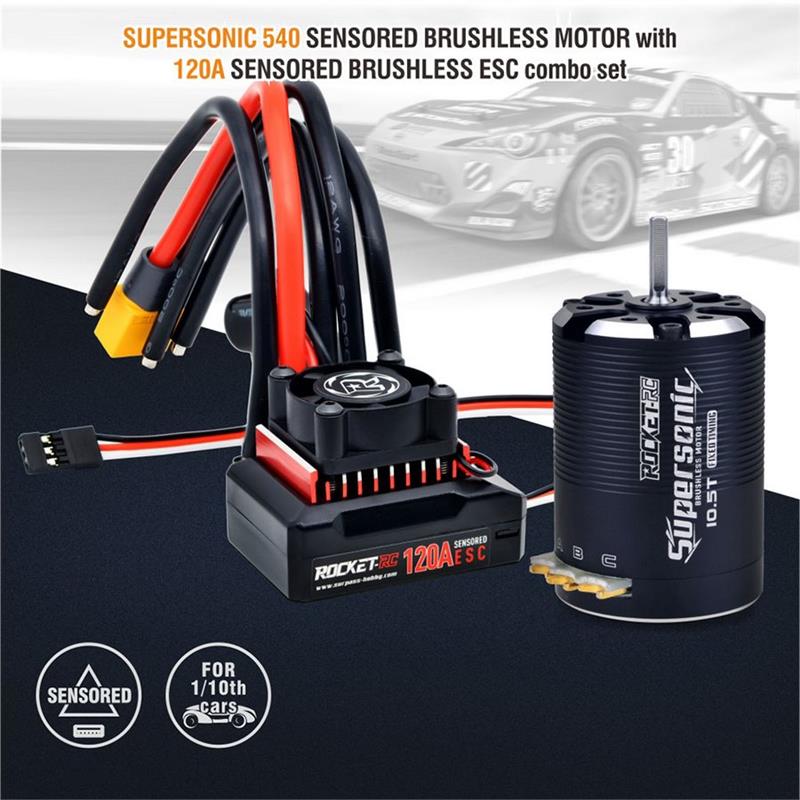

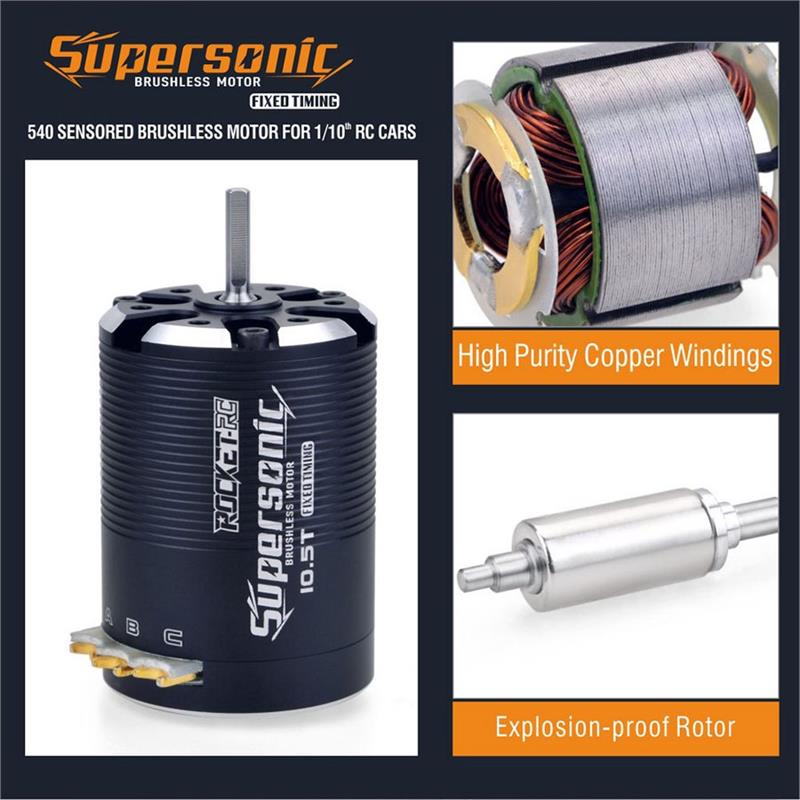

ROCKET 540 Brushless Sensored Motor 120A ESC Drift Racing for ARRMA 1/10 RC Cars Vehicles Model Spare Parts
The ROCKET 540 Brushless Sensored Motor and 120A ESC are engineered for ARRMA 1/10 RC drift racing cars, offering superior performance and reliability. The motor measures 36x50mm and weighs approximately 170g, while the ESC, including its fan, measures 44.5×39.5x31mm and weighs 87g. Designed with a robust metal construction in sleek black, the motor supports various turns and KV ratings, ensuring adaptability for different racing needs. It operates efficiently with 1-3S LiPo batteries, delivering up to 335W of power. The ESC supports a continuous current of 120A and a peak of 240A, compatible with sensored 380/390/540 brushless motors. Ideal for high-speed racing, this motor and ESC combo enhances the performance of your RC vehicle.
Description:
Item Brand:ROCKET
Item Number:540
Item Name:Motor/esc
Material:Metal
Color:Black

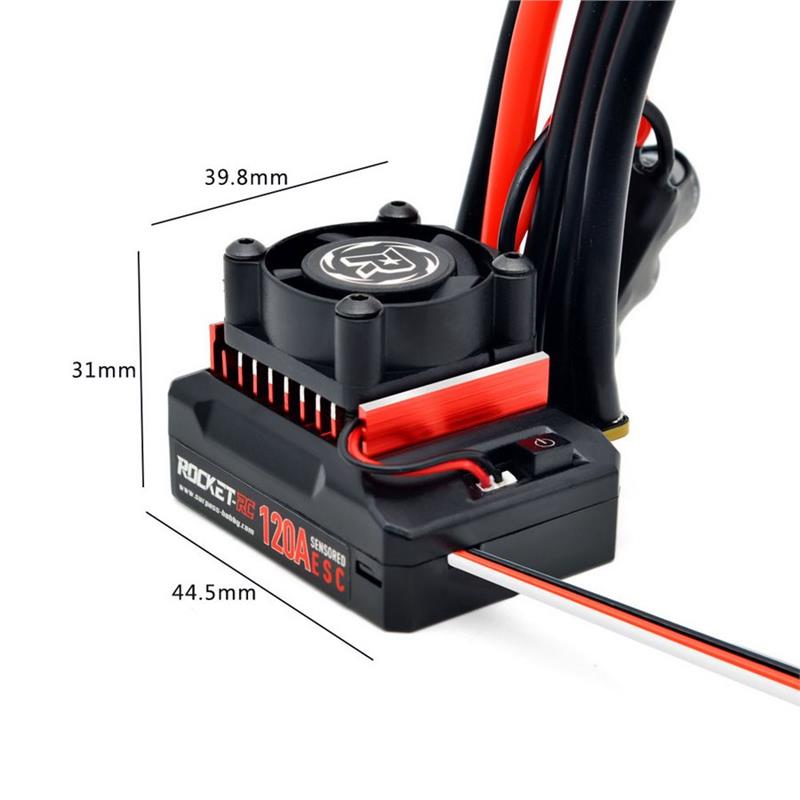

Product Size:Motor size is about 36*50mm(diameter*length),esc size is about 44.5*39.5*31mm(including fan)
Product Weight:Motor Weight is about 170g,esc weight is about 87g(including wires)
Compatible Models:1/10 drift speed racing rc cars vehicles models

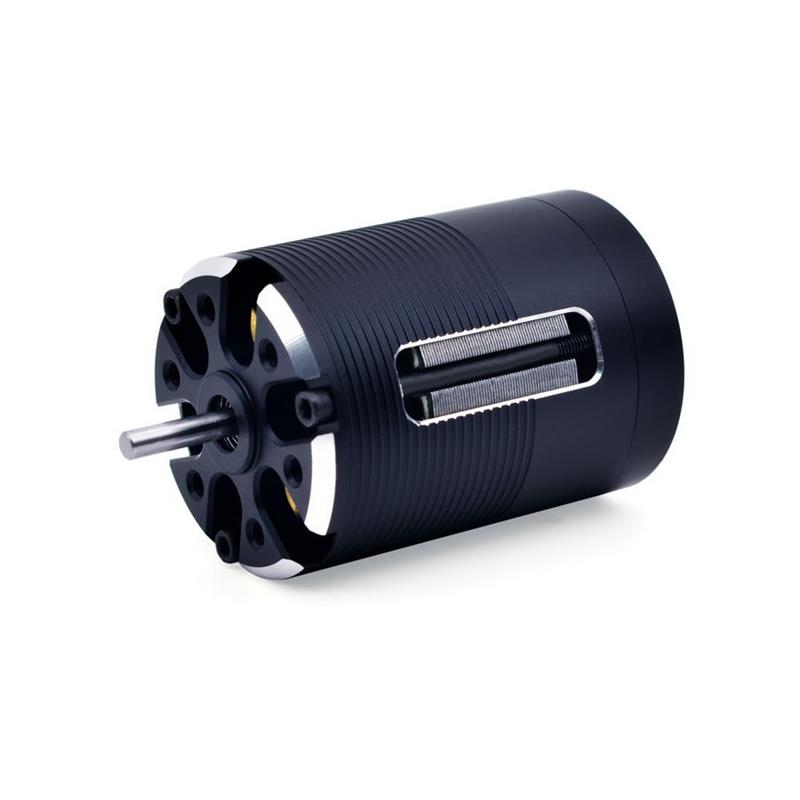

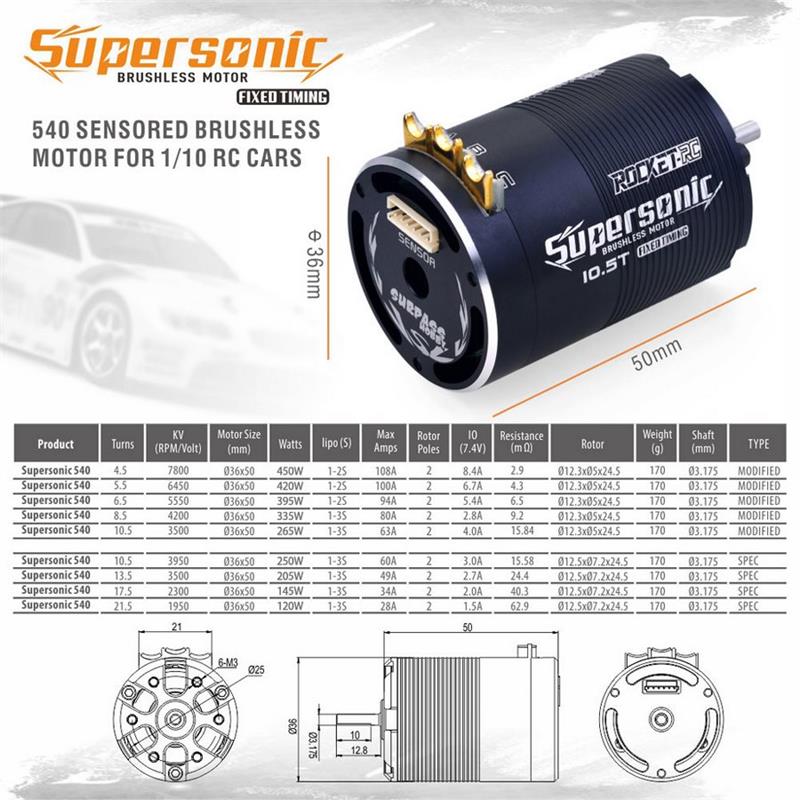

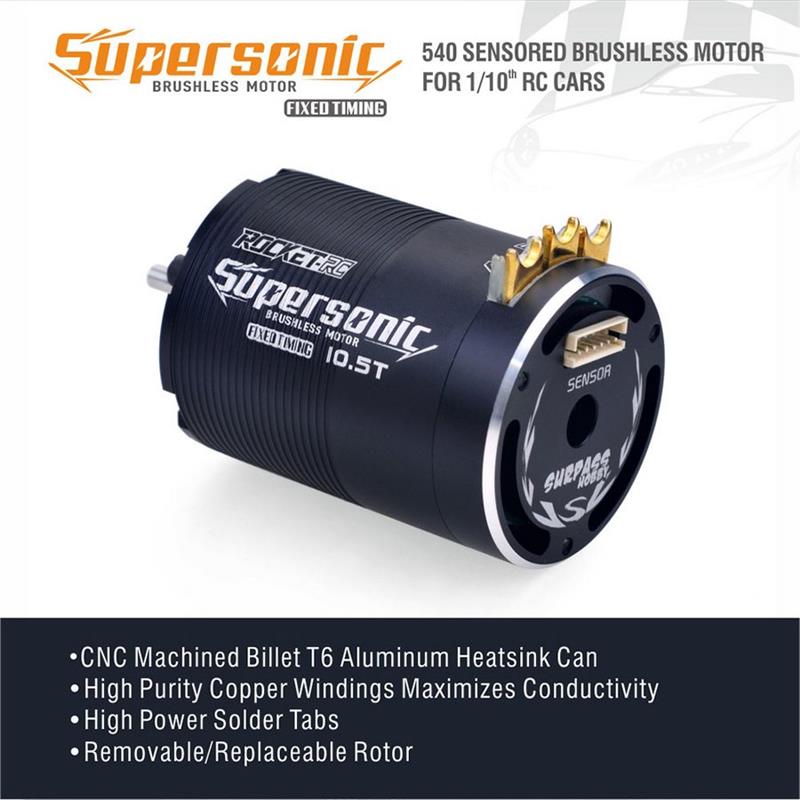

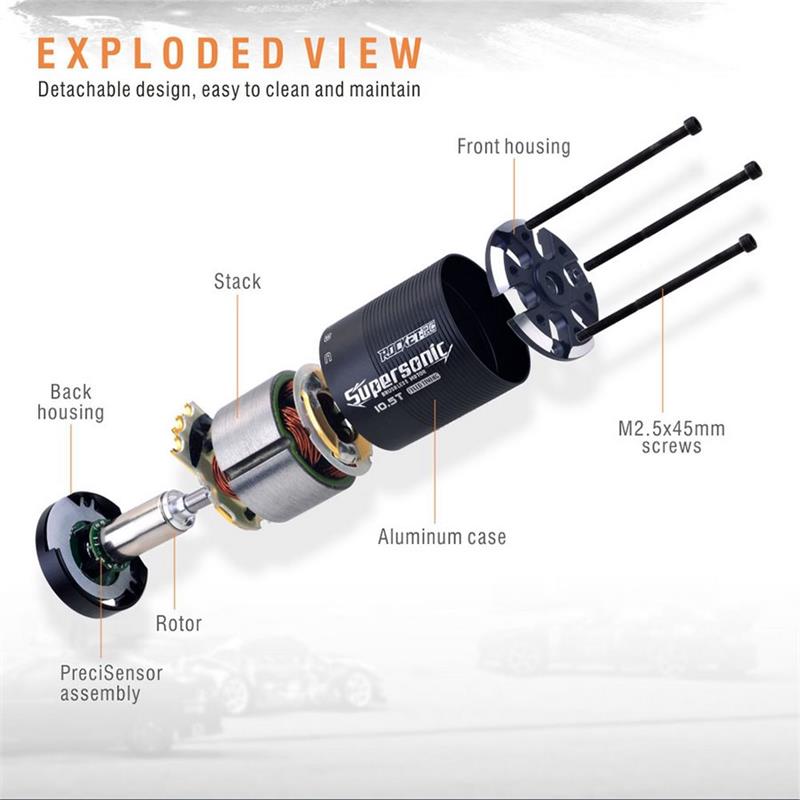

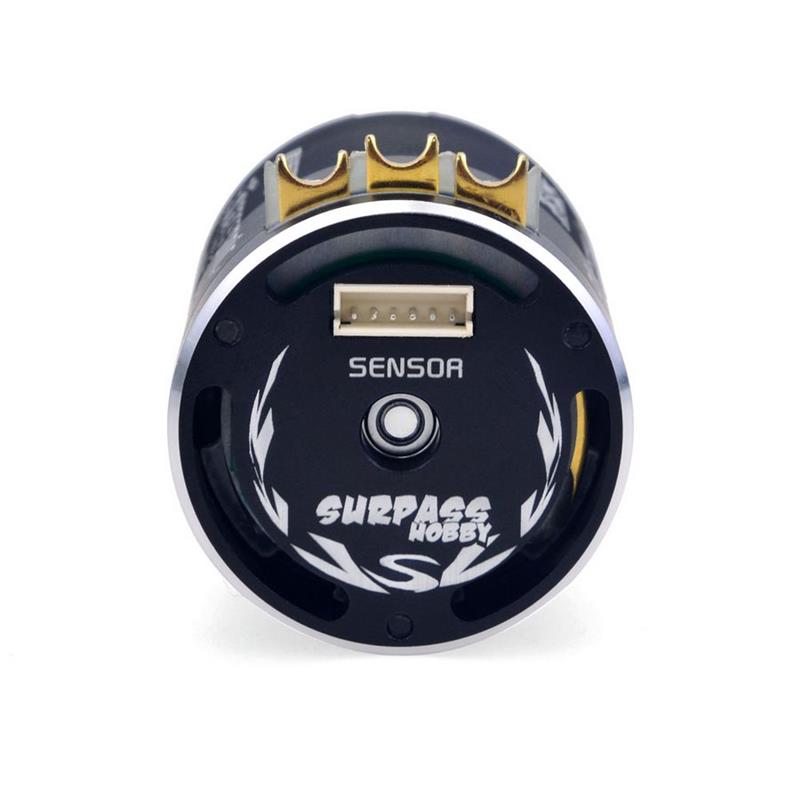

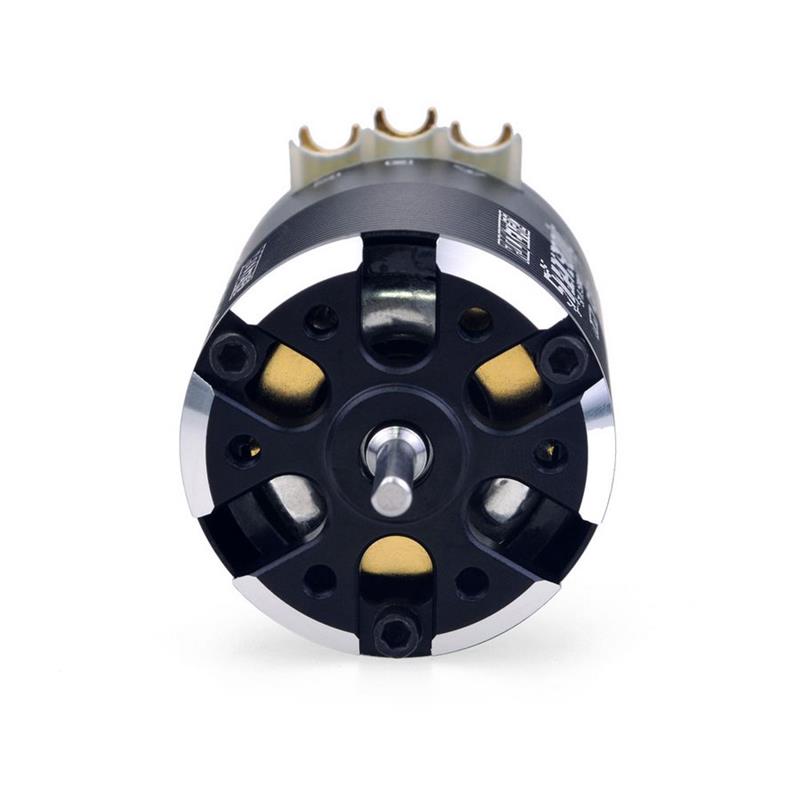

Specification of Motor:
Turns:8.5/10.5/13.5/17.5/21.5T
KV(RPM/Volt):4200/3950/3500/2300/1950KV
Watts:335W/265W/205W/145W/120W
Lipo(S):1-3S
Max Amps:80A/63A/49A/34A/28A
Rotor Poles:2
IO(7.4V):2.8/4.0/2.7/2.0/1.5A
Resistance(mQ):9.2/15.84/24.4/40.3/62.9
Rotor:Diameter12.5X Diameter 7.2X 24.5
Weight:170g
Shaft(mm):Diameter:3.175
Type:MODIFIED/SPEC
Online Manual Download Please Click Here

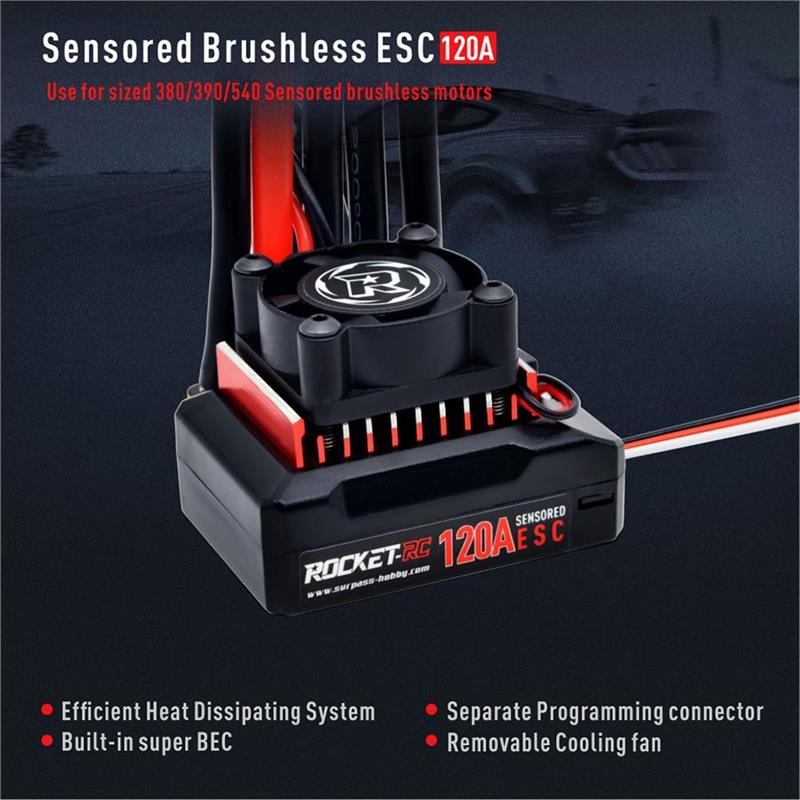

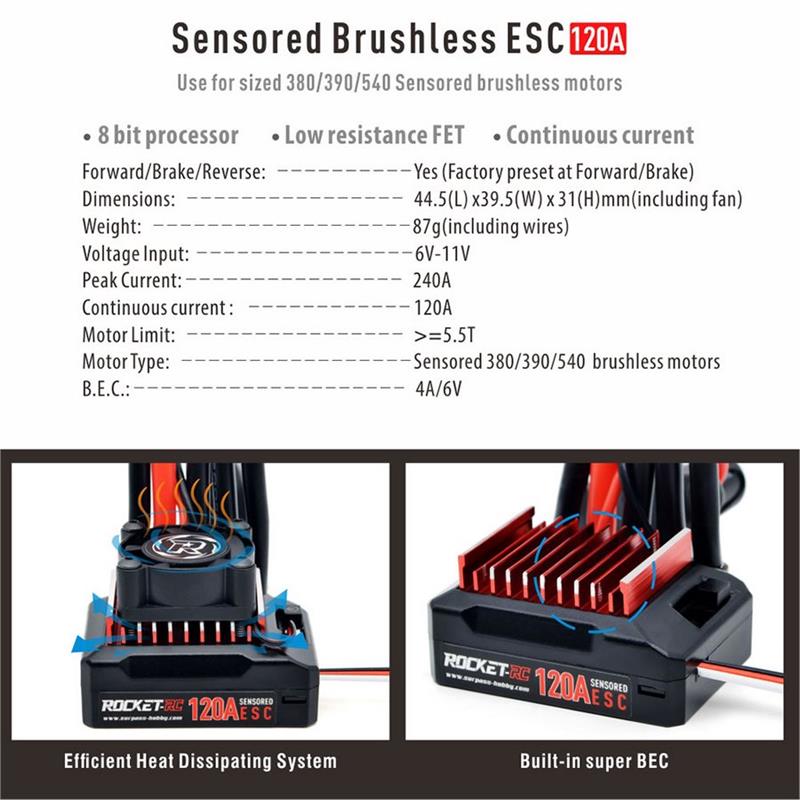

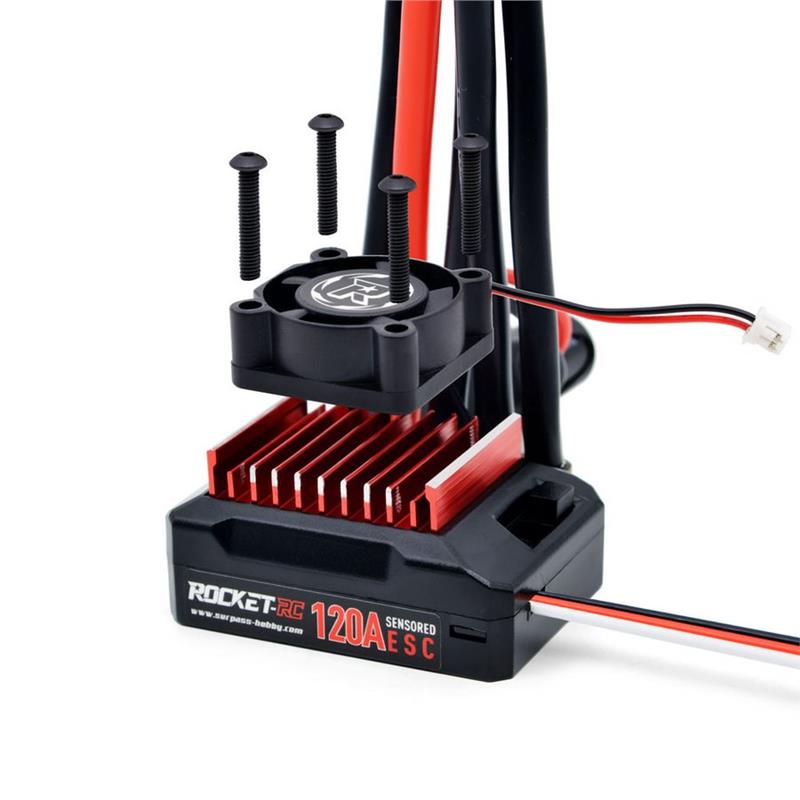

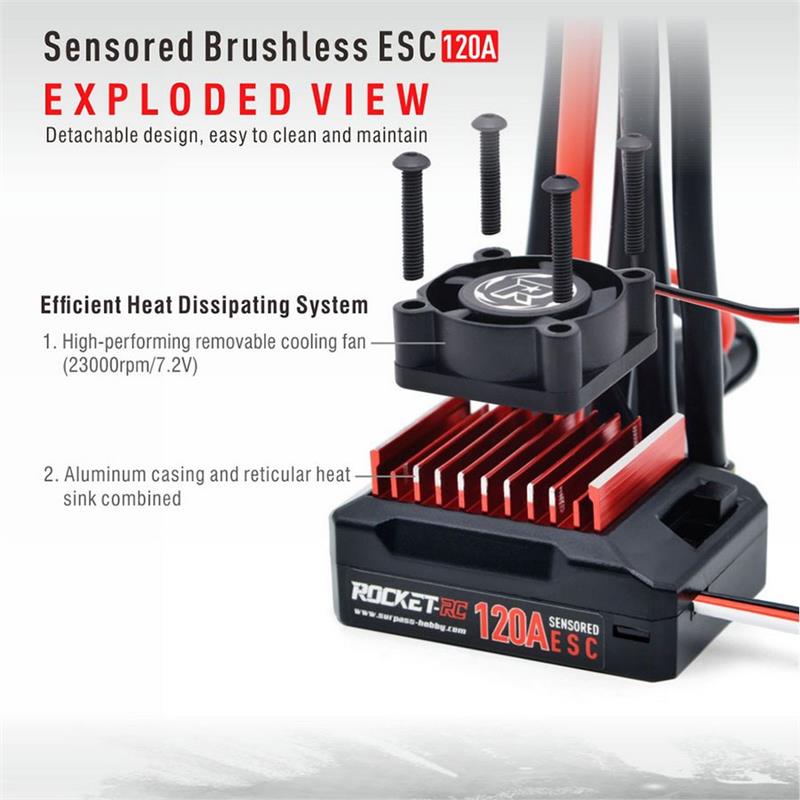

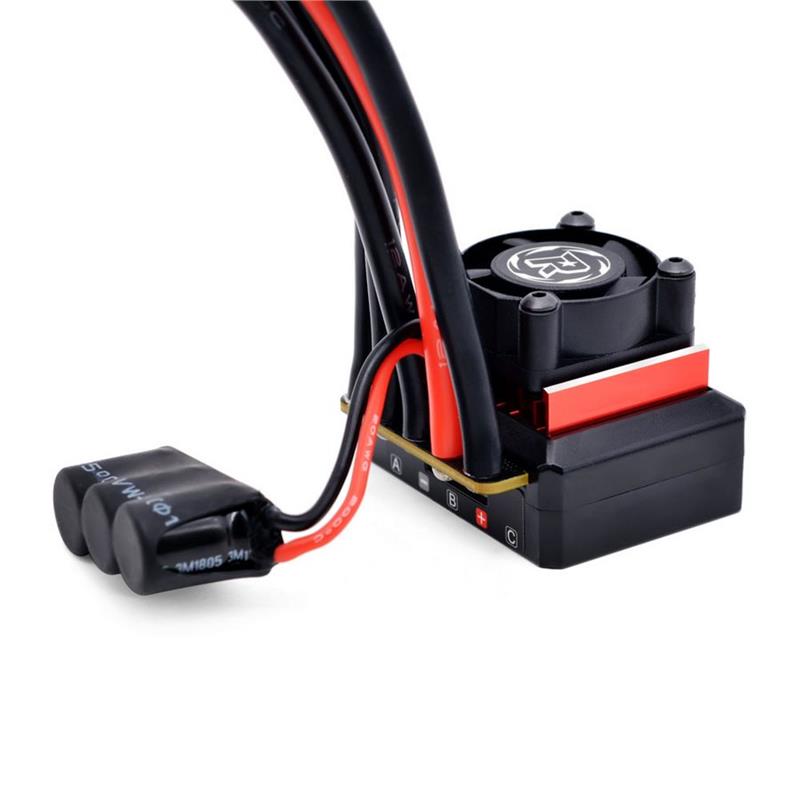

Specification of ESC:
Voltage Input:6V-11V
Continuous Current:120A
Peak Current:240A
Motor Limit:≡5.5T

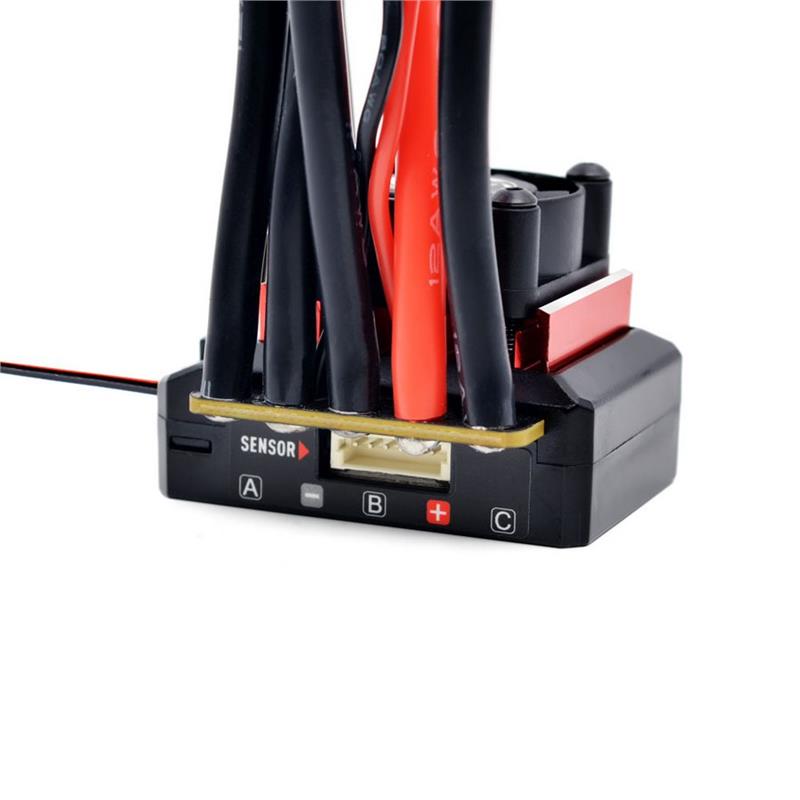

Motor Type:Sensored 380/390/540 brushless motors
B.E.C:6V/4A
Online Manual Download Please Click Here
Only Motor
Package Included:

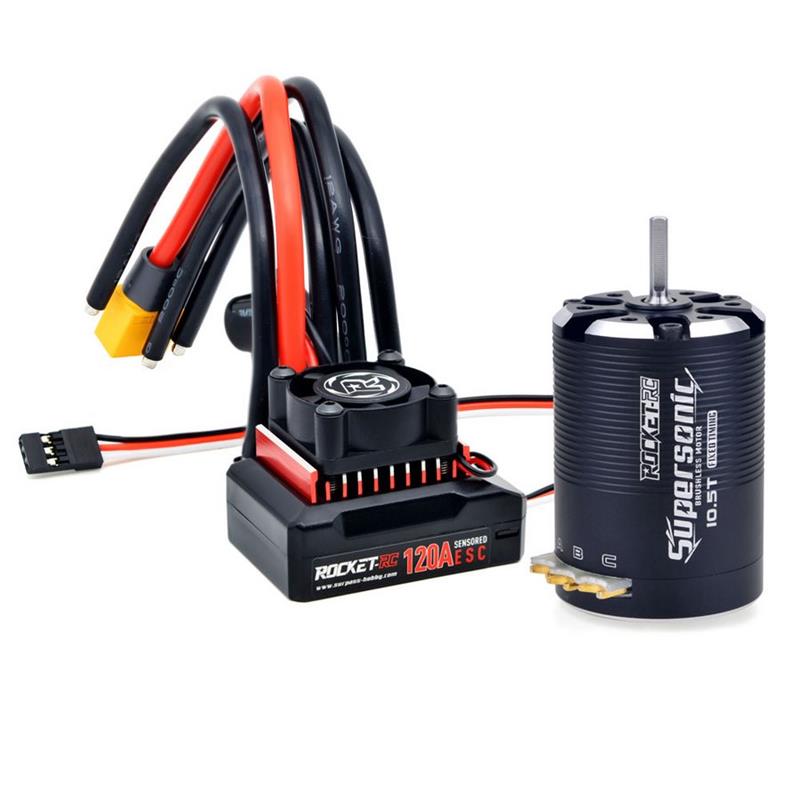

1 x Brushless Motor 540 1 x Brushless ESC 120A
