Q3 Boost 2.5A Portable Charging Case with Type-C Input for MJX RC Car 2S 3S Battery, Fast Charge, High Current Balanced Charger

Description

Q3 Boost 2.5A Portable High Current Balanced Charging Case Fast Charge with Type-C Input for MJX 16208 16209 14209 14210 14303 14302 14301 RC Car 2S 3S battery

The Q3 Boost Balanced Charging Case is designed for MJX RC Car enthusiasts, offering a high-efficiency charging solution. Weighing just 69g and featuring a compact size of 4.7 x 2 x 7.5 cm, this charger is both portable and durable. It supports dual-mode charging for 2S and 3S lithium batteries, ensuring versatility without the need for multiple chargers. The device includes built-in safety features such as automatic power cut-off and temperature protection to enhance user safety and battery longevity. Its Type-C interface allows for universal connectivity, and the fireproof ABS+PC shell ensures heat dissipation. With a maximum output current of 2.5-3A and a power capacity of 30W, this charger reduces charging time to 2-3 hours for 3S lithium batteries.

Specification:
Product Model: Q3
Product Name: Q3 Boost Balanced Charging Case
Product Weight: 69g
Product Size: 4.7*2*7.5CM
Shell Material: ABS+PC Fireproof Material
TYPE-C Cable Length: 60CM
Output Maximum Current: 2.5-3A
Output Maximum Power: 30W
Charging Current Range: Maximum 3A
Type-C Input Voltage Range: 5V – 15 V
Battery type: 2S-3S Lipo Battery
2S Lipo Battery Full Voltage Range: 8.4V -8.52V
3S Lipo Battery Full Voltage Range: 12.6V – 12.81V
Operating Temperature Range: 0-40﹠
Storage Temperature: 20 – 40﹠
Fast Charging Protocol Supports Types and Voltages:
PD Protocol: 5V 9V 12V 15V
FCP Protocol: 5V 9V
QC Protocol: 5V 9V 12V
AFC Protocol: 5V 9V
Feature:
1. High-Efficiency Fast Charging: Equipped with 2.5A high current, ensures rapid and efficient charging, reducing the charging time to 2-3 hours for 3S lithium batteries.
2. Dual-Mode Charging: Supports 2S and 3S lithium batteries, providing versatility and convenience for various battery types without needing multiple chargers.
3. Built-in Safety Features: Includes automatic power cut-off, temperature protection, and overshoot protection, enhancing user safety and battery longevity.
4. Type-C Interface: Allows for easy and universal connection with the included Type-C cable, ensuring compatibility with modern chargers and devices.
5. Compact Design: Made with fireproof ABS+PC materials and a hollow shell for heat dissipation, the small stature ensures portability and durability.
Operation method:
1. Use the Type-C charging cable to insert the power adapter output into the input port of the balance charging box. After the charging box is powered on, the voltage output type is detected and the red light is always on.
2. When the battery is detected to be inserted, the green light begins to change gradually (if it supports high-current series charging, the red light flashes quickly, otherwise the red light is always on). The charging box is initialized according to the type of battery inserted, and charging is performed after the initialization is completed.
3. When charging is completed, both the red and green lights are always on, and the green light goes out after the battery is pulled out.

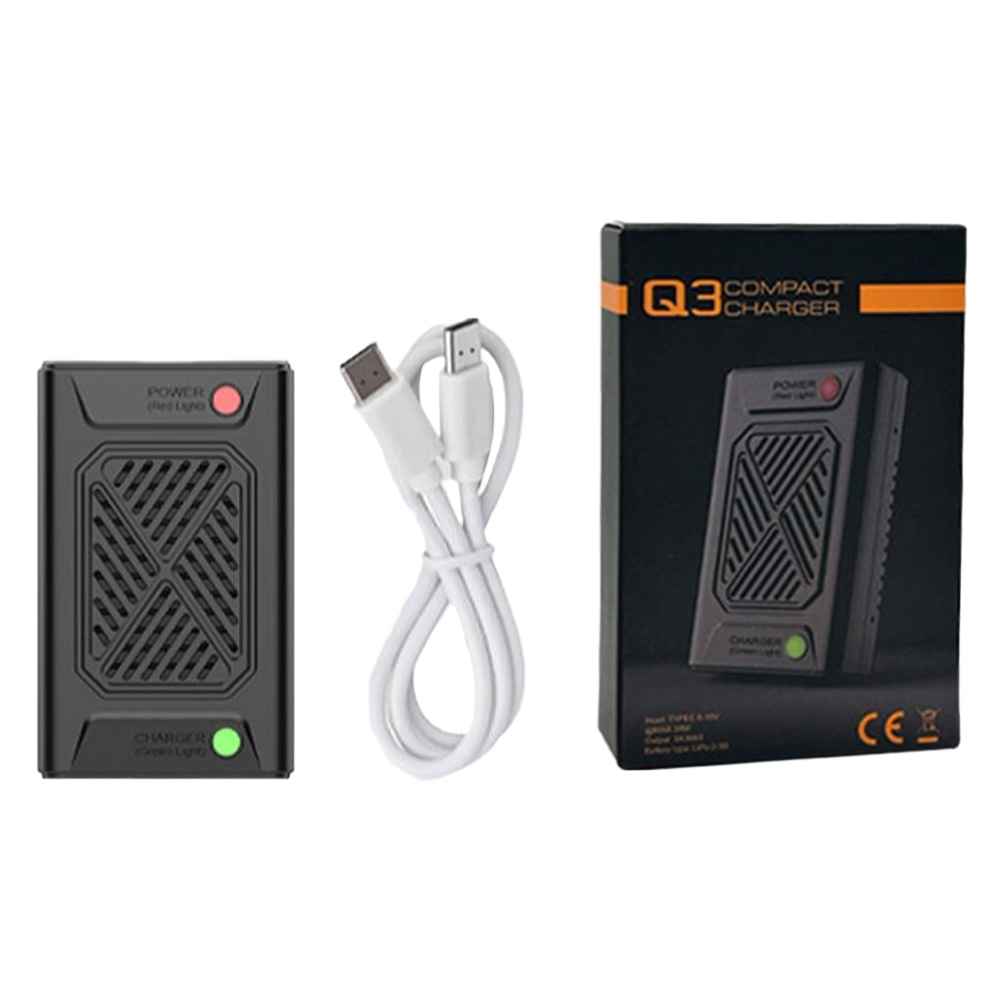

Package Included:
1 x Charging Case
1 x Charging Cable
1 x Color Box
