Description
Racerstar 3650 Sensorless Brushless Waterproof Motor 60A ESC for 1/10 RC Off-Road Truck Truggy Cars
The Racerstar 3650 Sensorless Brushless Motor paired with a 60A ESC is designed for 1/10 RC off-road trucks and cars. This splash-proof motor features a 4-pole, 12-slot high-torque design and is crafted from CNC machined 6061 T6 billet aluminum for optimal heat dissipation. It includes high-purity copper windings and high RPM ABEC 5 oversized bearings for maximum efficiency and reliability. The motor supports a maximum RPM of 50,000 and is engineered for superior energy conversion. The ESC is compatible with sensorless brushless motors and offers excellent start-up, acceleration, and linearity. It includes multiple protection features such as low voltage cut-off, overheat, and throttle signal loss protection.
Description:
Brand: Racerstar
Item: 3650 Brushless Motor & 60A ESC
Waterproof Level: Splash-proof

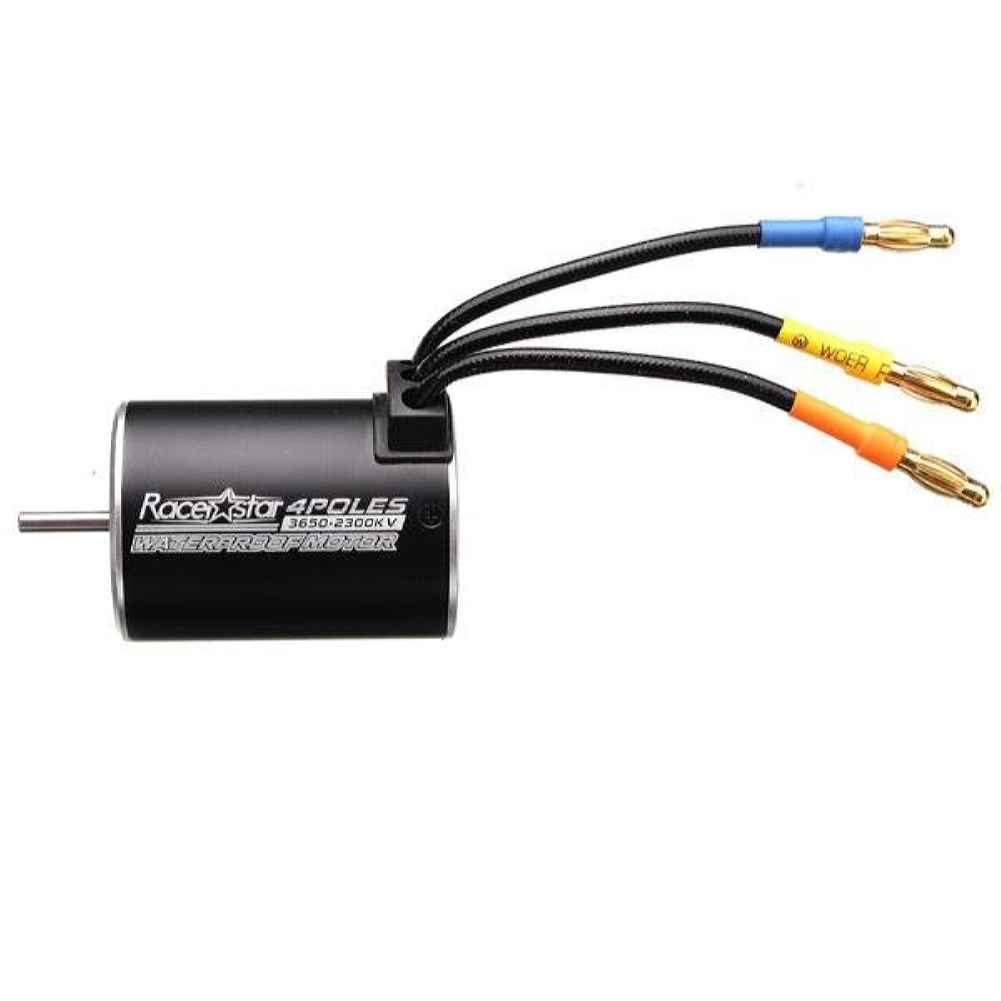

Motor Features:
– 4 pole 12 slot hi-torque motor design
– CNC machined 6061 T6 billet aluminum heatsink can
– High purity copper windings maximizes efficiency
– High RPM ABEC 5 oversized bearings
– Fit for all 1/10 brushless cars; multi-mounting system for M3 screws
– Balanced rotor, smoothness for best reliability and maxium RPM
– Stator- super thin (0.35mm) laminations
– Removalbe/replaceable rotor
– Engineered for maxium energy coversion
Motor Specification:
Watts: 900
Max Voltage: 13V(3900KV), 16V(3100KV), 22V(2300KV), 24V(2050KV)
Max Amps: 69A(3900KV), 56A(3100KV), 41A(2300KV), 38A(2050KV)
Rotor Poles: 4
Max RPM: 50000
Length: 50mm
Diameters: 36mm
Weight: About 180g

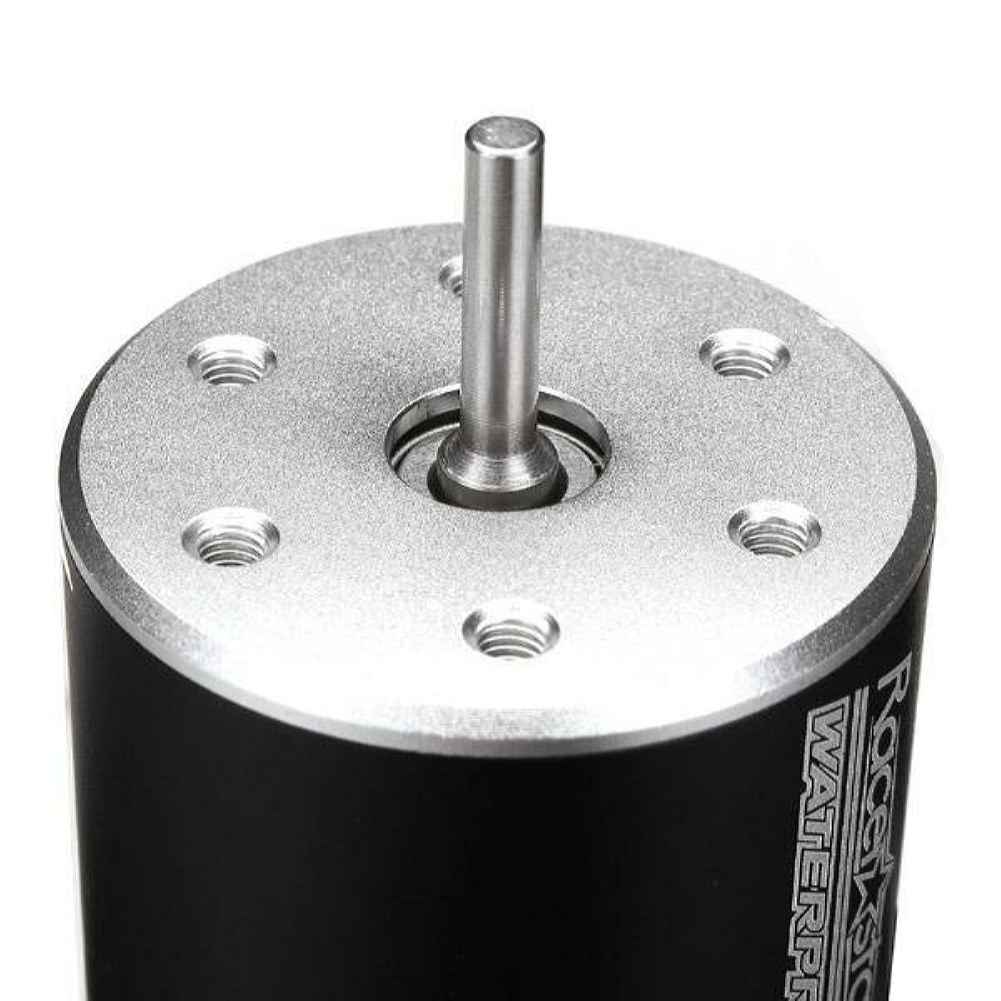

Shaft: 3.17mm
Length of Extend Shaft: 15mm

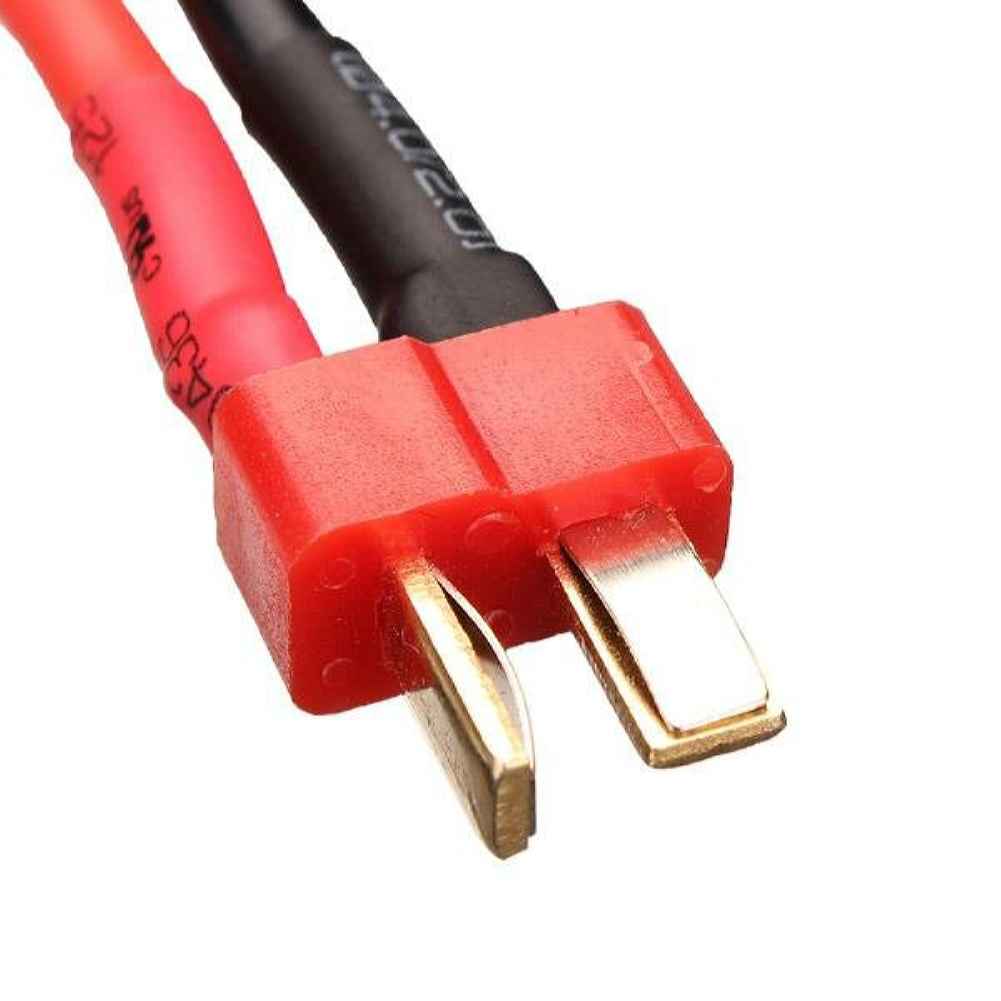

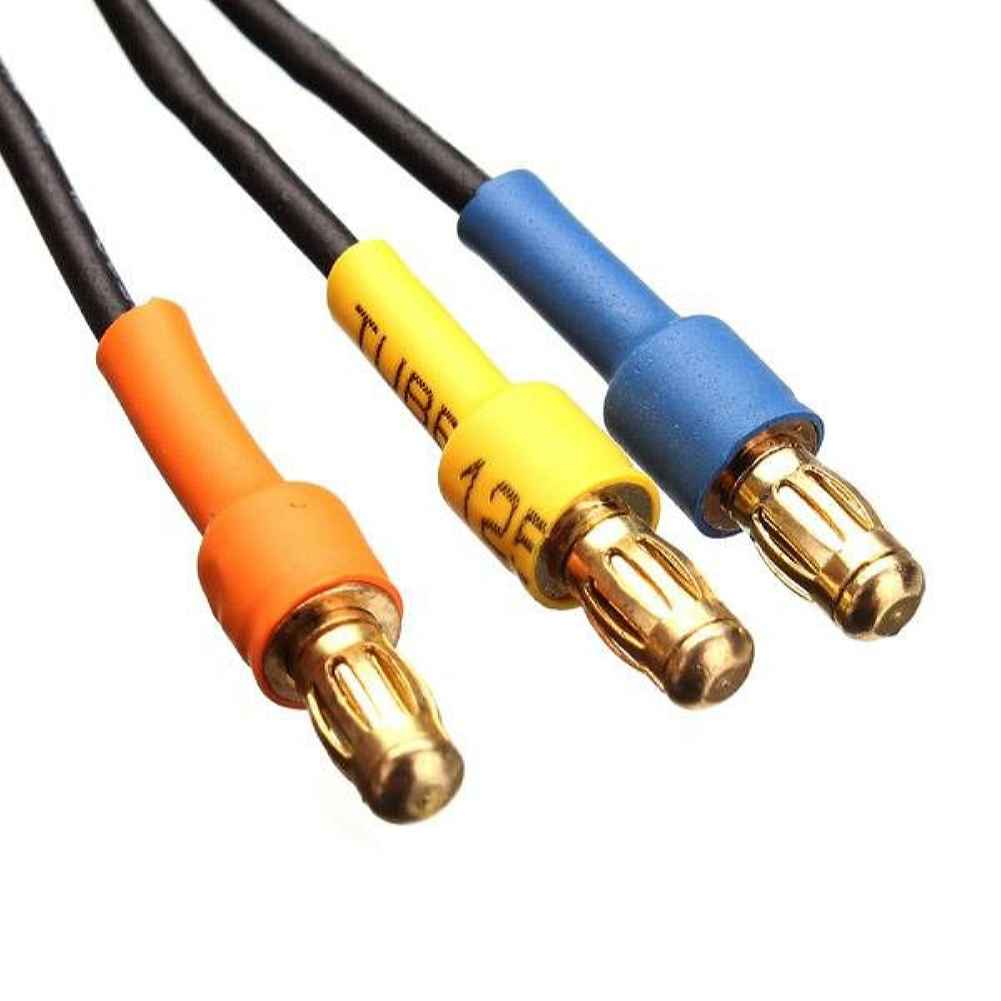

Connector: 4.0mm Gold

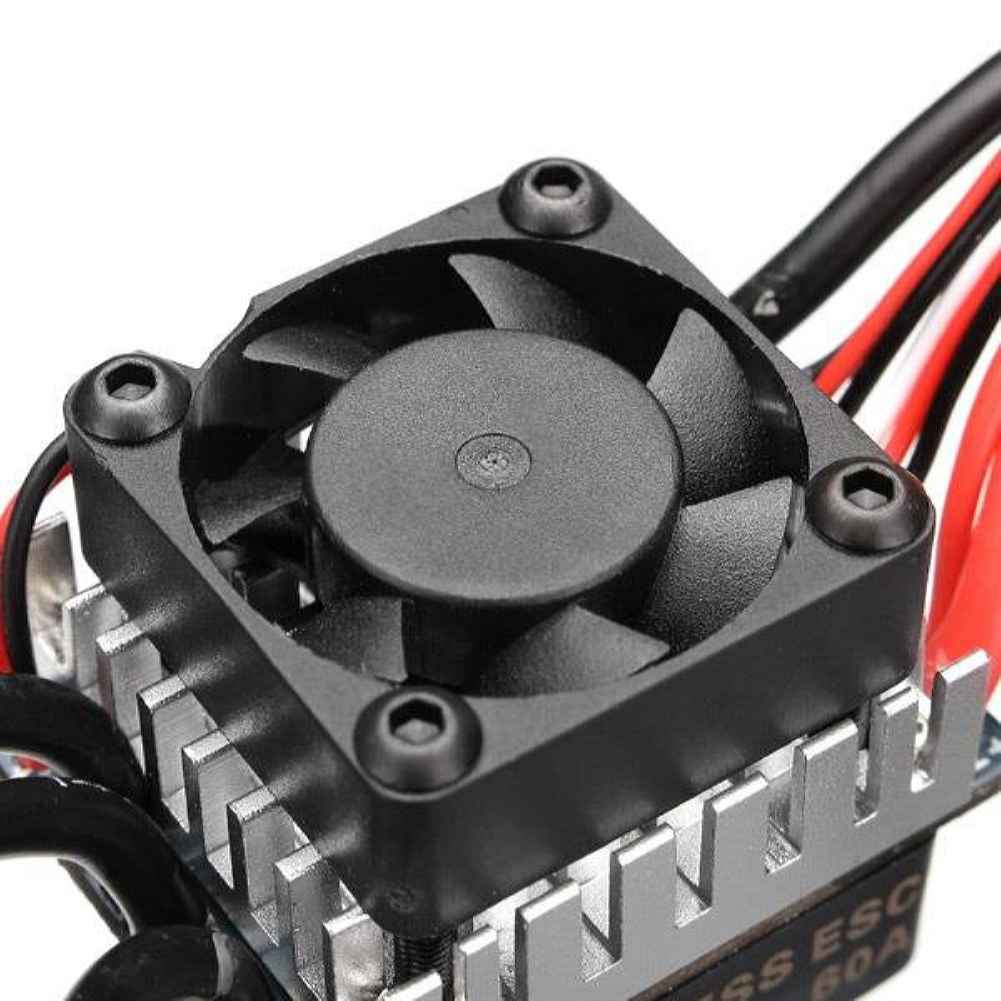

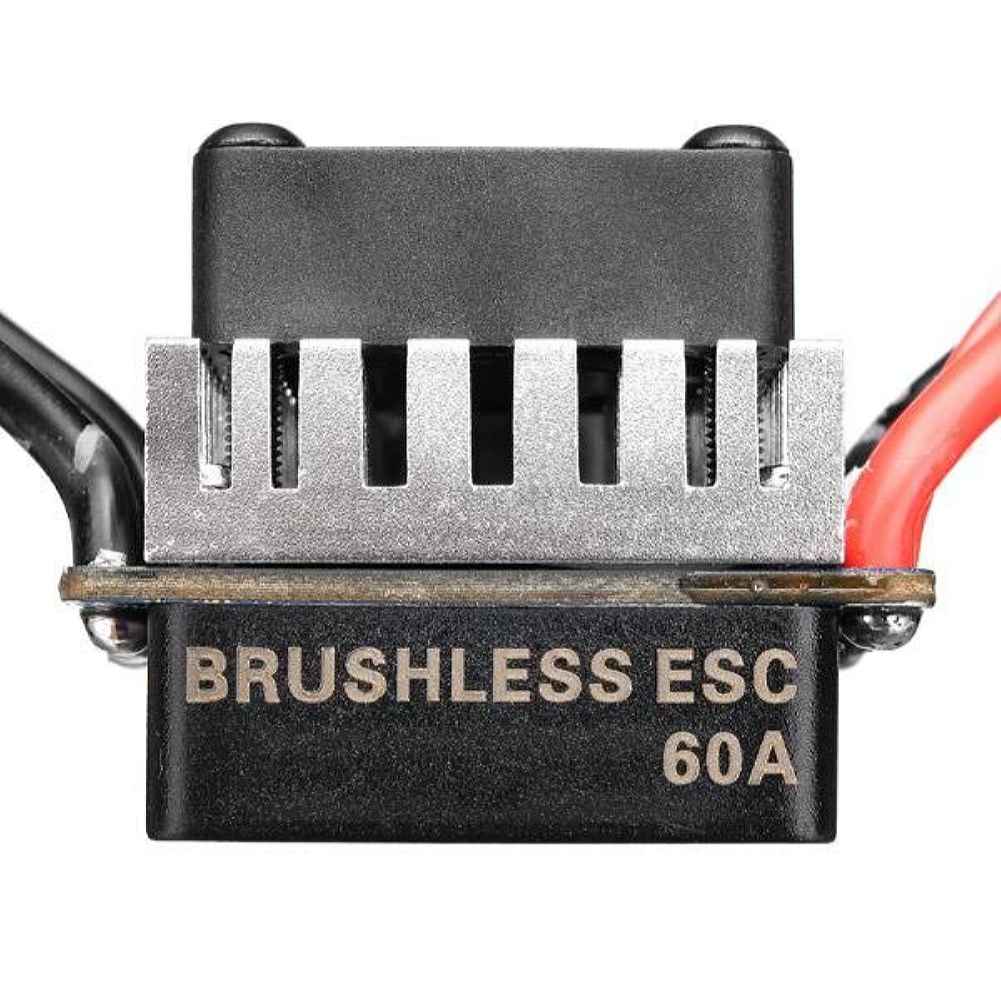

ESC Features:
– Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
– Compatible with sensorless brushless motor
– The strong resistant current capability, excellent heat dissipation
– Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
– Easily programmed and compatible with pocket-sized program card
ESC Specifications:
For ESC program card, please click

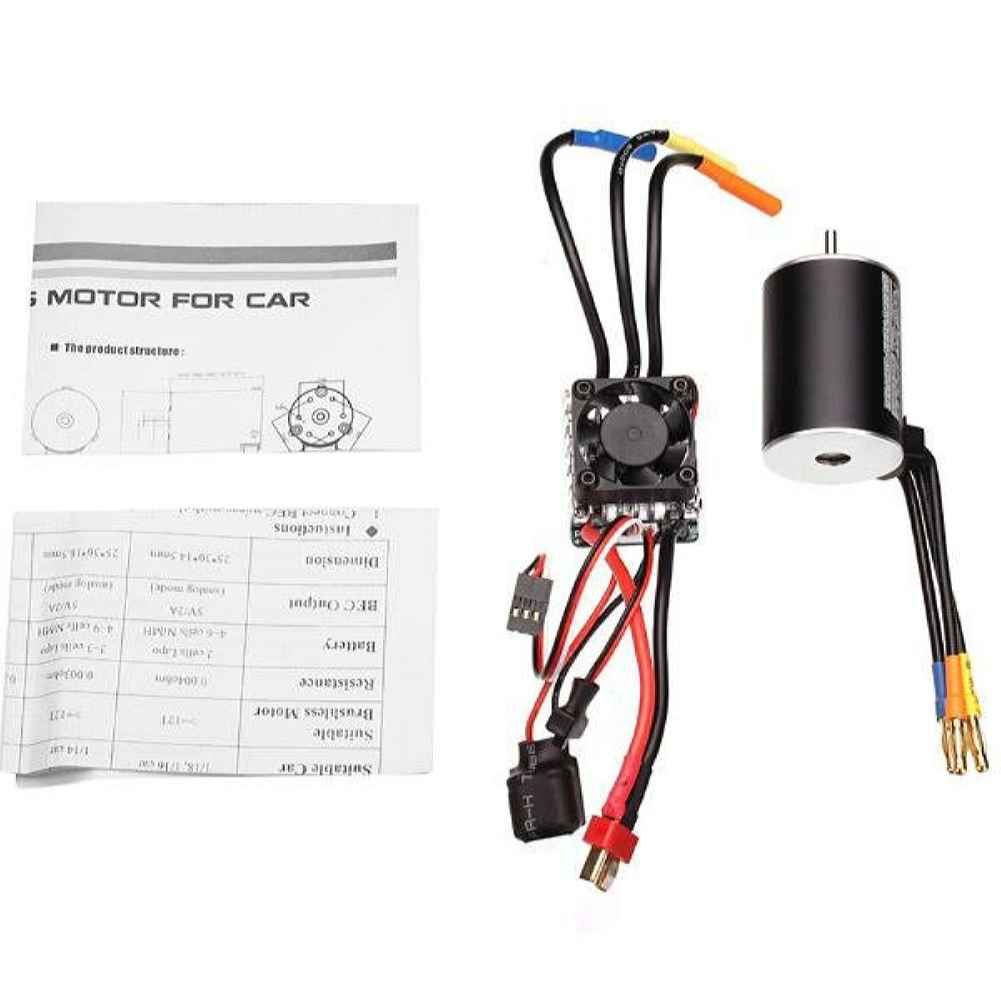

Package Included:
1 x Motor
1 x ESC
2 x Instruction
