SURPASS HOBBY M2838 Waterproof Brushless Motor & M35A ESC Set for 1/16 RC Cars, 3600KV, 35A

Original price was: 61.98$.Current price is: 46.49$.

  • Waterproof brushless motor with 3600KV power
  • High-torque rotor design with stable output
  • Water and dust-proof ESC with multiple protection features
  • Compatible with 1/16 and 1/14 scale RC cars
  • Durable CNC aluminum case and ABEC5 bearings

Description

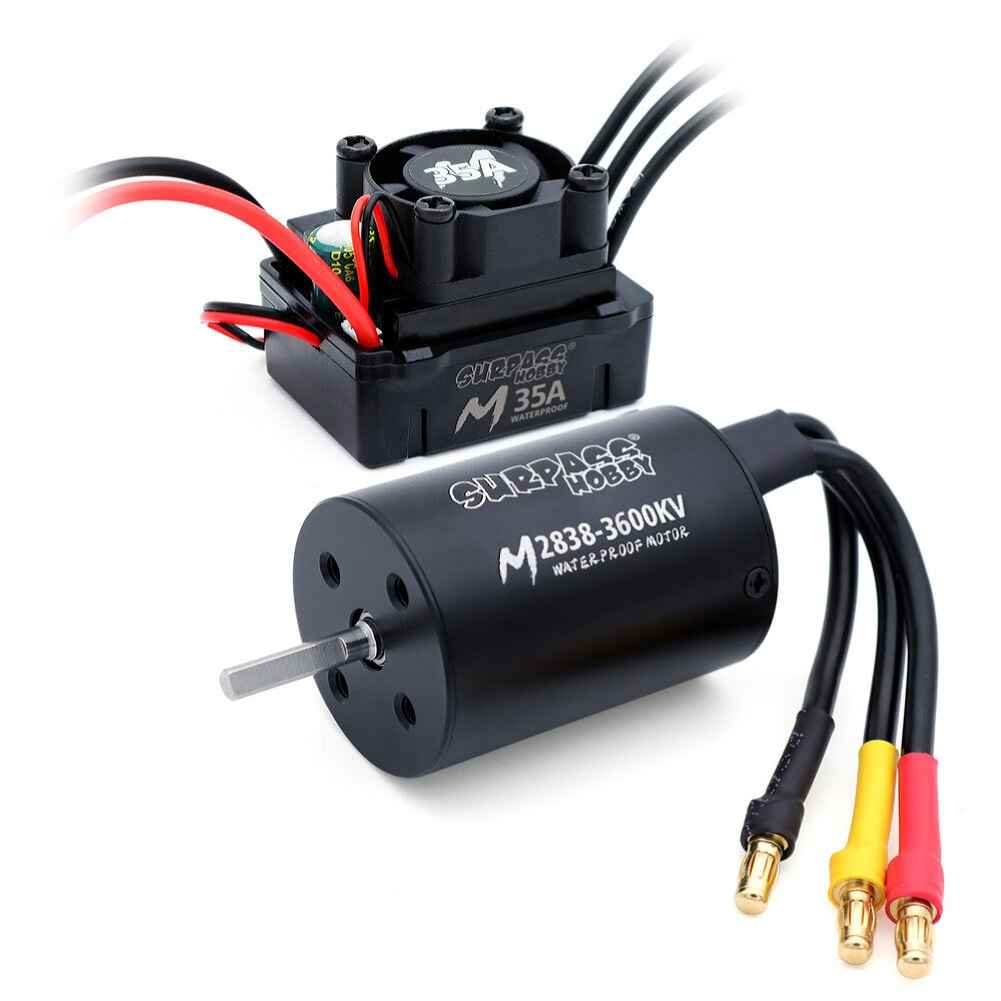

SURPASS HOBBY M2838 All Black Waterproof Brushless Motor W/ M35A Waterproof ESC Set 3.5 Connector for 1/16 Model RC Car Parts

The SURPASS HOBBY M2838 All Black Waterproof Brushless Motor paired with the M35A Waterproof ESC offers high performance for 1/16 and 1/14 scale RC cars. The motor features a 4-pole 12-slot design for stable power output and is built with high-purity copper windings for maximum efficiency. The CNC aluminum case ensures durability, while the ABEC5 large bearings provide smooth operation. The M35A ESC is designed for sensorless brushless motors and is both water and dust-proof, making it suitable for all-weather races. It includes multiple protection features such as low voltage cut-off and motor blocked protection, ensuring reliable performance.

Specifications:
Cont.Current/ Burst Current:35A/120A
Sensorless Brushless Motor For 2S Lipo or 6 cells NiMH:
On-road:28XX-size or smaller motor with the KV<6000
Off-road:28XX-size or smaller motor with the KV<4000
For 3S Lipo or 9 cells NiMH:
On-road:28XX-size or smaller motor with the KV<4000
Off-road 28XX-size or smaller motor with the KV<3000.
Suitable Car:1/16, 1/14 car
Resistance:0.0021ohm
Battery:2~3 cells Lipo / 4~9 cells NiMH
BEC Output:5V/2A(Analog mode)
Dimensions/Weight:40沁29沁29.2mm /47g
M2838 3600KV
KV:3600
Watts:600
Max Voltage:<13.8V
Max Amps:43A
Rotor Poles:4
IO:2.5A
Resistance:0.0328
Max RPM:50000
Stator Size:嫉28*40mm
Weight:91g
Shaft:嫉3.175mm
Length of extend shaft:15mm
Connector:3.5mm gold
Feature:

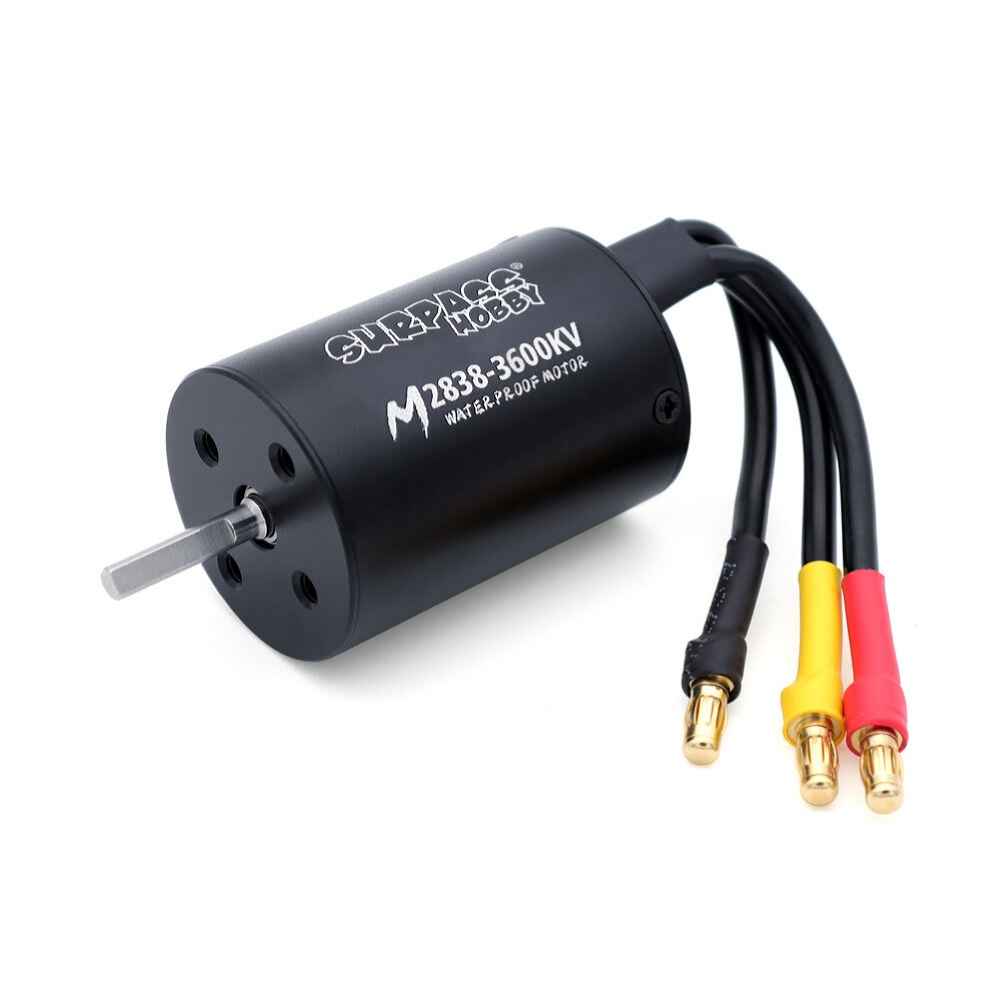

M2838 waterproof brushless Motor:
1.4 Pole 12 Slot Hi-torque rotor design, stable output power.
2.High hardness aluminum CNC case,0.35mm stator.
3.High Purity High temperature resistance Copper Windings Maximizes Efficiency.
4.High precision and high quality ABEC5 large bearing, smooth and wear- resistant.
5.Removable/replaceable explosion-proof high-precision balancing rotor.
6.M540:Fits all 1/14th 1/16th scale BL cars, 4 of M3 screw mounting holes.

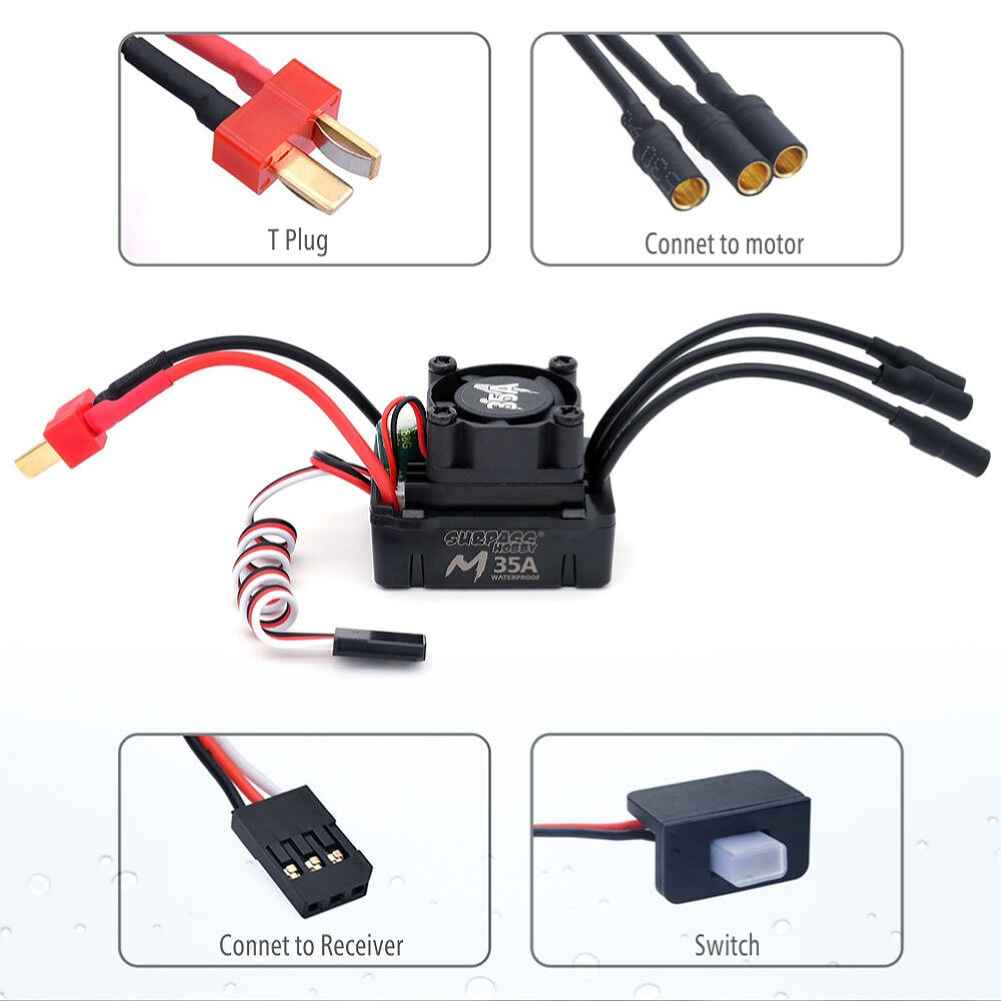

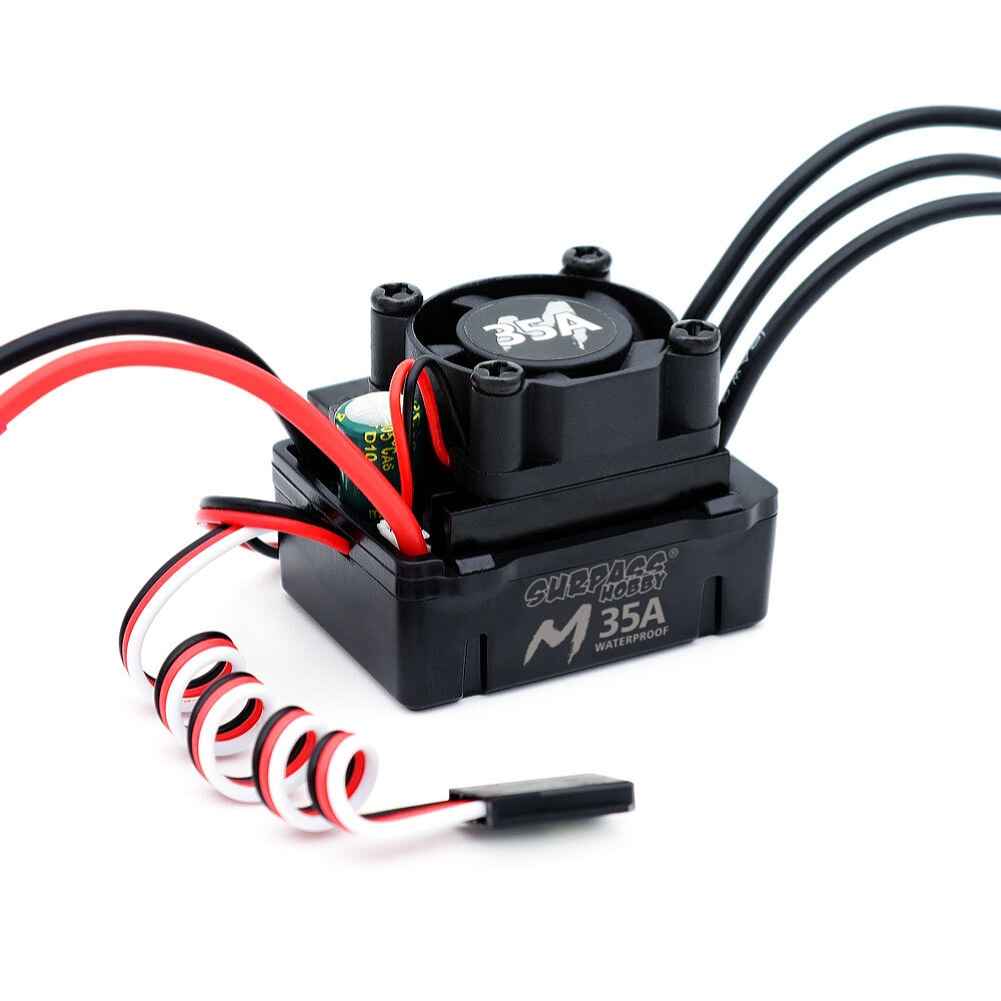

M35A waterproof brushless ESC券
1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.Specially designed for RC car with excellent start-up, acceleration and linearity features. 3.Compatible with sensorless brushless motor.
4.The strong resistant current capability, excellent heat dissipation.
5.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/Throttle signal loss protection/Motor blocked protection.
6.Low voltage cut-off protection the motor emits ↗Beep-Beep’ and the LED flashes.
7.Built-in analog-mode BEC 5V/2A for usage with high torque and high voltage servos.
8. Easily programmed and compatible with pocket-sized program card.

Package Included:
1 x M2838 3600KV All Black Waterproof Brushless Motor
1 x M35A Waterproof ESC
