Description
Racerstar 3660 Brushless Waterproof Sensorless Motor 80A ESC For 1/8 1/10 Short Course Rally Car Random Blue/Black Color
The Racerstar 3660 Brushless Waterproof Motor and 80A ESC set is engineered for optimal performance in 1/8 and 1/10 RC cars. The motor features a robust 4-pole, 12-slot design with CNC machined 6061 billet aluminum heatsink can, ensuring high torque and efficiency. It incorporates high purity copper windings and ABEC 5 oversized bearings for maximum RPM and reliability. The ESC is designed for sensorless brushless motors, offering excellent start-up, acceleration, and linearity. It includes multiple protection features such as low voltage cut-off, overheat, and throttle signal loss protection. This set provides a universal fit for all 1/8 and 1/10 brushless cars, delivering precision and durability for RC enthusiasts.
Description:

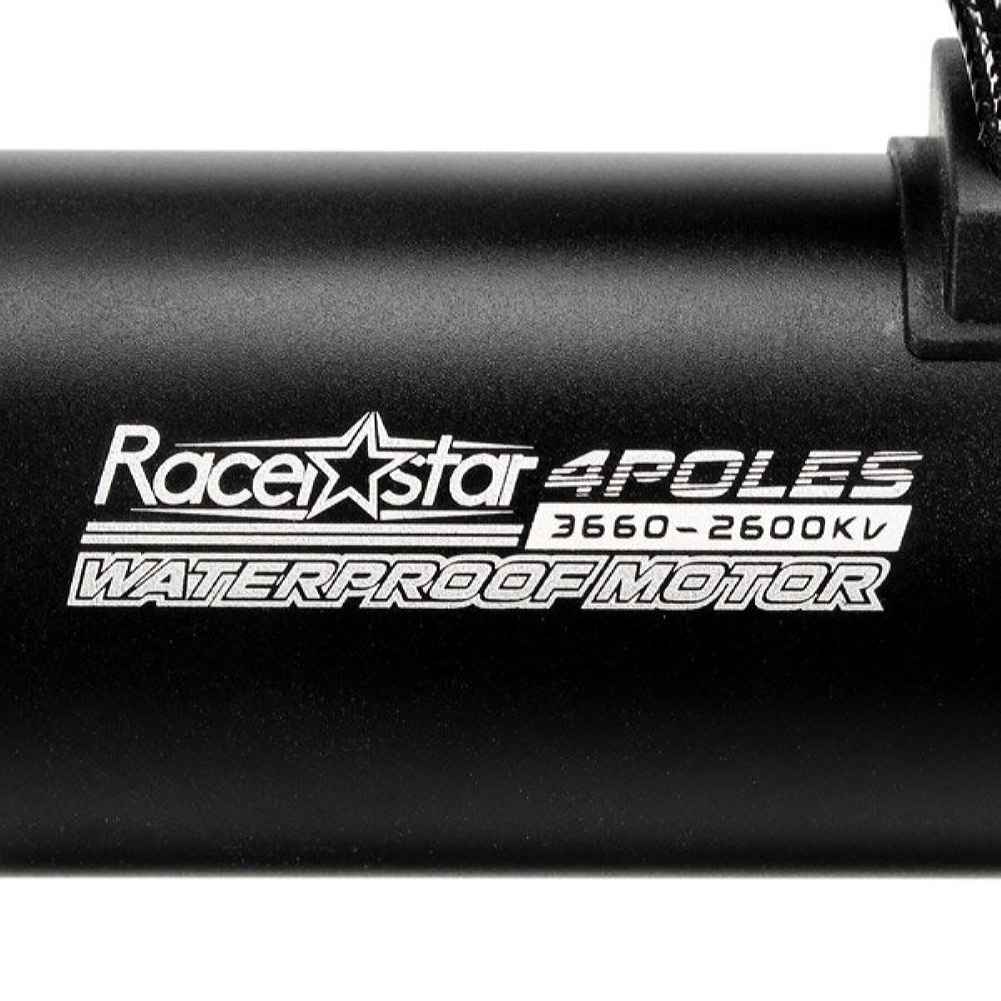

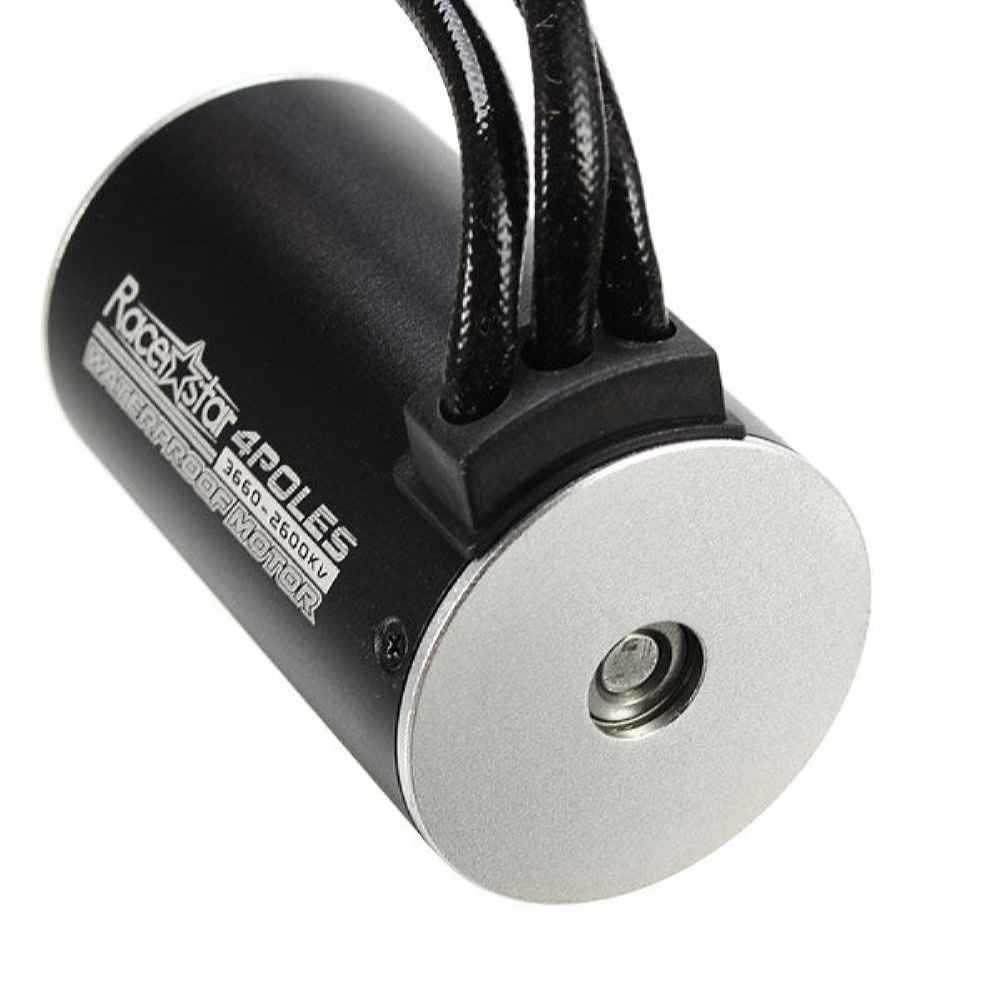

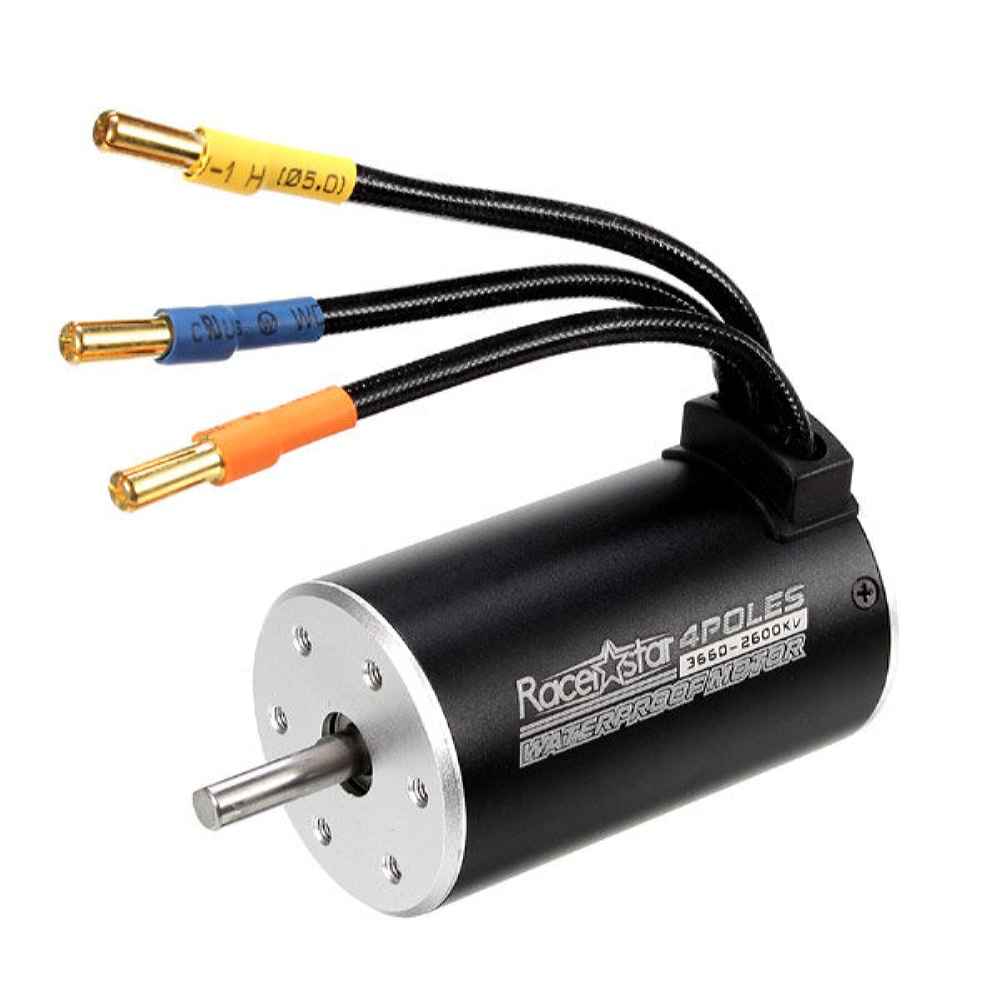

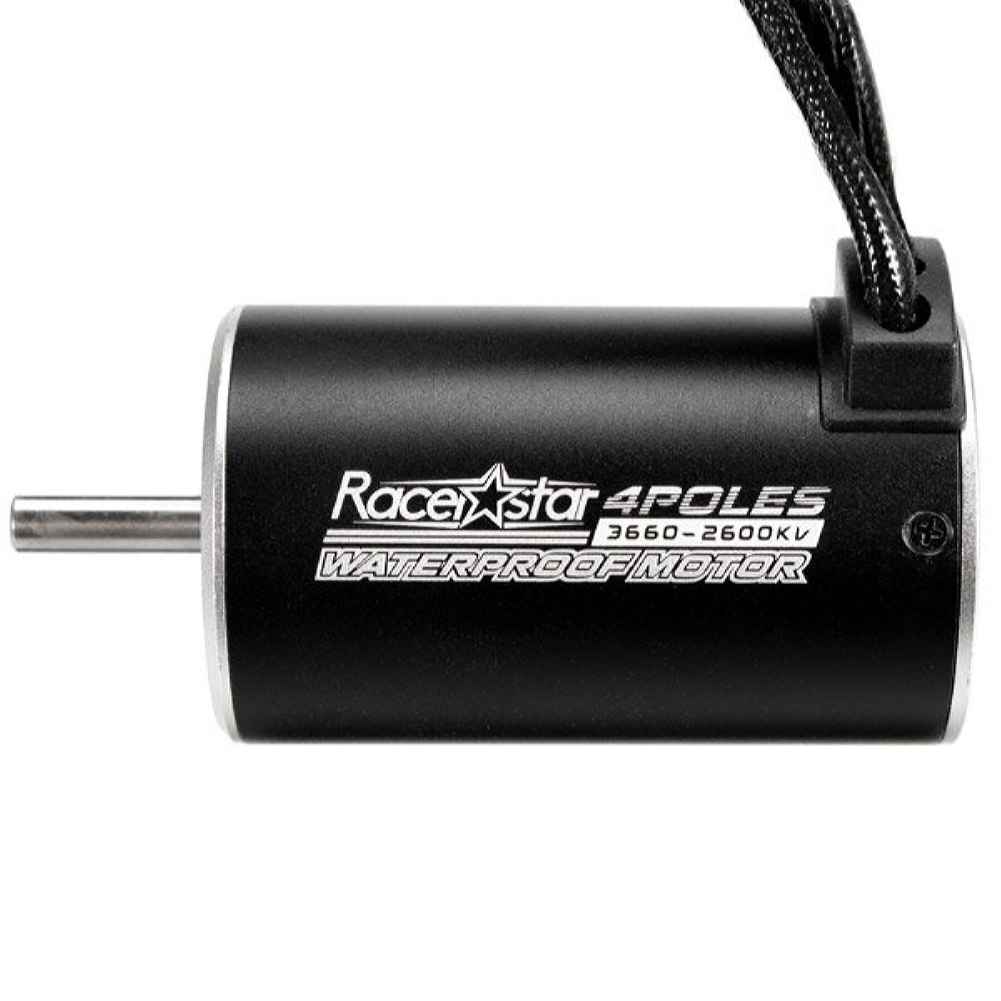

Motor Features:
– 4 pole 12 slot hi-torque motor design
– CNC machined 6061 billet aluminum heatsink can
– High purity copper windings maximizes efficiency
– High RPM ABEC 5 oversized bearings
– Universal fit, fits all 1/8, 1/10 brushless cars
– Precision balanced rotor, smoothness for best reliability and maxium RPM
– Stator- super thin 0.2mm laminations
– Removalbe/replaceable rotor
– Precision engineered for maxium energy coversion
Motor Specification:
Max Power: 1200W
Max Voltage: 18V
Max Amps: 66A
Rotor Poles: 4
Max RPM: 60K
Length: 60mm
Diameters: 36mm
Weight: About 195g

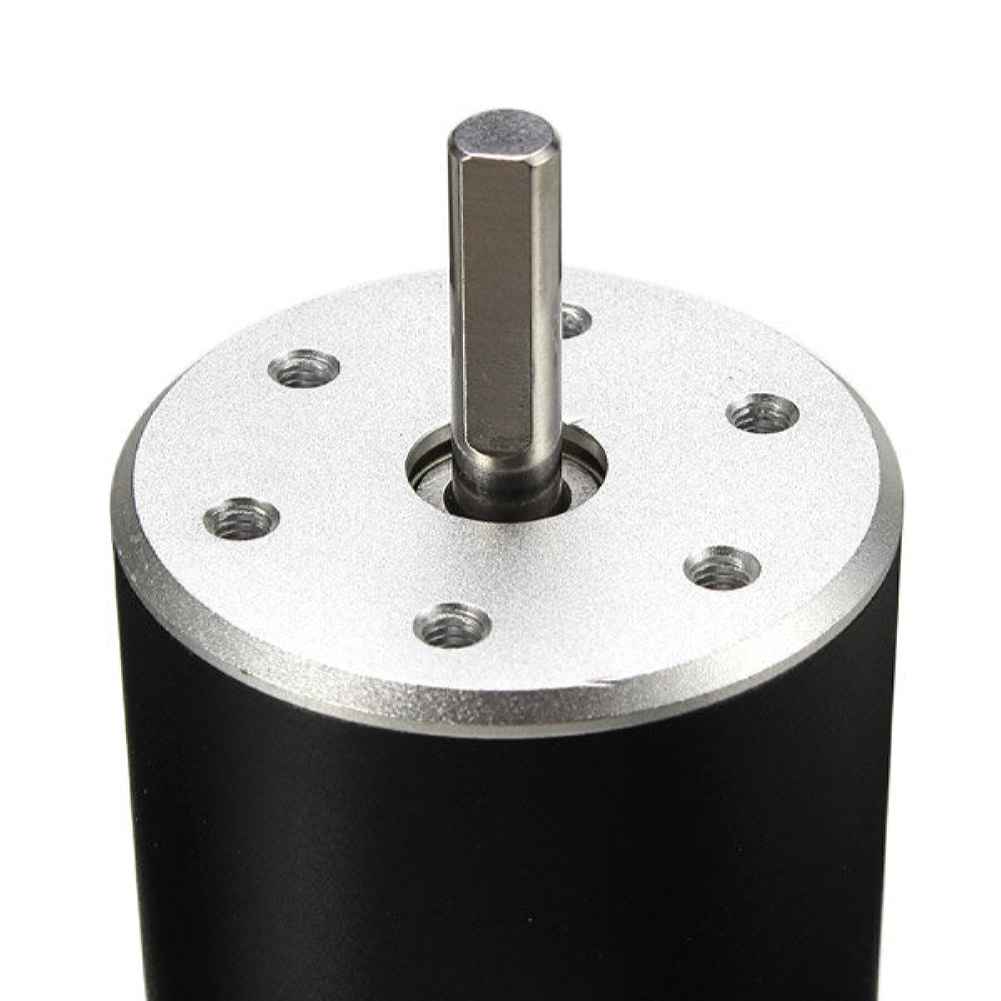

Shaft: ?5mm
Length of Extend Shaft: 17mm

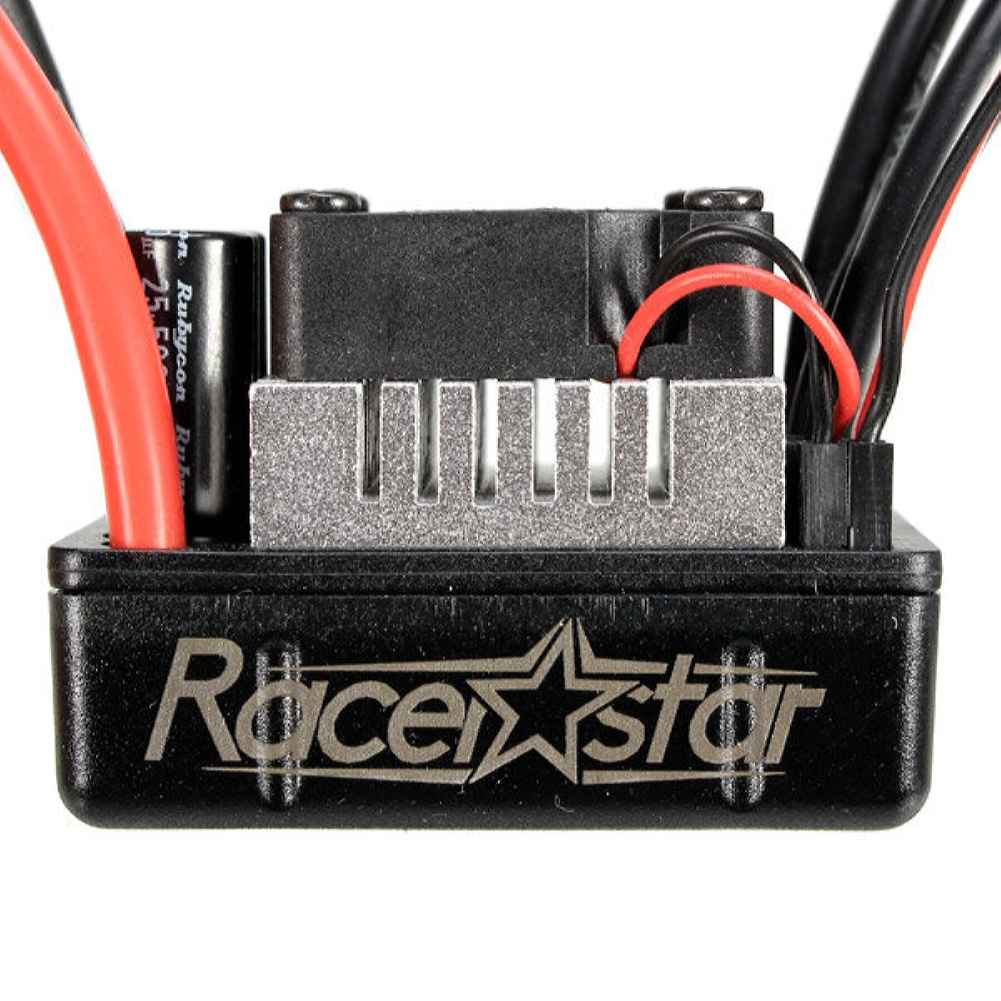

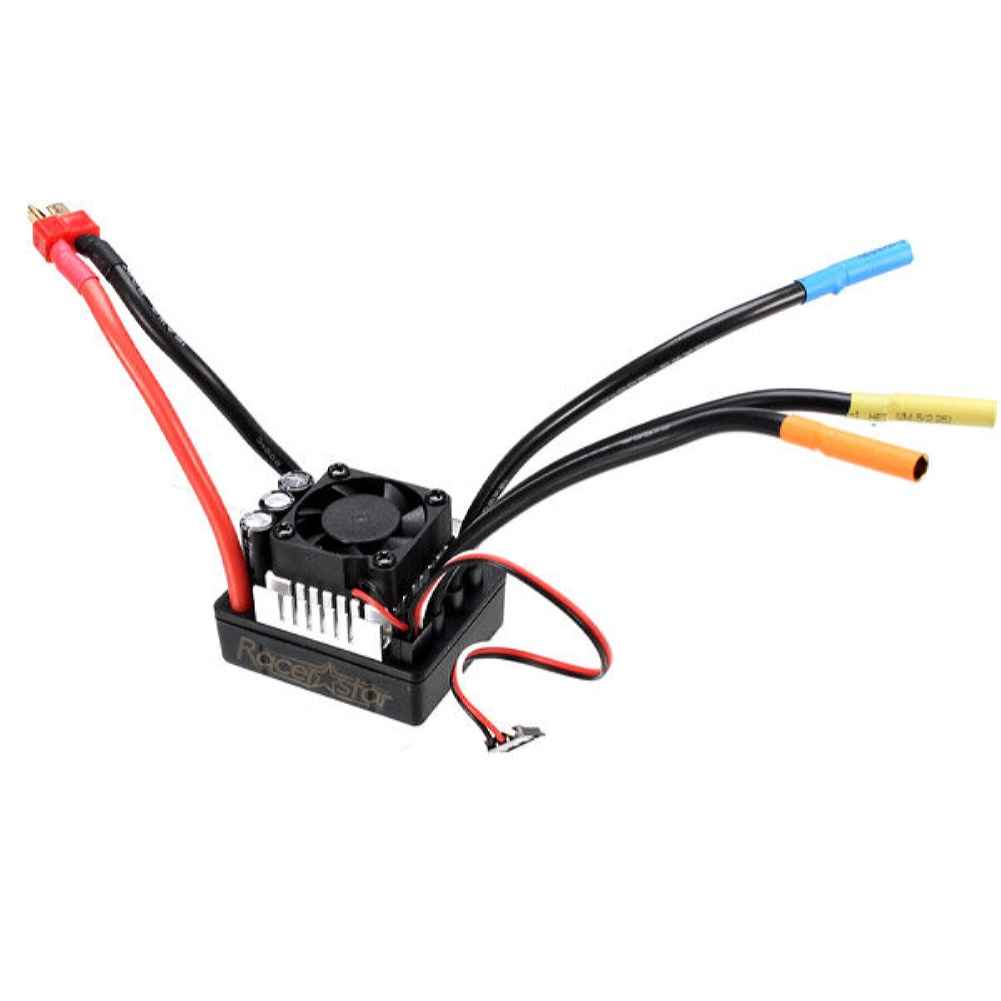

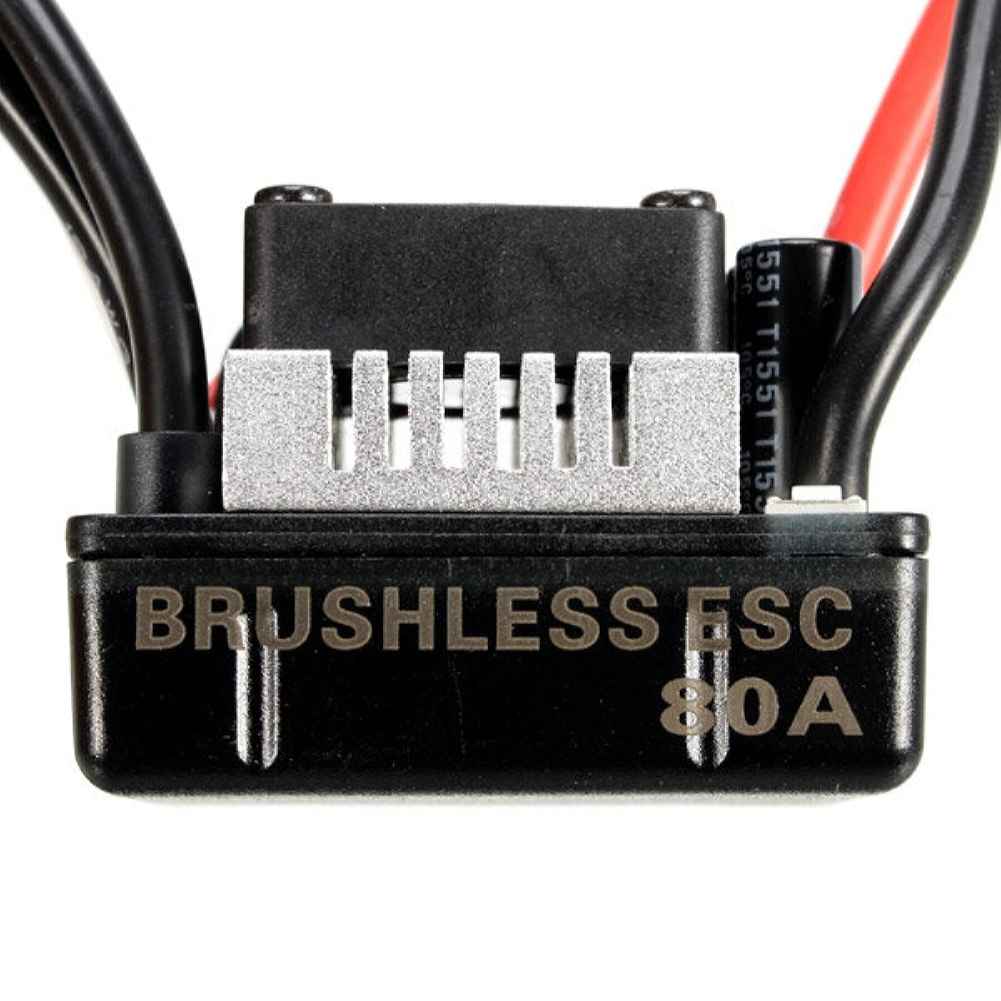

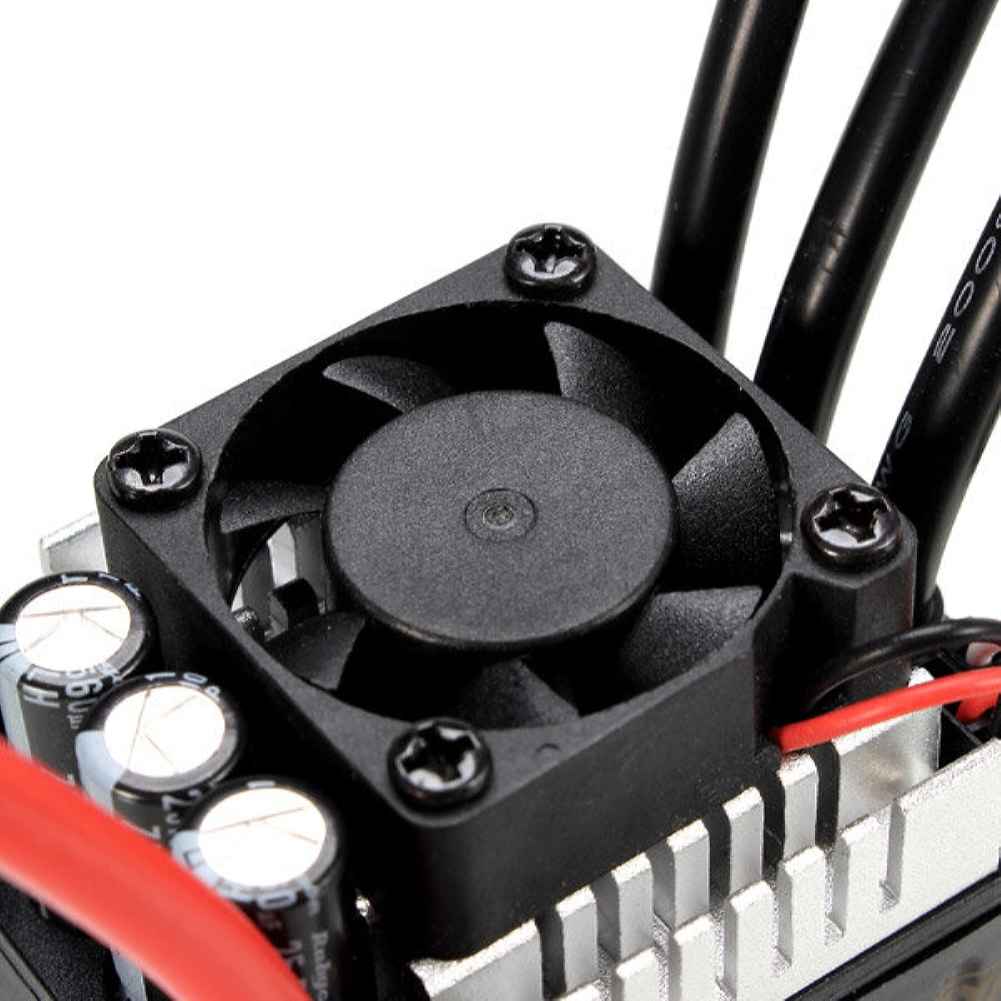

ESC Features:
– Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
– Compatible with sensorless brushless motor
– The strong resistant current capability, excellent heat dissipation
– Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
– Easily programmed and compatible with pocket-sized program card
ESC Specifications:
Instructions:
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC
5. When the connection of motor and battery is finished, the motor emits ‘Beep-Beep’ tone
6. When the throttle stick is the neutral position, the motor re-emits ‘Beep-Beep’ tone
7. The ESC is workable
For ESC program card, please click
Package Included:
1 x Motor
1 x ESC
1 x Instruction
