Description

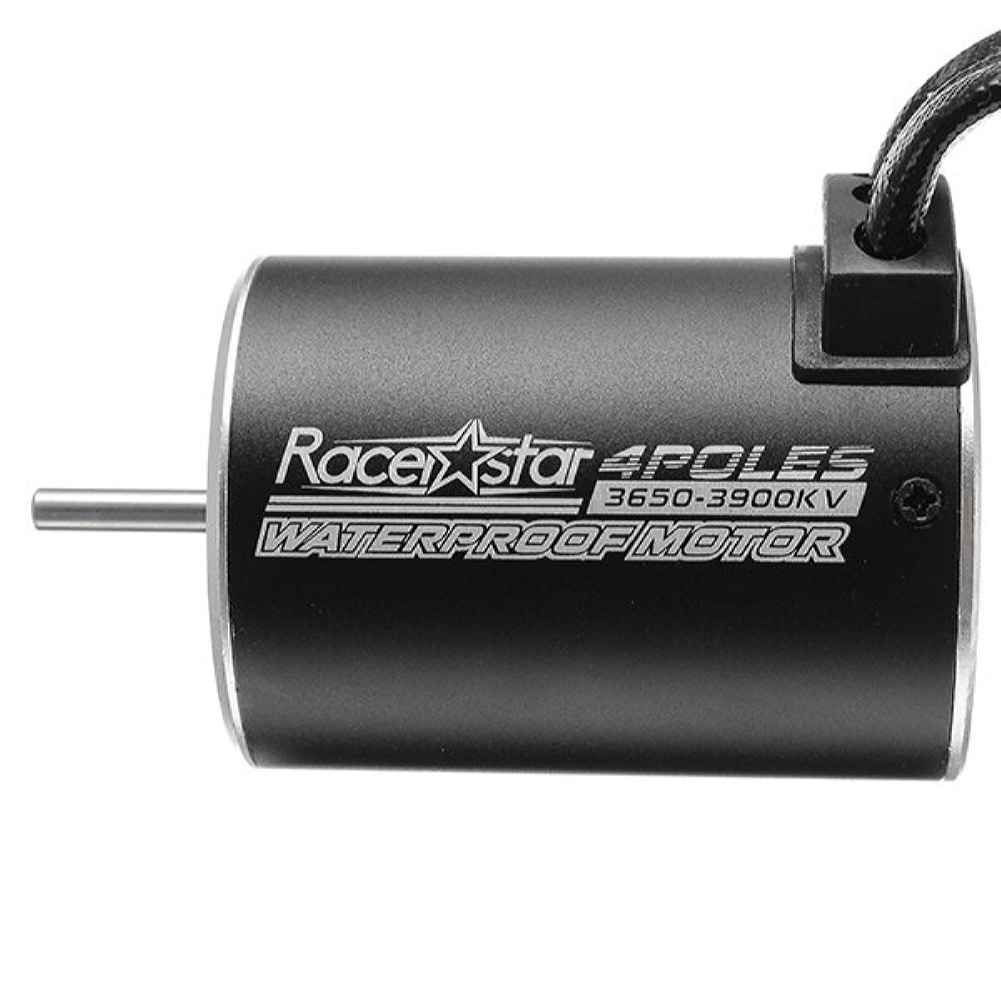

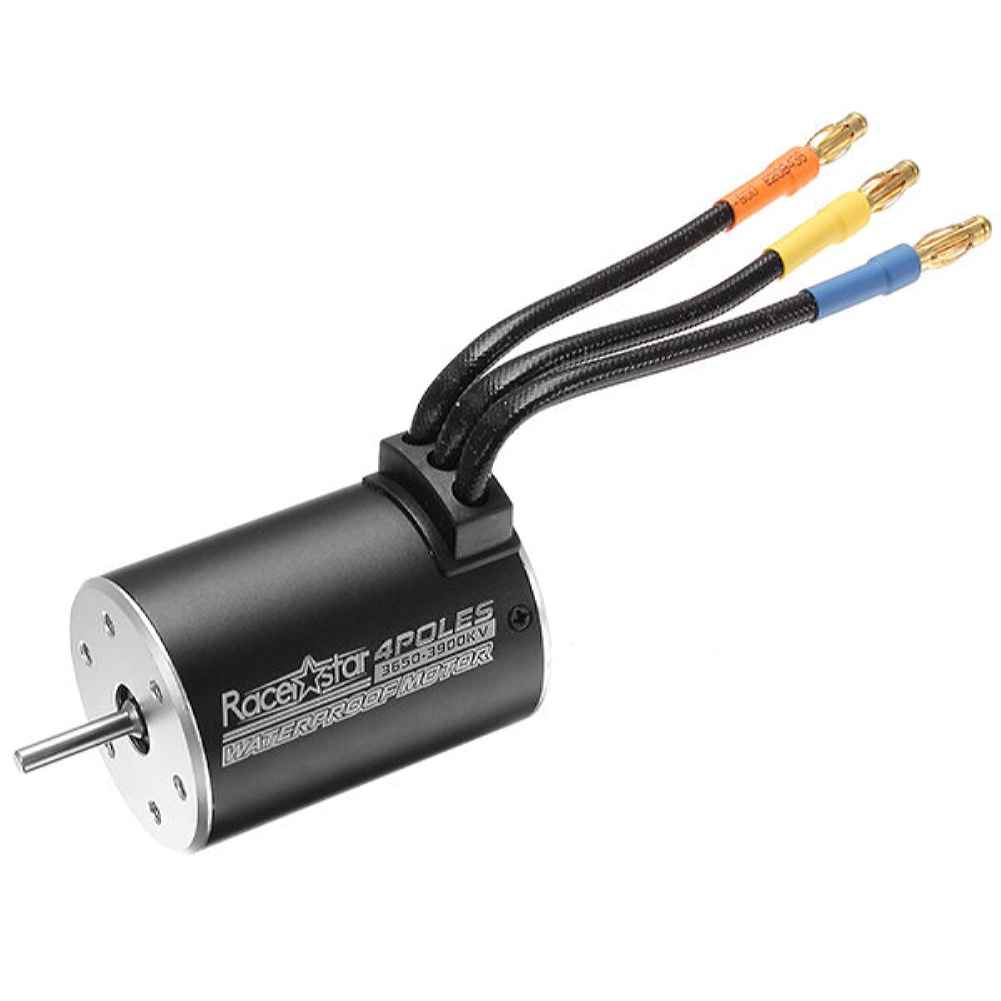

Racerstar 3650 Motor Brushless Waterproof Sensorless 1/10 RC Car Part 5900/4300/3900/2300KV
The Racerstar 3650 Brushless Motor is expertly designed for 1/10 scale RC cars, offering splash-proof protection and high performance. It features a 4-pole, 12-slot high-torque motor design with CNC machined 6061 billet aluminum heatsink for optimal cooling. The motor includes high purity copper windings to maximize efficiency and high RPM ABEC 5 oversized bearings for smooth operation. Its universal fit accommodates all 1/10 brushless cars with a multi-mounting system for M3 screws. The precision balanced rotor ensures reliability and maximum RPM, while the stator’s super thin 0.35mm laminations enhance energy conversion. The rotor is removable and replaceable, making maintenance easy.
Description:
Brand: Racerstar
Item: 3650 Motor
Waterproof Level: Splash-proof
Features:
– 4 pole 12 slot hi-torque motor design
– CNC machined 6061 billet aluminum heatsink can
– High purity copper windings maximizes efficiency
– High RPM ABEC 5 oversized bearings

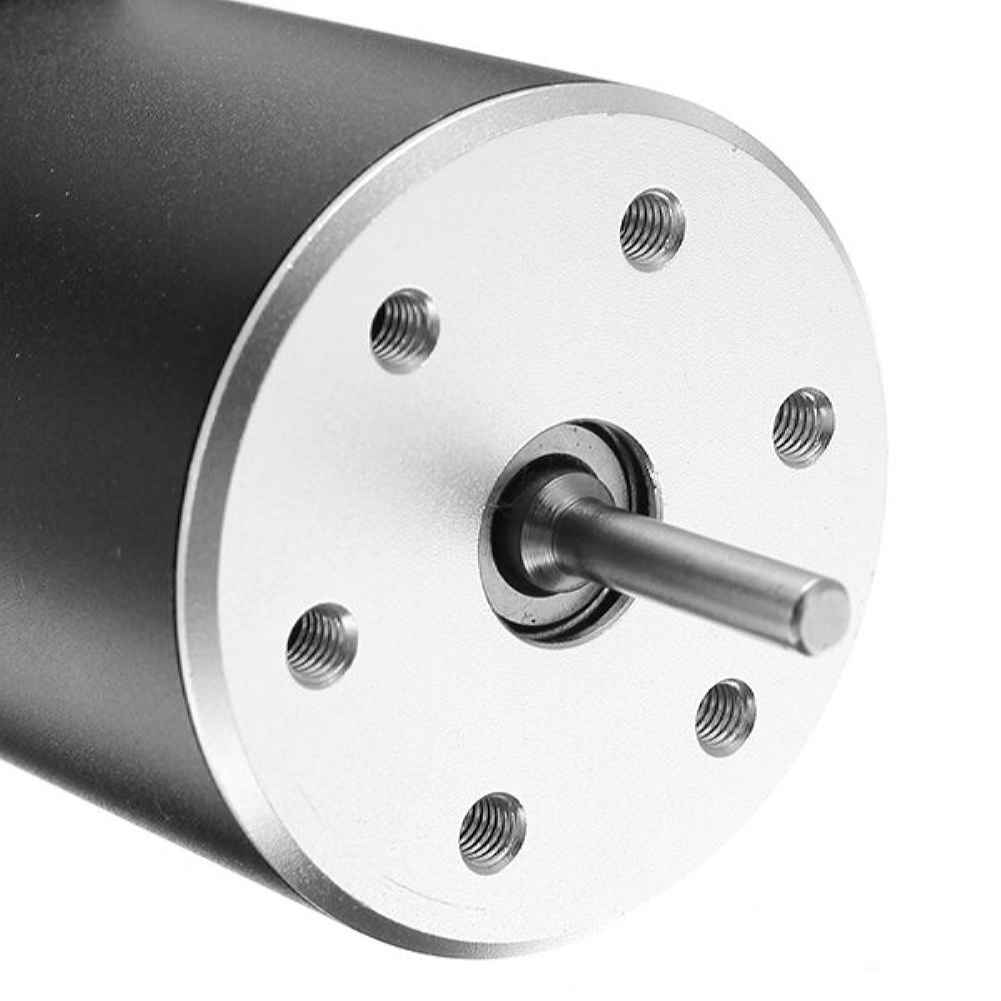

– Universal fit, fits all 1/10 brushless cars; multi-mounting system for M3 screws
– Precision balanced rotor, smoothness for best reliability and maxium RPM
– Stator- super thin (0.35mm) laminations
– Removalbe/replaceable rotor
– Precision engineered for maxium energy coversion
Specification:
Watts: 900
Max Voltage: 8.4V(5900KV), 9.6V(5200KV), 12V(4300KV), 13V(3900KV), 16V(3100KV), 22V(2300KV), 24V(2050KV)
Max Amps: 107A(5900KV), 94A(5200KV), 74A(4300KV), 69A(3900KV), 56A(3100KV), 41A(2300KV), 38A(2050KV)
Rotor Poles: 4
Max RPM: 50000
Length: 50mm
Diameters: 36mm
Weight: About 180g
Shaft: 3.17mm
Length of Extend Shaft: 15mm

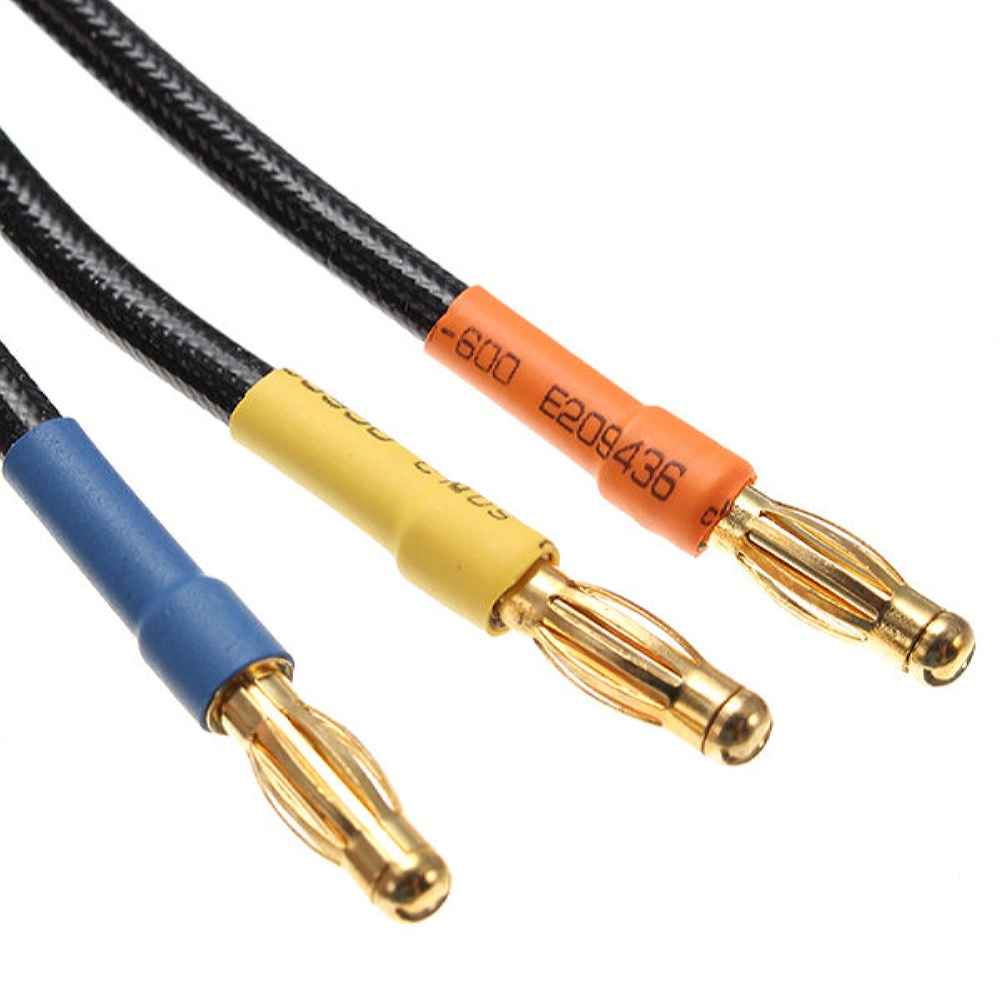

Connector: 4.0mm Gold
Note:
This motor usually works with 60A ESC.
For more information, please click here.
Package Included:
1 x Racerstar 3650 Motor Brushless Waterproof Sensorless 1/10 RC Car Part
