Description

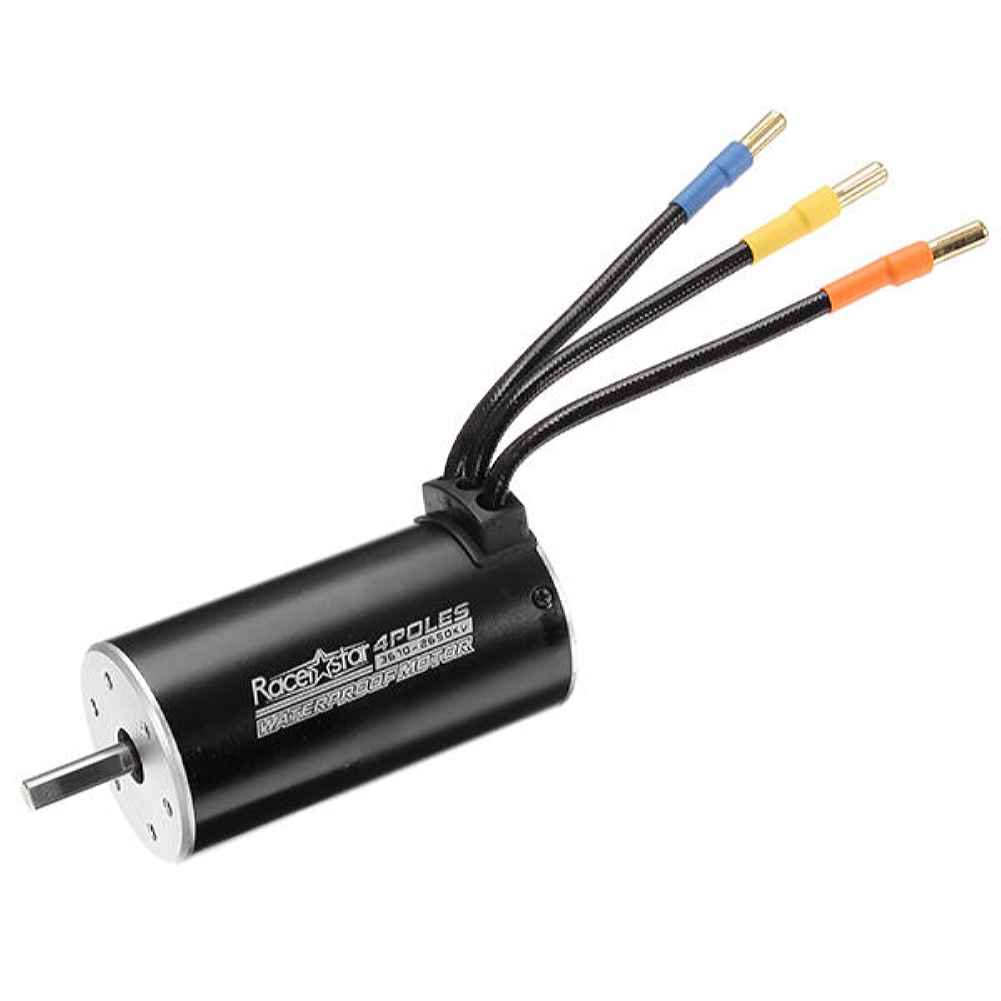

Racerstar 3670 Motor Brushless Waterproof Sensorless 1/10 RC Car Part 2650/2150/1900KV
The Racerstar 3670 Motor is a high-performance, splash-proof brushless motor designed for 1/10 scale RC cars. With a 4-pole 12-slot high-torque design, this motor ensures reliable and efficient power delivery. The CNC machined 6061 billet aluminum heatsink provides excellent heat dissipation, while the high purity copper windings maximize efficiency. Equipped with high RPM ABEC 5 oversized bearings, it offers smooth operation and maximum RPM. The precision-balanced rotor and super thin 0.2mm laminations enhance energy conversion. The motor features a removable and replaceable rotor for easy maintenance and universal compatibility with all 1/10 brushless cars.
Description:
Brand: Racerstar
Item: 3670 Motor
Waterproof Level: Splash-proof
Motor Features:
– 4 pole 12 slot hi-torque motor design
– CNC machined 6061 billet aluminum heatsink can
– High purity copper windings maximizes efficiency
– High RPM ABEC 5 oversized bearings
– Universal fit, fits all 1/10 brushless cars
– Precision balanced rotor, smoothness for best reliability and maxium RPM
– Stator- super thin 0.2mm laminations
– Removalbe/replaceable rotor
– Precision engineered for maxium energy coversion
Motor Specification:
Brand: Racerstar
Max Power: 1600W
Max Voltage: 24V
Max Amps: 66A
Rotor Poles: 4
Max RPM: 60K
Length: 70mm
Diameters: 36mm
Weight: About 275g
Shaft: ?5mm
Length of Extend Shaft: 17mm
Note:
If you use this motor with 120A ESC for 1/10 RC car, it would be better that you use 4s Lipo.
If you want to use 6s Lipo, please use with Racerstar 4068 motor or 4076 motor.
For more information, please click here.
Package Included:
1 x Racerstar 3670 Motor
