Surpass Hobby Waterproof F540 V2 3650 Sensorless Brushless Motor with 60A ESC for 1/12 1/14 RC Brushless Cars Tamiya TT-02

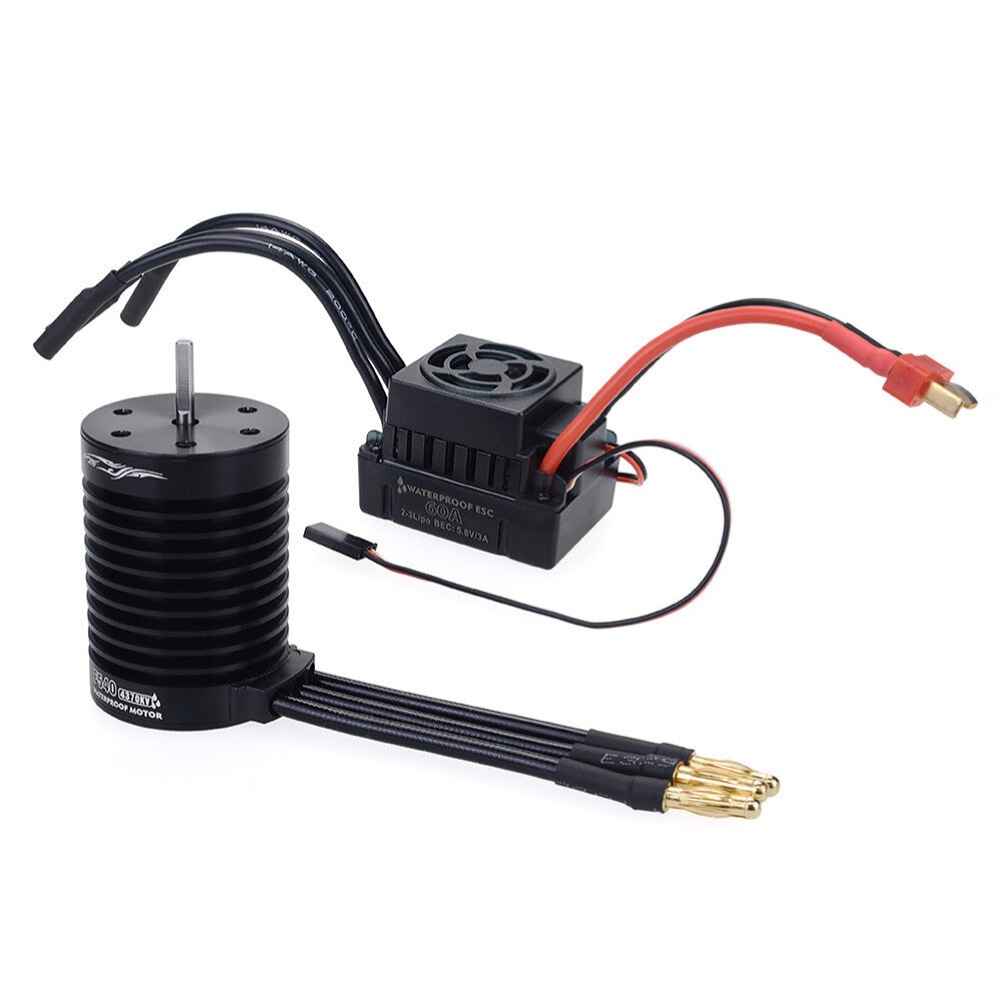

The Surpass Hobby F540 V2 3650 Sensorless Brushless Motor paired with a 60A ESC is designed for 1/12 and 1/14 RC brushless cars, including the Tamiya TT-02. This motor and ESC set features a robust metal and plastic construction and comes in a sleek black color. The motor measures 50mm in length with a 36mm diameter, while the ESC dimensions are 51.5mm x 38.5mm x 38.5mm. With a maximum voltage of up to 17V and a burst current of 360A, this set delivers high performance. Please note that some parts may need to be changed for installation on certain models.
Attention:If you want to install on the title cars list,you need to change some parts,it may can not be directly installed
Description:
Item Brand:Surpass Hobby
Item Number:F540 V2(F540/9T, F540/12T)+60A
Item Name:RC car motor +esc set
Material:Metal and plasticColor:Black

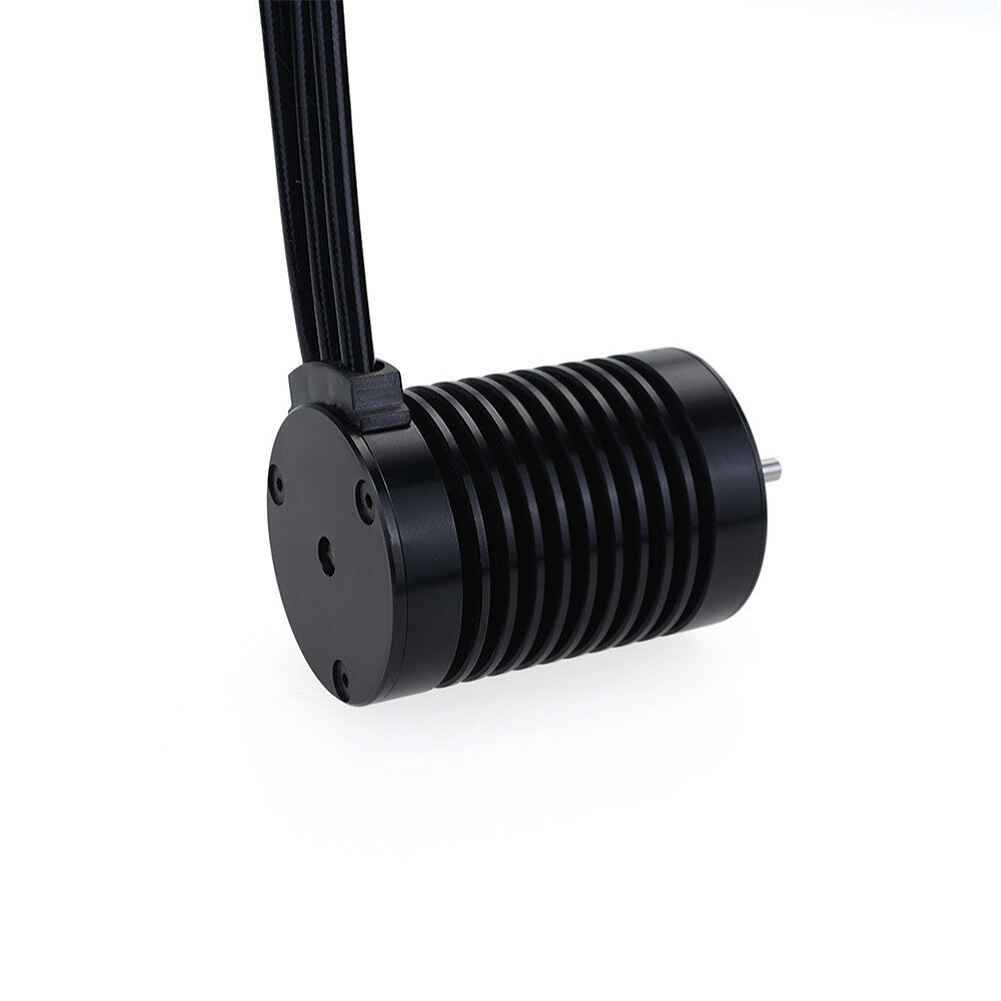

The Size of the Motor:Length 50mm,diameter 36mm,shaft diameter is 3.175mm,length of extended shaft is 15mm
The Size of the ESC:51.5*38.5*38.5mm
The Weight of the Motor/ESC:About 125g/76g
Recommendating Program Card:product id:1057127
Fit For:1/12 1/14 brushless rc cars

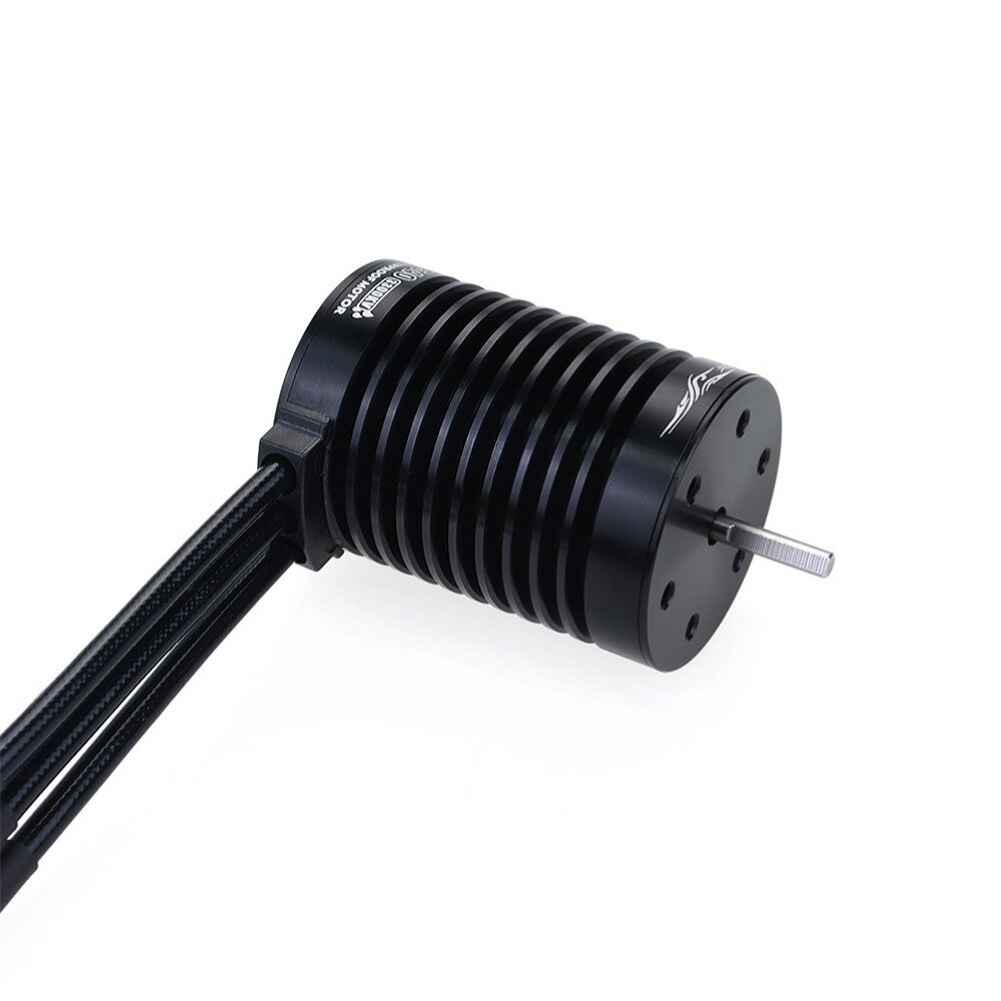

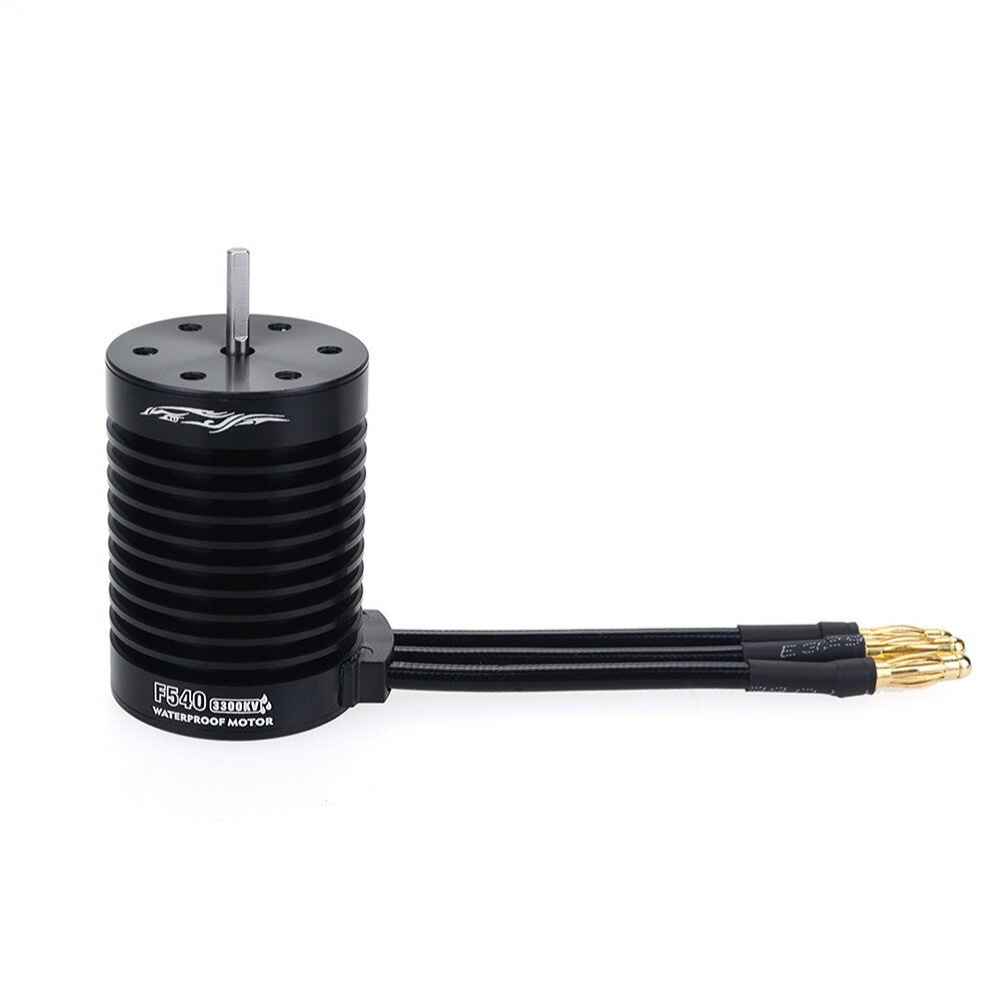

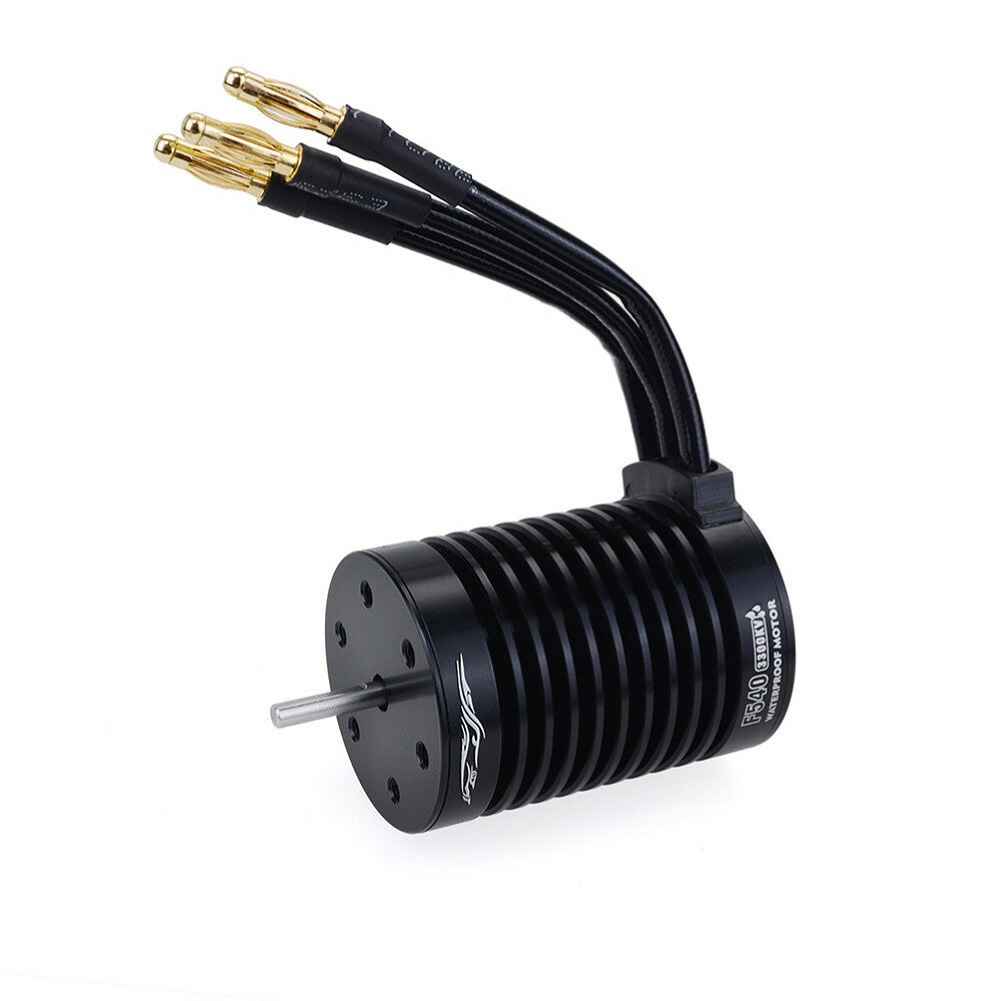

The Specification of the Motor:
KV:4370KV/3300KV
Watts:800
Max Voltage:<12V/<17VMax Amps:66A/47A
Rotor Poles:4
IO:3.2A/1.9A
Resistance:0.0185/0.0285
Max RPM:50000
Connector:4.0mm gold

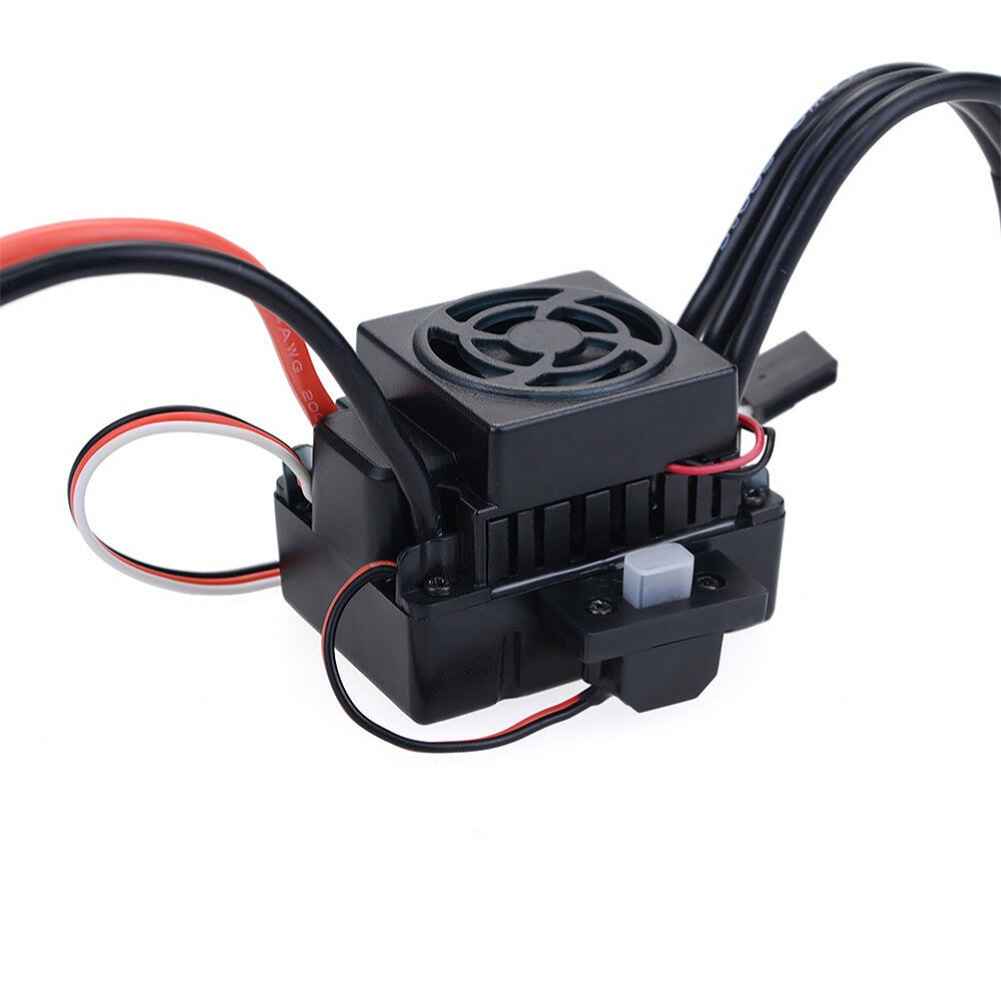

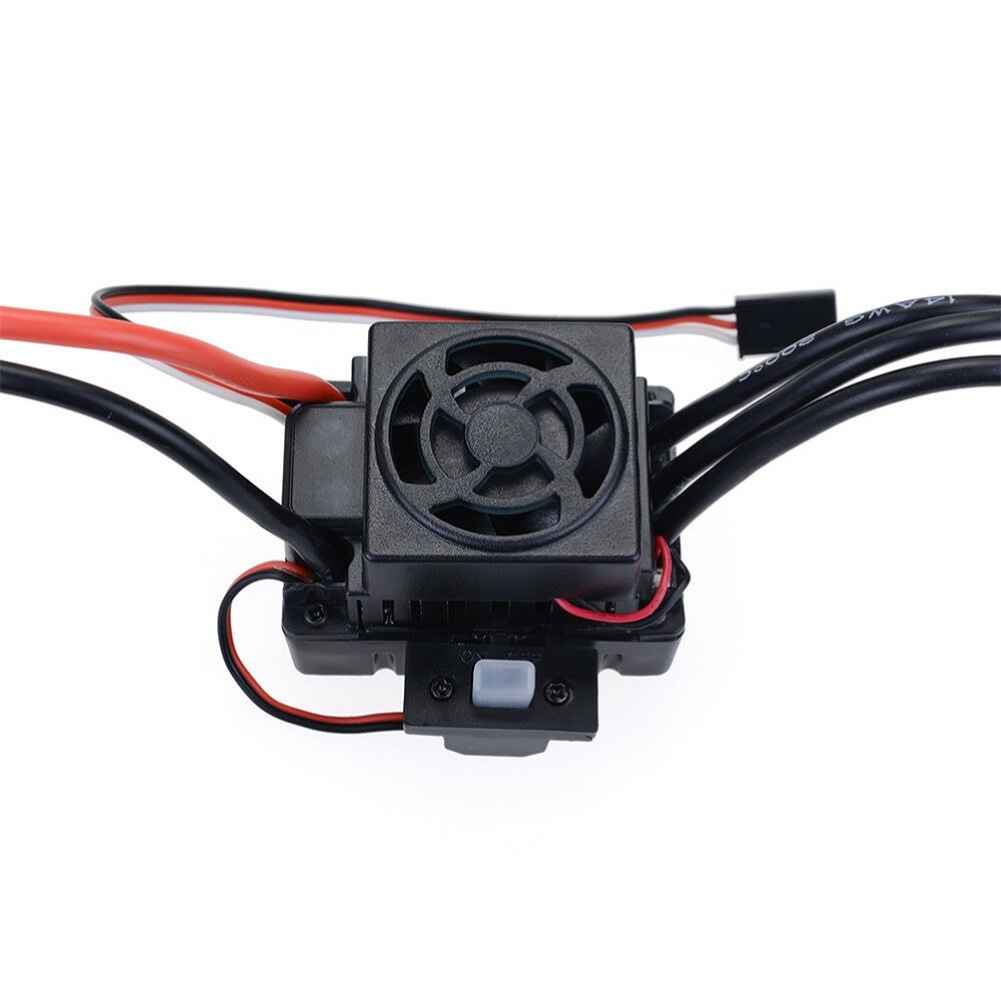

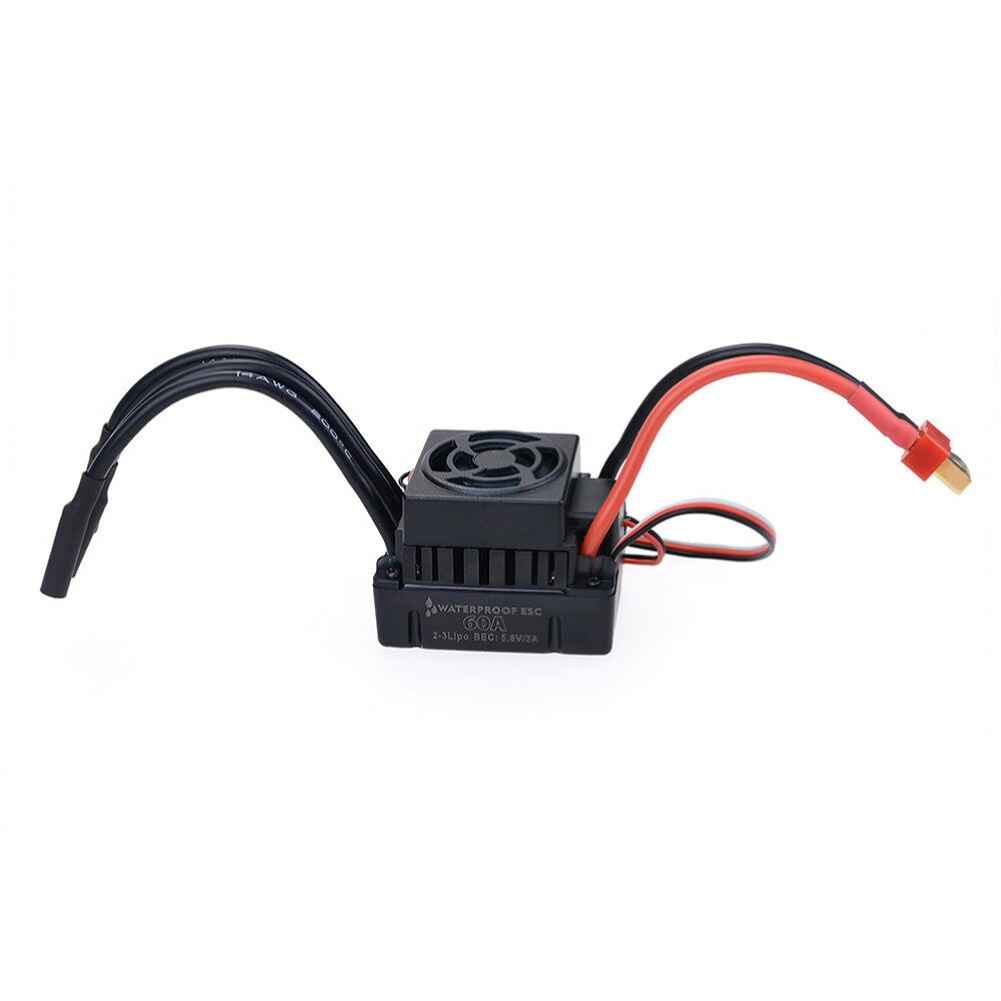

The Specification of the ESC:
Cont.Current:60A
Burst Current:360A
Motor Type:Sensorless Brushless Motor
For 6s Lipo or 6 cells NiMH
1.On-road 3660-size or smaller motor with the kv <4300
2.Off-road/buggy/monster 3660-size or smaller motor with the kv <3300
For 3s lipo or 9 cells NiMH
1.On-road 3660-size or smaller motor with the kv <3300
2.Off-road/buggy/monster 3660-size or smaller motor with the kv <2600
Suitable Car:1/10 car
Resistance:0.0007ohm
Battery:2-3 cells lipo/4-9 cells NiMH
BEC Output:5.8V3A(switch mode)
For the esc manual,please click here
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/12 1/14 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator – Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Package Included:
1 x F540 V2 Brushless Motor
1 x 60A ESC
1 x Manual
