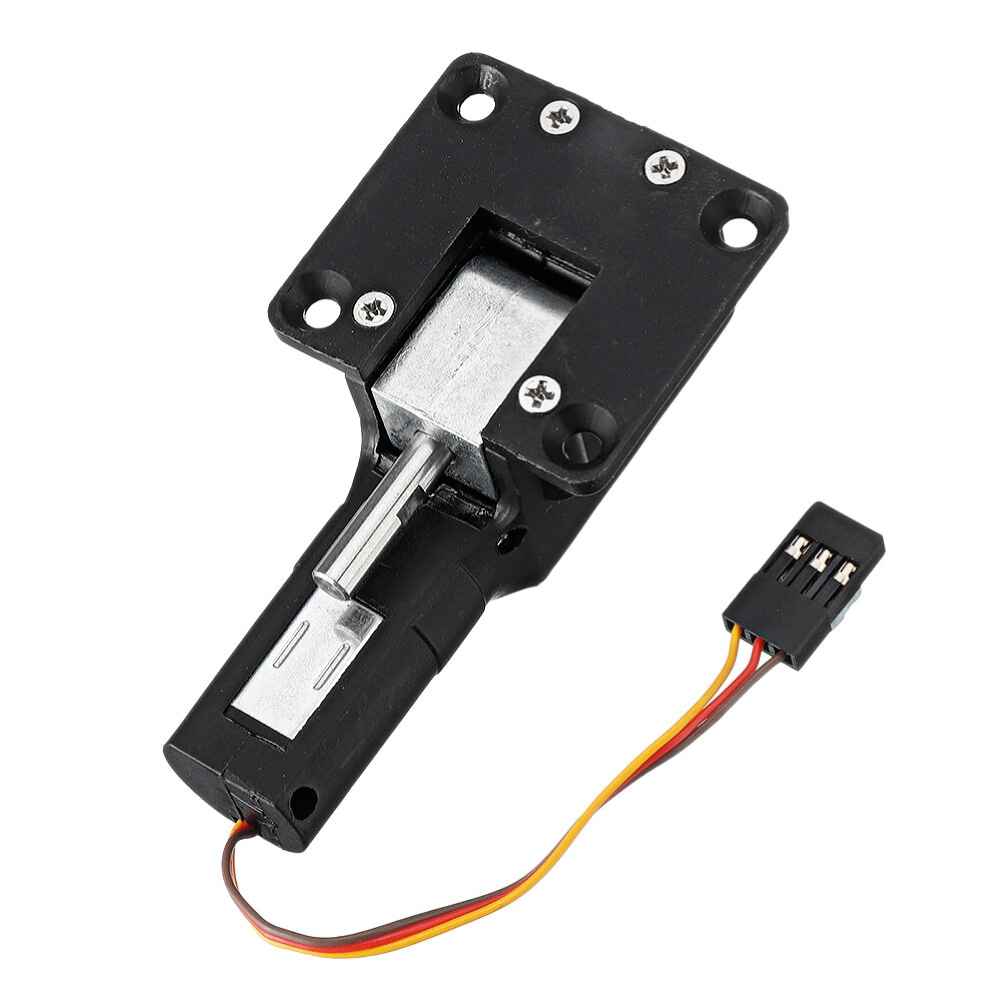

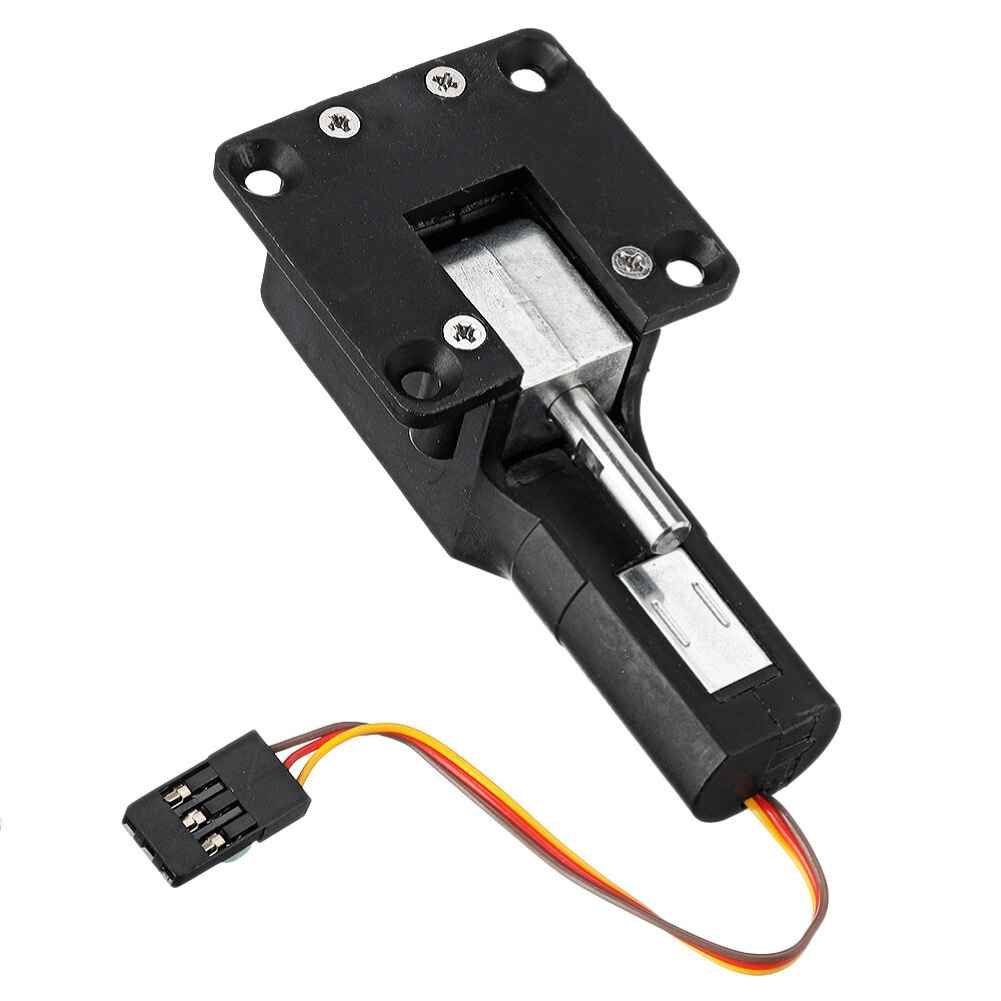

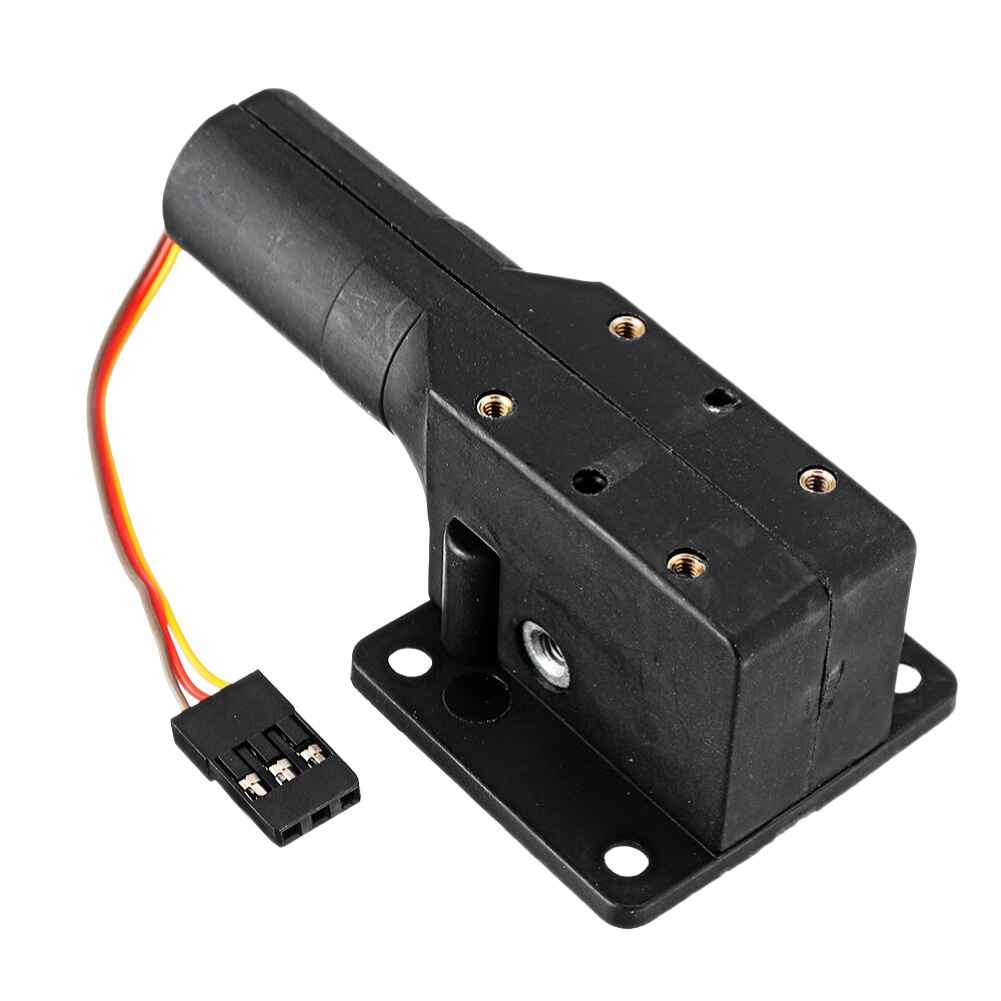

Metal Electric Retract Landing Gear Retractable Worm Steering CNC DIY for RC Plane RC Airplane Model
Enhance your RC airplane model with this high-quality metal electric retract landing gear. Designed for aircraft with a wingspan of 1000mm and weight up to 3KG, this gear features a CNC worm steering mechanism and a robust 4.0mm steel shaft. It operates efficiently at a voltage of 4.8V to 6.0V, providing a speed of 1.8s/60 with a torque of 2.5kg-cm. The miniature PCB integrated motor includes built-in overcurrent protection and a 10-second automatic power-off feature to prevent circuit overload. This retractable landing gear is equipped with a double shock absorption design to safeguard the gears during operation. Note that wheels and struts are not included.
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Specification:
Appearance size: 65.8 * 35.1 * 25.1mm
Speed: 1.8s/60‵
torque: 2.5kg-cm
Operating voltage: 4.8V-6.0V
Operating angle: 90 ‵ (at 1000 汪 2000 譙sec)
Signal cable: brown/red/orange (JR universal plug)
suitable for aircraft with a weight of less than 3KG

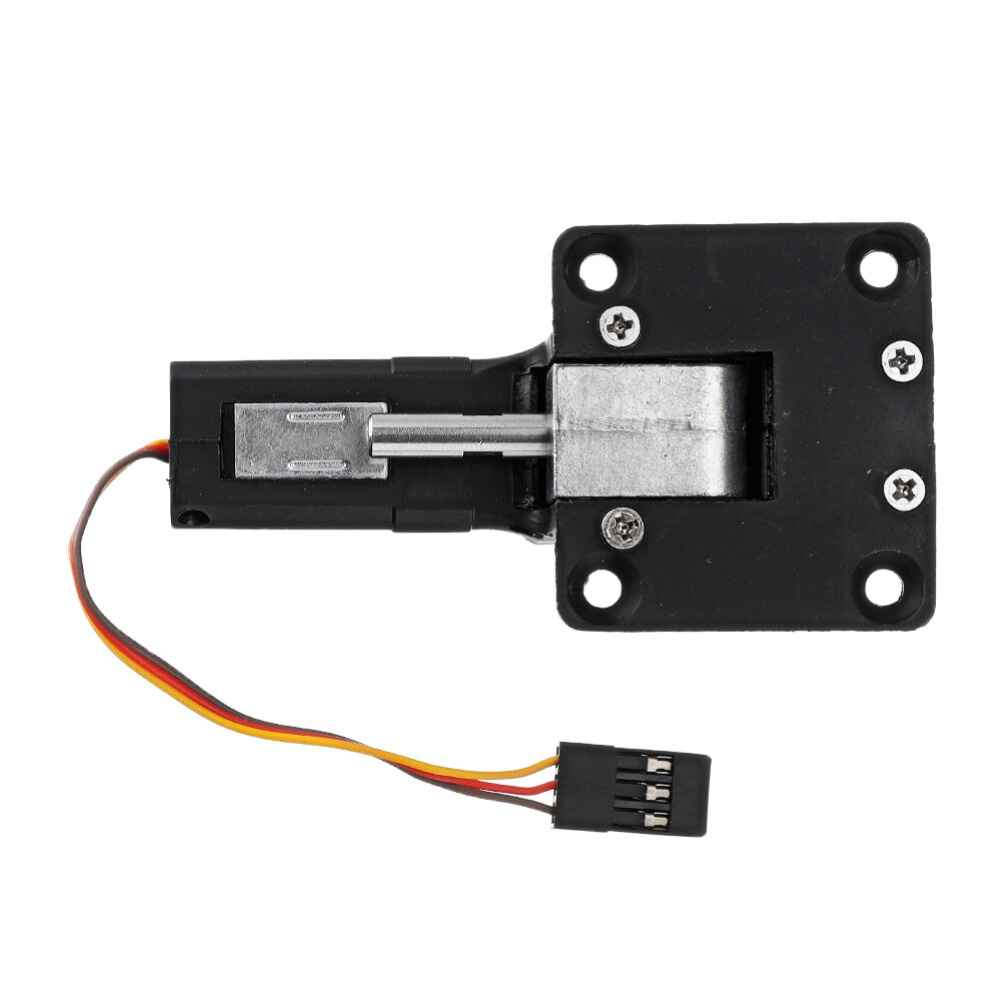

Back retractable landing gear:
Weight: 45g
Shaft: 4.0mm

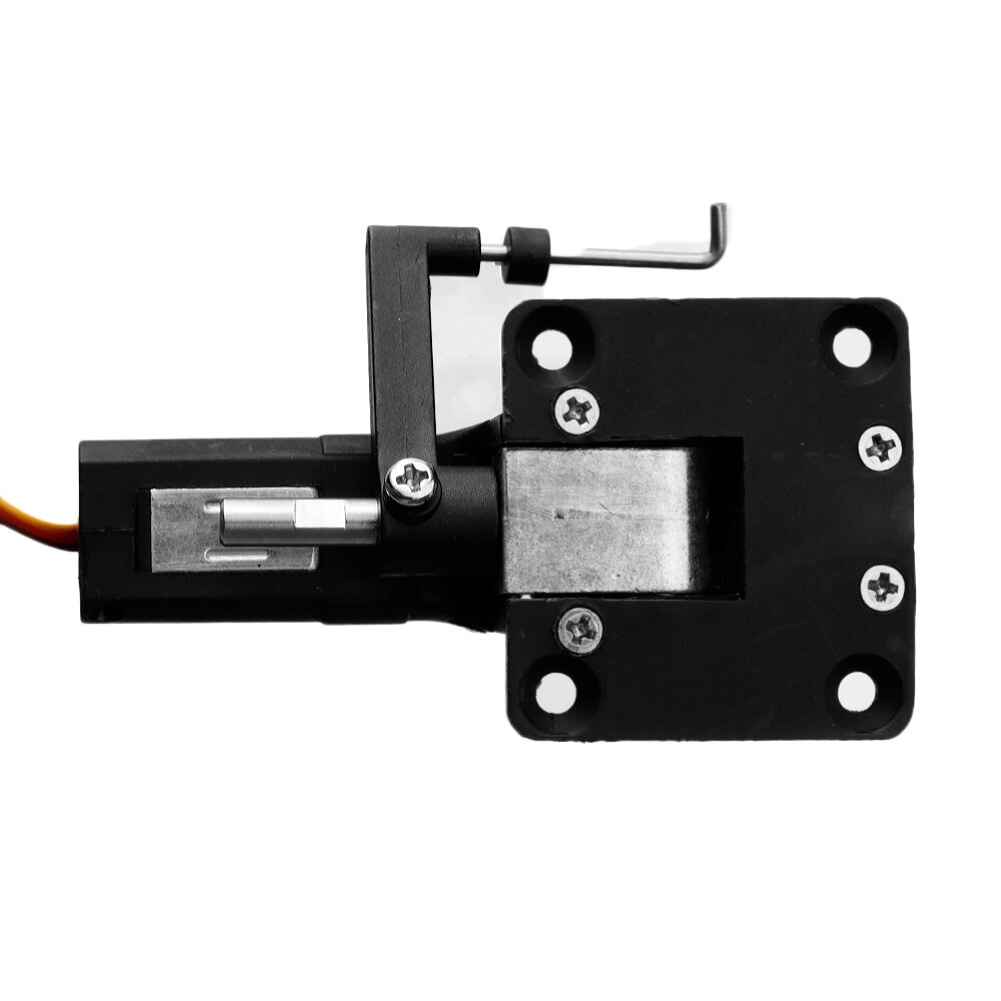

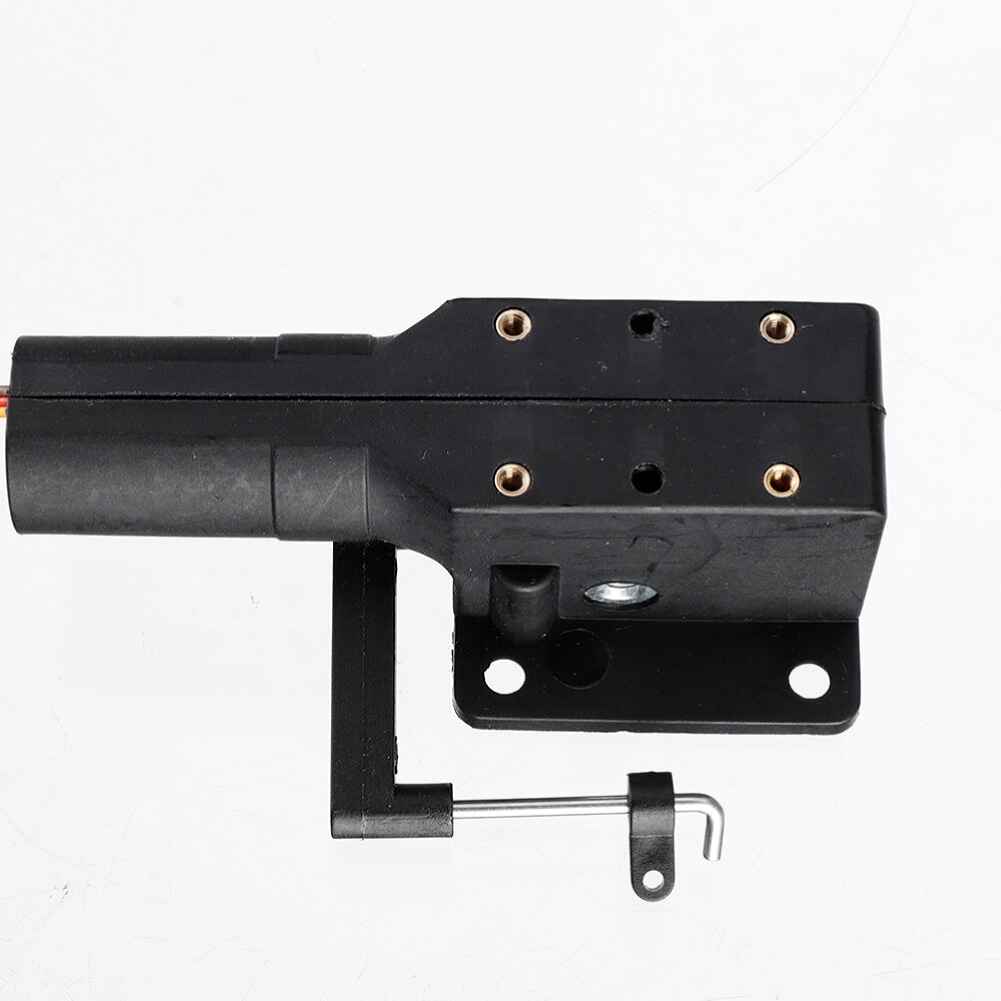

Front retractable landing gear:
can steering of servo(other add servo)
Shaft: 4.0mm
retractable landing gear.can use the channel
10sec auto power off
Features:
1. Miniature PCB integrated motor with built-in overcurrent protection Suitable for 1000mm wingspan and 3.0 kg weight aircraft
2.10 seconds automatic power-off protection design to prevent overload from burning out the circuit
3. Double shock absorption design completely protects gears
4. 4.0mm steel shaft

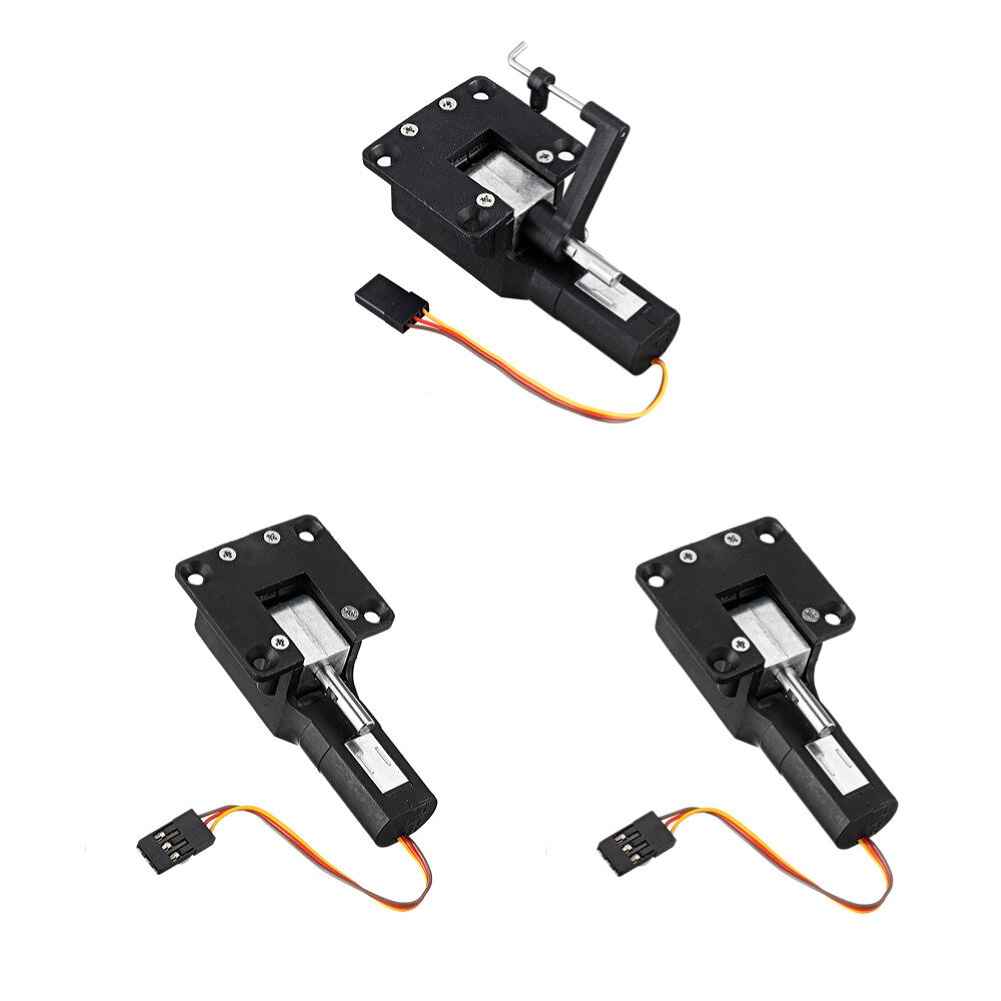

Package Included:
1 x Front retractable landing gear
OR
1 x Back retractable landing gear
OR
1 x Front retractable landing gear
2 x Back retractable landing gear
