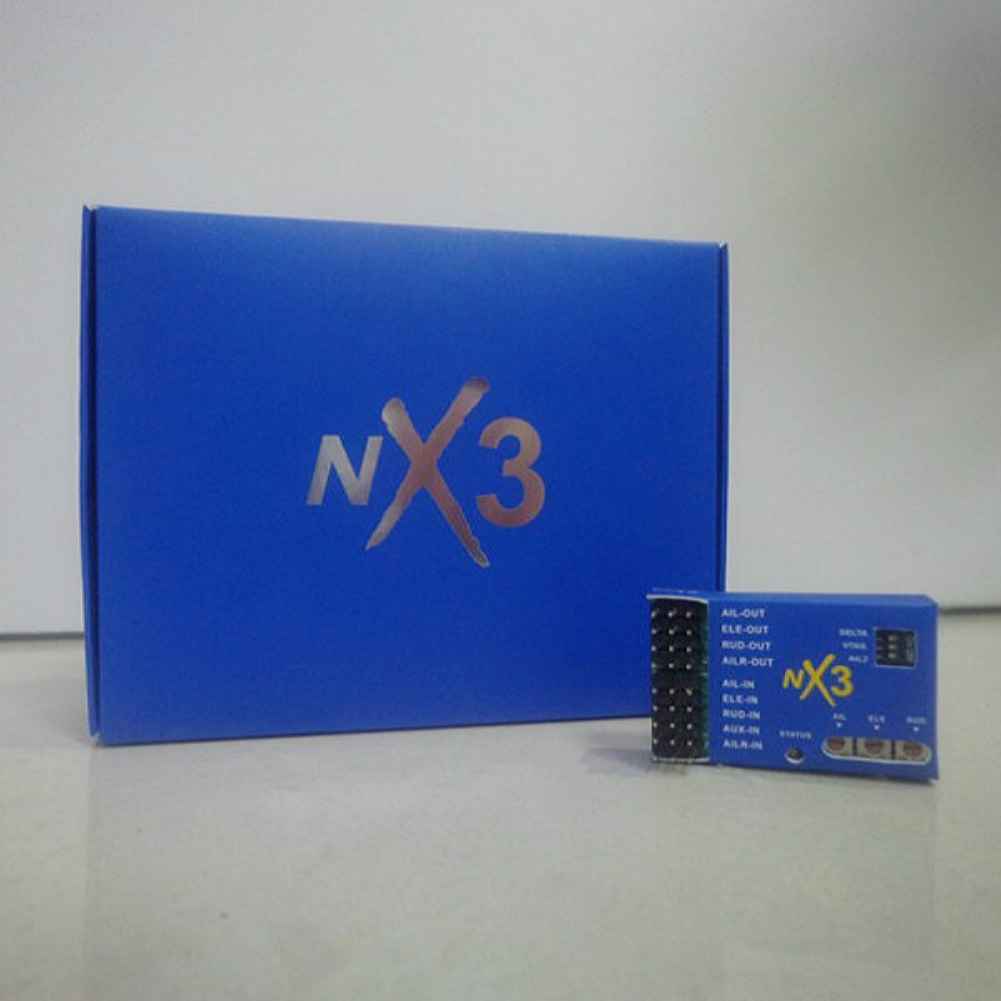

NX3 3D Flight Controller Gyroscope Balance for Fixed-Wing RC Airplane, Supports Multiple Flight Modes

Description

NX3 3D Flight Controller Gyroscope Balance For Fixed-wing Aircraft RC Airplane

The NX3 3D Flight Controller is designed for fixed-wing RC airplanes, providing enhanced stability and control. It supports four model types: single aileron, dual ailerons, flapperons, and delta and V-tail configurations. With three flight modes〞Rate, Hold, and Gyro Off〞users can customize their flying experience. The controller features two gain control methods: Master Gain from the radio and Independent Axis Gain from the onboard variable resistor. It includes an intuitive LED status indicator and requires a quick setup to re-learn the center position after installation or adjustments. This lightweight controller is easy to mount, ensuring optimal performance for RC enthusiasts.

NX3 PRO flight controller, Click Here
Description:Voltage Range: 5-6V DC.Dimensions: 40mm x 25mm.
Weight: 6.5g.
Feature:
1.Four Model Types supported: single aileron, dual ailerons , flapperons, for delta and vtail.
2.Three Flight Modes supported:官a. Rate Mode ,Rate Mode for offset correction.官b. Hold Mode ,HOLD mode for attitude hold官c. Gyro Off Mode,transsmiter control the plane directly.3.Two kinds of Gain Control Method supported:Master Gain from the radio, Independent Axis Gain from the Variable resistor on the Controller board.4.Using superior algorithm, Bring a more comfortable and more sensitive sense of control .
VERY IMPORTANT :
The Controller has to re-learn center position after installation,or replacing a new radio system, or making a trimming(or Sub-Trim)change within the transmitter, otherwise the servos may move to one side automatically when switching to hold mode.To do this,just quickly flip the flight mode switch twice between rate mode and hold mode within 1 second!
Status LED Description:
LED OFF: NX3 in Gyro Off Mode.LED ON: NX3 in Rate Mode.LED flash: NX3 in Hold Mode.
WARNING :PLEASE READ THE FOLLOWING STEPS VERY CAREFULLY BEFORE YOU START TO INSTALL A NEW PLANE!
Step 1:Mounting
The board need to be firmly mounted near the center of the gravity of the plane by using the double-tape provide.Please make sure the longer side of the board is along with the heading direction.After mounting ,please check again if the board is attached firmly in the plane.
Step 2:Model Type SelectionThe DIP switches set the WING mode,Please match the type of your aircraft with Normal Airplane(single aileorn),Normal Airplane(dual aileron for flapperon), for Delta-wing (Flywing-wing)and V-tail according the pictures 1 to 4. if you change any DIP switch settings, power cycle the device to enable the new setting to take effect.Step 3:WiringPlease connect the control board and the radio receiver using wires provide according the pictures 1 to 4.Pay attention to the color of wires to avoid anti-plug.Step 4:Switch and Master Gain Channel ConfigureAssign a 3-pos switch to the channel which connected the pins∫IN-4∫(AUX-IN) for switching the flight mode in flight.When use a 2-pos swtich,you can only switch between Rate Mode and Hold Mode,So you can not switch to Gyro Off Mode.It will be set to Rate Mode by default if switch channel is not connected to the board. If your transsmiter has Travl Adjust Function(End Point Adjust Function),you can change the switch channelㄙs End Point to change Master Gain.
Step 5:Gyro direction and Gyro Gain configureBefor flight, you have to verfy that the gyro compensation direction is OK, otherwise, it could lead to losing control or even crash during the flight!the VR gain POTs on the NX3 control the correction gain and direction for each of the pitch (ELE), roll (AIL) and yaw (RUD) axis.5 o’clock = max gain in one direction12 o’clock = zero gain7 o’clock = max gain in opposite direction
To perform the examination,power on the board,pick the plane up and check it by following the six steps below:
Step 6: re-learn center positionQuickly flip the flight mode switch twice between rate mode and hold mode within 1 second!Thanks for using NX3 Flight Controller. if u have any questions, plz feel free to contact clarencetuan.mat@gmail.com
Packing Included:1 x NX3 Flight Controller board1 x NX3 manual 5 x wires1 x double-side tape.

Package Included:
1 x NX3 Flight Controller board
1 x NX3 manual
5 x wires
1 x double-side tape
