KK2.1.5 PLUS KK2 Flight Control Board Flight Controller VTOL V-Tail Self-Balancing Aerobatics for FPV Racing Drone RC Airplane
The KK2.1.5 PLUS Flight Controller is designed for seamless integration in FPV racing drones and RC airplanes. This controller features an integrated power distribution board, on-board switch, and buzzer, ensuring an easy setup. Its advanced self-balancing capability provides smooth and stable flights, making it suitable for both novice and veteran pilots. Equipped with an Atmega module, a gyroscope from InvenSense Inc., and an accelerometer from Analog Devices Inc., this flight controller supports firmware updates for enhanced performance. The built-in LCD screen with four buttons allows for direct settings adjustments, eliminating the need for a computer unless performing a firmware update.
Overview:
The KK2.1.5 PLUS Flight Controller is equipped with an integrated power distribution board (PDB), on-board switch, and buzzer for streamlined installation and convenience.
The advanced self-balancing feature ensures smooth and stable flight, making it ideal for both beginners and experienced drone enthusiasts.
Powered by a reliable Atmega module and features gyro from InvenSense Inc., and accelerometer from Anologue Devices Inc.
The flight controller accepts firmware updates, offering compatibility with V1.19S1PRO or OpenAeroVTOL 1.5/1.6 for enhanced performance and features.

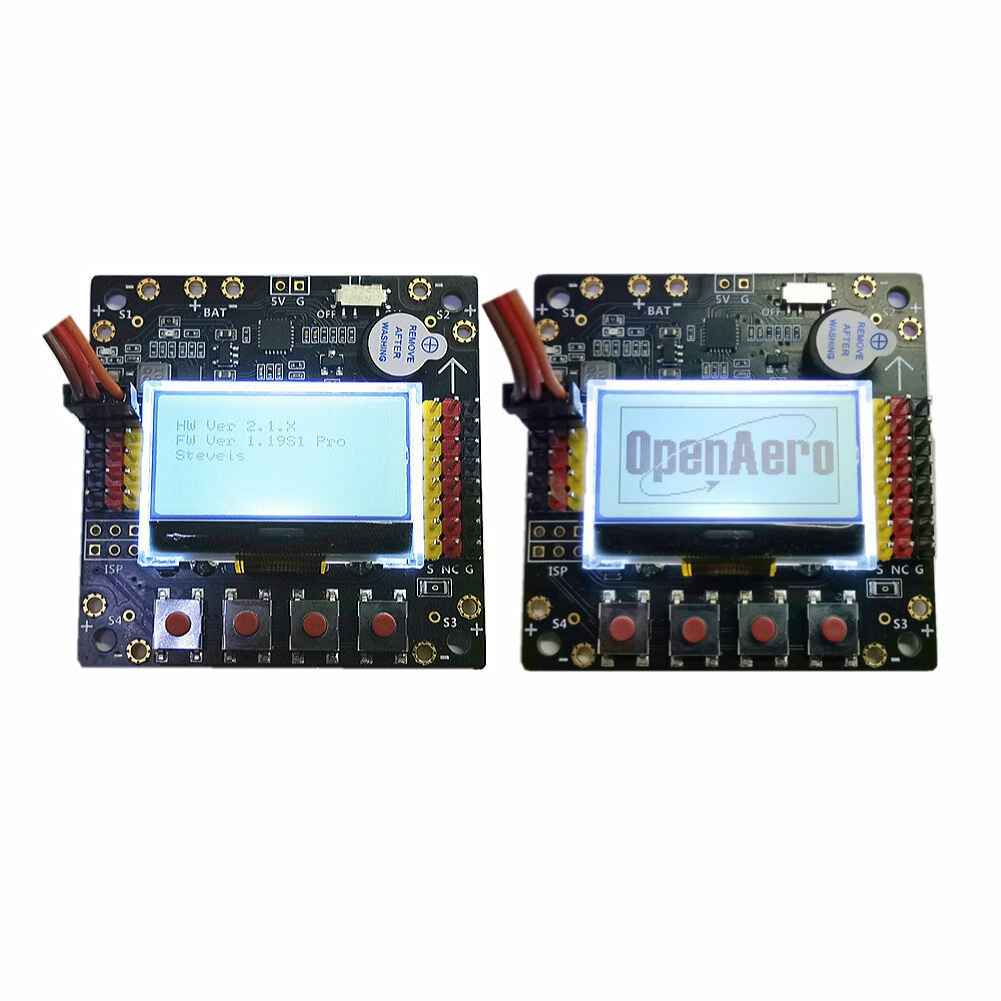

All settings and adjustments can be made directly on the flight controller’s built-in LCD screen with four buttons, eliminating the need for a separate computer unless a firmware upgrade is necessary.
Specifications:
Item Name: KK2.1.5 PLUS
Dimensions: 52mm x 52mm x 12mm
Weight: 19g
Integrated Module: Atmega
Gyroscope: InvenSense Inc.
Accelerometer: Anologue Devices Inc.
Self-Balancing Feature: Yes
Input Voltage: 2-6S lithium battery or ESC-BEC 5V, but it is not allowed to provide two power supplies to flight control at the same time
Output BEC: 5V 2A
Receiver Signal: 1520us (5 channels in total)
Signal to ESC (Servo): 1520us
Firmware: V1.19S1PRO or OpenAeroVTOL 1.5/1.6 (Flash via USB Programmer)
Default Firmware: V1.19S1PRO
Built-in Airplane Mode:
Twin-rotor Tri-rotor
Y6 four-axis + four-axis X
Six axis + Six axis X
Eight-axis + Eight-axis X
X8 +X8 X
H8 H6
V8V6
Aero 1S Aileron
Aero 2S Aileron
Flying wing
Single axis 2M 2S
Single axis 1M 4S
V-tail four-axis
English Manual, Click Here

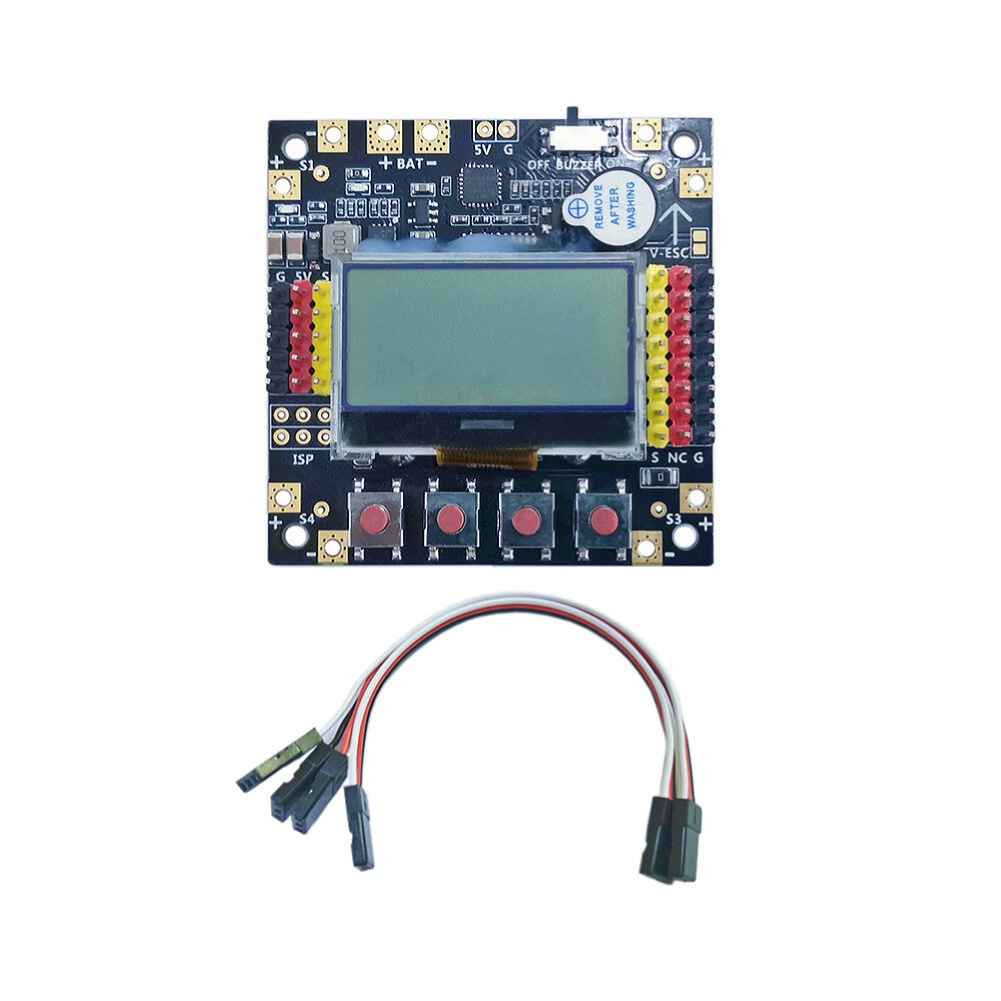

Flight Controller Version Included:
1x KK2.1.5 PLUS Flight Control
1x Cable
Flight Controller + USB Programmer Version Included:
1x KK2.1.5 PLUS Flight Control
1x USB Programmer
1x Cable

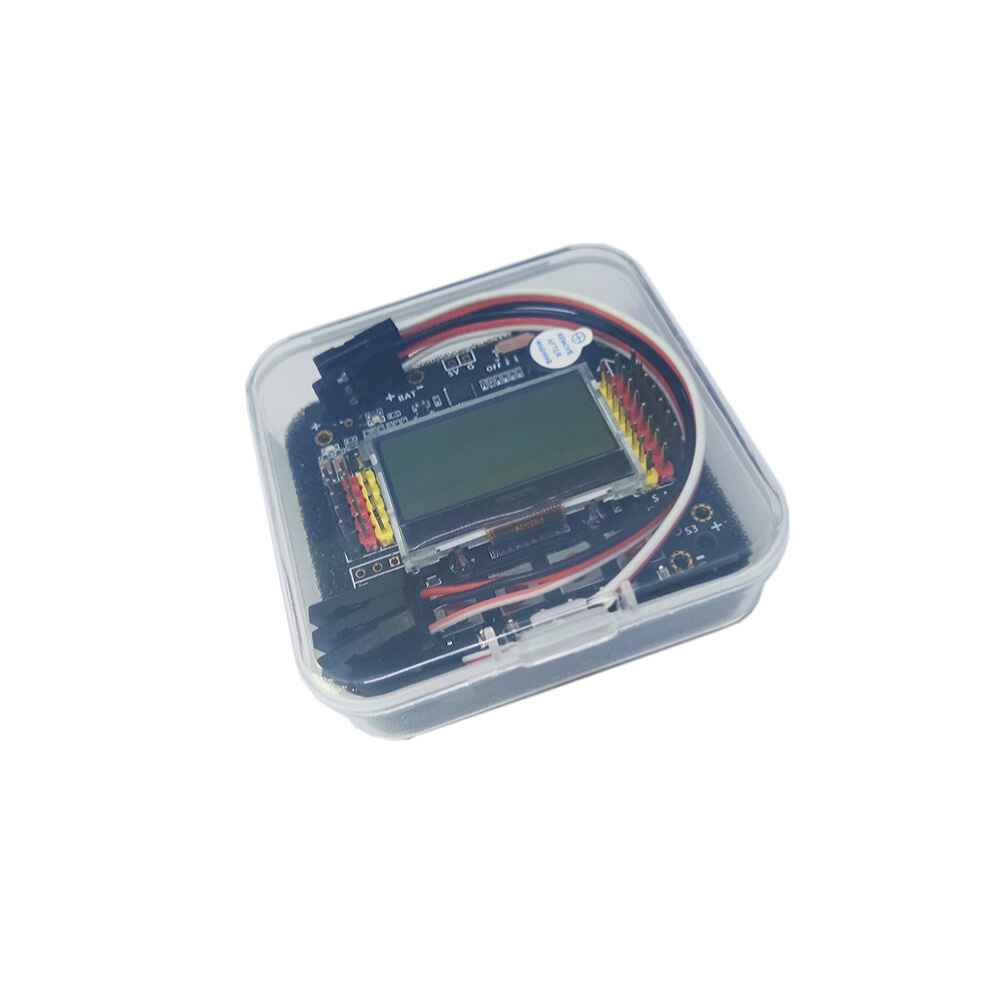

Package Included:
1 x KK2.1.5 PLUS Flight Control
1 x USB Programmer
1 x Cable
