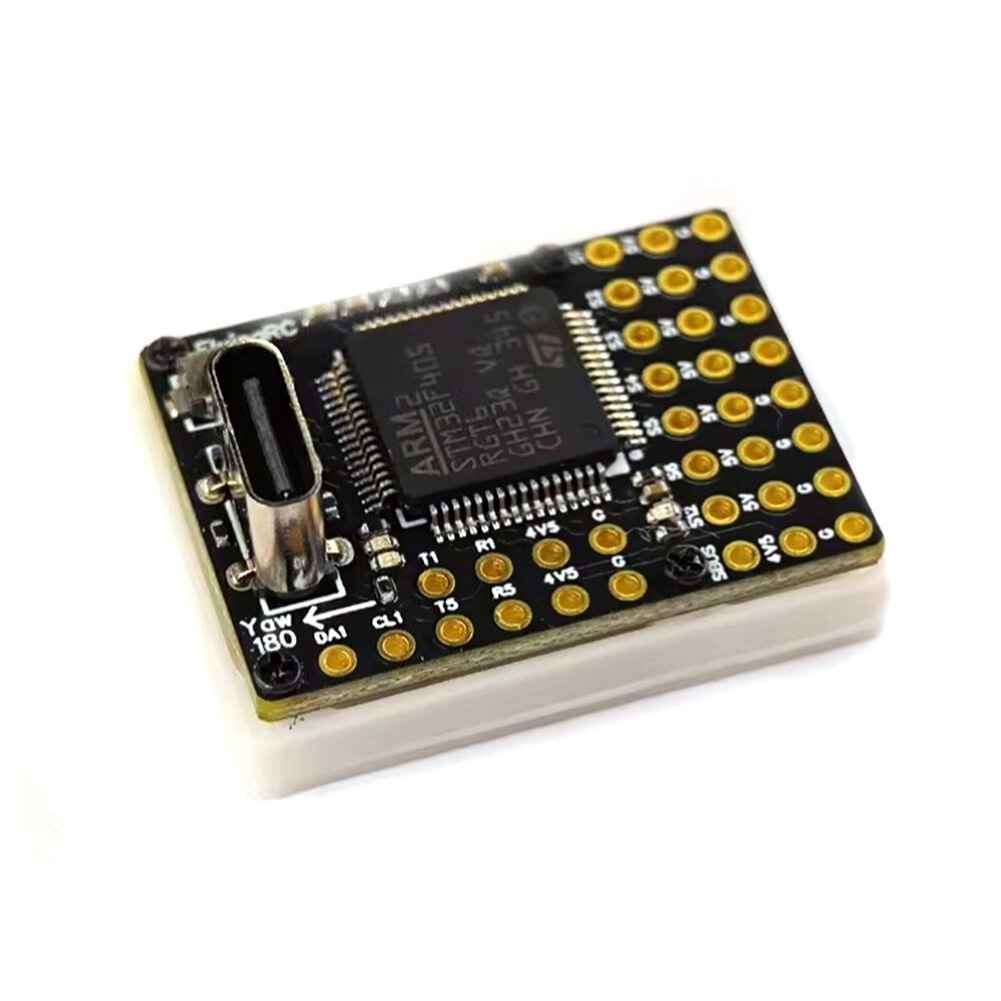

FlyingRC F4Wing F405 Mini MK1 Flight Controller 1-6S Ultra-Light 2.8g for Ultra-Mini RC Airplane
The FlyingRC F4Wing F405 Mini MK1 Flight Controller is engineered for ultra-mini RC airplanes, offering exceptional performance with its STM32F405RGT6 main control and M4 core running at a 168MHz frequency. This ultra-light controller weighs just 2.8g and features a compact design of 27.9mm x 20.3mm x 11.2mm, excluding pins. It supports a range of functions including HD OSD, 3UARTs, and an I2C current meter, making it perfect for small racing drones or fixed wings. The controller is equipped with a high-precision gyroscope and barometer, ensuring stable flight. It also features a Type-C interface for easy connection and parameter tuning via mobile ground stations.
Specification:
Model: FlyingRC F4Wing F405 Mini MK1 Flight Controller
Main control STM32F405RGT6, gyroscope ICM-42605, barometer SPL06-001, HD OSD, 3UARTs, 1SBUS, 6PWM, 1I2C
Current meter: external I2C current meter
Voltage meter: 2.5~30V, 1~6S LiPo
Power input: 5V
Size and weight: 27.9mm*20.3mm*11.2mm, 2.8g
Feature:
– Ultra-small Mini board: 27.9*20.3*11.2mm, only 2.8g (excluding pins, about 5.3g after soldering pins).
– Suitable for small racing drones or fixed wings
– Main control STM32F405RGT6, M4 core, 168Mhz main frequency, 1MB Flash; Performance is 5 times stronger than other similar products (using STM32F0 series).
– Gyroscope ICM42605, third generation TDKsensor, optimized for UAV applications.
– Barometer SPL06, domestic high precision barometer.
– Dual LDOs onboard, independent sensor power supply, more stable flight.
– 7 PWM outputs, 3.5 serial ports (SBUS can only be considered half a serial port).
– Type-C interface directly plugged into the flight controller, stable connection, longer lifespan, can be connected to mobile phones through dual Type-C cables, parameter tuning through mobile ground station (AP machines are not recommended to use GroundControl App).
– Contactless current meter function (can be connected to external I2C current meter), supports battery voltage output (SH1.0 2P interface), battery voltage simultaneously supplies power to the HD image transmission plug-in, supports up to 6s input.
– Supports HD image transmission plug-in (SH1.0 6P interface), high-definition OSD (DJI HD, Wolf HD, OpenIPC, etc.), does not support analog OSD.
Package Included:
1 x FlyingRC F4Wing F405 Mini MK1 Flight Controller
