Description

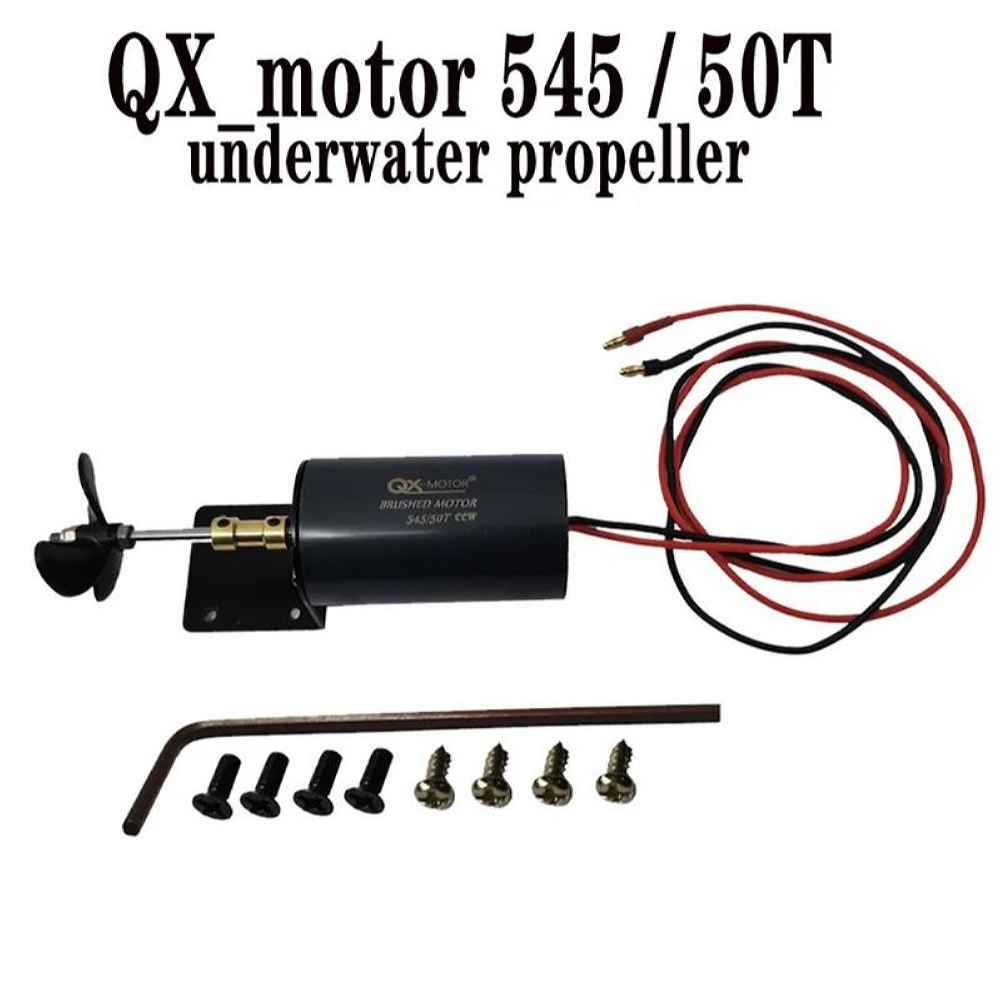

QX_Motor Underwater Propeller 545 / 50T 12V 16V Brushed Motor for Unmanned / Nesting Trawler/Remote Control /Duck Boat RC Vehicles Models Parts

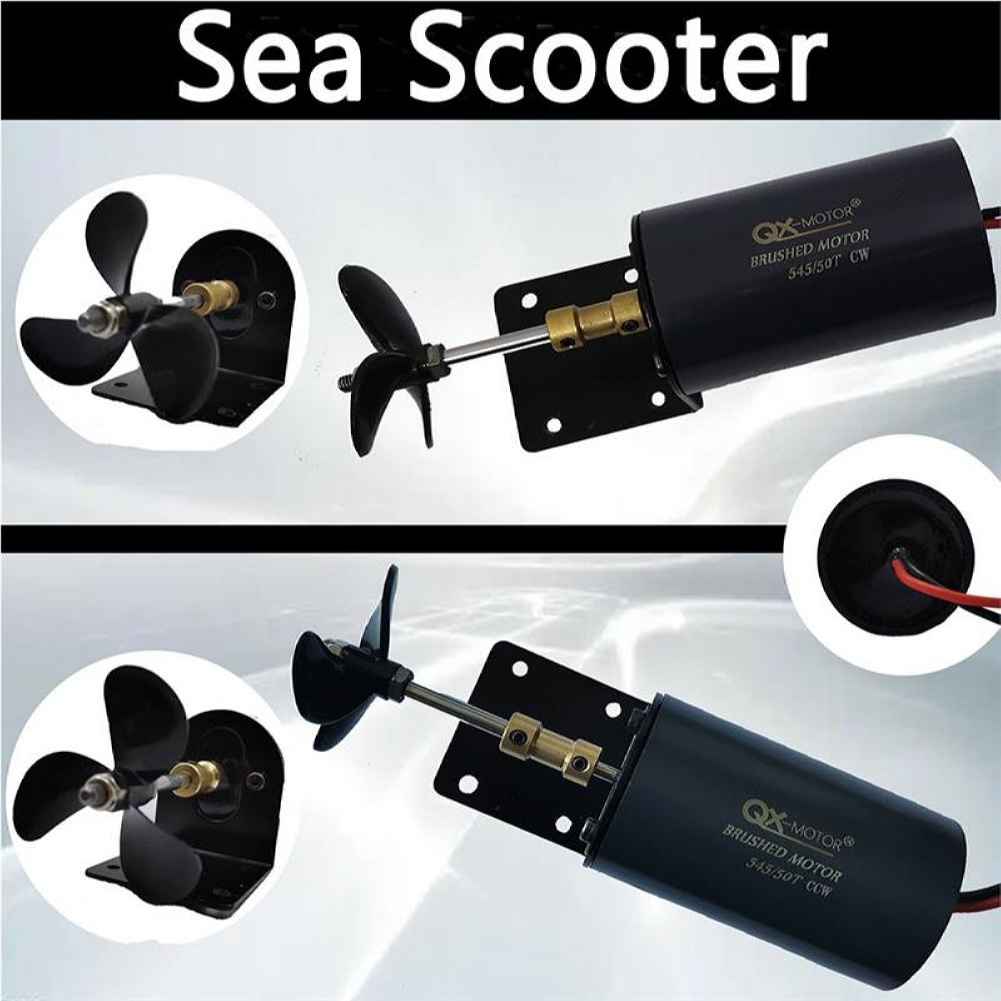

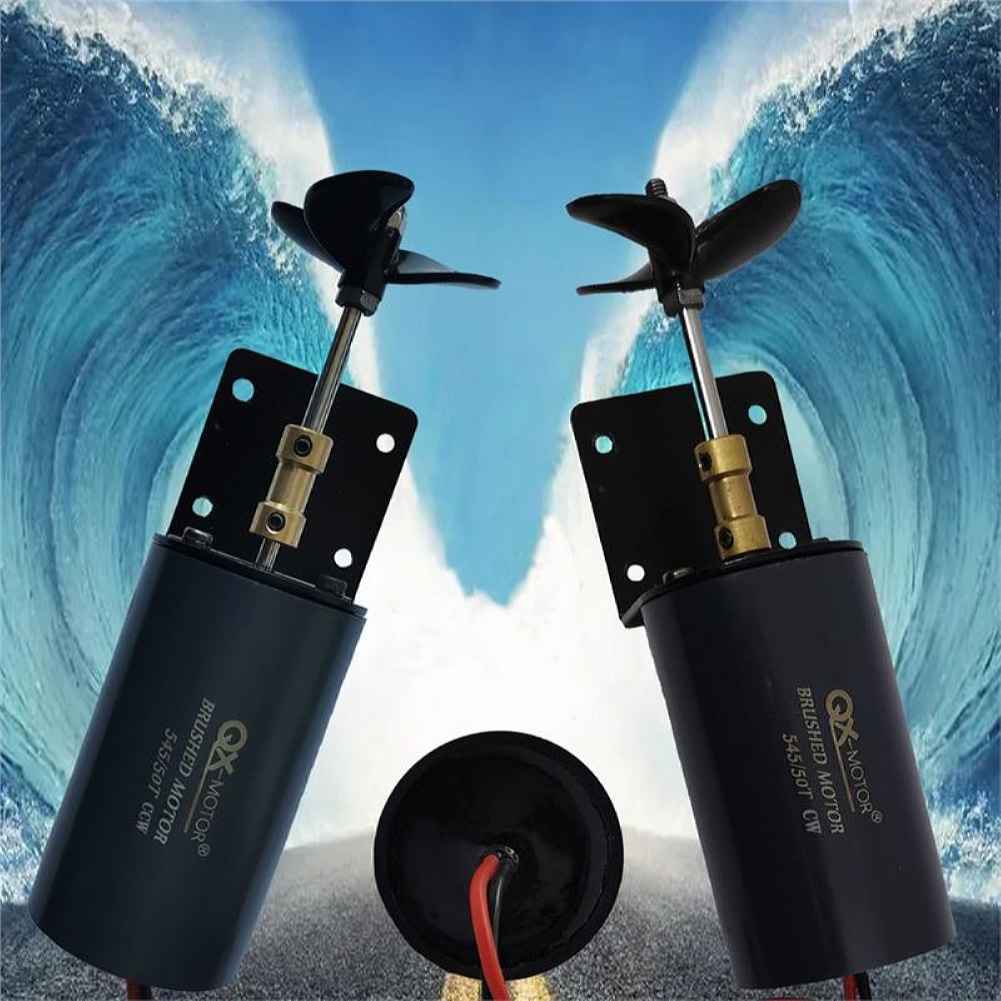

The QX Motor 540/50T Brushed Motor is an ideal choice for RC boats, including nest boats, trawlers, and unmanned models. Crafted from durable metal and finished in sleek black, this motor measures 40mm in diameter and 68mm in length, with a blade diameter of 48mm and a shaft diameter of 4mm. Weighing approximately 275g, it offers a robust thrust of 700-1000g and operates efficiently at a service voltage of 7.4V to 14.8V. Notably, it features a waterproof grade of IP68, allowing it to function at depths up to 50 meters. The motor’s forward and reverse rotation can be easily controlled by adjusting the wires, making it a versatile component for school projects and DIY enthusiasts.
Description:
Item Brand:QX motor
Item Name:Brushed motor
Material:Metal
Color:Black

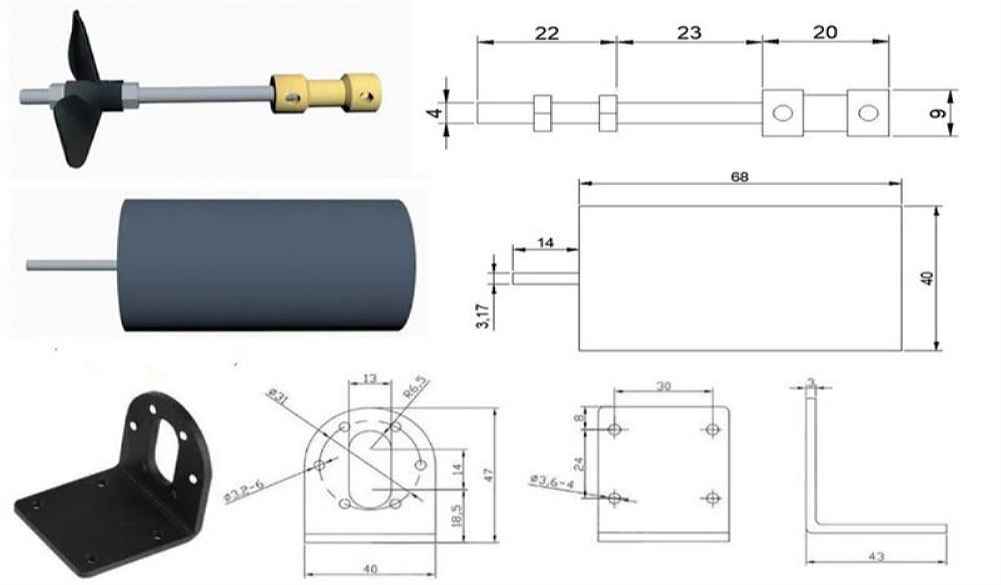

Product Size:About 40*68mm,blade diameter is 48mm,shaft diameter is 4mm
Product Weight:About 275g
Compatible Models:Nest boats, trawlers, unmanned boats, school model teams, DIY models
It is very suitable for nest boats, trawlers, unmanned boats, school model teams, DIY, waterproof grade ip68

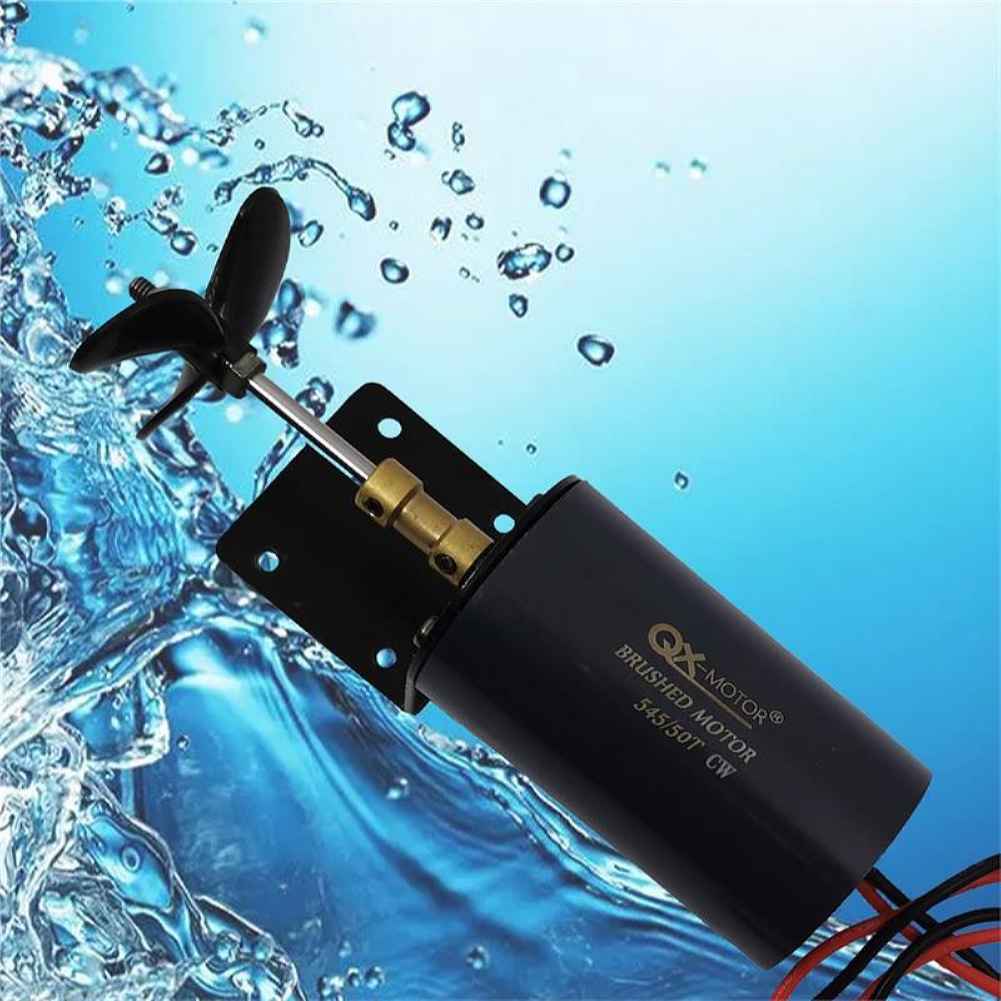

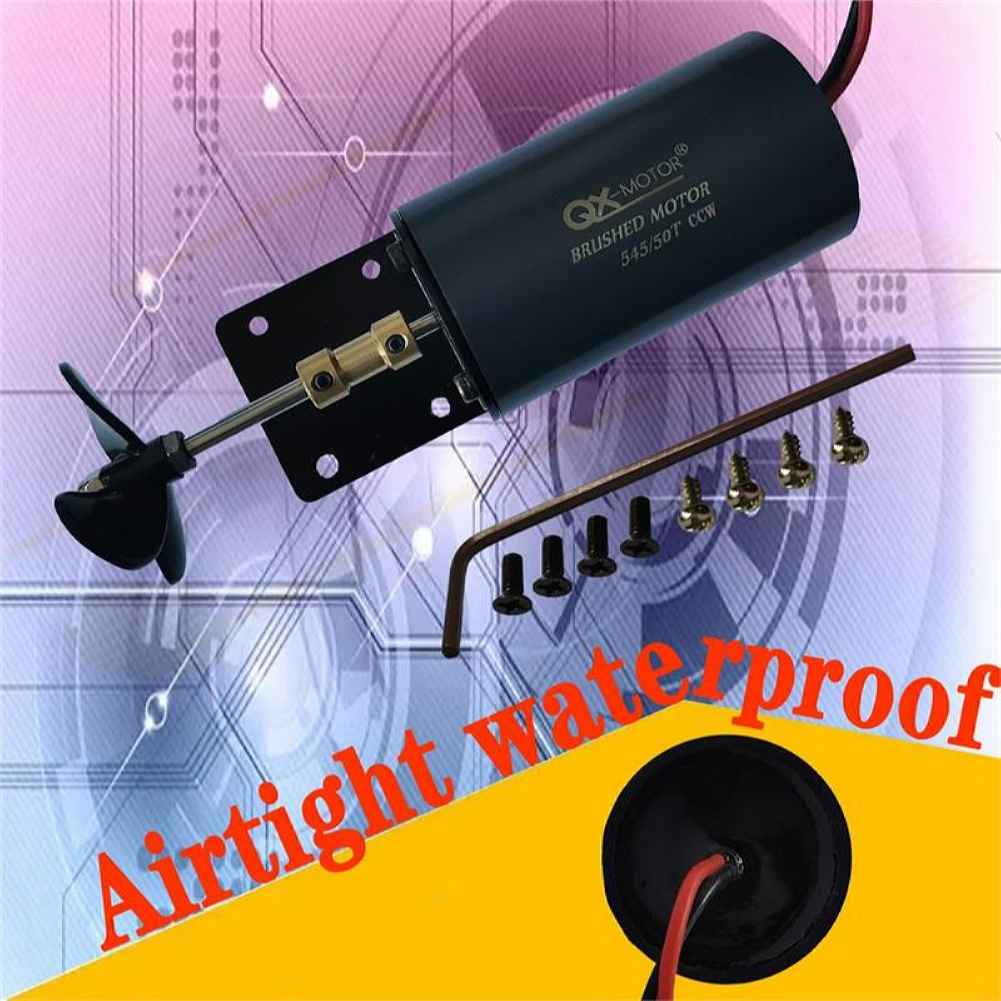

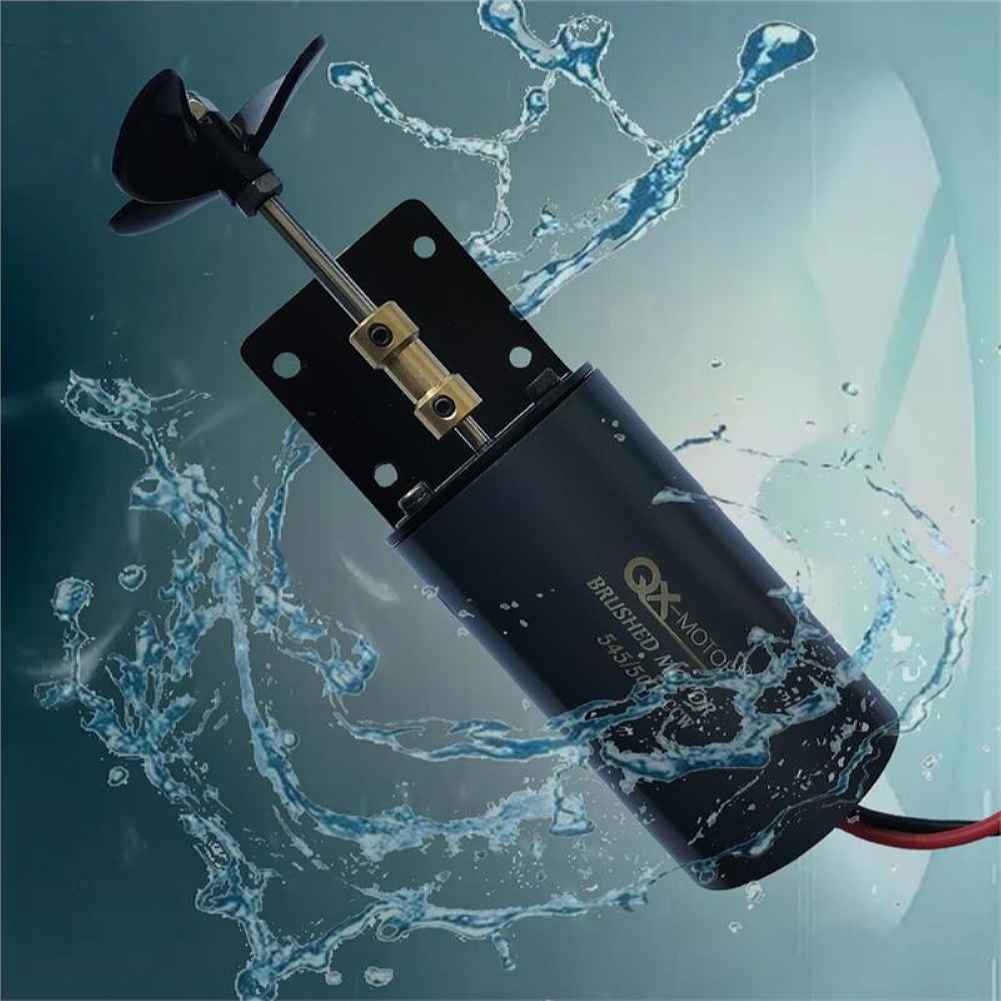

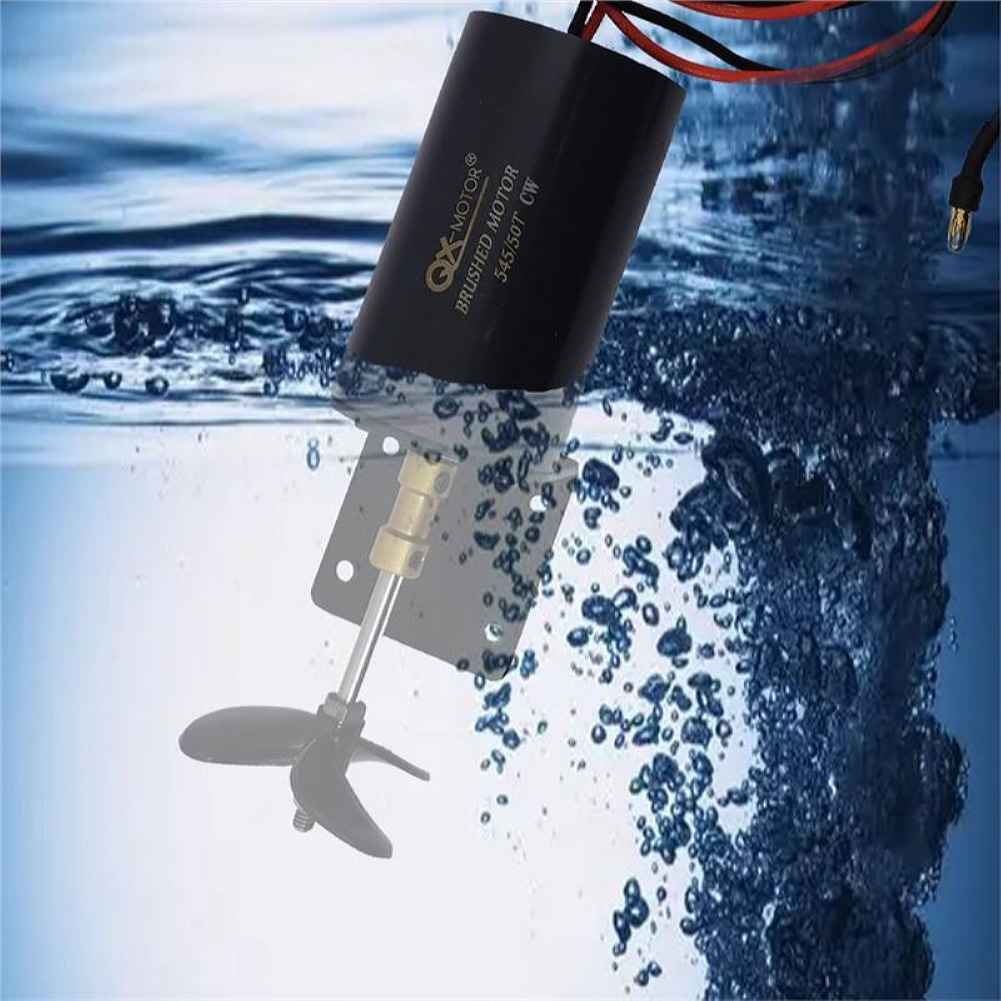

1) : the motor is fully sealed and filled with glue, and the waterproof depth can reach 50m;
2) : Motor size: diameter 40mm, length of motor part 68mm;

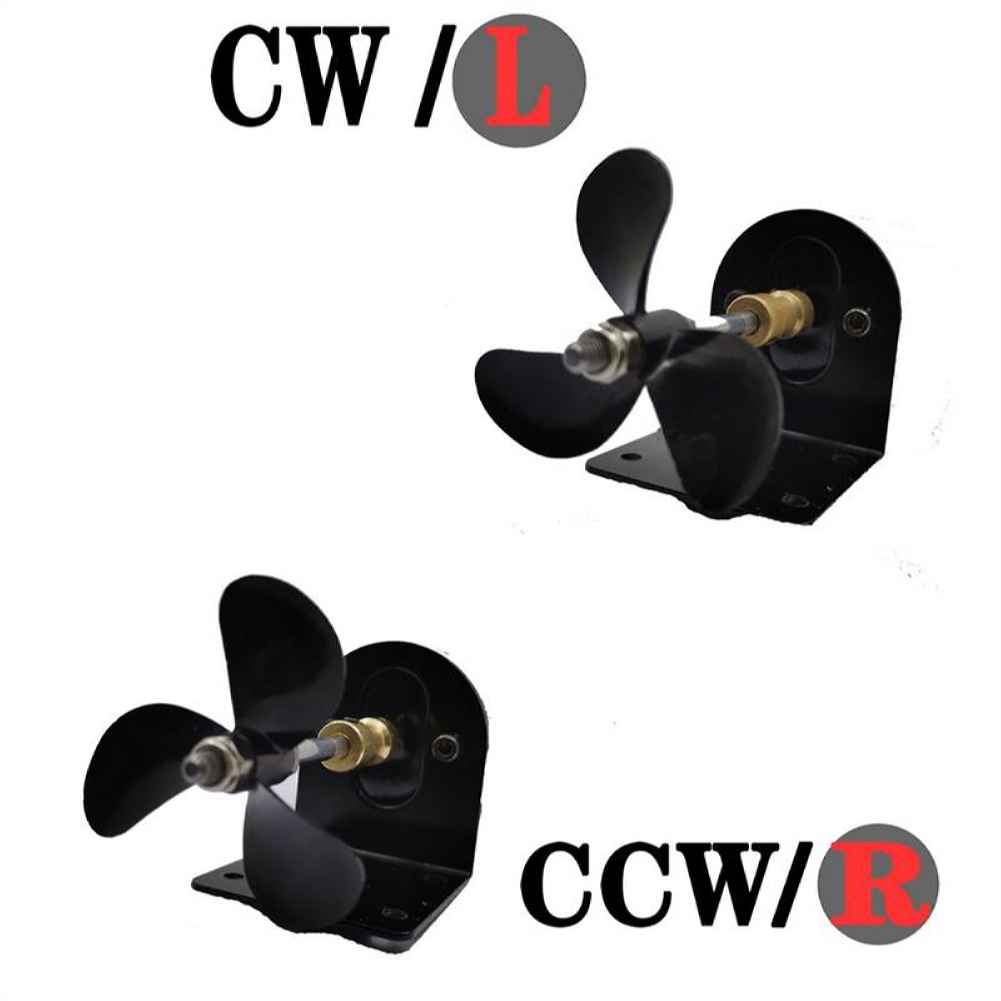

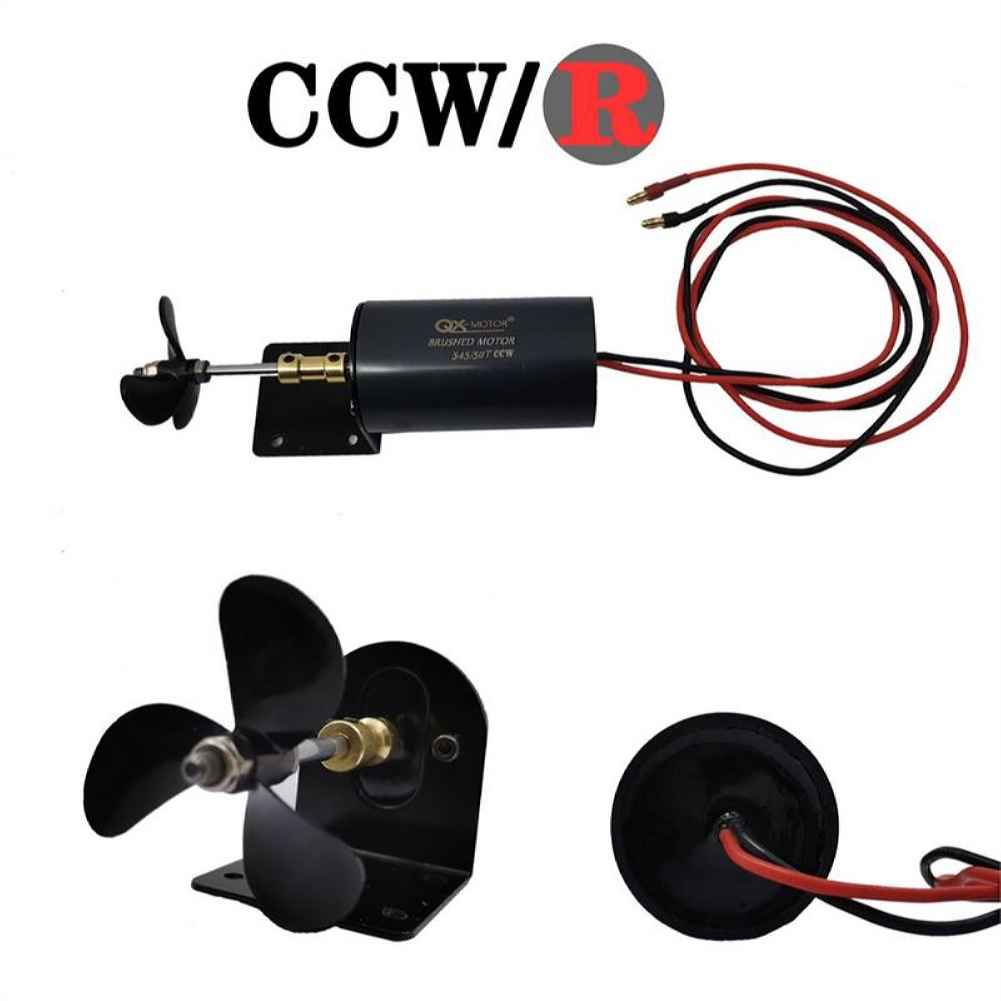

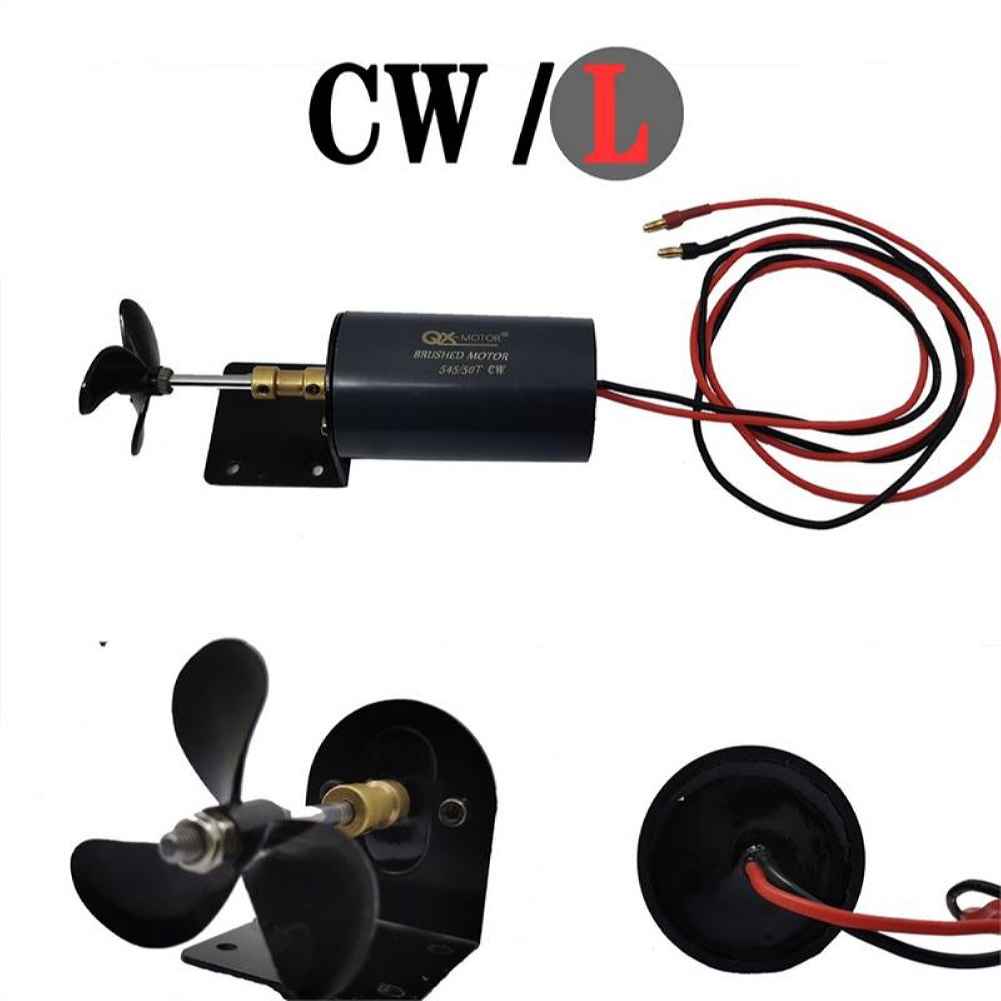

3) : the forward and reverse rotation control of the brush motor is very simple. After the two wires of the motor are adjusted, the rotation direction will change;
4) : working voltage of propeller motor (working voltage of propeller): 7.4v (2S) -14.8v (4S) (lithium battery is generally recommended)

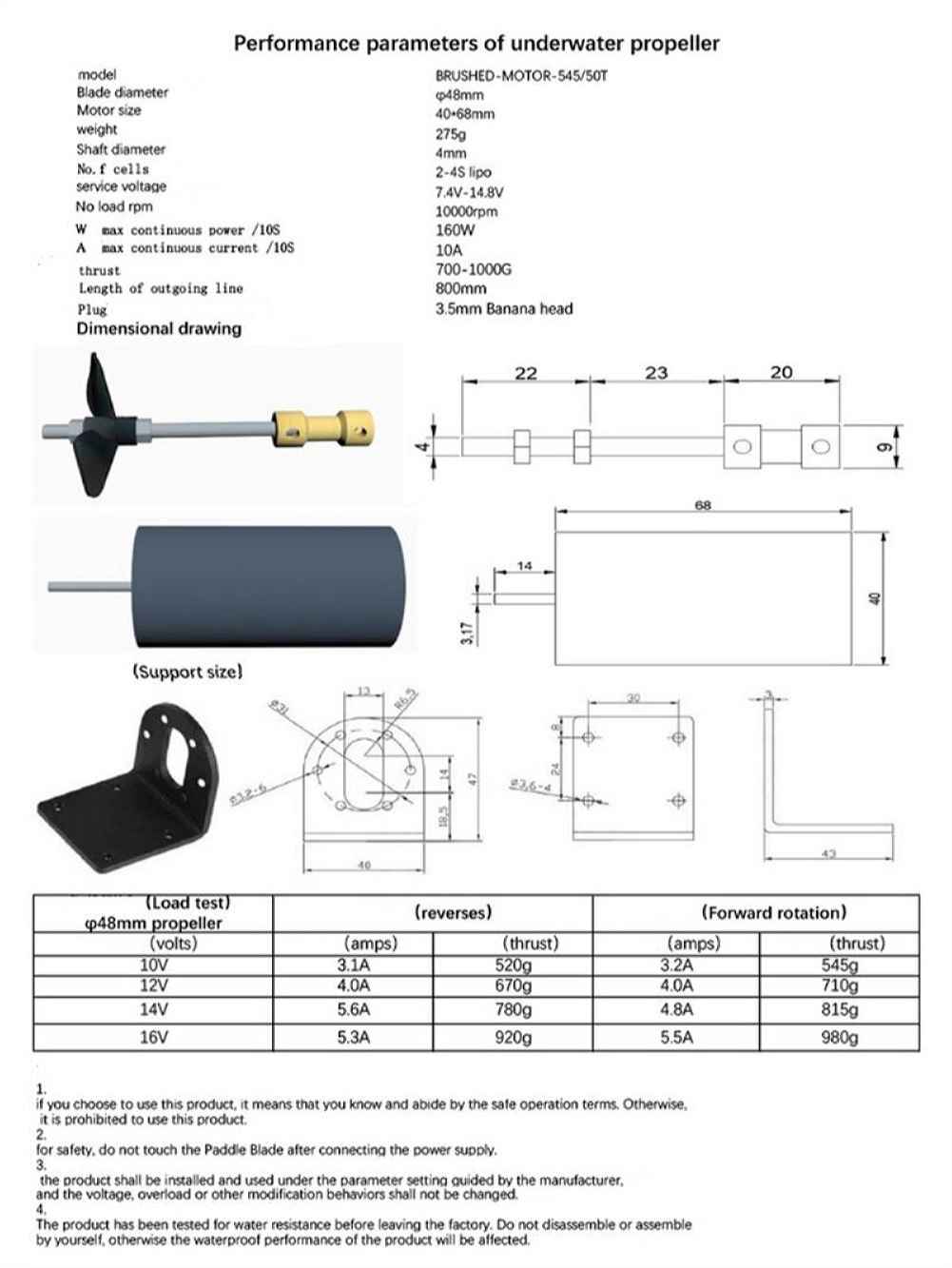

Specification:
Model:Brushed motor 540/50T
No.f Cells:2-4S Lipo
Service Voltage:7.4V-14.8V
No Load RPM:10000rpm
Max Continuous Power/10S(W):160W
Max Continuous Current/10S(W):10A
Thrust:700-1000G
Length of Outgong Line:800mm
Plug:3.5mm banana head
Package Included:

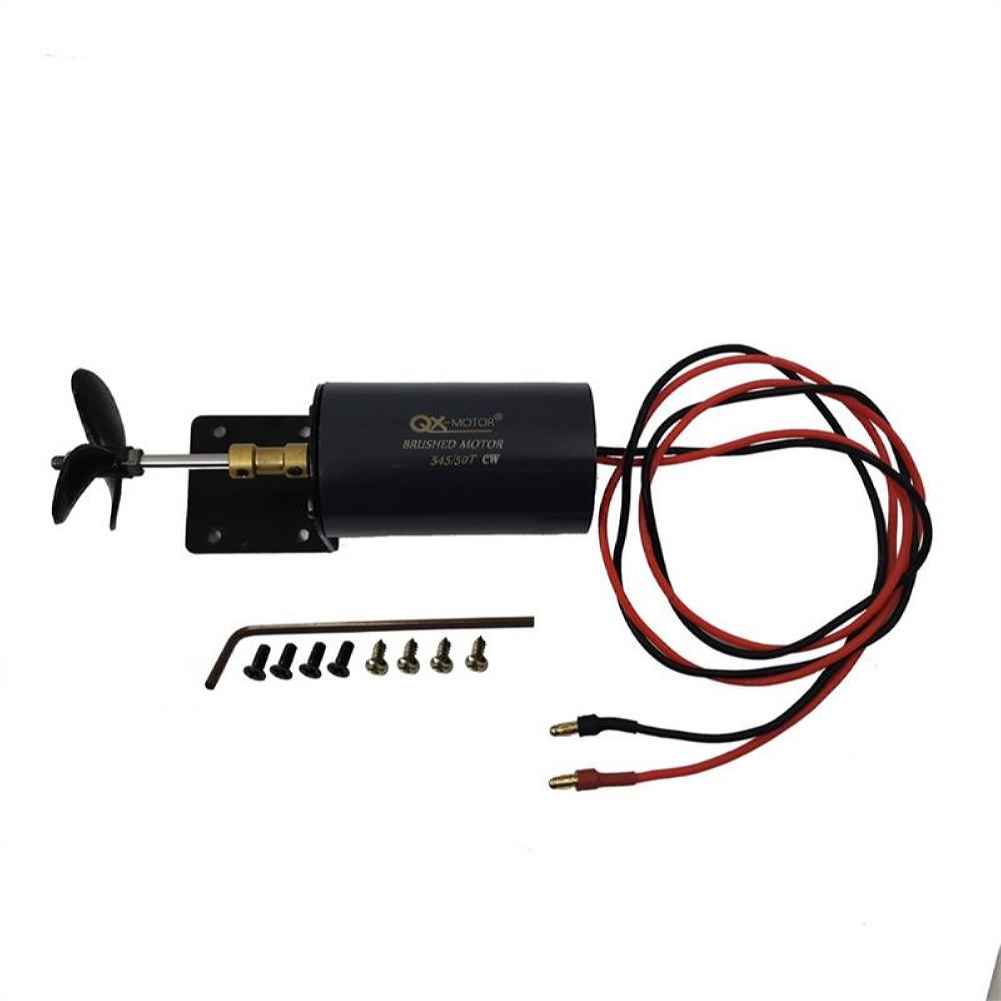

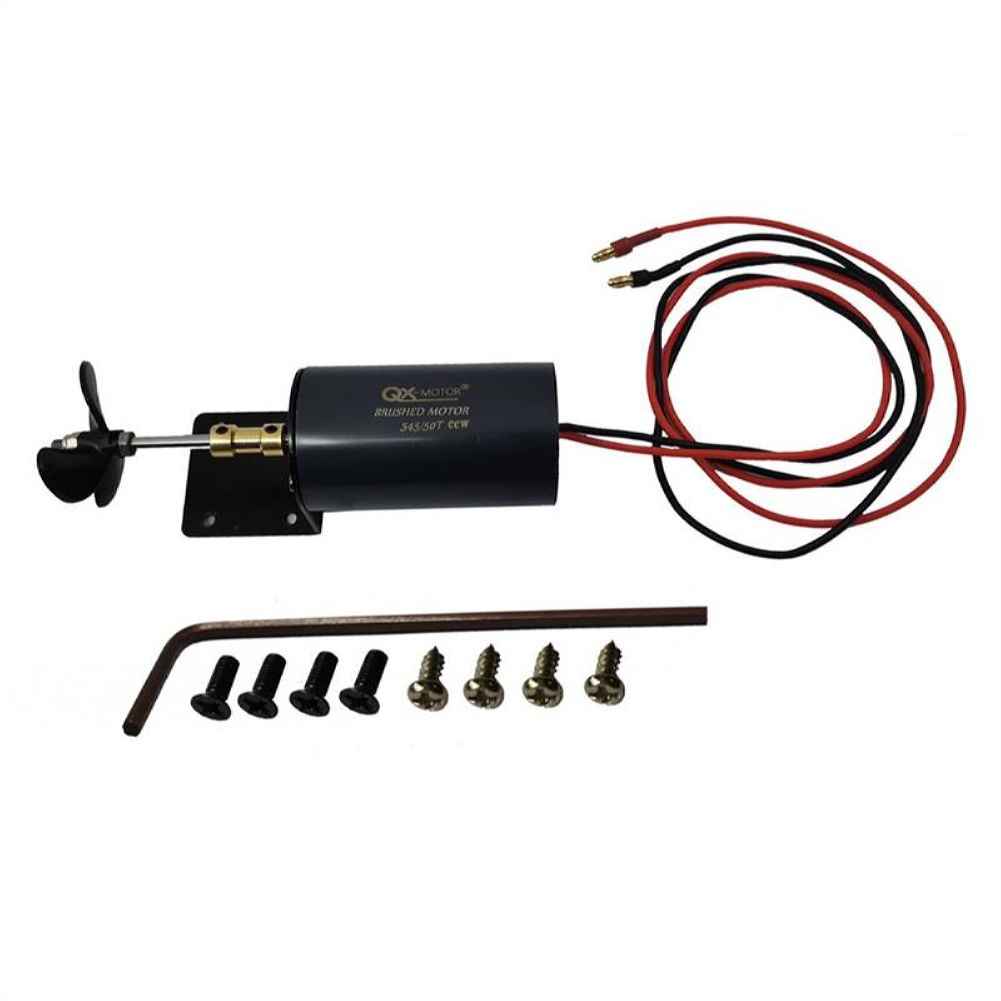

1 x 540 Brushed Motor
