Description

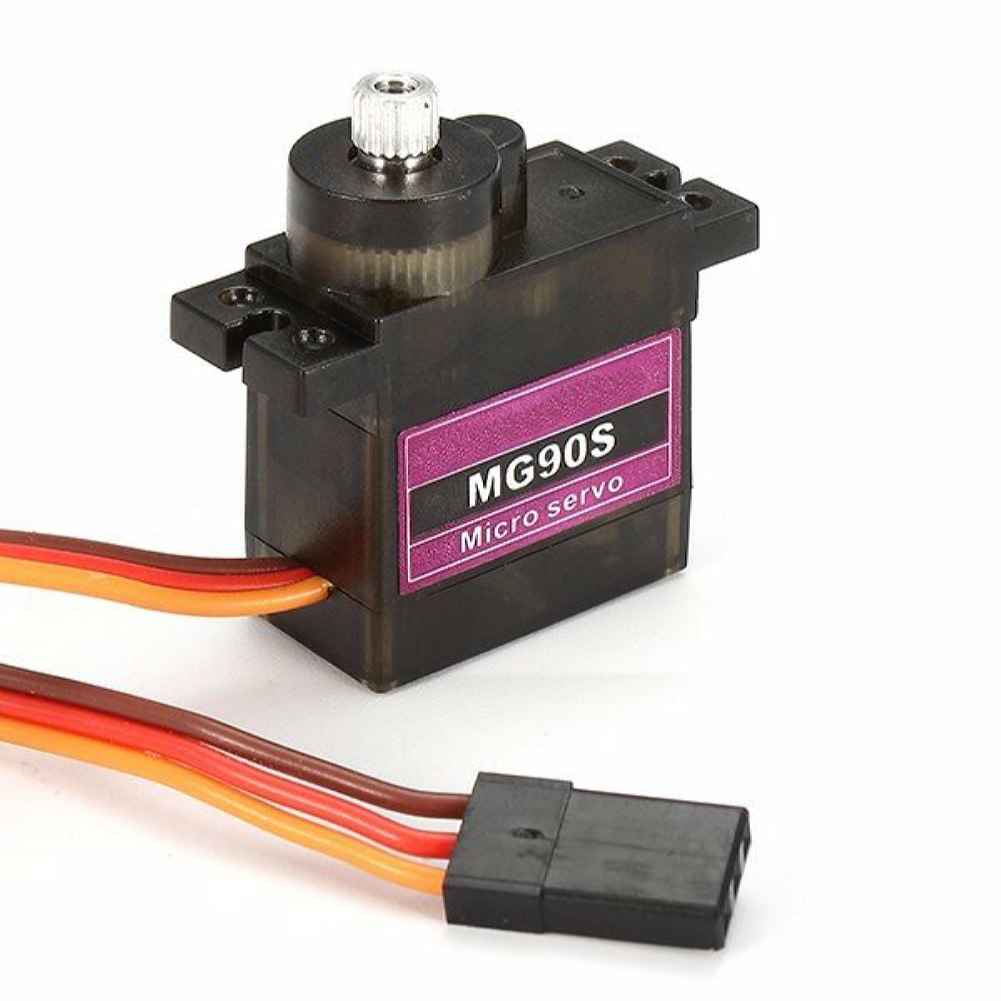

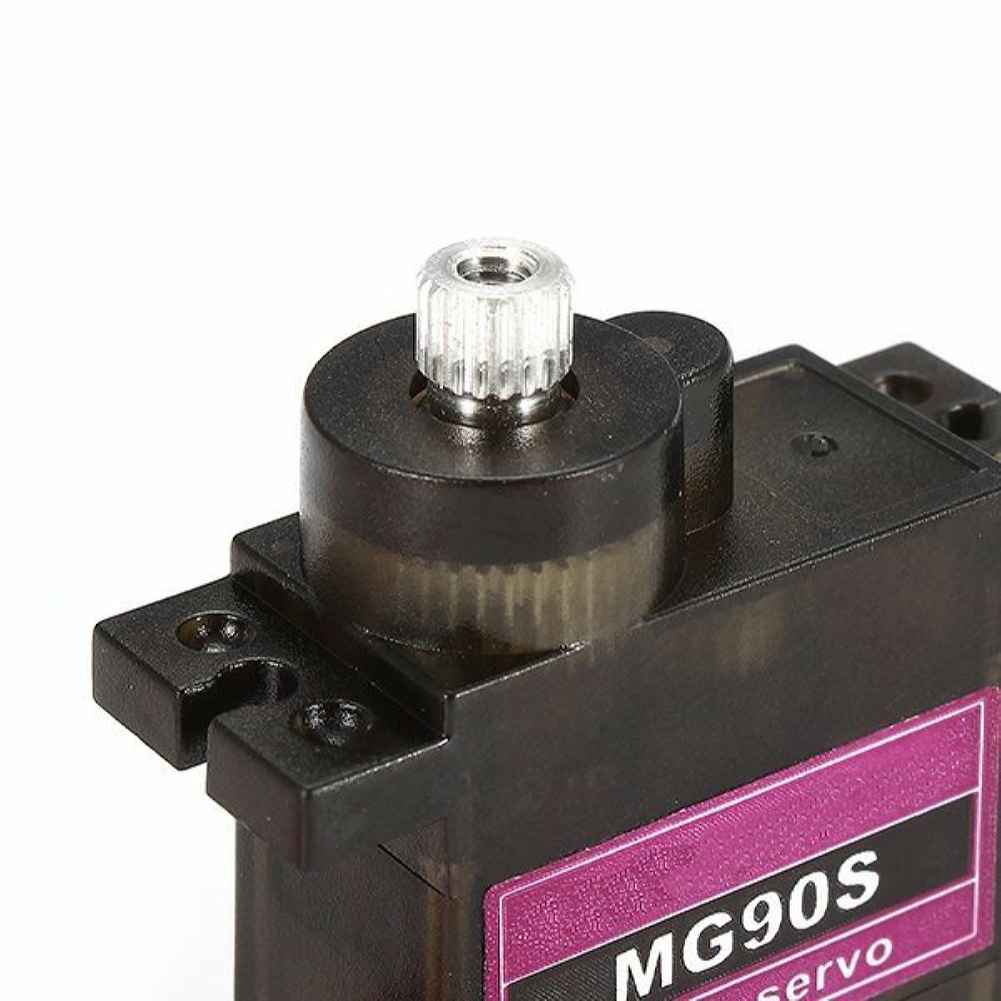

MG90S Plastic Gear RC Micro Servo 13.4g for ZOHD Volantex Airplane RC Helicopter Car Boat Model
The MG90S Plastic Gear RC Micro Servo is a lightweight and versatile component, weighing approximately 13.4g. With dimensions of 22.8 x 12.2 x 28.5mm, it features a stall torque of 1.8kg/cm at 4.8V and 2.2kg/cm at 6V. The servo operates swiftly with a speed of 0.1sec/60～ at 4.8V and 0.08sec/60～ at 6V, powered by a coreless motor. It functions efficiently within an operating voltage of 4.8-6.0V and an operating temperature range of 0～C to 55～C. The 175mm connector wire length and durable plastic gear material make it ideal for RC trucks, boats, racing cars, helicopters, and airplanes.
Description:
Item Name: MG90S servo
Weight: about 13.4g
Dimension: 22.8 x 12.2 x 28.5mm
Stall Torque: 1.8kg/cm(4.8V ),2.2kg/cm(6V)
Operating Speed: 0.1sec/60degree(4.8v), 0.08sec/60degree(6v)
Operating Voltage: 4.8-6.0V
Operating Temperature: 0 ﹠ – 55 ﹠
Motor Type: coreless motor

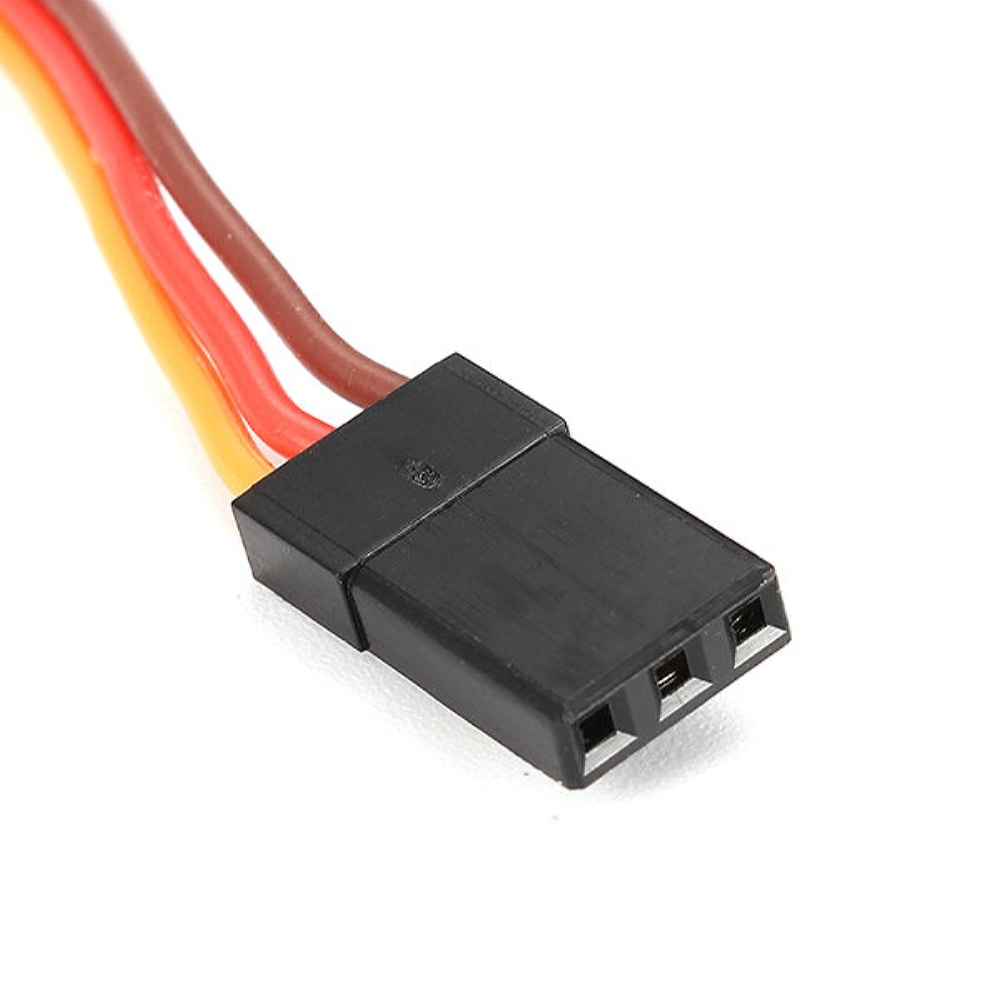

Connector Wire Length : 175mm
Gear Material: Plastic
Features:
Micro size
Great for truck, Boat, Racing Car, Helicopter and Airplane
Package Included:
1 x MG90S servo
