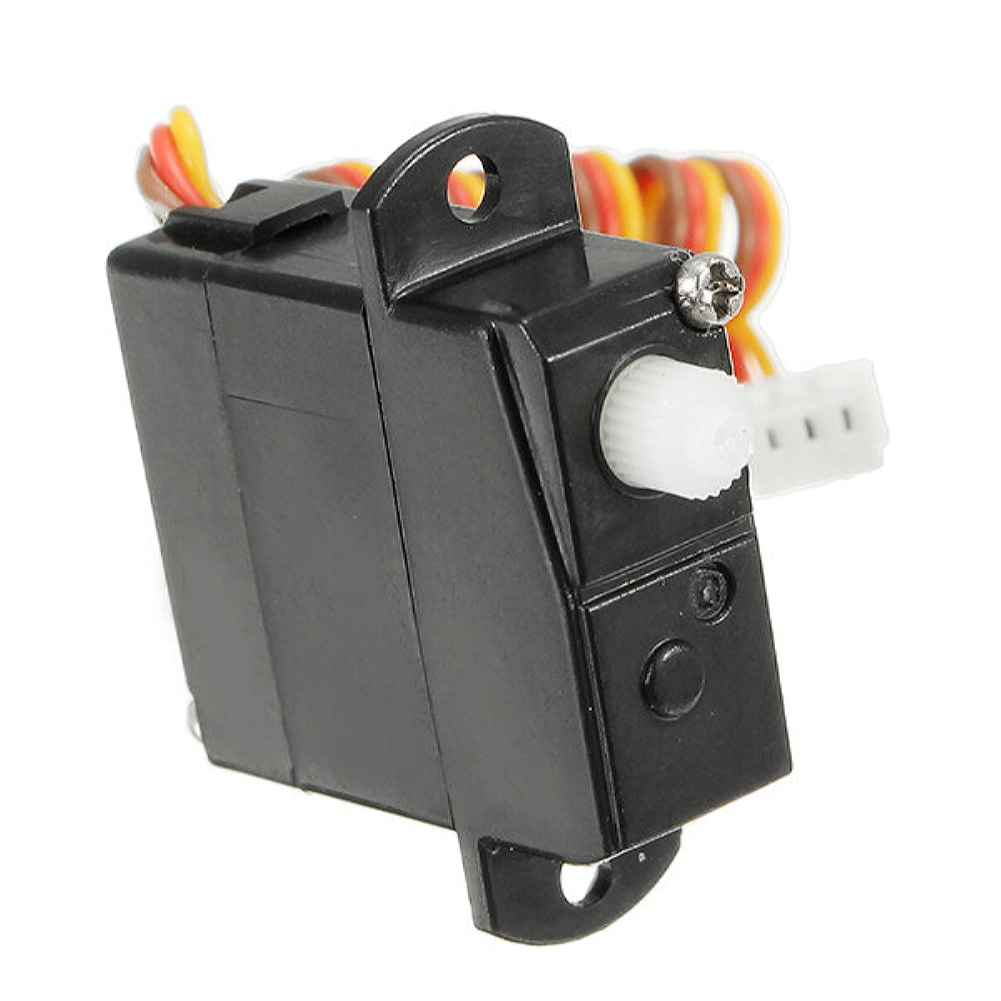

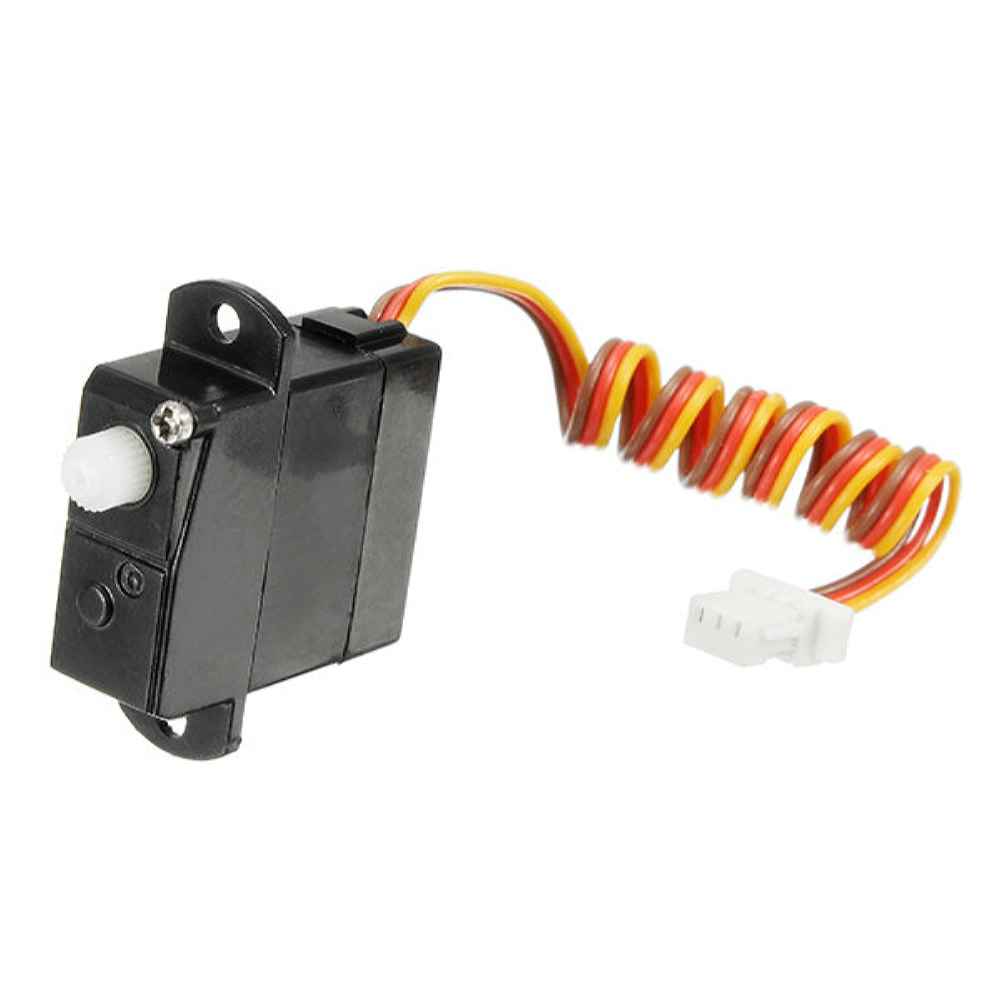

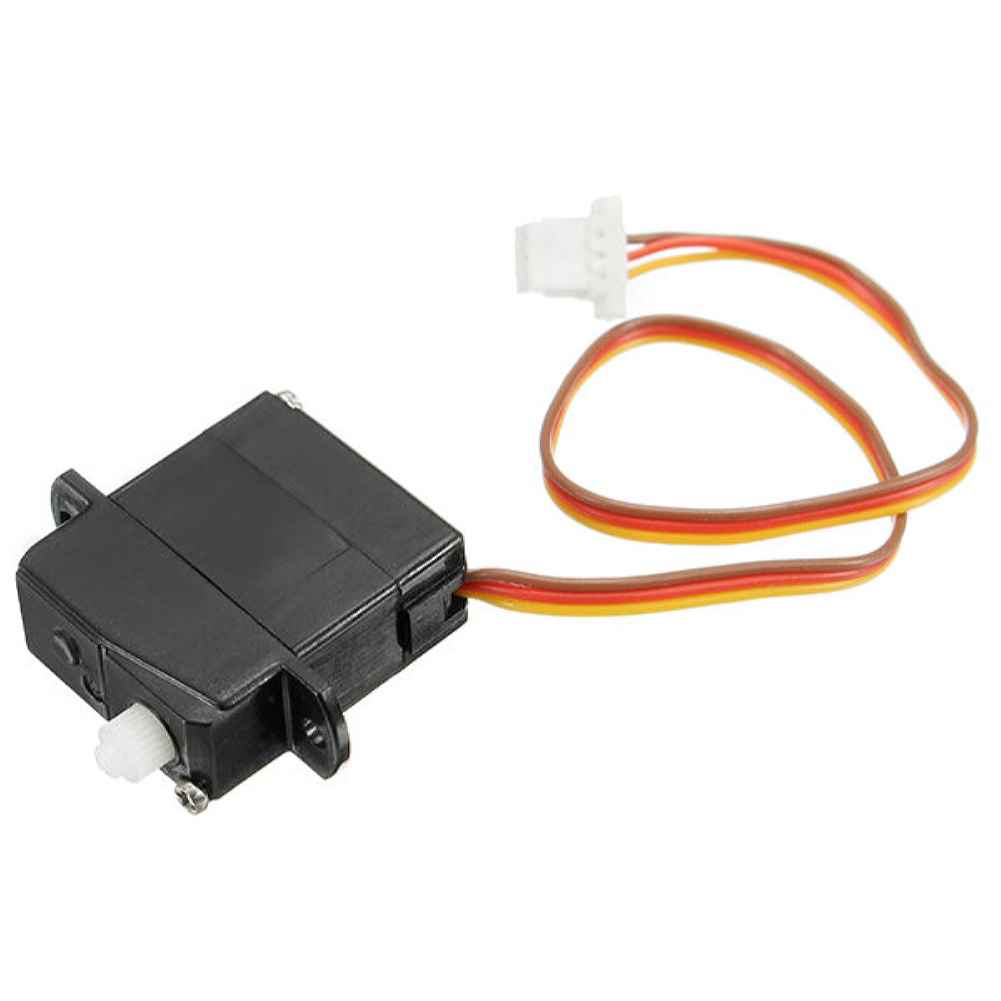

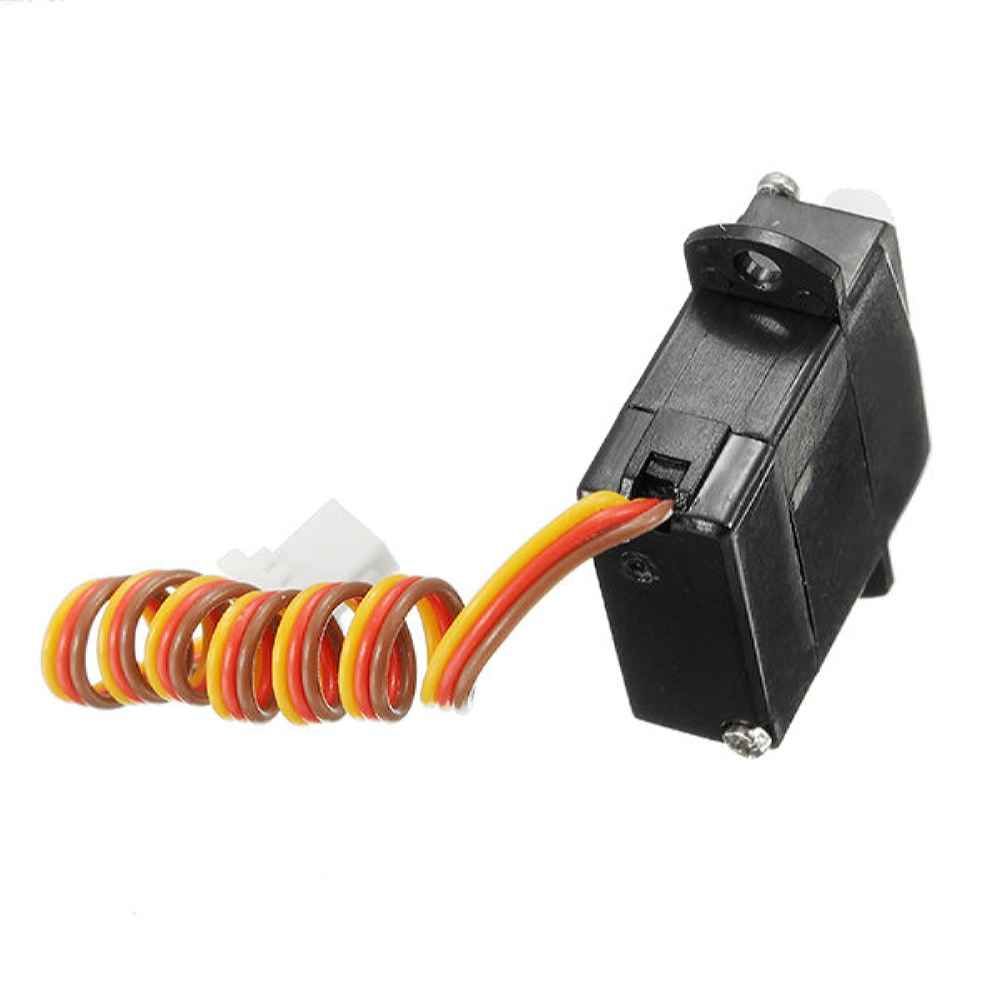

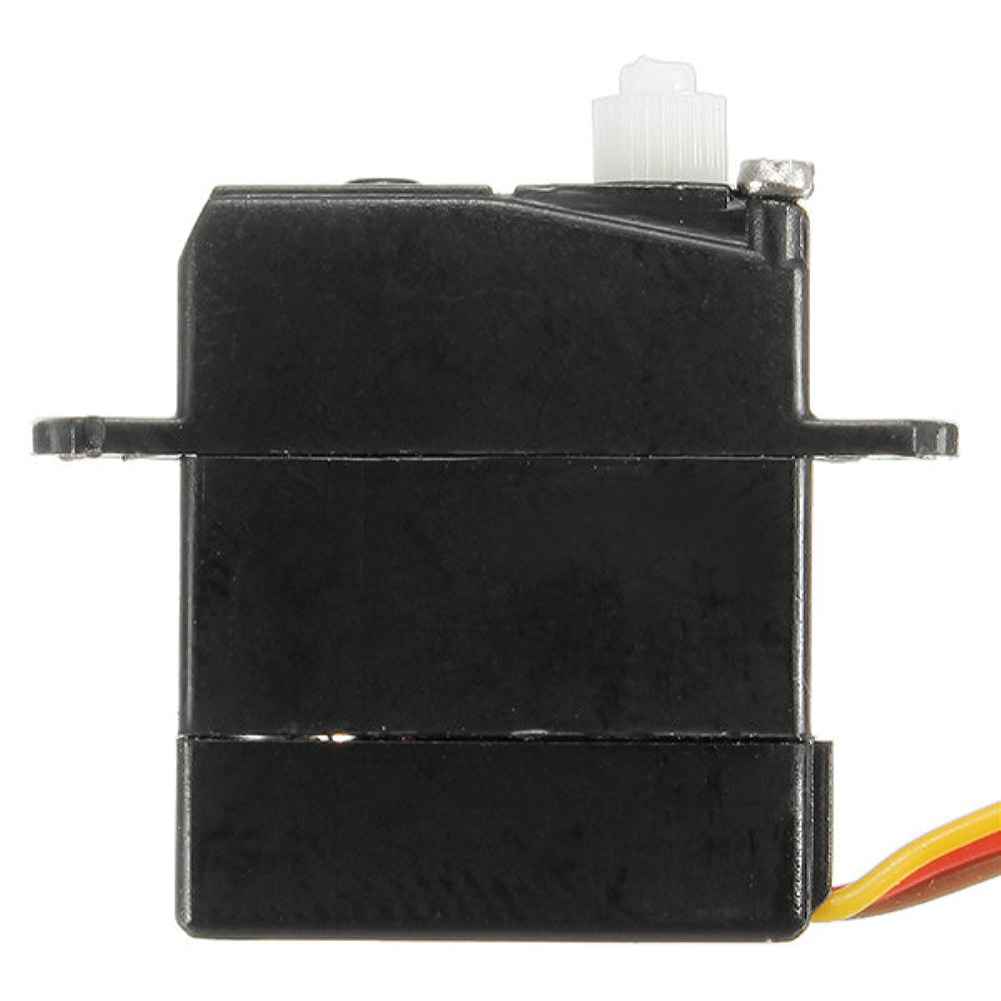

1.7g Low Voltage Micro Digital Servo Mini JST 1.25Pin Connector for RC Model
The 1.7g Low Voltage Micro Digital Servo is designed for precision control in RC models. It features a cable length of 110mm and weighs just 1.7g, making it ideal for lightweight applications. Equipped with a mini JST 1.25mm connector, this servo offers reliable performance with a temperature drift of approximately 1 degree at 25～C. It operates at a limit angle of 180～ with a reduction ratio of 1/313. The analog controller provides a neutral position at 1500 米sec. Operating speeds range from 0.07 to 0.05 seconds per 60～ at different voltages. The running current at no load is between 70 to 80mA, while the stall torque is between 0.065 to 0.075 Kg﹞cm. This servo is designed to last with a running life exceeding 6,000 cycles at no load.
Description:
Item name: 1.7G Low Voltage Micro Digital Servo
Cable length: 110mm
Weight: 1.7g

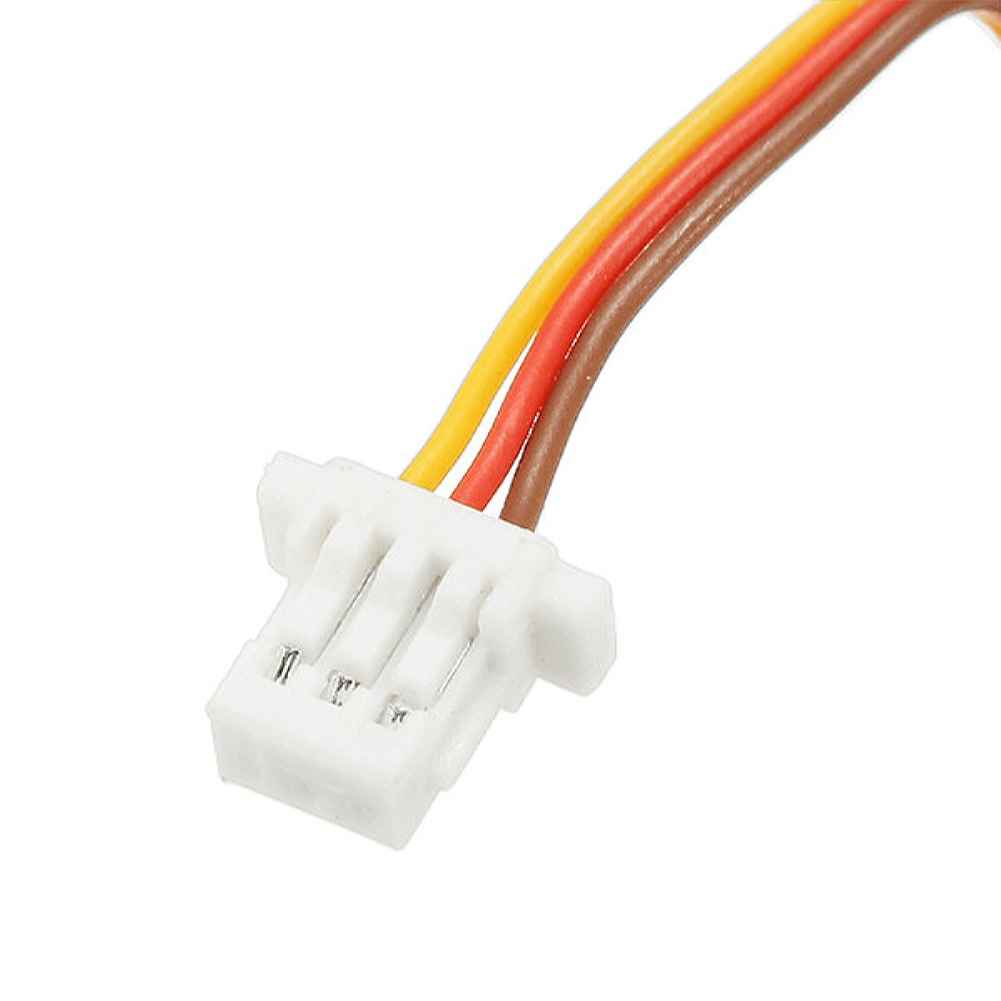

Connector: mini JST 1.25mm
Temperature Drift (at 25﹠): 沌1‵
Limit Angle: 180‵呼10‵
Reduction Ratio: 1/313
Amplifier Type: Analog Controller
Neutral Position: 1500 譙sec
Package Included:
1 x 1.7G Low Voltage Micro Digital Servo
