EMAX ES3004 17g Metal Gear Analog Servo, 3.5kg Torque, 0.13sec Speed, Upgraded for RC Airplane

Sale!

EMAX ES3004 17g Metal Gear Analog Servo, 3.5kg Torque, 0.13sec Speed, Upgraded for RC Airplane

Price range: 15.30$ through 286.58$

Upgraded version of ES3104 for enhanced performance
Durable metal gear design for long-lasting use
Operates at 4.8V to 6.0V with 3.5kg.cm torque
Fast operating speed of 0.13 sec/60‵ at no load
Compact size and lightweight at 17g

1 pc 10 Pcs 2 Pcs 20Pcs 3 Pcs 4 Pcs 5 Pcs 6Pcs

SKU: RC1286686 Category: RC Airplane Parts Tags: 23T flower head servo, 3.5KG torque servo, EMAX ES3004 servo, fast operating servo, FUT JR plug compatible, metal gear analog servo, RC airplane servo, upgraded ES3104 version Brand: Emax

Description

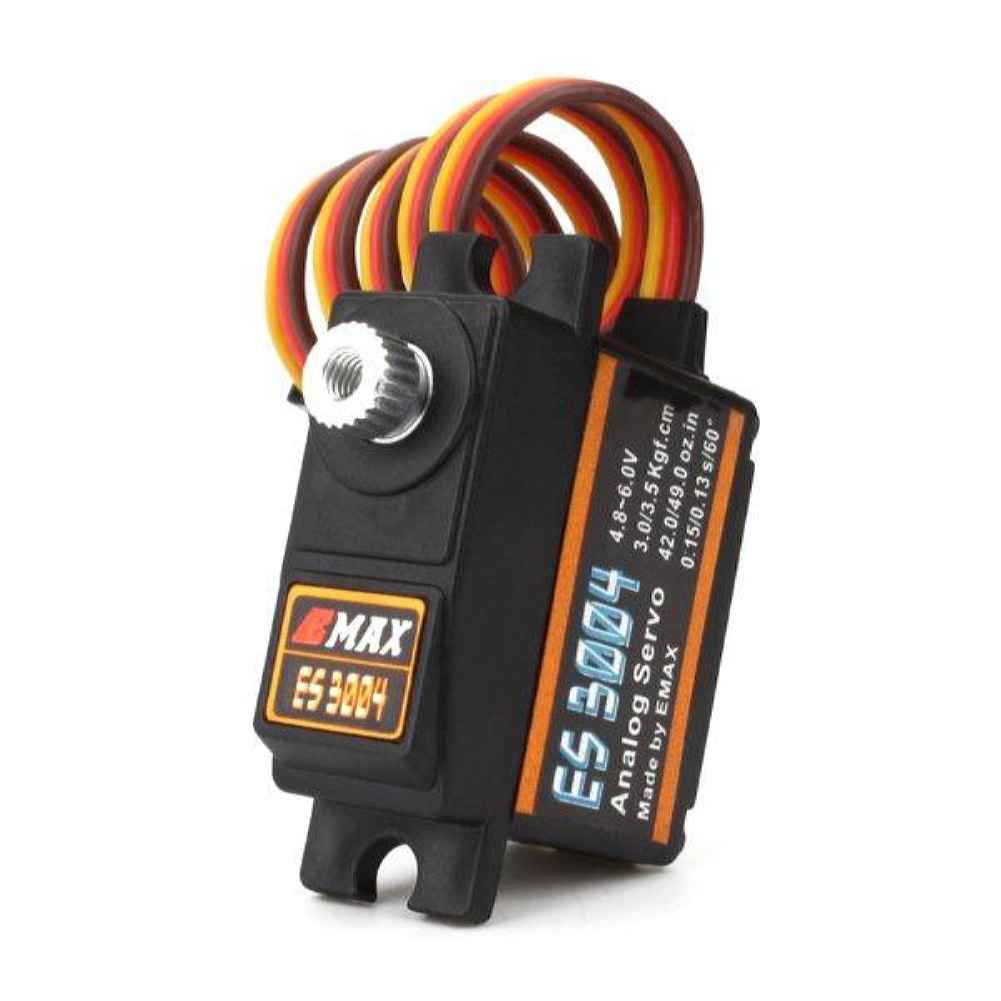

EMAX ES3004 17g 3.5kg 0.13sec 23T Metal Gear Analog Servo For RC Airplane (ES3104 Upgraded Version))

The EMAX ES3004 is an upgraded version of the ES3104, designed specifically for RC airplane enthusiasts. This analog servo features a durable metal gear and operates on a voltage range of 4.8V to 6.0V. With a stall torque of 3.5kg.cm at 6.0V and a maximum operating speed of 0.13 seconds per 60 degrees at no load, it ensures precise and reliable performance. The servo weighs just 17g and measures 28.45×13.00×31.10mm, making it a compact yet powerful component for your RC airplane. It is equipped with a 23T flower head and is compatible with FUT and JR plugs.

Specifications:

Brand Name

EMAX

Item Name

ES3004

Operating Voltage

4.8V – 6.0V

STD Direction

Counter Clockwise / Pulse Traveling 1500 to 1900 譙 sec

Stall Torque

4.8V

3kg.cm Max

Operating Speed

4.8V

0.15 sec/60‵ at no load

Stall Torque

6.0V

3.5kg.cm Max

Operating Speed

6.0V

0.13 sec/60‵ at no load

Size

28.45×13.00×31.10mm

Weight

17g

Plug Available

FUT;JR

Flower Head

23T

Maximum Travel

145‵呼10‵ (700-2300譙 sec)

Others

Bearing; Metal; Analog

Note: This is the upgraded version of ES3104.

Package Included:
1 x EMAX ES3004 17g Servo
